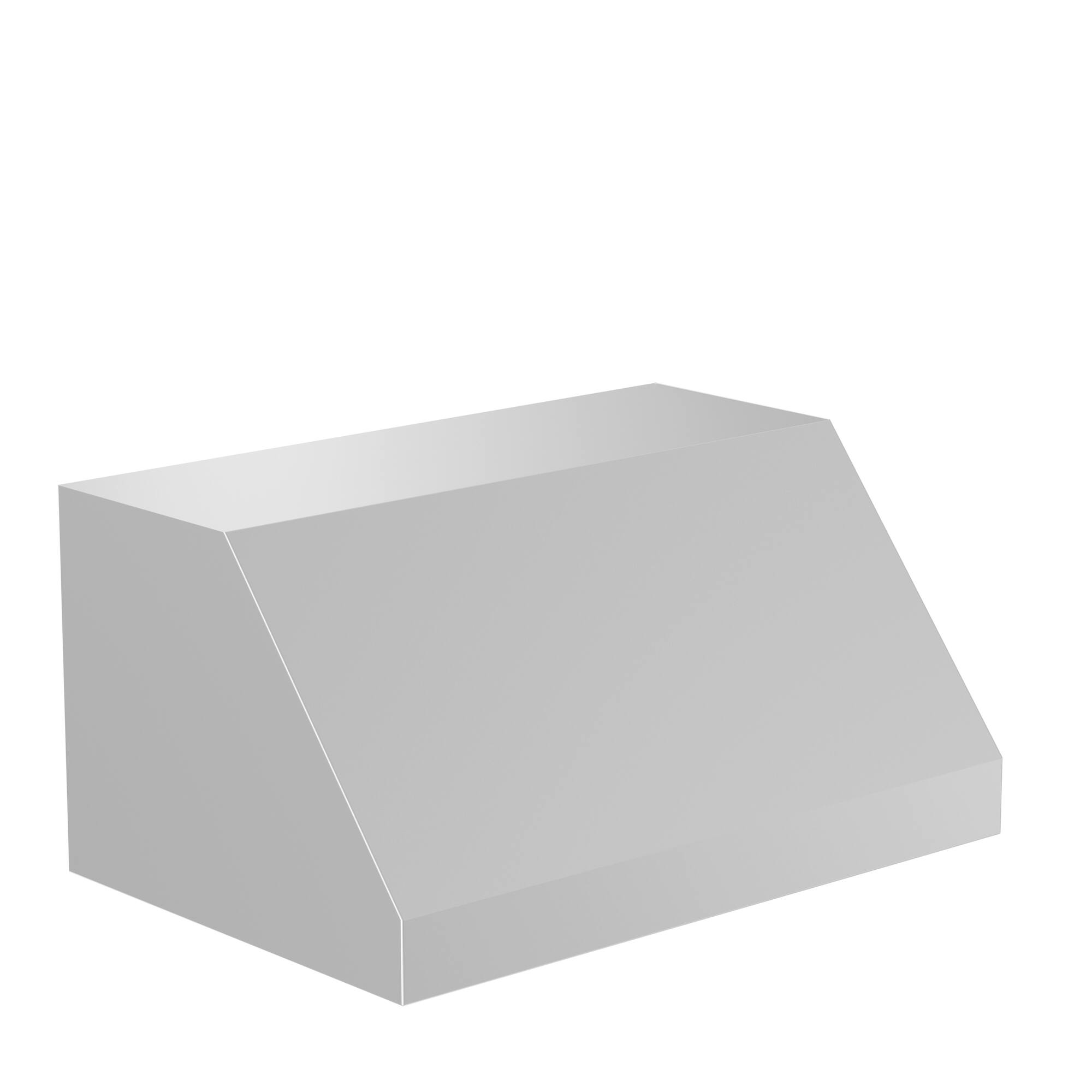

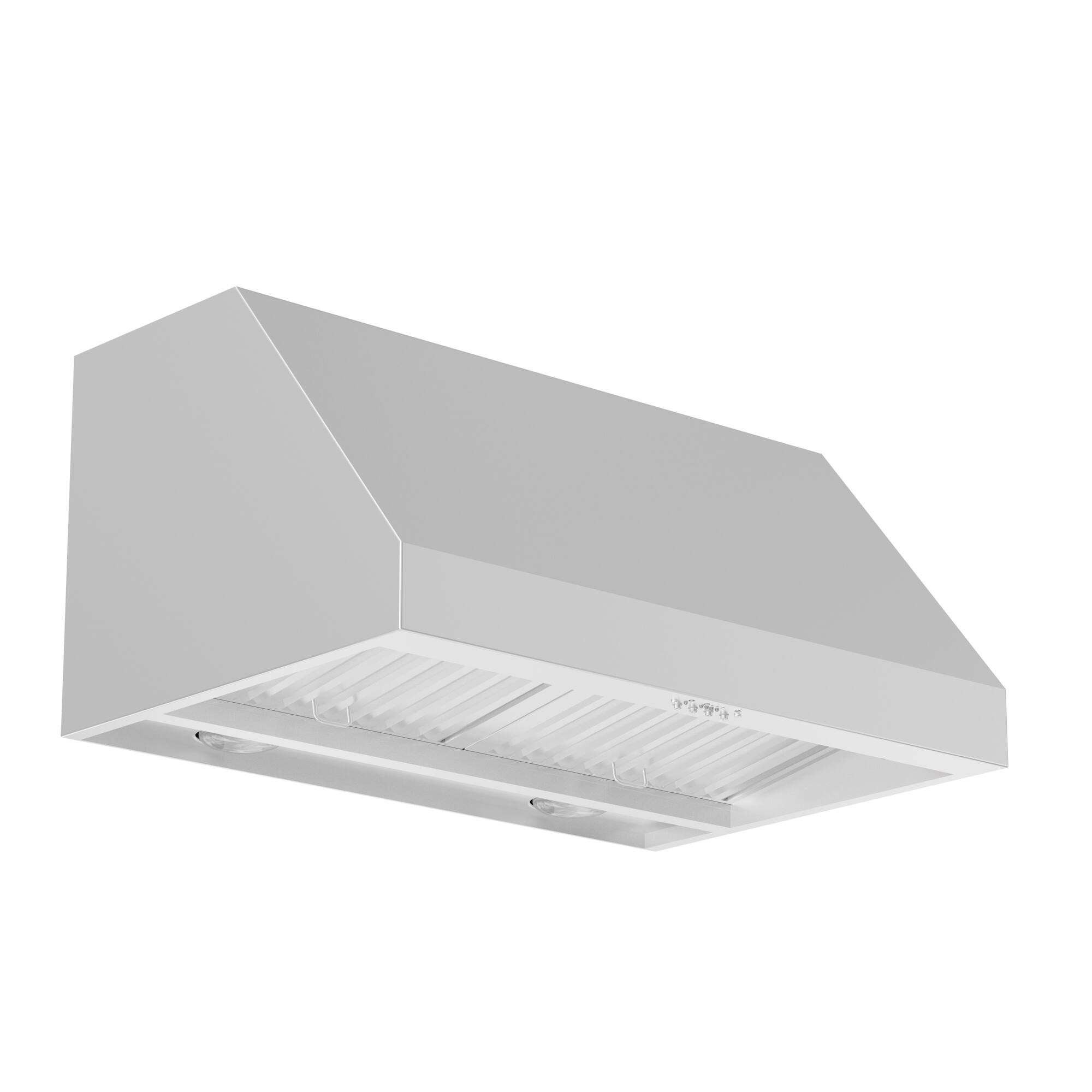

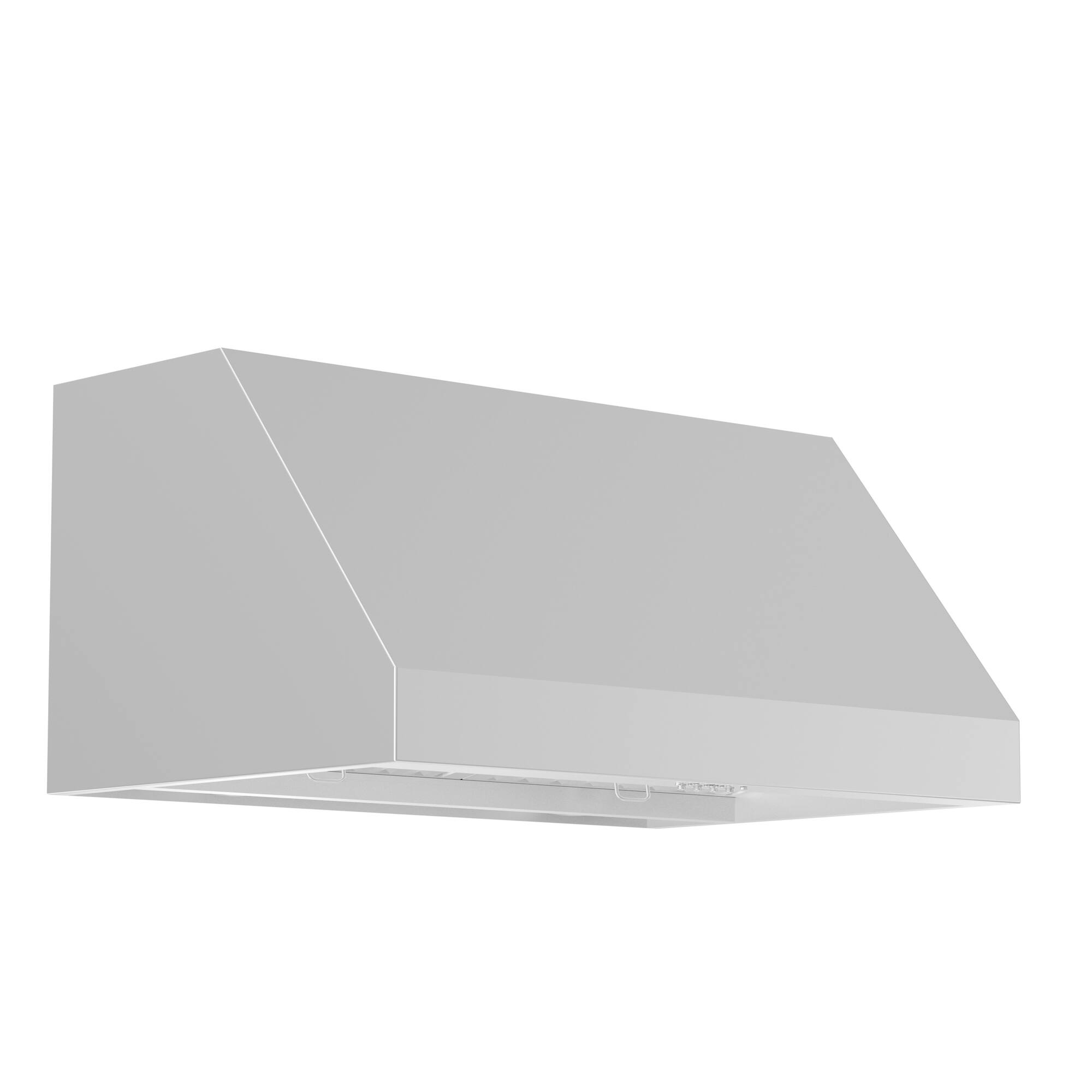

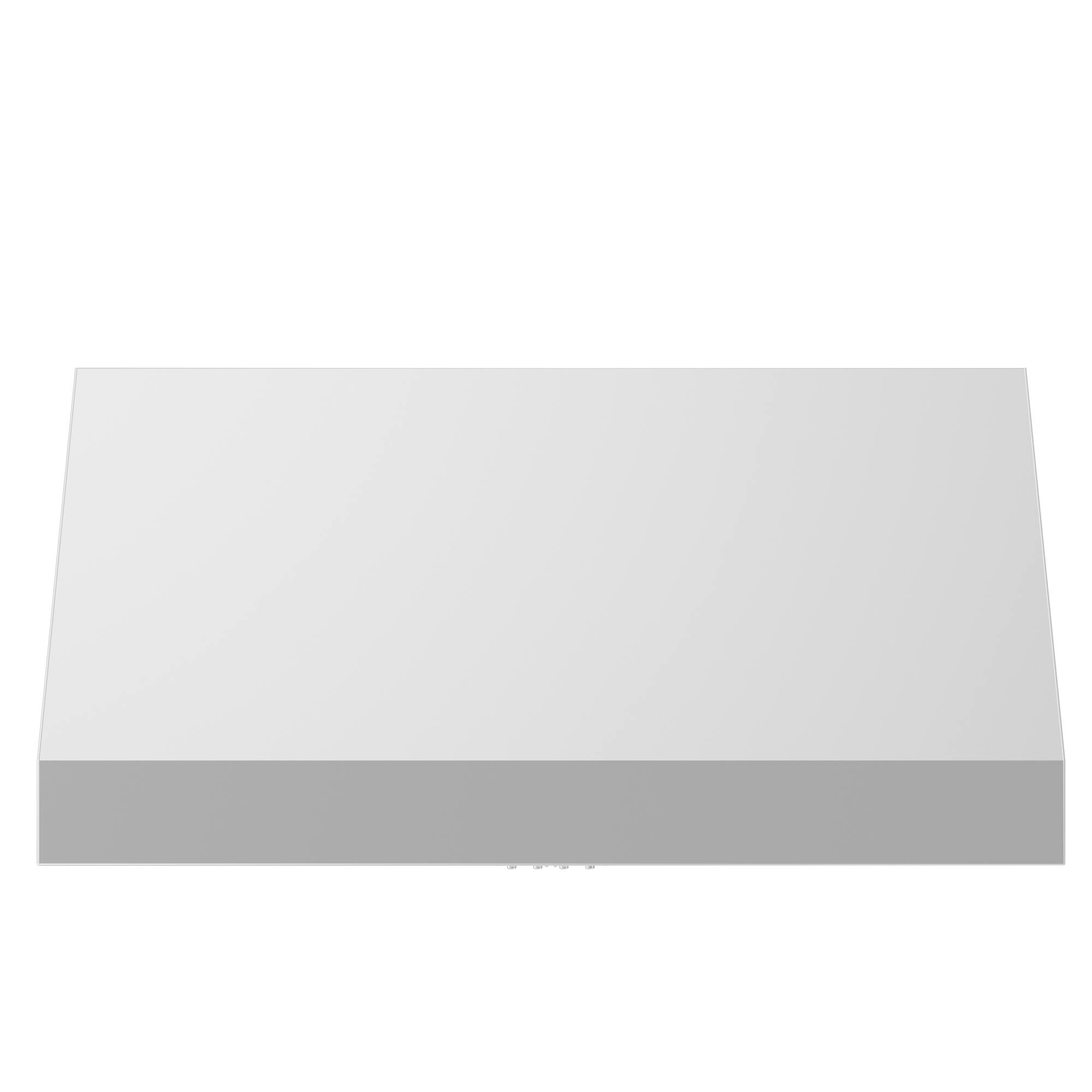

ZLINE - 30 inches - Externally Vented & Convertible - Under cabinet Range Hood - Stainless Steel
ZLINE - 30 inches - Externally Vented & Convertible - Under cabinet Range Hood - Stainless Steel
Color
Stainless Steel$39.99 delivery to
Related Item
Specifications
- Color FinishStainless steelProduct Height18 inchesProduct Width30 inchesProduct Depth24 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External, Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 523-30
- Product Name: 30" Convertible Vent Under Cabinet Range Hood in Stainless Steel
- Color: Stainless Steel
- Color Finish: Stainless steel

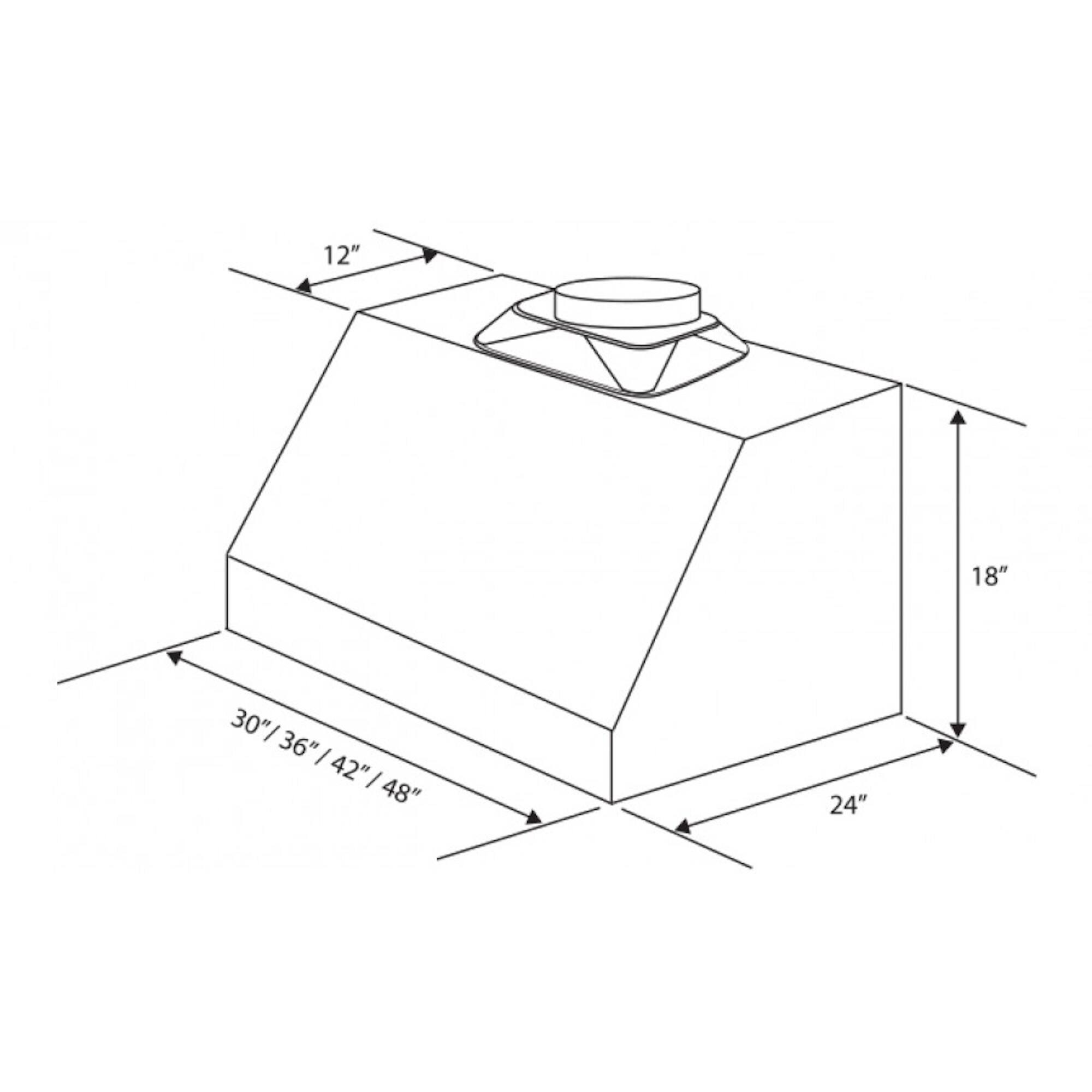

- Dimensions
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 75 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 8 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External, Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 4
- Control Type: Button
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 1000 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 280 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Voltage: 110 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 0 Years
- Other
- UPC: 814118020399
Luxury isn't meant to be left desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-30) provides a professional culinary experience by pairing built to last quality with a timeless style. Achieve ZLINE Attainable Luxury excellence with unrivaled performance designed to enhance your kitchen's capability.
- Convertible range hood: this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number RK) to reduce harmful odors
- Controls: Easy-to-use push button controls let's you easily control fan speed and lighting
- Airflow: 4-Speed fan control (480/560/650/700 CFM) to choose the appropriate air flow for your cooking situation
- Ductwork: Ductwork easily connects to the top of the range hood for external venting
- lighting: LED lighting illuminates the cooktop beneath the hood
- Convertible range hood: this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number RK) to reduce harmful odors
- Controls: Easy-to-use push button controls let's you easily control fan speed and lighting
- Airflow: 4-Speed fan control (480/560/650/700 CFM) to choose the appropriate air flow for your cooking situation
- Ductwork: Ductwork easily connects to the top of the range hood for external venting
- lighting: LED lighting illuminates the cooktop beneath the hood
Product Manuals
Q: What are the different fan speed options on this range hood?
A: The 30" Convertible Vent Under Cabinet Range Hood in Stainless Steel by ZLINE offers four distinct fan speed options. These options include Low Speed, suitable for light frying and boiling; Medium Speed 1, ideal for frying, wok cooking, and heavy boiling; Medium Speed 2, perfect for grilling; and High Speed, designed for intensive frying and wok cooking.
Q: Does this range hood come with LED lighting?
A: Yes, this range hood comes with LED lighting. The product description states "lighting: LED lighting illuminates the cooktop beneath the hood". Additionally, the installation manual provides instructions on how to replace the LED light bulbs.
Q: What are the dimensions of this range hood?
A: The dimensions of the 30" Convertible Vent Under Cabinet Range Hood in Stainless Steel by ZLINE are 26.25 inches in length, 14.6 inches in width, and 13 inches in height.
Q: What is the standard width of this range hood?
A: The standard width of the 30" Convertible Vent Under Cabinet Range Hood in Stainless Steel by ZLINE is 30 inches. This information is found in the "product specifications" section of the provided context.
Q: Does this range hood have built-in lights?
A: Yes, this range hood has built-in LED lights that illuminate the cooktop beneath the hood. The lighting can be turned on or off using the push-button controls on the range hood.
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity of the 30" Convertible Vent Under Cabinet Range Hood in Stainless Steel by ZLINE is 1000 cubic feet per minute (CFM). This information can be found in the "Maximum Air Flow Capacity" section of the product specifications.
Q: Can this range hood be converted to ductless operation?
A: Yes, this ZLINE 30" Convertible Vent Under Cabinet Range Hood can be converted to ductless operation. The product description states that "this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number RK) to reduce harmful odors."
Q: What is the voltage requirement for this range hood?
A: The voltage requirement for the 30" Convertible Vent Under Cabinet Range Hood in Stainless Steel by ZLINE is 110 volts. This information can be found in the product specifications section of the provided context.
