ZLINE - 30 inches - Externally Vented - Wall Range Hood - Stainless Steel
- Key Specs
- Color Finish: Slate
- Product Height: 13 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: KBTT-30
- Product Name: 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
- Color: Stainless Steel
- Color Finish: Slate
- Dimensions
- Product Height: 13 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LCD
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 817299025061

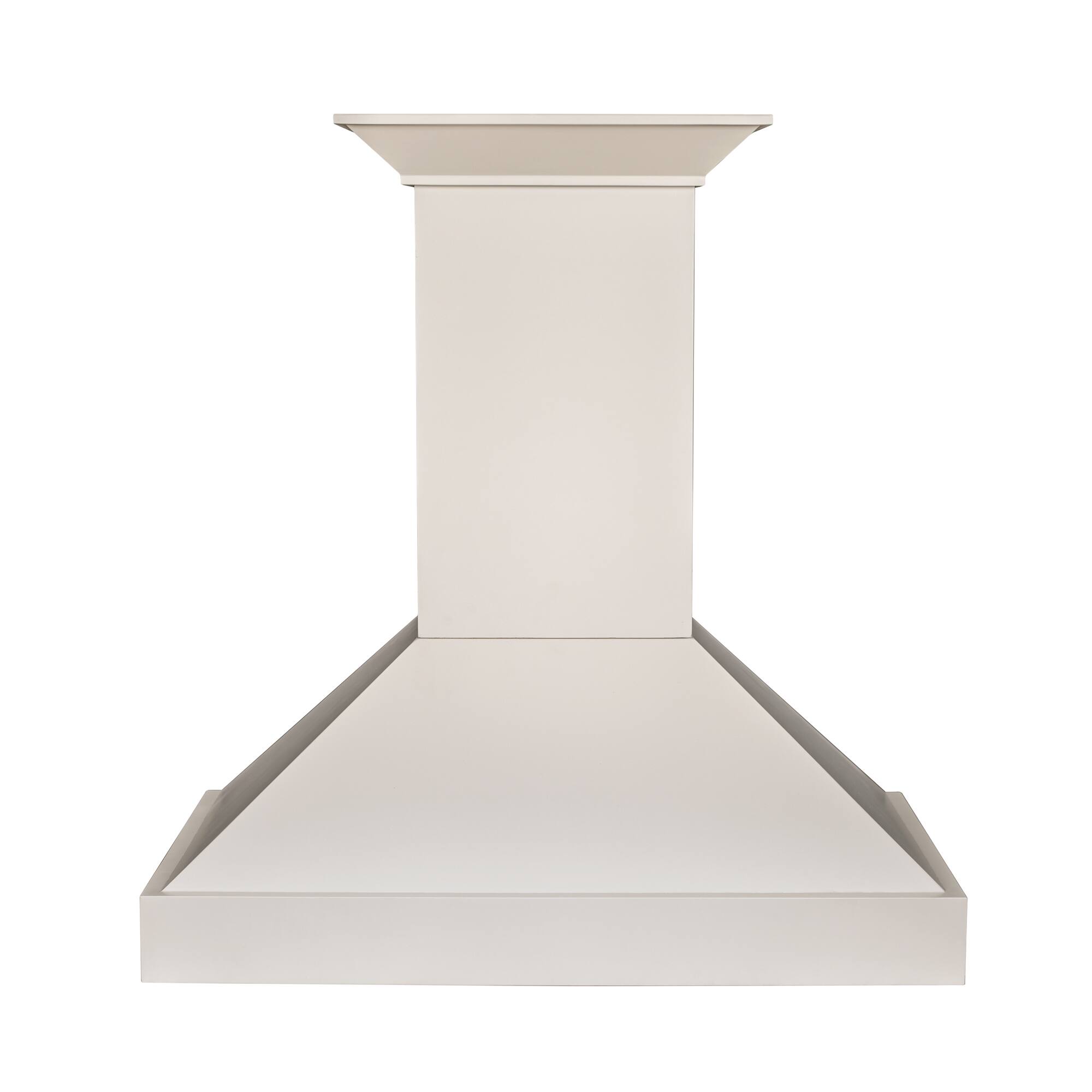

The ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
- Wall Mount Design: This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
- Cottage White Wood Finish: Featuring an elegant cottage white hand-crafted pine wood finish paired with a stainless steel inner frame to add a rustic flair to any custom kitchen design
- Convenient Control Panel: Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control: Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation: The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning: This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- LED Lighting: ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements: Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Standard Ductwork: ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- Warranty: ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
- Additional Assembly Required: This product ships in multiple boxes and will require minimal assembly upon arrival
Whats Included
- 36" chimney with crown molding
- ZLINE Designer Wood 30" Externally Vented Range Hood
Product Manuals
Q: Are the filters on this range hood dishwasher safe?
A: Yes, this range hood comes with dishwasher safe stainless steel baffle filters.
Q: What type of lighting does this range hood use?
A: This range hood uses built-in LED lights to illuminate your cooking space.
Q: What type of ductwork does this range hood require?
A: This ZLINE range hood is designed to fit standard 6-inch round ductwork.
Q: Does this ZLINE range hood come with a light?
A: Yes, this ZLINE range hood has built-in LED lighting to illuminate your cooktop.
Q: How many fan speeds does the ZLINE range hood have?
A: The ZLINE range hood has 4 fan-speed settings to adjust ventilation.
Q: Are the filters on this ZLINE range hood dishwasher safe?
A: Yes, the ZLINE range hood has dishwasher-safe stainless steel baffle filters for easy clean-up.
Q: Are the filters on this range hood dishwasher safe?
A: Yes, this range hood comes equipped with dishwasher-safe stainless steel baffle filters.
Q: What is the maximum air flow capacity of this range hood?
A: This ZLINE range hood has a maximum air flow capacity of 400 cubic feet per minute.
