ZLINE - 40 inches - Externally Vented - Range Hood Insert - Brushed Stainless Steel
Need-haul away?
Related Item
Specifications
- Color FinishStainless steelProduct Height14 inchesProduct Width40 inchesProduct Depth18 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 40 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 698-40
- Product Name: 40" Externally Vented Range Hood
- Color: Brushed Stainless Steel
- Color Finish: Stainless steel

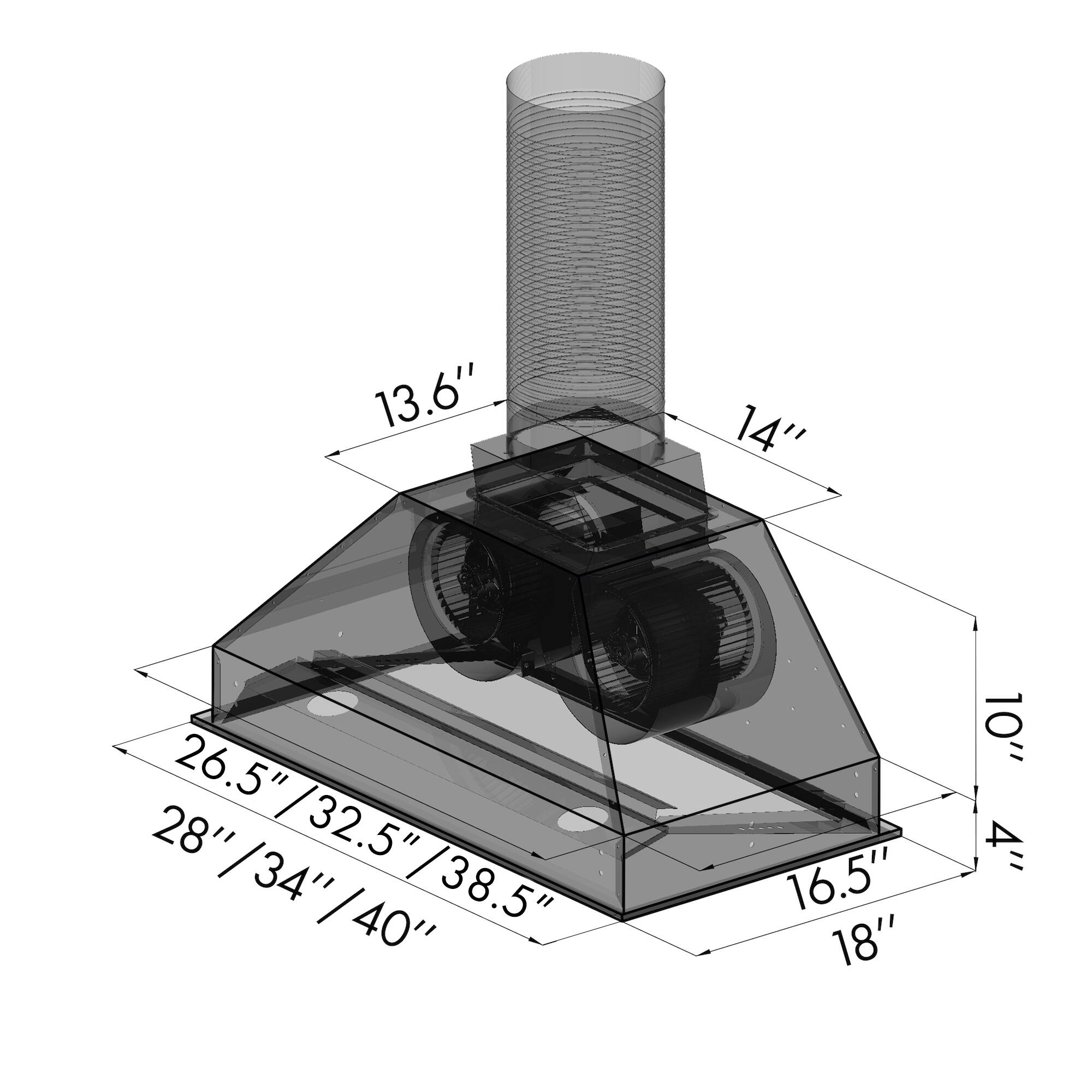

- Dimensions
- Product Height: 14 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 40 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 40 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 50 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 38 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 16 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LCD
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 855187005078
Experience ZLINE Attainable Luxury® with industry-leading kitchen and bath products that provide an elevated luxury experience, all designed in Lake Tahoe, USA. The ZLINE 698-40 is a 40 in. stainless steel range hood insert with a modern design and built-to-last quality, making it a great addition to any kitchen. This hood's high-performance, 700 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking. With its classic 430 grade stainless steel, this range hood contains rust, temperature, and corrosion-resistant properties to ensure a durable vent hood that will last for years to come. Enjoy modern features, including built-in LED lighting for an illuminated culinary experience and dishwasher-safe stainless steel baffle filters for easy clean-up. This range hood insert has a ducted vent with easy, simple installation. ZLINE Kitchen and Bath stands by all products with its manufacturer parts warranty. The 698-40 ships next business day when in stock.
- Powerful air flow: Requires ducted, external venting
- Easy-to-use push button controls: Let you easily control fan speed and lighting
- 4-Speed Fan Control: Choose the appropriate air flow among 280/420/560/700 CFM for your cooking situation
- Powerful Ventilation: The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area
- Easy Installation: ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation
- Minimal Cleaning: This range hood includes dishwasher-safe stainless steel baffle filters
- LED Lighting: ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Warranty: ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
Whats Included
- ZLINE 40" Externally Vented Range Hood
Product Manuals
Q: How many fan speed settings does this range hood insert offer?
A: This range hood insert offers four fan speed settings. The speed settings are low, medium 1, medium 2, and high. Each speed setting is designed for different cooking tasks, allowing for precise control over the ventilation in your kitchen.
Q: What is the warranty coverage provided by ZLINE for this range hood insert?
A: ZLINE provides a three-year warranty for parts and a lifetime warranty for the motor from the original purchase date for the original purchaser of the range hood insert. The warranty covers manufacturing defects but excludes damages resulting from improper use, unauthorized service, or non-residential installations.
Q: What is the noise level of this range hood insert at its highest fan speed in decibels?
A: The noise level of the 40 in. Outdoor Range Hood Insert (698-304-40) by ZLINE at its highest fan speed is 52 decibels. This information can be found in the product features section of the provided context.
Q: What is the product weight of this range hood insert?
A: The product weight of the 40 in. Outdoor Range Hood Insert (model number: 698-304-40) by ZLINE is 50 pounds. This information is found in the product specifications section of the provided context.
Q: What is the voltage requirement for operating this range hood insert?
A: The voltage requirement for operating the ZLINE 40 in. Outdoor Range Hood Insert (model number 698-304-40) is 110 volts/60 hertz (110V/60HZ).
Q: What is the cut-out depth required for installing this range hood insert?
A: The cut-out depth required for installing the ZLINE 40 in. Outdoor Range Hood Insert (model number 698-304-40) is 16 1/2 inches.
Q: What is the minimum installation height above the cooktop required for this range hood insert?
A: The minimum installation height above the cooktop required for this ZLINE 40 in. Outdoor Range Hood Insert (model number: 698-304-40) is 30 inches. The maximum installation height is 36 inches.
Q: What is the maximum installation height above the cooktop allowed for this range hood insert?
A: The maximum installation height above the cooktop allowed for this ZLINE 40 in. Outdoor Range Hood Insert (model: 698-304-40) is 36 inches. The minimum installation height is 30 inches.
