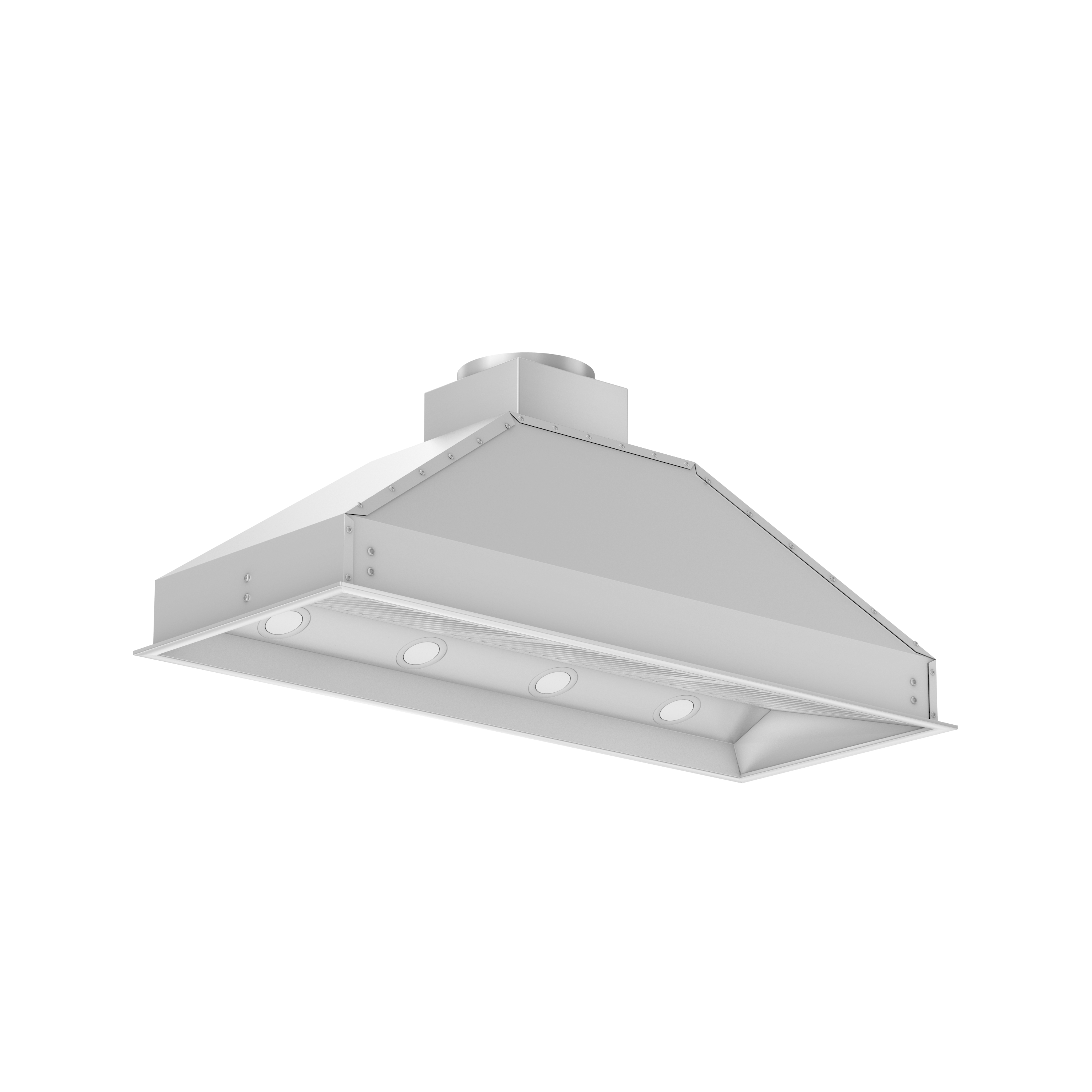

ZLINE - 46 inches - Externally Vented - Range Hood Insert - Brushed Stainless Steel
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height14 1/5 inchesProduct Width46 inchesProduct Depth18 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 698-46
- Product Name: 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-46)
- Color: Brushed Stainless Steel
- Color Finish: Stainless steel

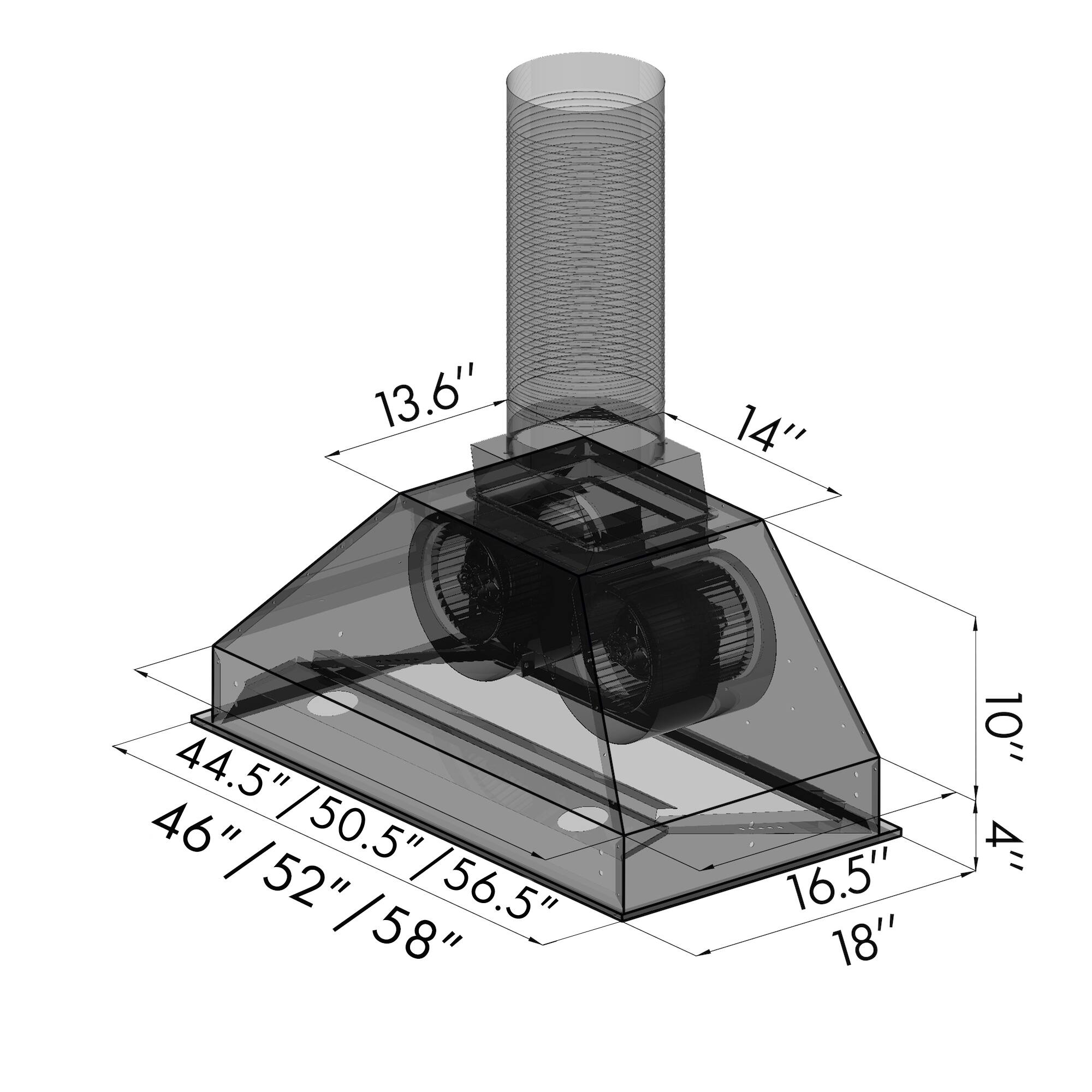

- Dimensions
- Product Height: 14 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 46 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 44 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 16 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LCD
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 855187005085
The ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-46) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

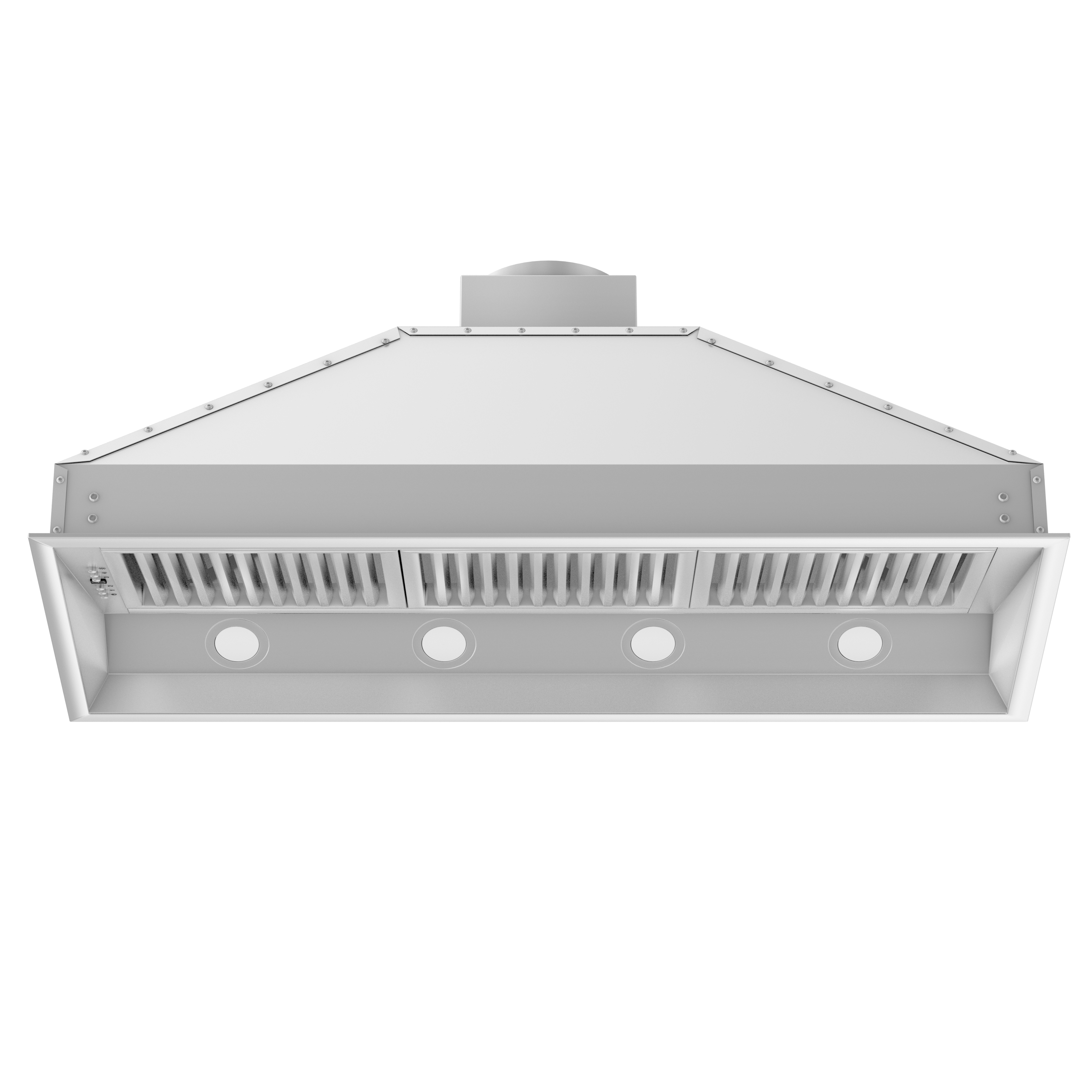

- Integrated Insert Design: This ZLINE wall mount range hood insert is designed to install seamlessly into custom-built cabinetry set-ups, providing professional-grade power without the visible exterior shell
- Corrosion-Resistant Stainless Steel: Manufactured with brushed 430 grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come
- Convenient Control Panel: Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control: Choose the appropriate air flow among 280/420/560/700 CFM for your cooking situation
- Powerful Ventilation: The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning: This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- Standard Ductwork: ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
- LED Lighting: ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements: Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Warranty: ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
Whats Included
- ZLINE 46" Externally Vented Range Hood
Product Manuals
Q: What is the voltage requirement for this range hood insert?
A: The voltage requirement for the 46" Outdoor Range Hood Insert (model number 695-304-46) by ZLINE is 110V/60HZ. This information can be found in the product features section of the provided context.
Q: Are the baffle filters dishwasher-safe?
A: Yes, the baffle filters of the ZLINE 46" Outdoor Range Hood Insert (model: 695-304-46) are dishwasher-safe. The product features section of the context explicitly states that the baffle filters are made of stainless steel and are dishwasher-safe.
Q: Does this range hood insert have built-in LED lighting?
A: Yes, the ZLINE 46" Outdoor Range Hood Insert (model: 695-304-46) has built-in LED lighting for illuminated cooking. The product description mentions "Enjoy modern features, including built-in LED lighting for illuminated cooking."
Q: What is the maximum height above the cooktop that this range hood insert can be installed?
A: The maximum height above the cooktop that this range hood insert can be installed is 36 inches. This information can be found in the "product specifications" section of the context, where it states "Maximum Installation Height Above Cooktop: 36 inches".
Q: What is the product height of this range hood insert?
A: The product height of the 46" Outdoor Range Hood Insert (model number: 695-304-46) by ZLINE is 14 1/5 inches.
Q: How deep of a cut-out is required for this range hood insert?
A: The cut-out depth required for the installation of this range hood insert is 16 1/2 inches. This information can be found in the product specifications section of the provided context.
Q: What is the airflow capacity of this range hood insert at its highest setting?
A: The airflow capacity of the 46" Outdoor Range Hood Insert (model: 695-304-46) by ZLINE at its highest setting is 700 cubic feet per minute (CFM). This information is provided in the product features section of the provided context.
Q: How much does this range hood insert weigh?
A: The product weight of the 46" Outdoor Range Hood Insert (model number: 695-304-46) by ZLINE is 55 pounds.
