Specifications
- Color FinishStainless steelProduct Height10 1/2 inchesProduct Width20 3/4 inchesProduct Depth15 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 20 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: Amazon Alexa, Google Assistant, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Bosch
- Model Number: HUI80553UC
- Product Name: 800 Series 30" Externally Vented Cabinet Depth Custom Insert Range Hood with WiFi and 600 CFM Blower
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 20 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 25.56 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 26 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1-year limited
- Warranty - Labor: 1-year limited
- Compatibility
- Works With: Amazon Alexa, Google Assistant, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225961246
The 30" cabinet-depth custom insert blends with custom cabinetry for a premium kitchen aesthetic. Multiple speed settings remove odors quickly and effectively, with minimal noise to maintain a peaceful kitchen. The dishwasher-safe filter makes cleanup convenient. With the Home Connect app, the hood automatically adjusts the power level to match your Bosch induction cooktop power for a seamless cooking experience. Comes with a 300 CFM integral blower.

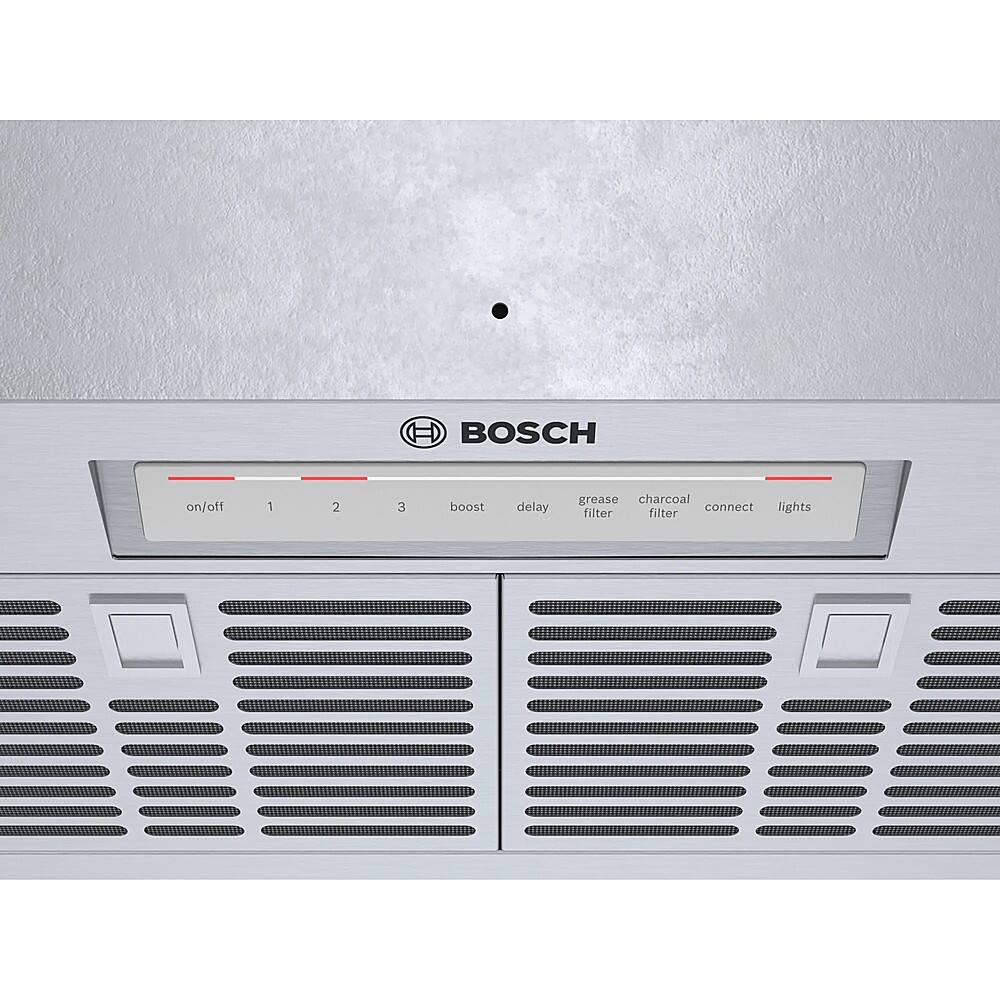

- Simple Touch Controls: Touch controls offer simple and intuitive operation
- Adjustable Fan Speeds: 4 variable fan speeds accommodate all your cooking needs
- Powerful Blower: 600 CFM blower quickly and effectively removes smoke and odors from the air
- Vertical Exhaust: Vertical exhaust lets you connect the ductwork to the top of the range hood
- Dishwasher-Safe Filter: The dishwasher-safe aluminum mesh filter makes cleanup simple and convenient.
- LED Lighting: 2 LED lights brightly illuminate your cooking surface
- Easy Installation: Designed to fit 8" round ductwork for easy installation
- Modern Design: The cabinet depth custom insert blends with custom cabinetry for a modern, timeless kitchen.
- Warranty: One year limited manufacturer's warranty
- Quiet Operation: 0.7 Sones working noise level is quiet and peaceful, without sacrificing extraction power
- Wi-Fi Enabled: With the Home Connect app, the hood automatically adjusts the power level to match your Bosch induction cooktop power.
Whats Included
- 800 Series 30" Range Hood
- Owner's manual
Product Manuals
Q: What is the warranty period for this range hood?
A: The Bosch 800 Series 30" Externally Vented Cabinet Depth Custom Insert Range Hood with WiFi and 600 CFM Blower comes with a one-year limited manufacturer's warranty on parts and labor.
Q: How tall is this range hood?
A: The product height of the Bosch 800 Series 30" Externally Vented Cabinet Depth Custom Insert Range Hood with WiFi and 600 CFM Blower is 10 1/2 inches.
Q: What is the minimum height above the cooktop that this range hood should be installed?
A: The minimum installation height above the cooktop for this Bosch range hood is 30 inches. This information can be found in the product specifications section, under the "Minimum Installation Height Above Cooktop" row.
Q: How wide is this range hood?
A: The Bosch 800 Series 30" Externally Vented Cabinet Depth Custom Insert Range Hood with WiFi and 600 CFM Blower has a product width of 20 3/4 inches and a standardized width of 30 inches.
Q: What is the required cut-out depth for this range hood?
A: The required cut-out depth for this Bosch range hood is 10 1/4 inches. This information can be found in the product specifications section, under the "Cut-Out Depth" category.
Q: How deep is this range hood?
A: The product depth of the Bosch 800 Series 30" Externally Vented Cabinet Depth Custom Insert Range Hood is 15 inches. The cut-out depth required for installation is 10 1/4 inches.
Q: How many fan speed settings does this range hood offer?
A: This Bosch range hood offers four variable fan speed settings to accommodate various cooking needs. The fan speed can be adjusted to remove odors quickly and effectively while maintaining a peaceful kitchen environment.
Q: What is the maximum CFM of this range hood?
A: The maximum CFM of this range hood is 600 CFM. This information can be found in the product name: "800 Series 30\\" Externally Vented Cabinet Depth Custom Insert Range Hood with WiFi and **600 CFM** Blower".
