About This Item
- General
- Brand: Mount-It!
- Model Number: MI-1771B
- Product Name: Single Monitor Arm Desk Mount
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Arm, Tilting, Swiveling
- Pan: true (Angles to the left or right for customized viewing and/or accessibility.)
- Adjustable Height: true
- Cord Storage: true
- Number of Monitors Supported: 1
- Compatibility
- Maximum Weight Capacity: 20 pounds (The maximum load that can be supported by the product.)
- Compatibility: Most flat-panel monitors from 19" to 32" with VESA size of 75mm x 75mm or 100mm x 100mm
- Mount Location: Desktop
- Maximum Television Size: 32 inches
- VESA Wall Mount Standard: 100mm x 100mm, 75mm x 75mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 13 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Aluminum, Metal, Plastic
- Warranty
- Warranty - Parts: Limited Lifetiome
- Warranty - Labor: 5 years
- Other
- UPC: 713012040017

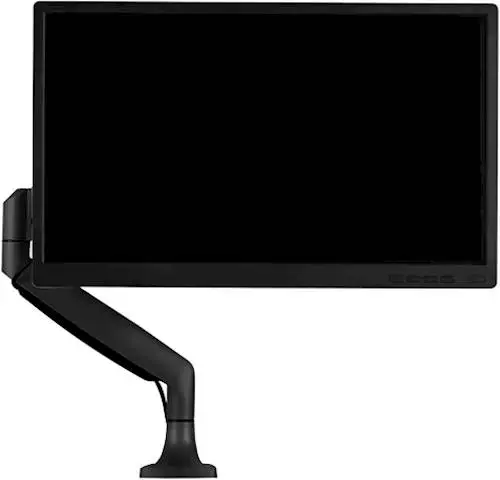

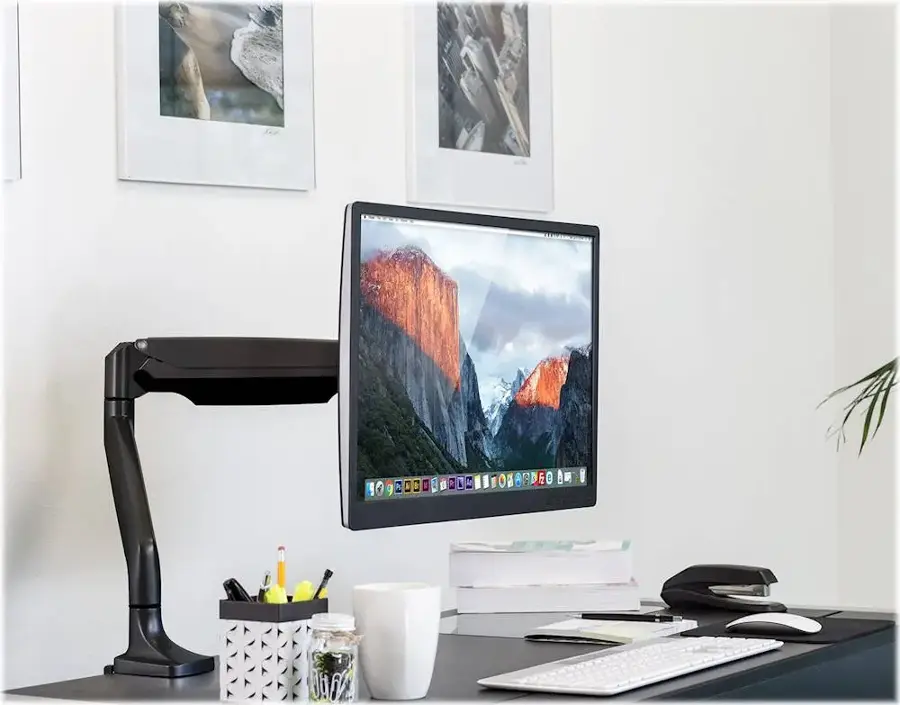

Free up space on your desktop with this Mount-It! full-motion single monitor desk mount. The full-motion arms tilt, swivel and adjust in height for a customized setup, while the cable management system tucks all connecting cables away, increasing neatness. This Mount-It! full-motion single monitor desk mount has a clamp at the base for easy, secure installation on the edge of a desk.

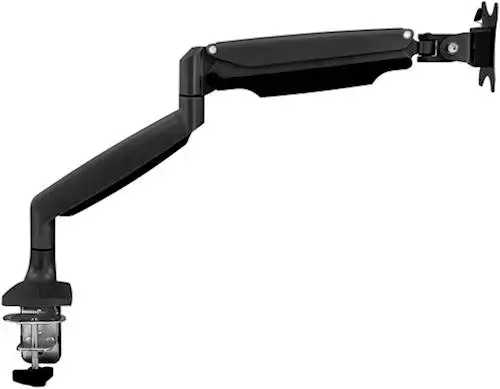

- Widely compatible: Fits all brands of 19-32" screens, with a maximum support weight of 20 pounds each, using the 75x75mm or 100x100mm VESA square bolt hole pattern found on the back of the monitors. Comes with interchangeable C-clamp or grommet base mount for use on desktops up to 3.3 inches thick.

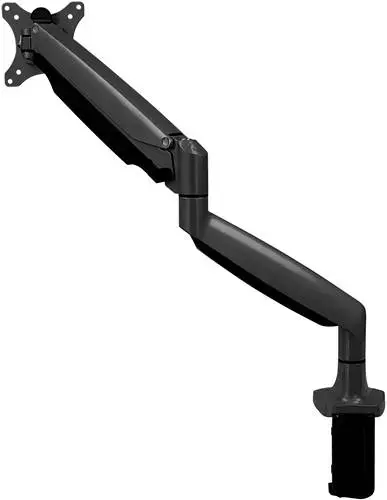

- Durable construction and efficient design: Gas spring monitor arm is heavy duty, counterbalanced and makes for effortless adjustments and comes with integrated, hide-away cable management. Aircraft grade aluminum alloy construction will stand the test of time.

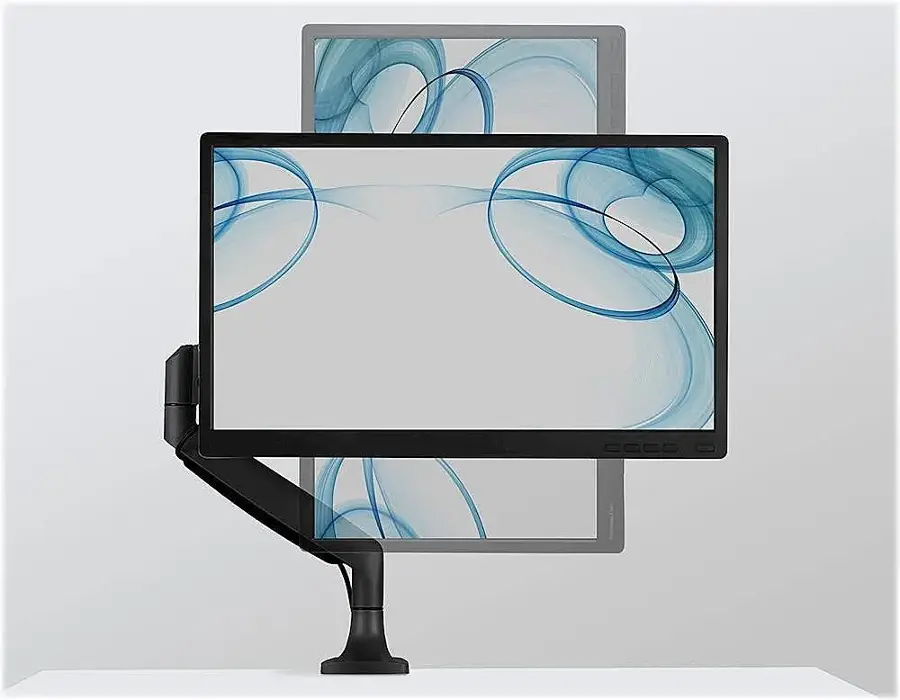

- Fully adjustable: Single arm monitor mount can tilt, swivel, raise and/lower. Screen can be rotated a full 360 degrees for portrait or landscape orientation. Use included hex key to turn the hex bolt on top of computer monitor arm to adjust the gas spring tension to hold screens in place.
- Increases viewing comfort: Helps reduce eye, back, and neck strain.

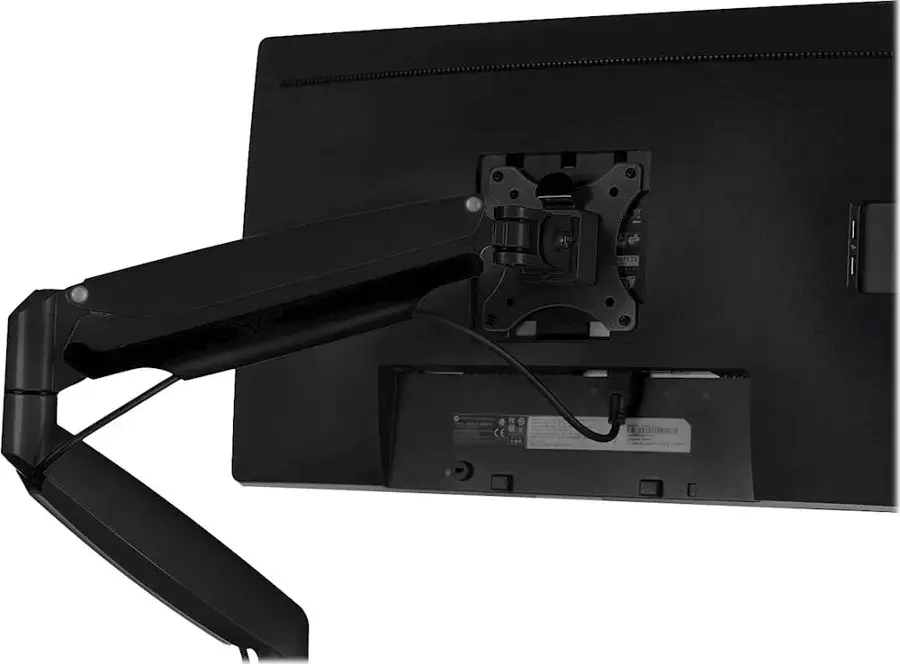

- Easy installation: Monitor arm desk mount quickly mounts to desks and comes with all mounting hardware, tools, and instructions necessary for assembly. Quick-release detachable VESA plate mounts to back of monitor first, then slides onto arm in seconds!
- Peace of mind: Backed by manufacturer's five year warranty.
Whats Included
- Mount-It! Single Monitor Arm Desk Mount
- Mounting hardware
Product Manuals
Q: How big is the clamp? My desk has a bigger tabletop - over 3 inches. Will the clamp fit?
A: Box says max 3.3” but the instructions show different screw holes you can use to make that clamp bigger. See attached pictures. Maybe those will help...
A: I wouldn't be comfortable with a 1" lip for this monitor arm's clamp option. It does provide an option if you're willing to drill a hole through your desk, and would work if you had one of those cord ports through the top of the desk. My makeshift desk is a bar table with a 1.5" lip, and it works, because most of the bottom clamp touches. You can see in the photo that the sides and forward part are carrying the weight, not the back lip (because that clamp is domed, and an outline of the dome is what contacts the desk). at 1.5", most of the sides contact the table lip. I haven't tried sliding it back to only a 1" bite to see if it would work or not. I have used 2 different 32" monitors with this arm and flexed it both forwards and backwards, pulling up and sideways on the monitor and arm, and it has not slipped. The bottom clamp itself measures 1 7/8" deep, and the max depth would be 2 1/8" for a table with a deeper lip.
A: Yes, this arm works with 100mm. You can see two sets of mounting holes in the product image - the outer holes are the 100mm mounting point, while the inner holes are the 75mm mounting points. I use this arm for my ~17lb 32-inch Dell monitor without issue.
Q: How far does the mount extend? You give all dimensions except that.
A: Hello Larry, Once fully extended, this mount extends 24".
A: It can be mounted for 2 different vesa sizes.... Honestly, without going through everything in length if it's a Samsung made within the past decade and there's 4 holes in the back you'll be good to go. I use mine daily with my LG Ultragear and wouldn't change it out for anything else. Great product!
A: Hello, No this mount does not allow to drop below the base of the mount.
A: I have three of these mounts. They will work fine with a 1- 1/2" lip. Make sure to adjust the spring tensioner by turning the screw to the left. These are very nicely designed mounts.
A: Hello Coccia, Yes, 2 of the swivel points is Rotation: 360 degrees.
Mount-It! - Single Monitor Arm Desk Mount - Black
Reviews
Customers are saying
Customers express satisfaction with the Single Monitor Arm Desk Mount for its easy installation, adjustability, and cable management features. They appreciate the space-saving design and find it to be a great value for the price. However, some customers have concerns about its weight capacity.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Compare similar products
$79.99
Free up space on your desktop with this Mount-It! full-motion single monitor desk mount. The full-motion arms tilt, swivel and adjust in height for a customized setup, while the cable management system tucks all connecting cables away, increasing neatness. This Mount-It! full-motion single monitor desk mount has a clamp at the base for easy, secure installation on the edge of a desk.
$41.99
Elevate your workspace to new heights with our full-motion monitor stand designed to enhance productivity and comfort in any setting. Crafted for office, business, or home environments, this versatile stand revolutionizes your workstation experience. Say goodbye to neck strain and hello to a new ergonomic way of working as you effortlessly adjust your monitor to eye level, promoting a healthier and more efficient setup. With its stable, free-standing base, this stand offers unparalleled flexibility, allowing you to place it anywhere on your desk without worry. Whether you're working solo or collaborating with colleagues, our stand's 90 degree swivel, 90 degree tilt, and 360 degree screen rotation features enable seamless customization for optimal viewing angles, ensuring both comfort and productivity. Plus, with compatibility for VESA patterns of 75x75 and 100x100, it supports monitors weighing up to 17.6lbs and screen sizes ranging from 13" to 32", making it a perfect fit for a wide range of setups. Experience the freedom to work the way you want with our adjustable monitor stand.
$59.99
The JTSA101 is a gas spring monitor mount. The arm can hold max a 32” screen weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
$89.99
The ACGAM MAS-2S heavy-duty desktop gas spring monitor mount boasts an impressive maximum bearing capacity of 44 lbs per screen, allowing it to support a range of monitor sizes and enabling users to easily raise their monitors to eye level for reduced neck and eye strain. The premium spring tension mechanism ensures proper weight balance and smooth monitor adjustments. This feature not only enhances usability but also guarantees the safety and stability of your monitors and mounts, preventing any potential accidents. The ACGAM MAS-2S gas spring monitor arm provides a range of adjustments, including tilt angles from -20° to +50°, swivel angles from -90° to +90°, and screen rotation from -180° to +180°. Additionally, it allows a maximum height of 19.69 inches and a maximum extension of 18.6 inches per screen. This versatility enables you to customize your desired viewing position and enhances your workflow. Compatible with 75x75 and 100x100mm VESA sizes, the ACGAM heavy-duty desktop gas spring monitor arm can support monitors weighing between 4.4 and 44 lbs and screen sizes from 17” to 49”. This versatility caters to a range of user needs, whether for office work or gaming.
| Pros for Mount-It! - Single Monitor Arm Desk Mount - Black | |||
|---|---|---|---|
| Sturdiness, Price, Monitor Size, Cable Management, Assembly | Sturdiness, Price | Price, Ease of use, Adjustability | There were no pros for this product— |
| Cons for Mount-It! - Single Monitor Arm Desk Mount - Black | |||
| There were no cons for this product— | Height Adjustment | Monitor Tilt | There were no cons for this product— |
