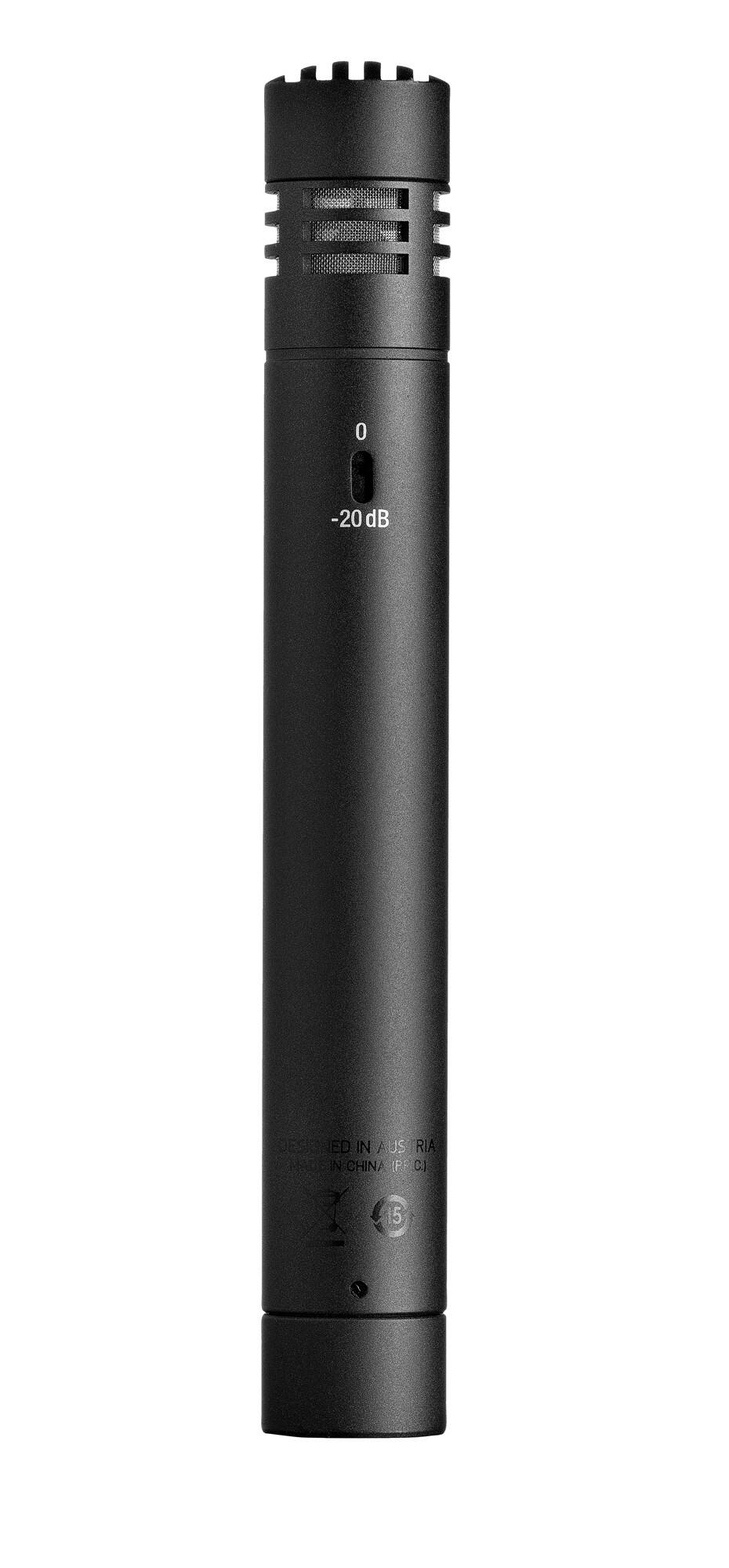

AKG - Wired P170 Small Diaphgram Condenser Microphone - Black
Related Item
About This Item
- Key Specs
- Polar Pattern: Cardioid
- Output(s): XLR
- Microphone Type: Condenser microphones
- Wireless: false
- General
- Brand: AKG
- Model Number: 3101H00410
- Product Name: AKG Wired P170 Small Diaphgram Condenser Microphone
- Color: Black
- Dimensions
- Product Height: 6.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 0.9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 0.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.3 pounds (The out of box weight of the item.)
- Audio
- Polar Pattern: Cardioid
- Output(s): XLR
- Phantom Power: true (Powers devices with onboard electronics that require minimal electricity, such as microphones. DC power is returned to the device via the same cable that carried the signal from it.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Features
- Microphone Type: Condenser microphones
- Wireless: false
- Other
- UPC: 885038037040
The P170 is a small-diaphragm condenser microphone for recording of overheads, percussions, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. Founded in 1947, AKG is a divison of Harman and related JBL brands.
- Rugged all-metal body and robust design: Withstands tough day-to-day use
- Switchable attenuation pad: For high SPL applications up to 155 dB SP
- Cardioid polar pattern: The microphone is most sensitive to sounds arriving from in front of it while picking up much less of sounds arriving from the sides or rear (from monitor speakers or neighboring instruments). This makes the microphone equally suited for recording and onstage use.
- Gold-sputtered diaphragm: The diaphragm is made of a plastic foil that is gold-sputtered on one side only to prevent shorting to the back electrode even at extremely high sound pressure levels
- All-metal body: The all-metal body adds to the rejection of RF interference so you can use the microphone near transmitter stations and along with wireless microphones or other communications equipment. The extremely rugged, heavy body and sturdy front grill protect the microphone from damage from tough handling on stage.
- High headroom, minimum distortion: Capable of handling sound pressure levels up to 155 dB without introducing perceptible distortion and built to resist high temperatures and humidity, the microphone will give excellent results in a wide range of applications
- Switchable preattenuation pad: Switch on the microphone front lets you increase the headroom by 20 dB for distortionfree close-in recording. The preattenuation pad prevents the microphone's output level, particularly at low frequencies, from overloading the miniature transformers used in many mixer input stages, etc.
- Rugged all-metal body and robust design: Withstands tough day-to-day use
- Switchable attenuation pad: For high SPL applications up to 155 dB SP
- Cardioid polar pattern: The microphone is most sensitive to sounds arriving from in front of it while picking up much less of sounds arriving from the sides or rear (from monitor speakers or neighboring instruments). This makes the microphone equally suited for recording and onstage use.
- Gold-sputtered diaphragm: The diaphragm is made of a plastic foil that is gold-sputtered on one side only to prevent shorting to the back electrode even at extremely high sound pressure levels
- All-metal body: The all-metal body adds to the rejection of RF interference so you can use the microphone near transmitter stations and along with wireless microphones or other communications equipment. The extremely rugged, heavy body and sturdy front grill protect the microphone from damage from tough handling on stage.
- High headroom, minimum distortion: Capable of handling sound pressure levels up to 155 dB without introducing perceptible distortion and built to resist high temperatures and humidity, the microphone will give excellent results in a wide range of applications
- Switchable preattenuation pad: Switch on the microphone front lets you increase the headroom by 20 dB for distortionfree close-in recording. The preattenuation pad prevents the microphone's output level, particularly at low frequencies, from overloading the miniature transformers used in many mixer input stages, etc.
Whats Included
- P170 Microphone
- Stand Adapter
- P170 Microphone
- Stand Adapter
Product Manuals
Q: What instruments is the microphone specifically designed for?
A: The P170 microphone is designed for recording overheads, percussion instruments, acoustic guitars, and other string instruments.
Q: What is the microphone's polar pattern?
A: The polar pattern of this microphone is cardioid.
Q: What is the microphone's frequency response range?
A: The microphone has a frequency response range of 20 hertz to 20 kilohertz.
Q: Does the microphone require phantom power?
A: This microphone does require phantom power.
Q: Can this mic be used for vocals?
A: undefined
