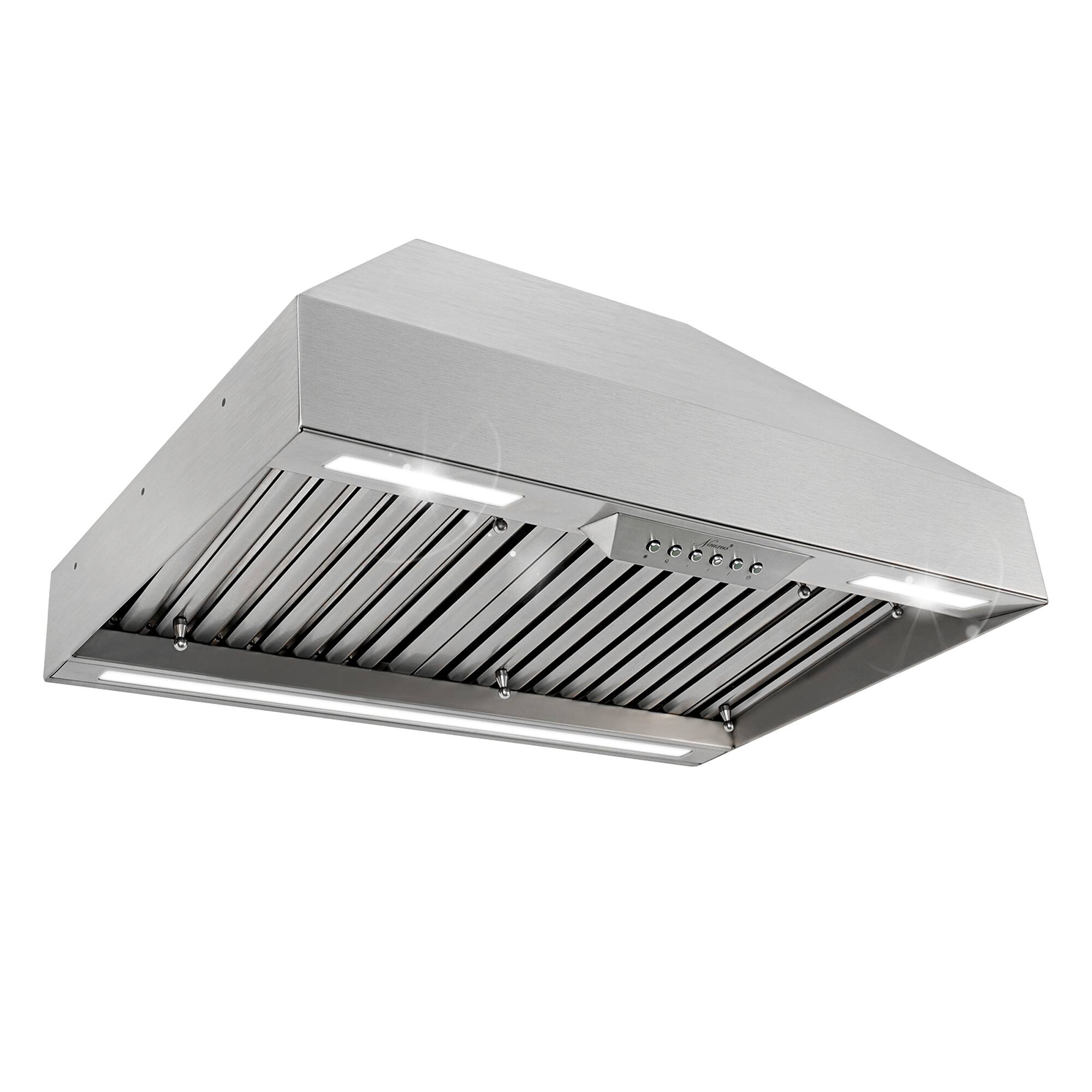

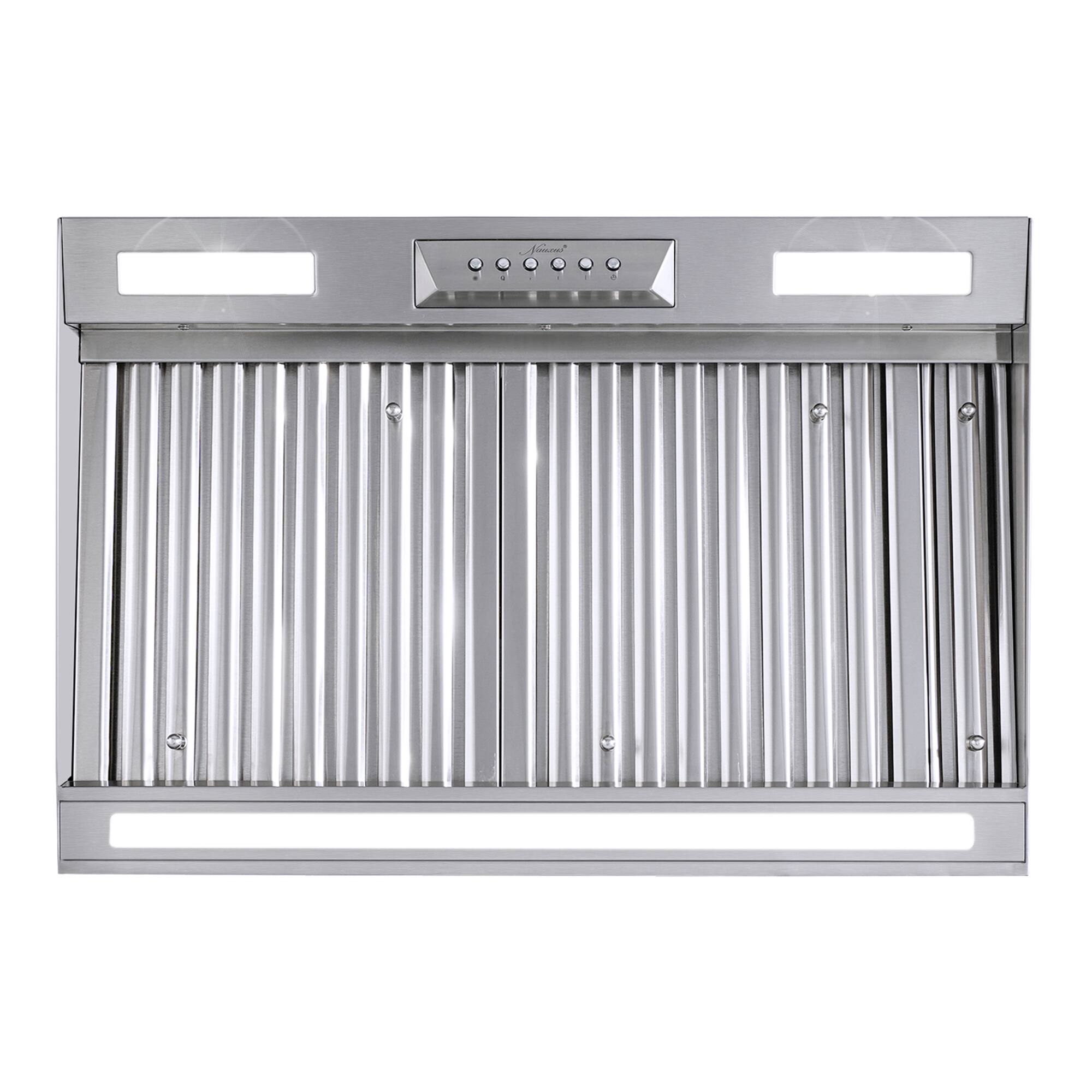

Akicon - 30 inches - Externally Vented - Range Hood Insert - Stainless Steel
Reviews coming soon
Specifications
- Color FinishStainless steelProduct Height14.5 inchesProduct Width28 inchesProduct Depth19 inchesExhaust Vent LocationBackVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 14.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Back
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Akicon
- Model Number: NX-19IS-30
- Product Name: Akicon 30 in. 600 CFM Ducted Stainless Steel Range Hood Insert with 4 Speed, 3 CCT LED Light and Heat Sensor Auto Speed
- Color: Stainless Steel
- Color Finish: Stainless steel

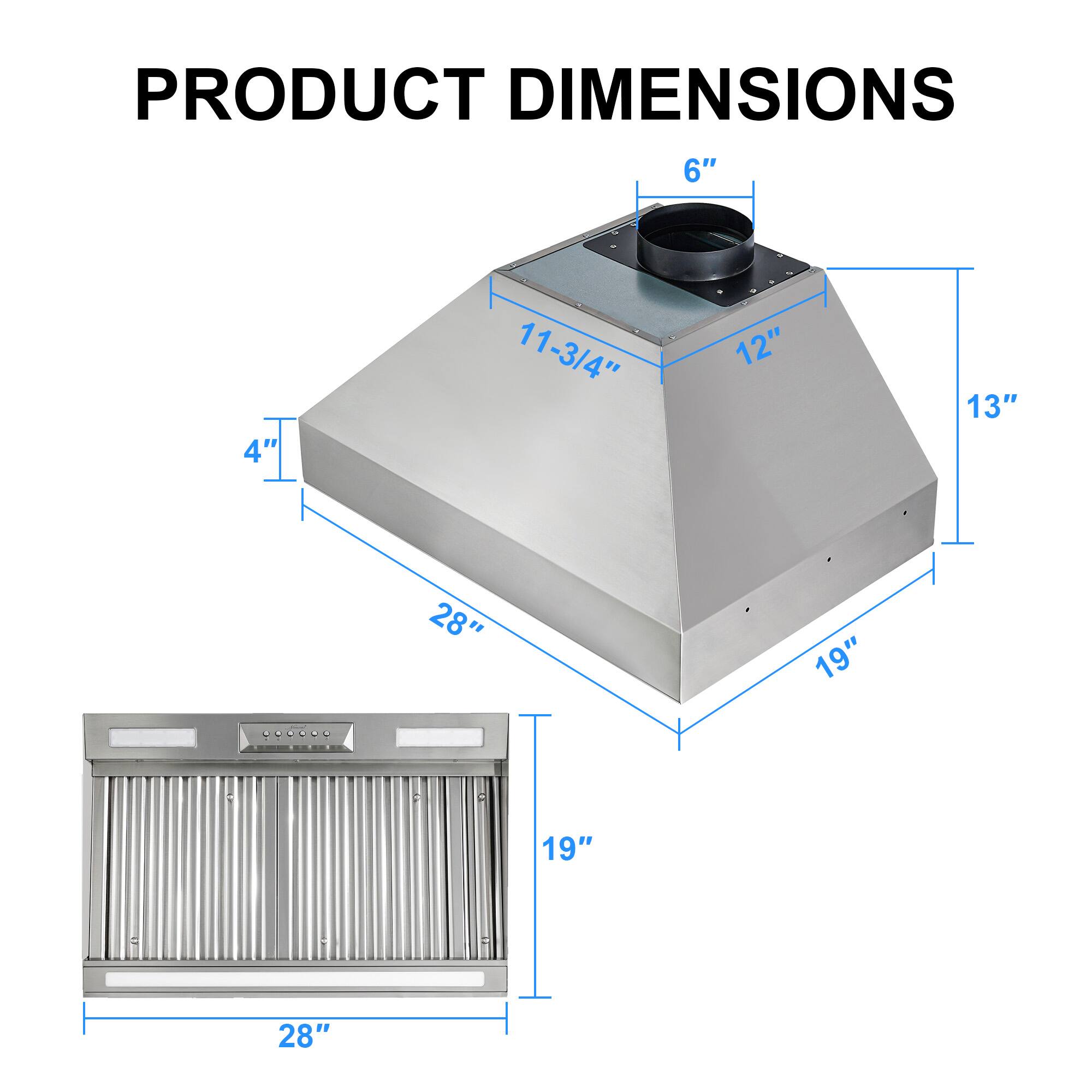

- Dimensions
- Product Height: 14.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 30 inches
- Product Width: 28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 43 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Cut-Out Dimensions
- Cut-Out Height: 14.5 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Back
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LED

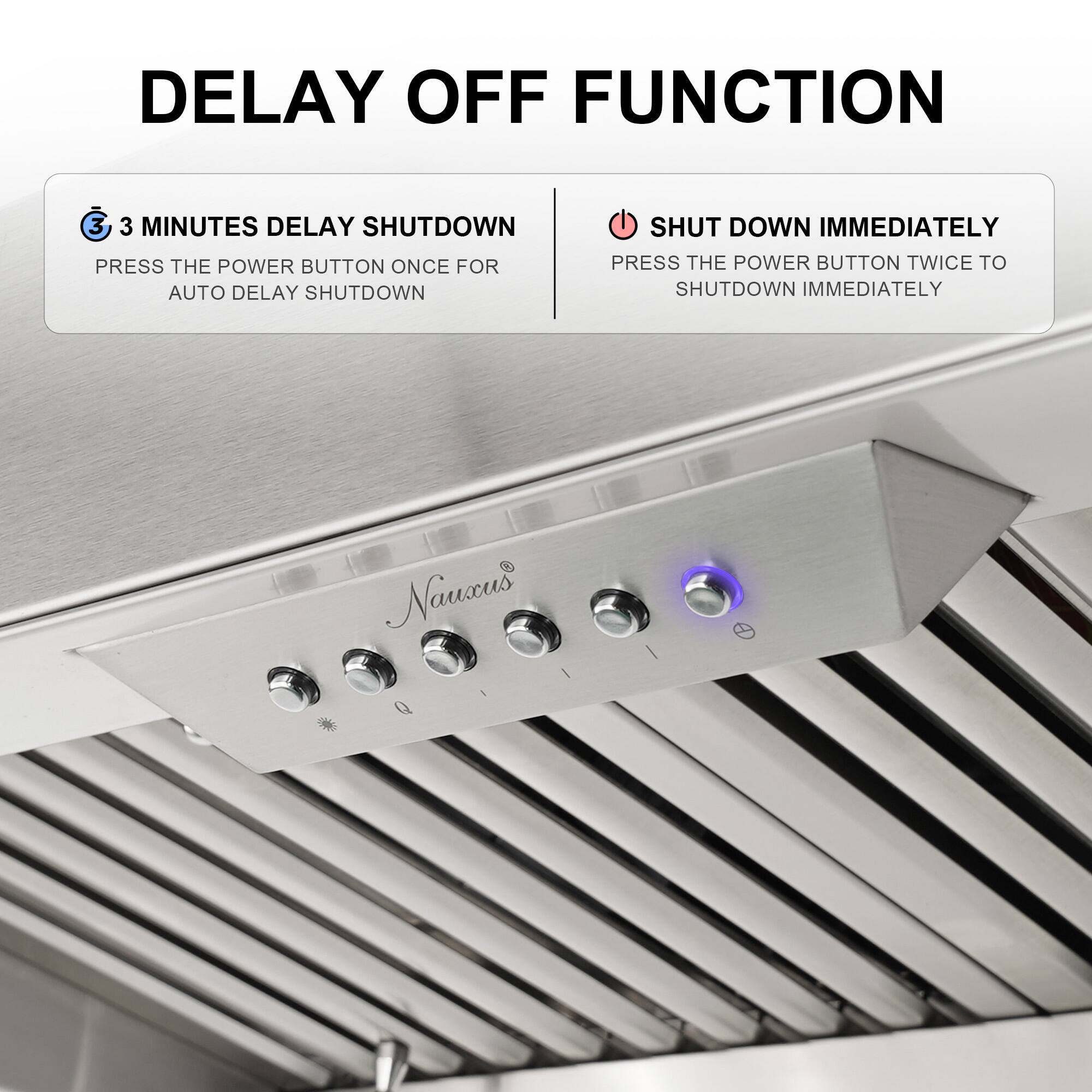

- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false

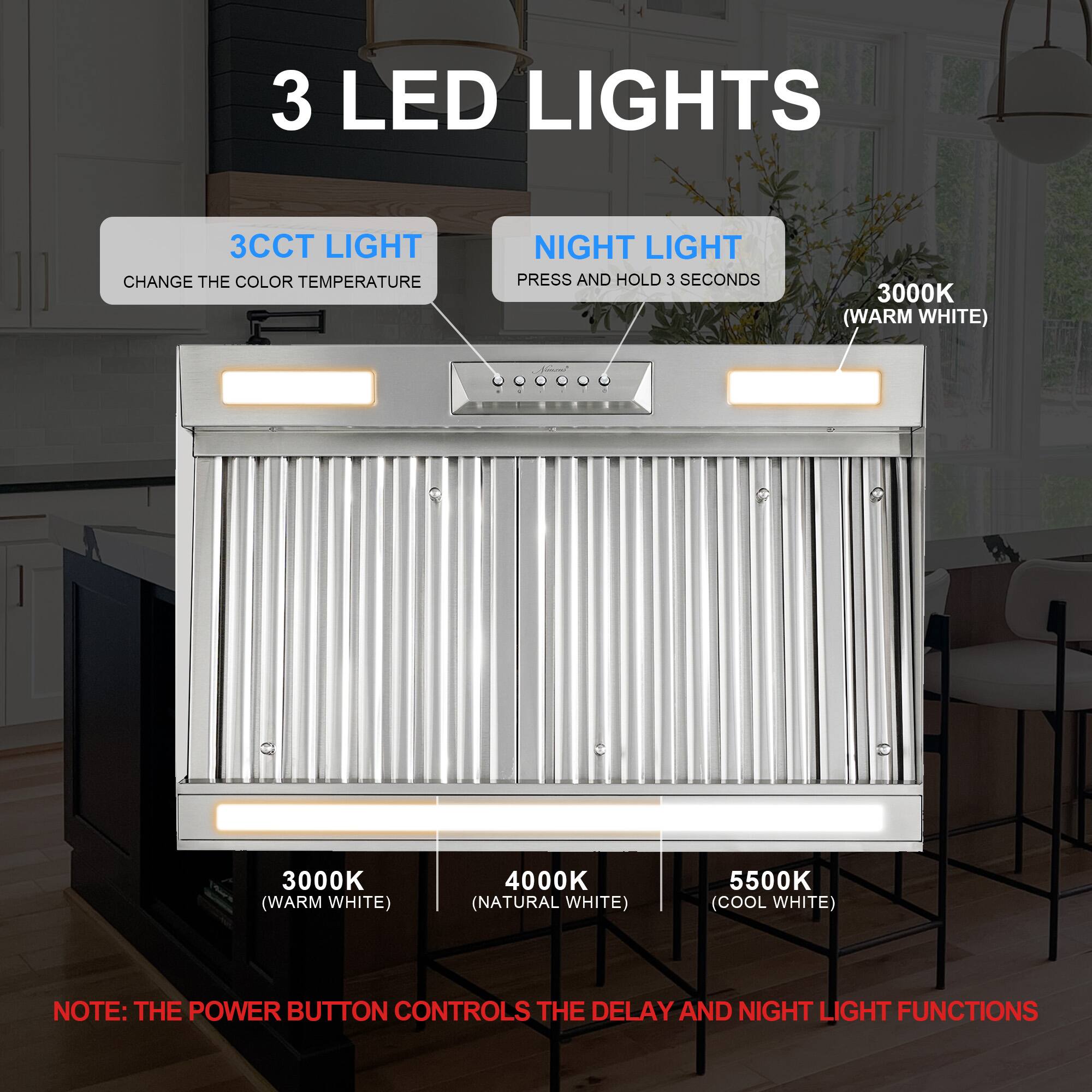

- Integrated Light(s): true
- Number of Lights: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance

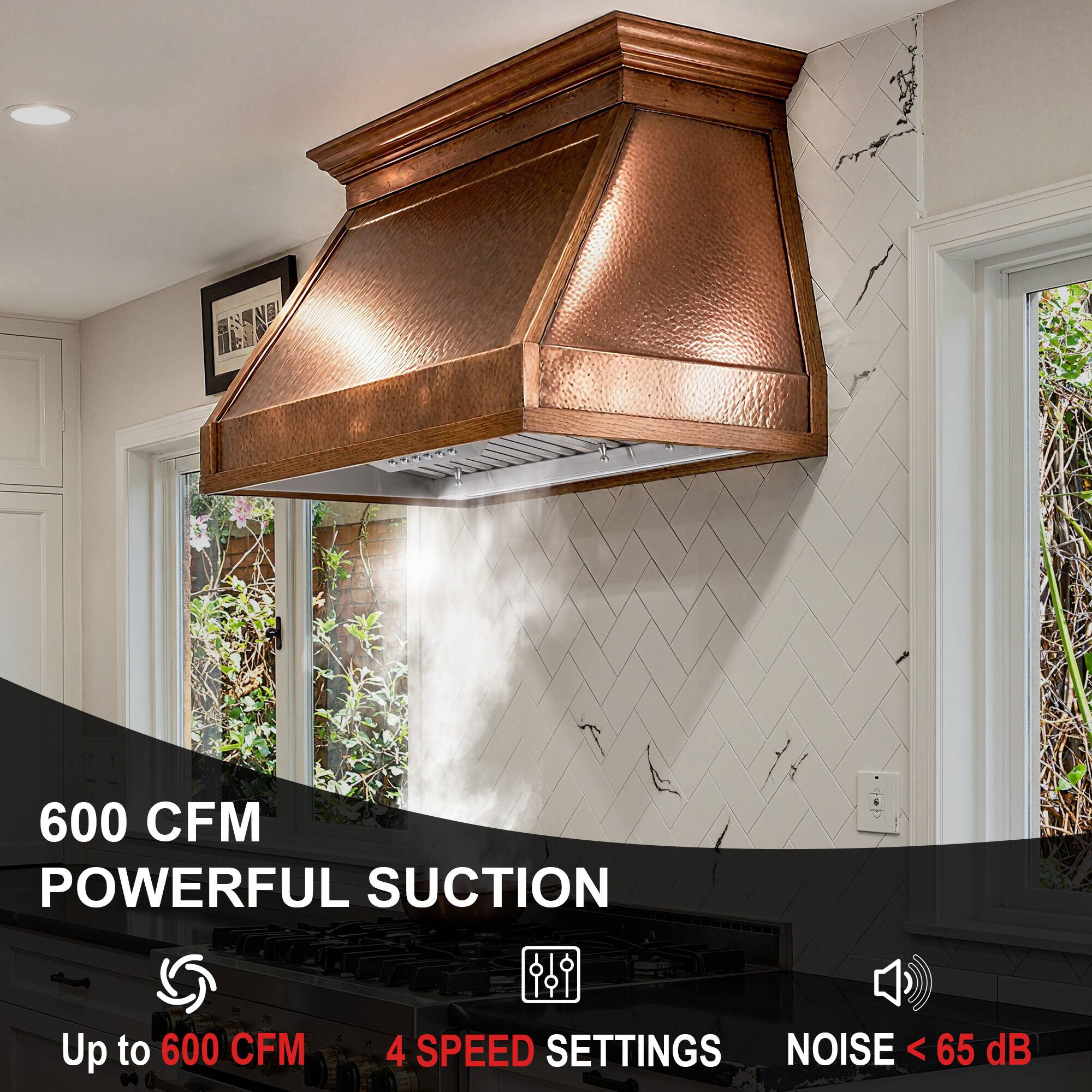

- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.7 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)

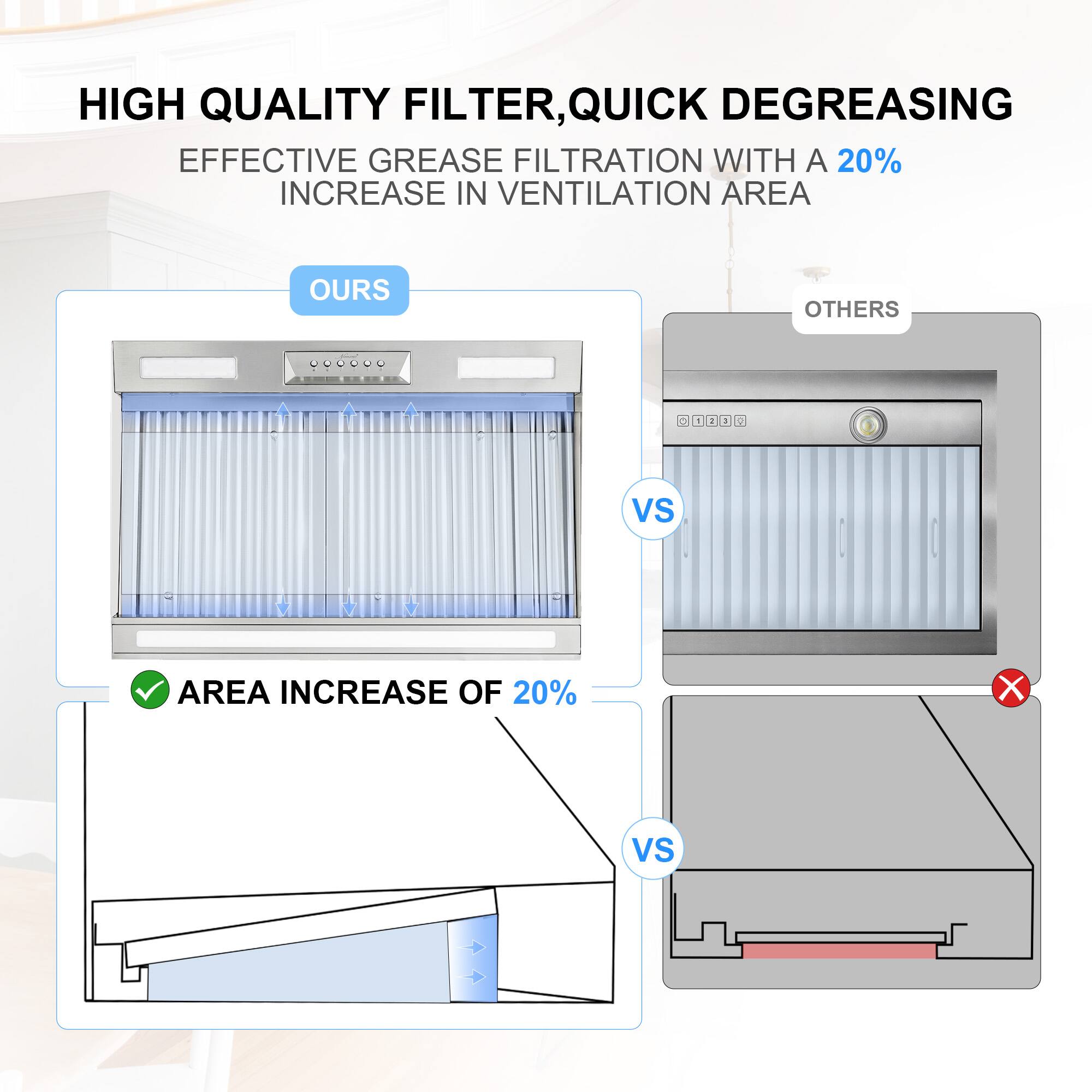

- Filter Info
- Filter Material: Stainless Steel baffle filters
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Amperage: 3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3-Year
- Warranty - Labor: 1 year
- Other
- UPC: 810195170798
This range hood insert seamlessly complements various kitchen styles and range hood cover materials. Featuring a durable, scratch-resistant stainless steel housing and ducted ventilation system, it is equipped with a high-power motor delivering up to 600 CFM suction power while operating at a low noise level of 45 dB.Choose from four adjustable fan speeds to match different cooking needs. Its thermal sensor automatically activates optimal fan speed based on temperature changes. Enjoy customizable lighting with the night light mode (adjustable color temperature) and delay shut-off function.The AKICON Range Hood effectively removes cooking fumes and odors, keeping your kitchen air fresh.
- Thermosensitive Automatic Transmission: Thermosensitive Automatic Transmission: When the stove internal temperature exceeds 122℉, the stove vent hood automatically turns on and runs at 1 speed. For every additional 41℉ increase, the fan speed rises by one level (up to Level 4 max). If the temperature drops, the fan speed gradually decreases but never goes below the lowest setting. The vent hood insert can be manually turned off or set to auto-shut down after a delay
