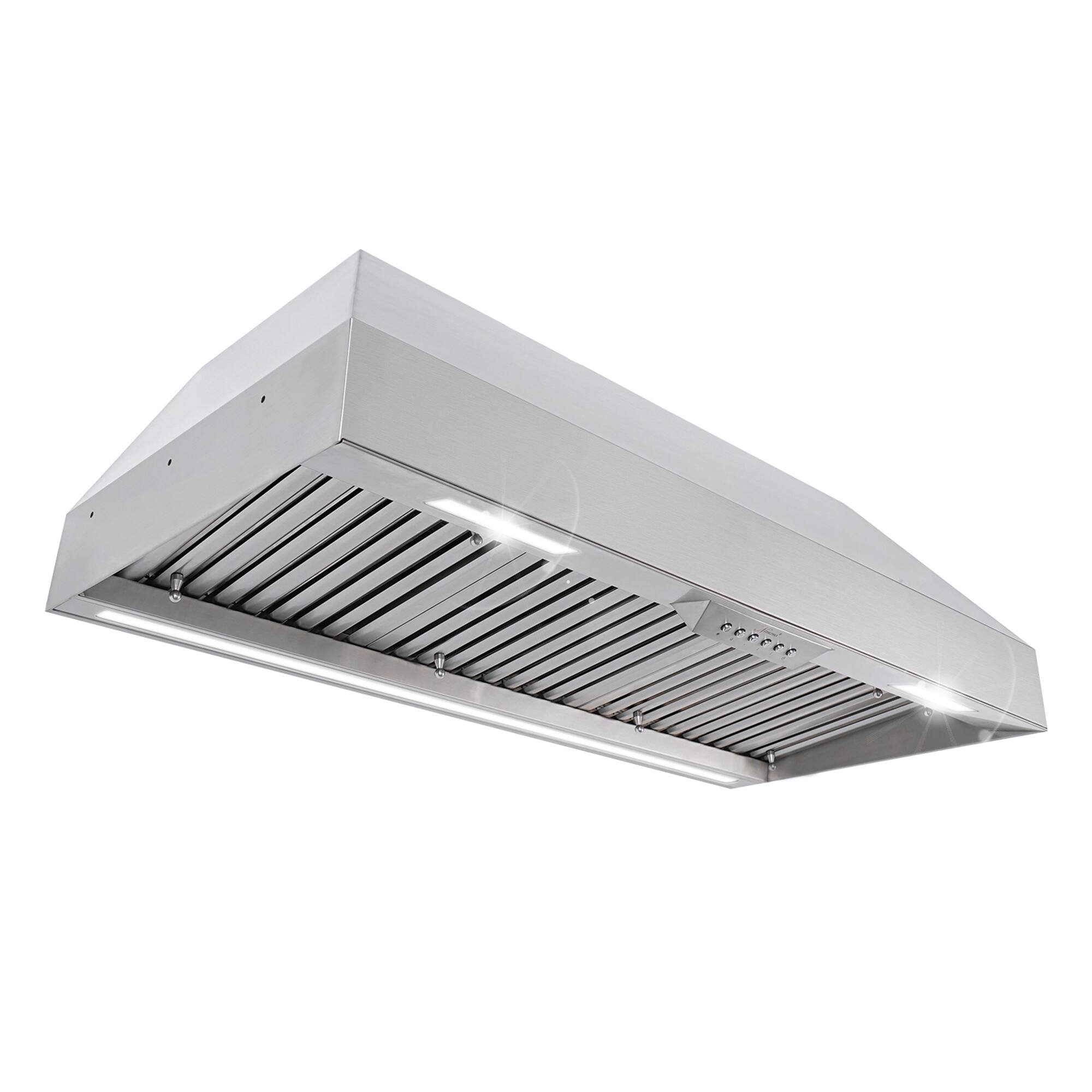

Akicon - 48 inches - Externally Vented - Range Hood Insert - Stainless Steel
Specifications
- Color FinishStainless steelProduct Height12.6 inchesProduct Width46.4 inchesProduct Depth19 inchesExhaust Vent LocationBackVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Back
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Akicon
- Model Number: AK-19WH-48-P

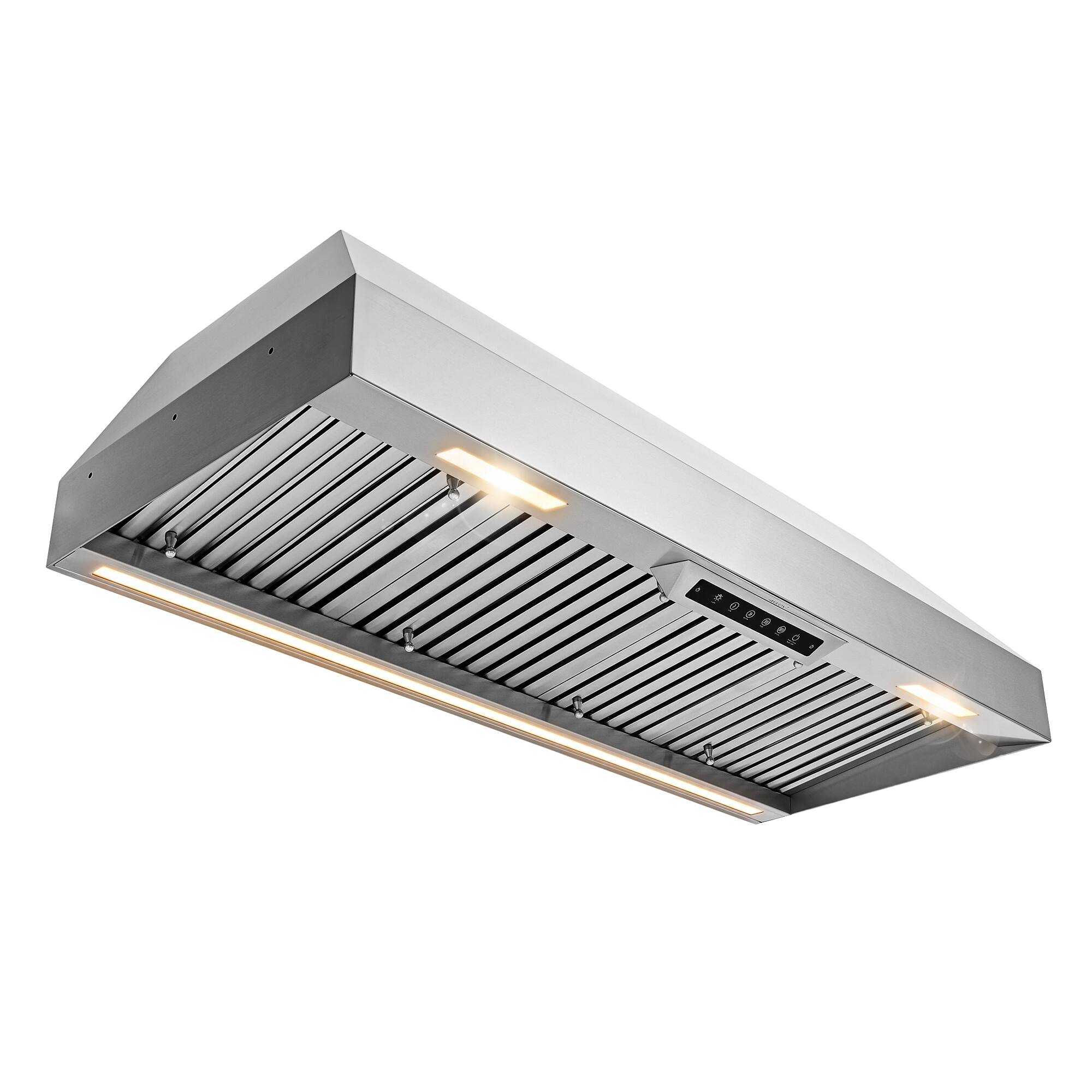

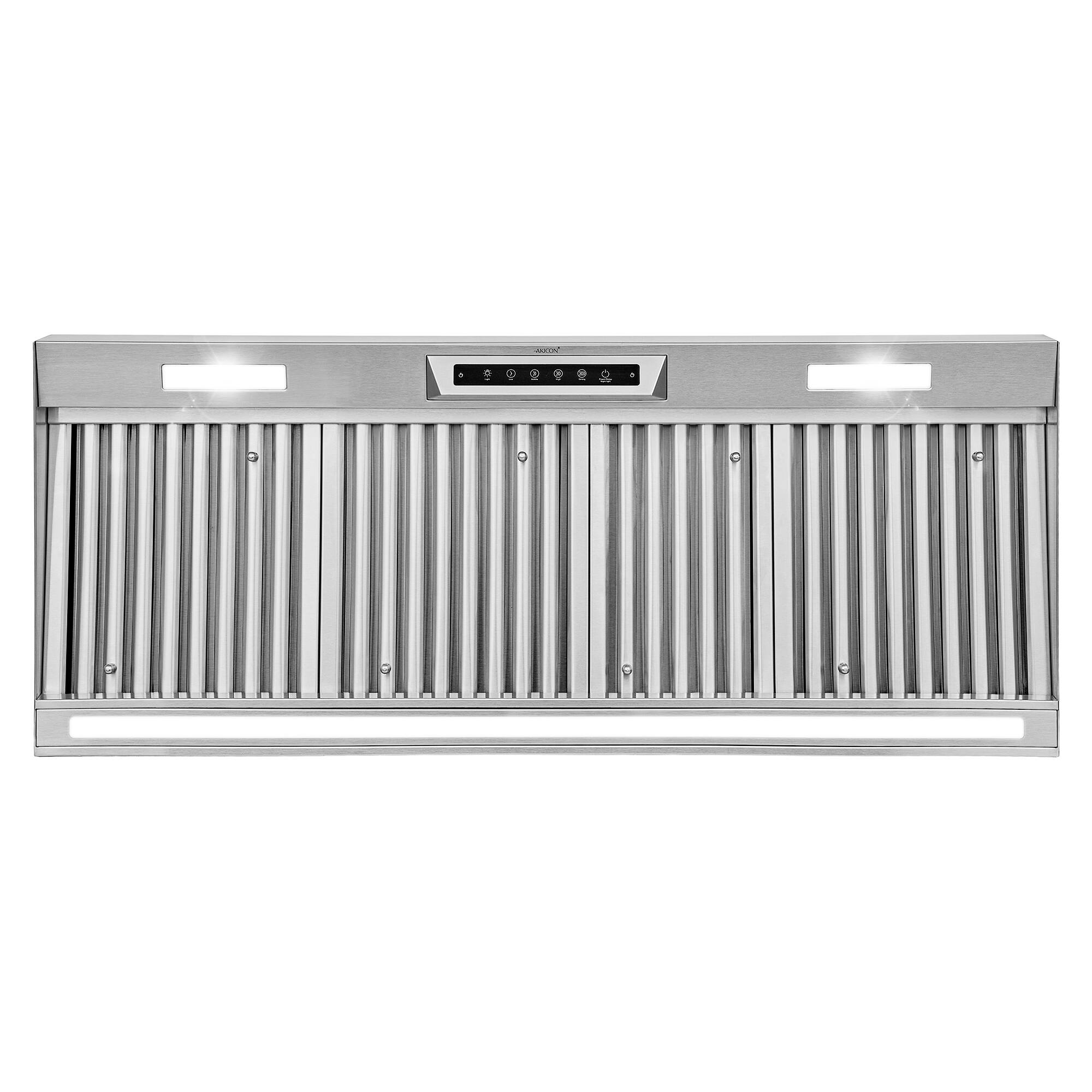

- Product Name: Akicon 48 in. Ducted 1200-CFM Under Cabinet Range Hood Insert 4 Speed Gesture Sensing with LED Light in Stainless Steel
- Color: Stainless Steel
- Color Finish: Stainless steel

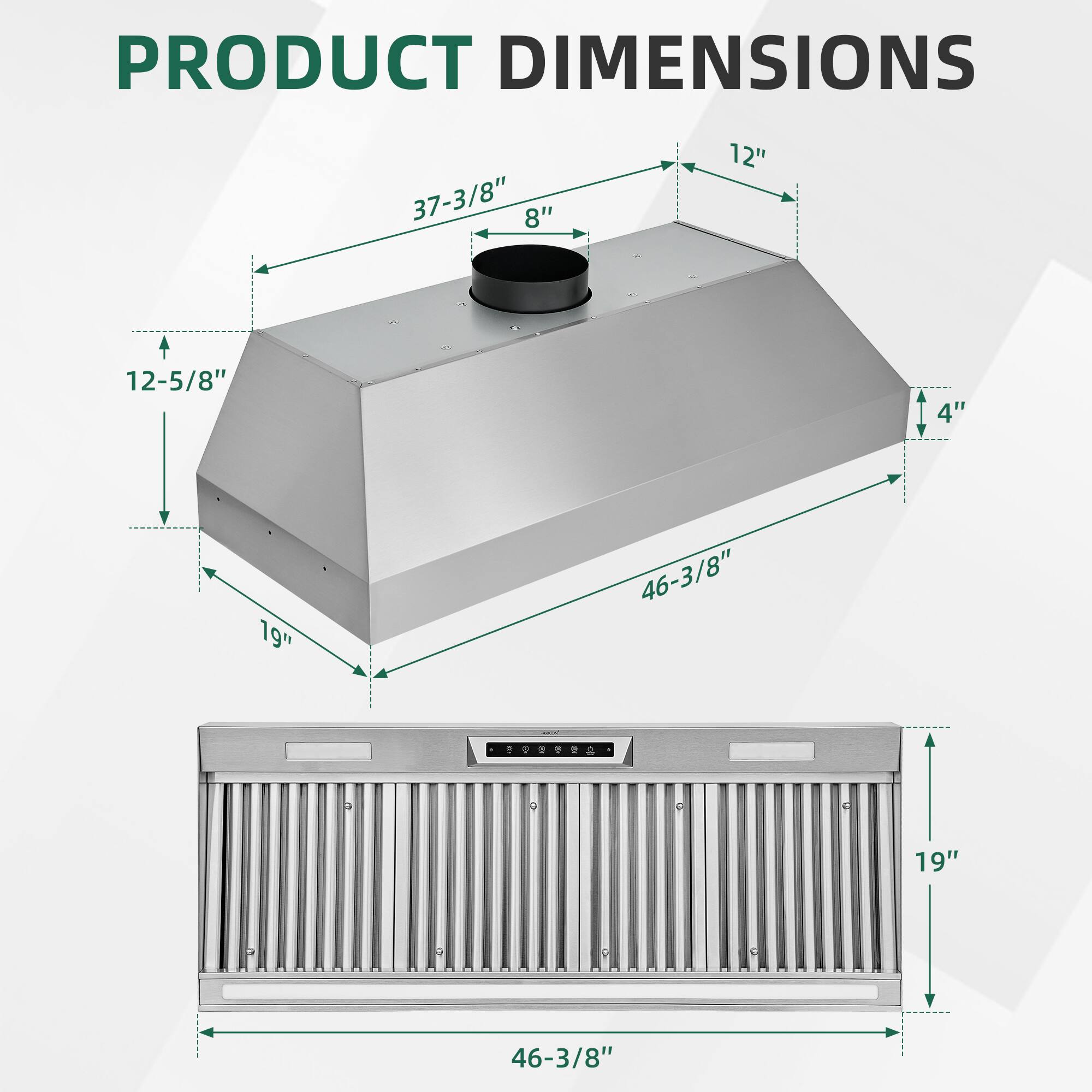

- Dimensions
- Product Height: 12.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 76.1 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Cut-Out Dimensions
- Cut-Out Height: 12.6 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 46.4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Back
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 4
- Control Type: Touchscreen
- Display Type: LED
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 450 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.7 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless Steel baffle filters
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Amperage: 3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3-Year
- Warranty - Labor: 1 year
- Other
- UPC: 810195171726
The Akicon range hood insert delivers powerful 1200 CFM suction via a durable ball-bearing motor, quickly eliminating cooking fumes, smoke, and odors to protect your skin and health. 4 adjustable fan speeds and a 3-minute delay shutdown ensure flexible, thorough ventilation, even after cooking. Energy-efficient 3W 3CCT LED lights brightly illuminate your cooktop while saving power, with night light functionality for versatile use. Tool-free removable stainless steel baffle filters are dishwasher-safe, rinse-clean, or wipe-clean for effortless maintenance. Smart dual controls let you operate via touch panel or gesture—adjust settings precisely with clean hands, or wave/swipe for hands-free, mess-free control when cooking. This all-in-one design keeps your kitchen fresh, bright, and easy to maintain, so you can focus on creating meals.

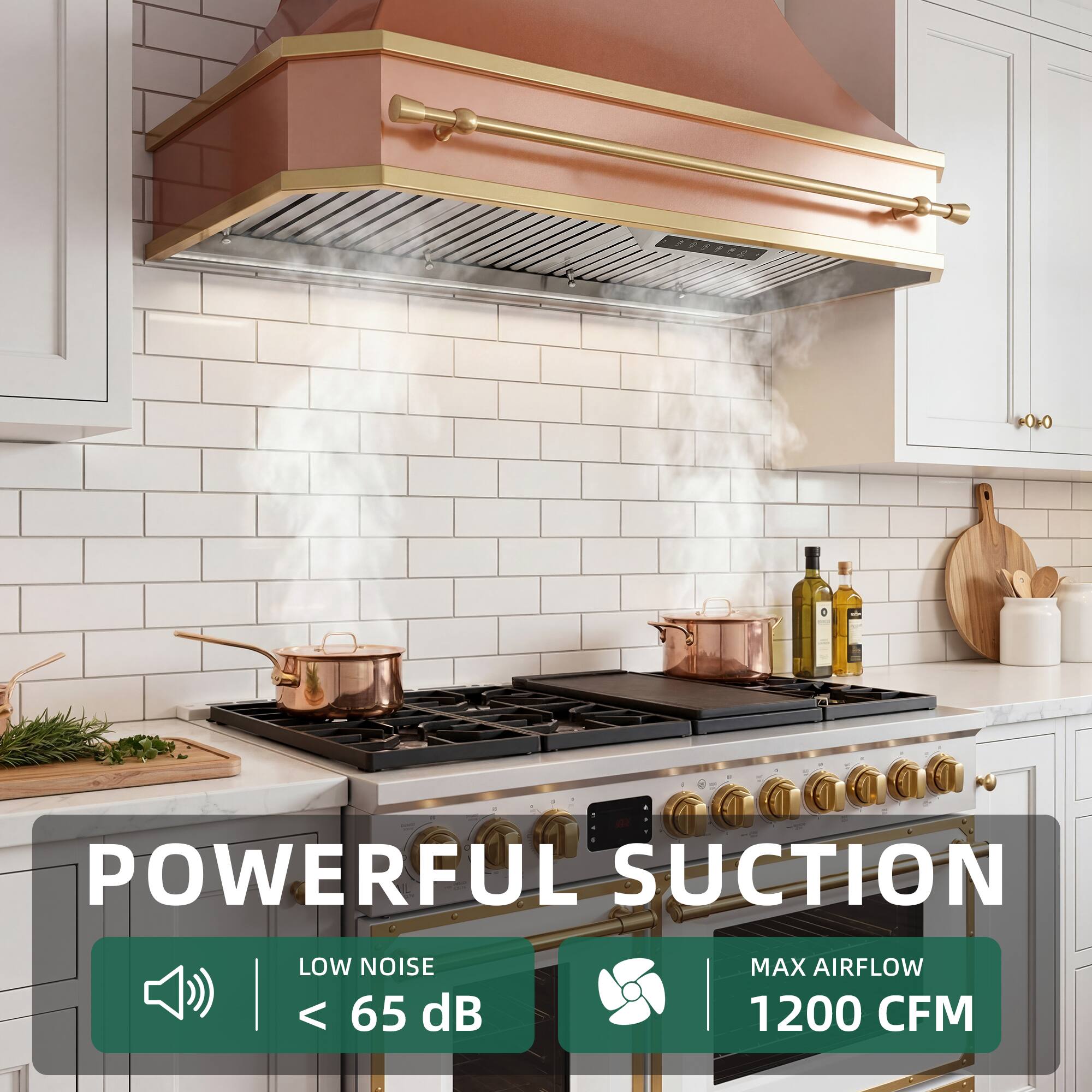

- [POWERFUL AIRFLOW]: Akicon range hood insert is equipped with an excellent copper ball-bearing motor which offers Max. 1200 CFM powerful suction, ensuring rapid and effective removal of cooking fumes, harmful smoke, and odors from your kitchen. It reduces the potential damage to your skin and health

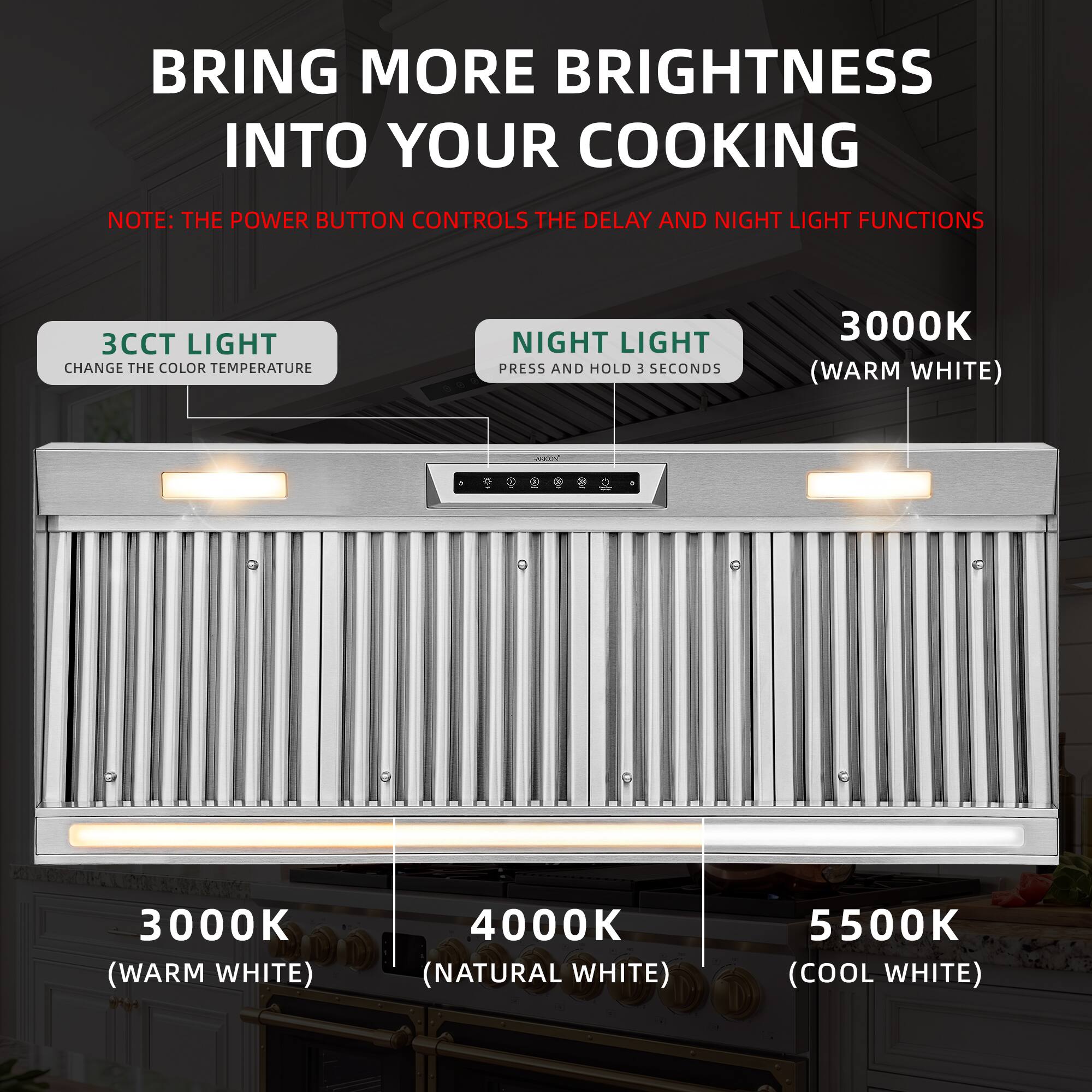

- [ENERGY-EFFICIENT LED Lights]: 3W 3CCT LED lights provide ample lighting to your cooking area while consuming less energy. Night light fixture to meet different cooking needs

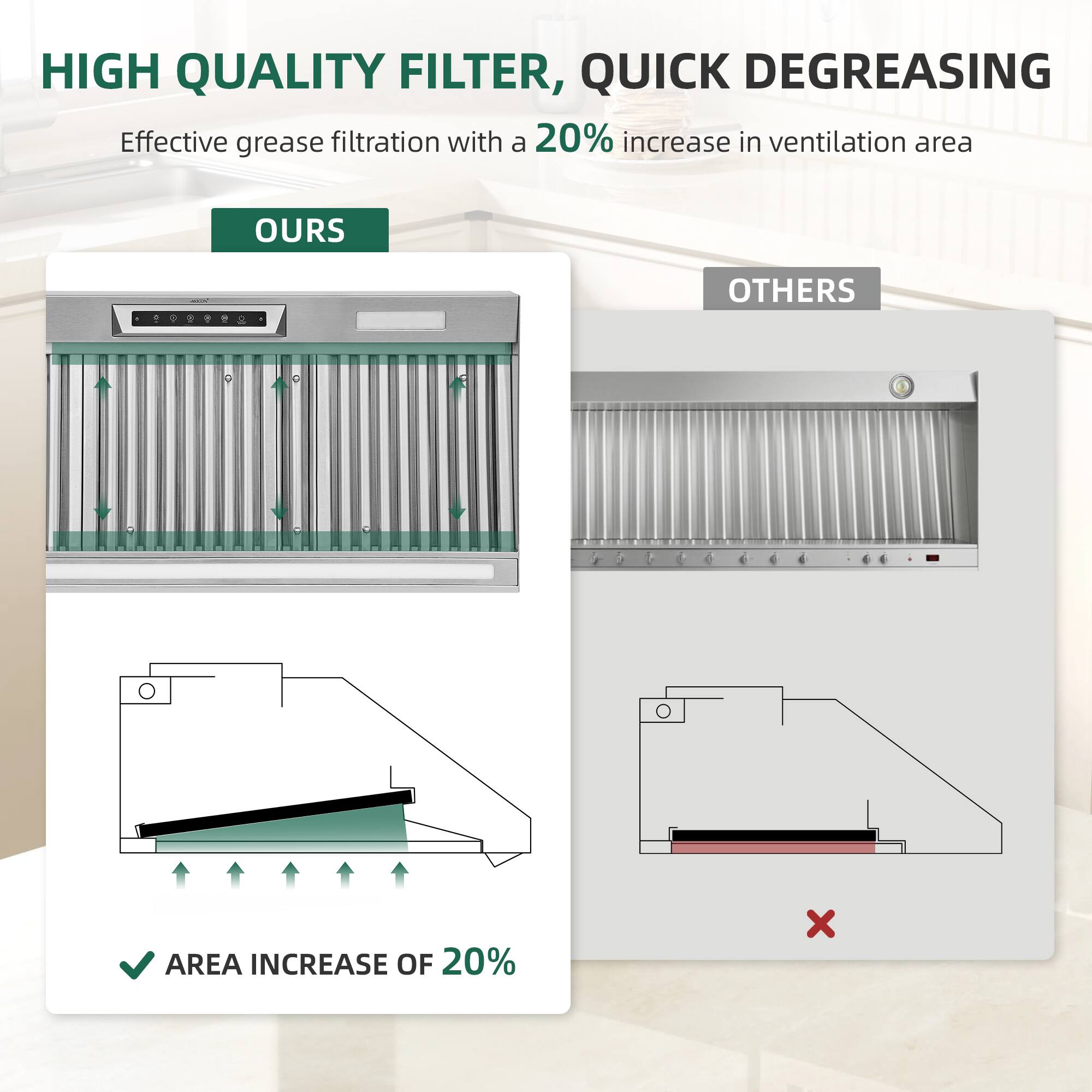

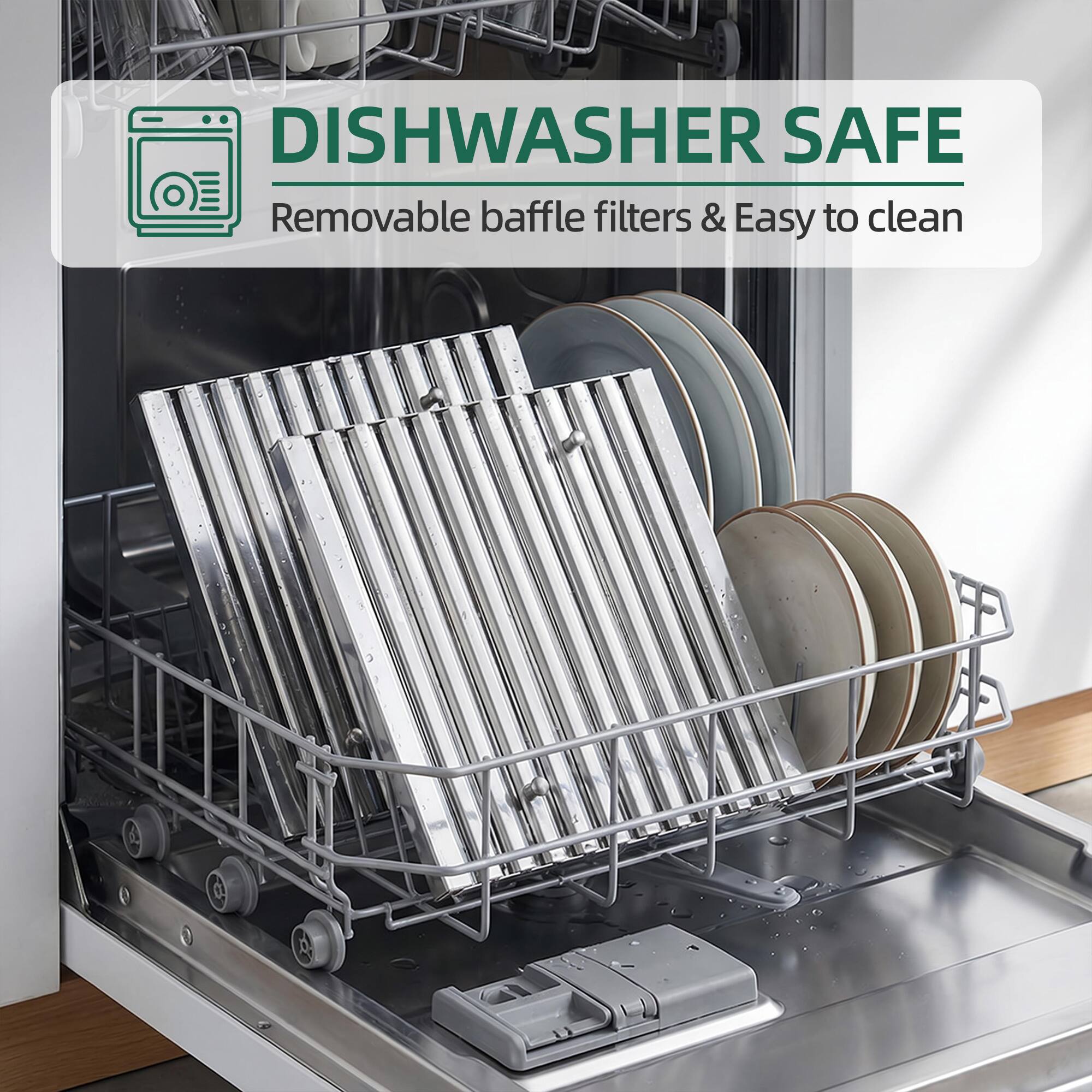

- [EASY TO INSTALL & CLEAN]: Its quick-disassembly stainless steel baffle filters can be removed in seconds without tools, supporting three convenient cleaning methods: dishwasher-safe, rinse-clean under running water, or wipe-clean with a damp cloth. This design keeps maintenance simple, helping you keep the hood in peak condition with minimal effort

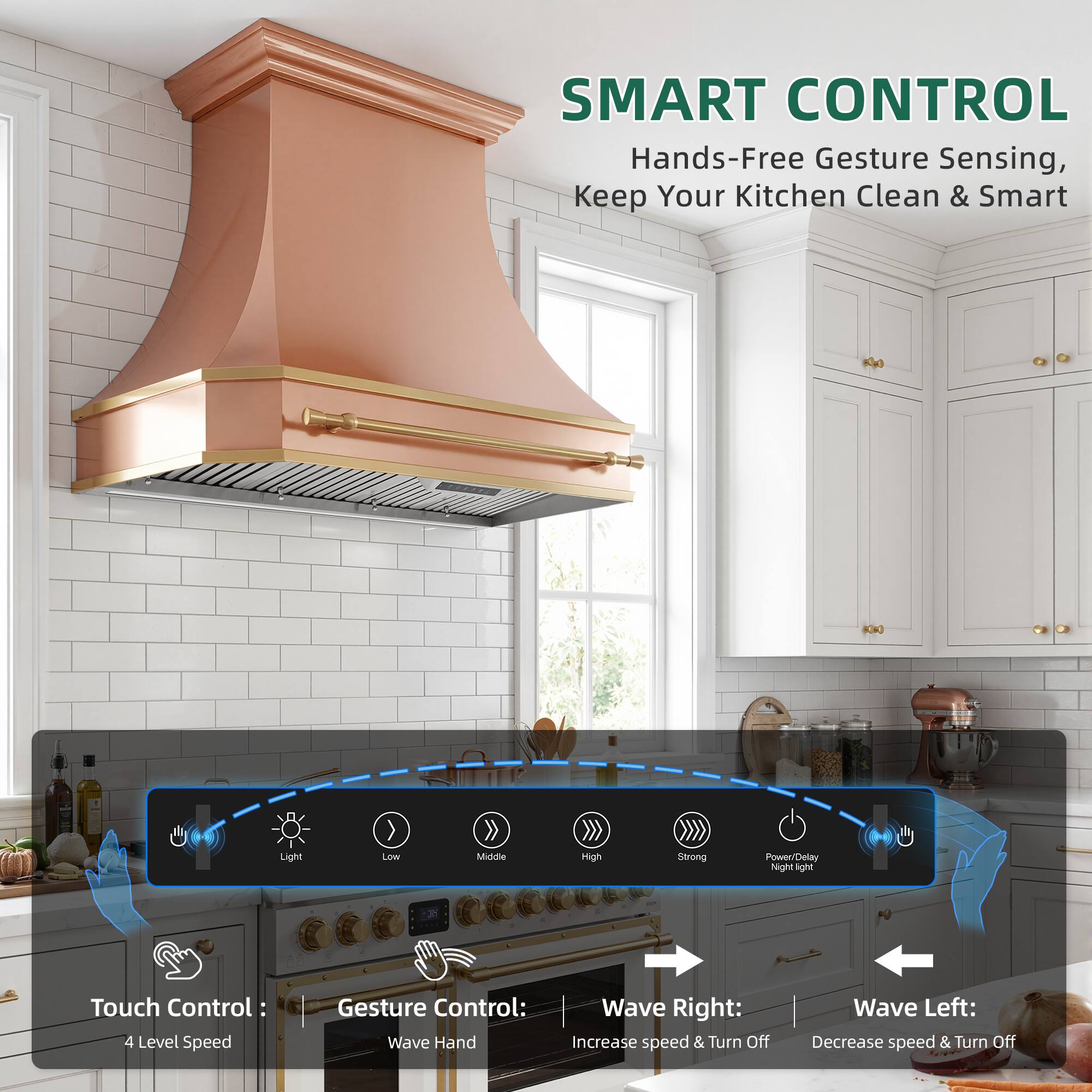

- [SMART GESTURE CONTROL]: Operate effortlessly with a wave or touch. The dual-control system lets you switch fan speeds, adjust lighting, and power the hood on/off via the intuitive touch panel—perfect for precise settings when cooking with clean hands. This smart design ensures you stay focused on cooking, not cleaning

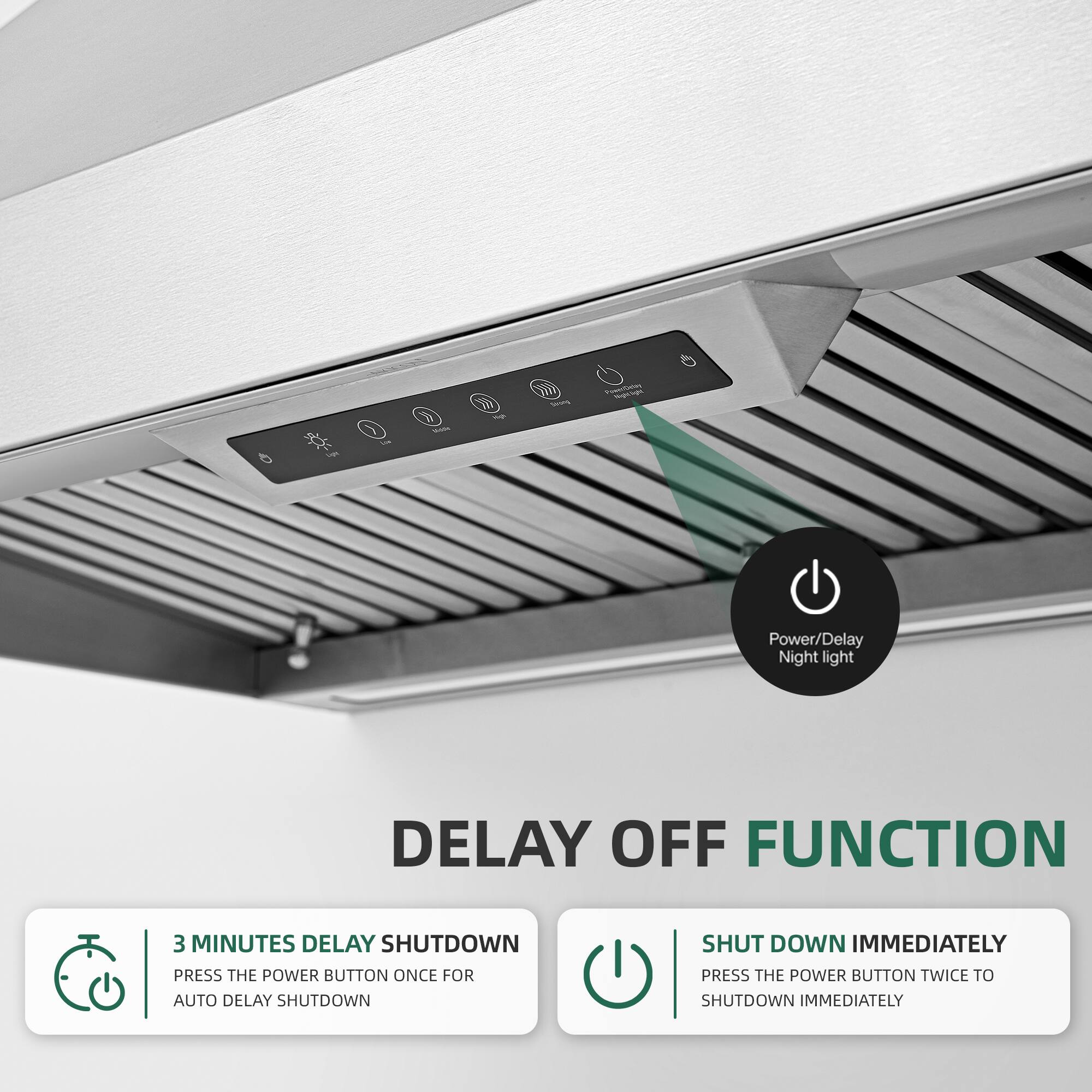

- [4 SPEEDS & TIME DELAY]: Customize your kitchen ventilation with 4 adjustable fan speeds, from gentle circulation to powerful suction for heavy cooking. The 3-minute delay shutdown feature automatically continues running to eliminate residual smoke, steam, and lingering odors after you finish cooking, ensuring your kitchen stays fresh and clean even after you’ve left the room
