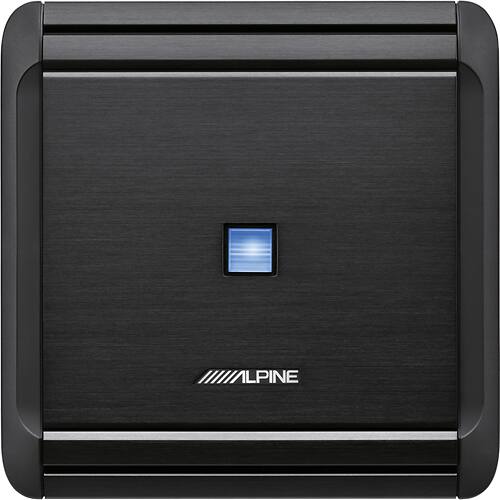

Alpine - 500W Class D Digital Mono Amplifier with Low-Pass Crossover - Black
Model: MRV-M500
SKU: 7551285
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 500 x 1
- Maximum Watts x Channel @ Ohms: 500W x 1 x 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Alpine
- Model Number: MRV-M500
- Product Name: 500W Class D Digital Mono Amplifier with Low-Pass Crossover
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 500 x 1
- Watts Per Channel RMS: 300 watts
- Maximum Watts x Channel @ Ohms: 500W x 1 x 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Watts Per Channel Maximum: 500 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 7 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 400 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.02 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 75 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 2.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 793276012401
Enhance your vehicle's audio with this Alpine MRV-M500 amplifier that features a variable low-pass-filter crossover that lets you adjust the frequency from 50Hz to 200Hz for easy customization. Enhanced shut-down performance helps ensure safe operation.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 500W maximum power @ 2 ohms: For powerful sound. Up to 500W RMS (continuous) power @ 2 ohms, up to 300W RMS power @ 4 ohms and up to 350W @ 1 ohm.
- Variable low-pass-filter crossover: Lets you easily adjust the audio frequency from 50Hz to 200Hz for flexible sonic customization.
- Bass EQ and bass boost: Make it easy to adjust your audio to suit your listening preferences or accommodate your music's characteristics.
- Enhanced shut-down performance: For safe use.
- Compact design: Allows versatile installation options.
- Line-level and speaker-level inputs: Offer flexible connectivity.
Whats Included
- Alpine 500W Class D Digital Mono Amplifier with Low-Pass Crossover
- Owner's manual
Q: will this amp be able to push two alpine type r 12wd 2ohm subs if i put one amp per subwoofer?
A: Yes it will. Very well at that. Honestly one amp would decently run both subs. But no doubt one per sub at 500w at 2ohms will hit hard.
A: Yes. I have the same set up.
Q: Will i get 500 RMS with one Alpine - 12" Dual-Voice-Coil 4-Ohm Subwoofer ?
A: If your sub has dual 4 ohm voice coils and you wire it in parallel to a 2 ohm load you will get 500 watts.
Q: what is the difference between the MRV-V500 and the MRV-M500
A: The V500 is a 5 channel amp that can be used for your interior and a sub. The M500 is a mono sub amp. Hope thats helps
Q: does this amp have a place to connect a bass nob
A: Yes, Alpine makes one. Other brands won't work.
A: Yup you have to run it at 4 ohms with that sub which will let your amp put out 300 watts. If you can return your sub and get a dual 4 ohm model I would do that. Or get another amp that's 1 ohm stable and wire your sub to 1 ohm.
A: I would suggest two jl w3s or a single tw5, amp has the juice,you won't be disappointed,
Q: Does this amp support a bass knob?
A: Yes it does
