Alpine - 8" Quad-Voice-Coil 4-Ohm Loaded Subwoofer Enclosure with Integrated 120W Class D Amplifier - Black
Model: PSS-23WRA
SKU: 6320213
This item is no longer available in new condition. See similar items below
- Key Specs
- RMS Power: 120 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 240 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Continuous Watts x Channel @ Ohms: 120W x 1 @ 4Ohms
- Maximum Watts x Channel @ Ohms: 120W x 1 @ 4Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 25 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.152 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Woofer Size: 8"
- General
- Brand: Alpine
- Model Number: PSS-23WRA
- Product Name: 8" Quad-Voice-Coil 4-Ohm Loaded Subwoofer Enclosure with Integrated 120W Class D Amplifier
- Color: Black
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 120 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 240 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Integrated Amplifier: true
- Continuous Watts x Channel @ Ohms: 120W x 1 @ 4Ohms
- Maximum Watts x Channel @ Ohms: 120W x 1 @ 4Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 25 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.152 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Features
- Grille Included: true
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Dimensions
- Woofer Size: 8"
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 19 pounds (The out of box weight of the item.)
- Enclosure
- Enclosed: true
- Enclosure Type: Sealed
- Box Material: Other
- Box Covering Material: Other
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 793276242648
Enjoy perfect sound in your 2018 and newer Jeep Wrangler with this Alpine powered system upgrade kit. It has an 8-inch powered subwoofer and universal power pack amplifier for booming bass, and the 2-inch component tweeters and adapters deliver crystal-clear highs. This Alpine powered system upgrade kit comes assembled and ready to mount for effortless installation.
Geek Squad® Installation Recommended
Visit your local Best Buy store for more information.
- Take your Wrangler's sound beyond factory: Enjoy premium sound quality even with your JL's top off. This PSS-23WRA is a 300W powered system upgrade, featuring a powered subwoofer, amplifier, and tweeters for 2018 and newer Jeep Wrangler Unlimited JL without the factory amplified system.
- Sound that will turn heads: The PWE-S8 subwoofer is engineered to load and disperse lower frequency sound into the passenger's footwell area to maximize bass extension throughout the Jeep for great sound with the top on or off.
- Easy bolt-in installation: The PWE-S8 powered subwoofer and KTP-445U power pack amplifier don't take up much space since they mount under the passenger's seat, both come pre-connected for bolt-in installation with simple wire routing. Mounting brackets for the products are included as well.
- Effortless tweeter replacement: SPR-10TW component tweeters replace the factory tweeters on the top of the dash. These high-performance tweeters add much-needed high-frequency response that is lacking in the factory Jeep JL systems.
- Works with any radio: The included T-harness gets the necessary audio signal connections from behind the Wrangler's radio, making installation easy. PSS-23WRA is compatible with Alpine universal head units, the factory Jeep base radio, or other aftermarket radios.

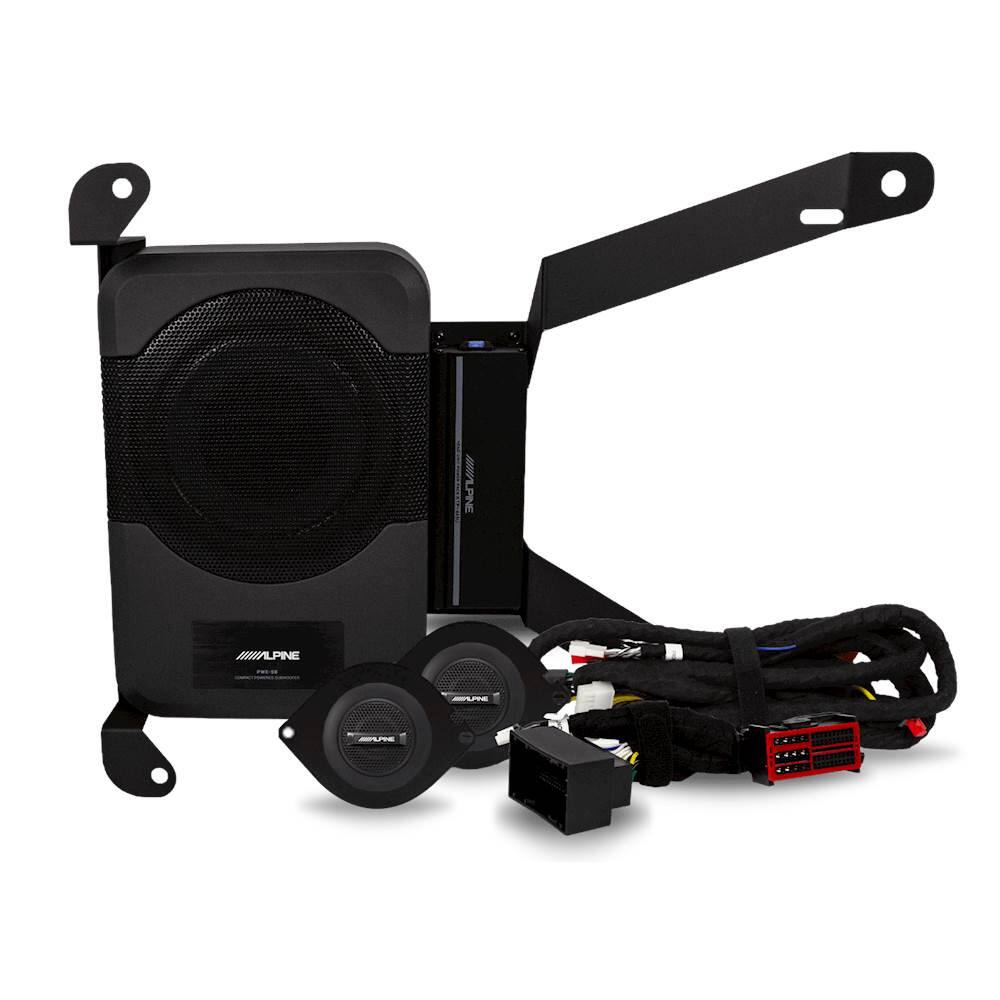

Whats Included
- Alpine KTP-445U amplifier
- Alpine PWE-S8 powered subwoofer
- 7' signal harness, 52-pin T-harness, 4 x 10" speaker to RCA harnesses
- 12' loomed power wire with inline 20A fuse
- Two SPR-10TW tweeters with integrated mounting plates and 8" wire loom with inline crossovers
- Remote bass-level control with attached 16' cable
- 3" strip of hook-and-loop fastener, 10 x 6" wire-ties, 1/2" self-tapping screw, Star-washer
- Two Alpine logos, warranty sheet
- Owner's manual
