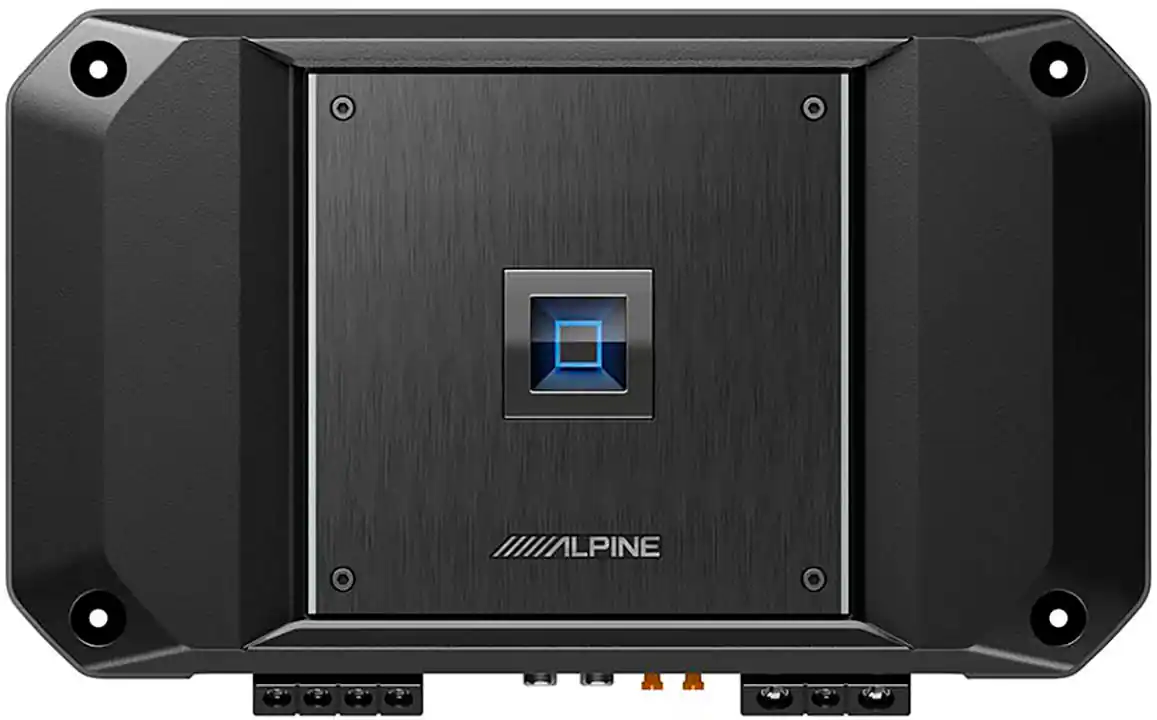

Alpine - R-Series Class D Mono Amplifier with Variable Crossovers - Black
Alpine - R-Series Class D Mono Amplifier with Variable Crossovers - Black
More Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms500W x1 @ 4 ohmsMaximum Watts x Channel @ Ohms750 watts RMS x1 @ 2 ohmsAmplifier ClassDNumber Of Channels1Bass BoostVariableLow-Pass CrossoverVariable
- Key Specs
- Continuous Watts x Channel @ Ohms: 500W x1 @ 4 ohms
- Maximum Watts x Channel @ Ohms: 750 watts RMS x1 @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Alpine
- Model Number: R2-A75M
- Product Name: R-Series Class D Mono Amplifier with Variable Crossovers
- Color: Black
- Audio Power
- Continuous Watts x Channel @ Ohms: 500W x1 @ 4 ohms
- Total Power Handling RMS: 500 watts
- Watts Per Channel RMS: 500 watts
- Maximum Watts x Channel @ Ohms: 750 watts RMS x1 @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 750 watts
- Watts Per Channel Maximum: 750 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 40 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Signal-to-Noise Ratio (SNR): 75 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Remote Control Included: No
- Input
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 2.17 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 793276084972
Experience the impressive power and exceptional performance of the Next-Gen R-Series R2-A75M Mono Amplifier, now featuring a more compact design. Built with Alpine's cutting-edge Class D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
- Robust power output: 500 watts RMS x 1 at 4 ohms, or 750 watts RMS x 1 at 2 ohms
- Variable low-pass filter, bass boost & subsonic filter: Ensure flexible operation to get just the right bass tone
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- Variable bass boost: 0-12 dB at 50 Hz
- Class D circuitry: Ensures reliable power handling and it is small enough to fit in almost any location
- Hi-res capable: Frequency response: (+0/-3 dB) 15 to 45,000 Hz (Hi-Res capable)
- Smaller footprint: 15% smaller than the previous model, making it easier to install in most vehicle applications without sacrificing performance
- Simplified installation: Speaker connections are all on one side, and controls moved to top for convenient access
- Optional remote: RUX-KNOB.2 wired remote available for rear channels
Whats Included
- Alpine R2-A75M mono amplifier
- Owners manual, “Birth Sheet” that certifies the actual power of the amplifier, Alpine Registration Card, Warranty sheet, Installation guide
- (x4) Screws for amplifier mounting to the vehicle, (x3) Allen wrench for amplifier connection and installation (2mm, 2.5mm, 3mm)
Product Manuals
Q: What is the maximum frequency response of the amplifier?
A: The maximum frequency response of the amplifier is 40 kilohertz.
Q: What is the amplifier's signal-to-noise ratio?
A: The signal-to-noise ratio (SNR) is 75 decibels.
Q: What is the amplifier's warranty?
A: The amplifier's warranty for parts and labor is 1 year.
Q: What is the power output of the amplifier at 4 ohms?
A: The power output of the amplifier at 4 ohms is 500 watts.
Q: Does the amplifier have speaker-level inputs?
A: This amplifier does have speaker-level inputs.
Q: Can this unit run at 1 ohm?
A: No
Compare similar products
Experience the impressive power and exceptional performance of the Next-Gen R-Series R2-A75M Mono Amplifier, now featuring a more compact design. Built with Alpine's cutting-edge Class D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
The Alpine “R-Series” line of speakers, subwoofers and amplifiers have a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception. Aside from their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience. They have a 15% reduced footprint compared to the previous models and are easier to install. FEATURES Install Terminal Layout: One side Small footprint for easy installation Screw terminals (for speaker and power cables) General Class-D Amplification (Digital) Channel Design: Mono Channel Top panel controls Thermal Management Control Top Mounted LED Power/Status Indicator Speaker Level Input with remote turn on Crossover: Adjustable Low-pass (LPF) and Variable Subsonic filter Adjustable Gain Control Bass EQ Remote Bass Control (RUX-KNOB2) Ready SPECIFICATIONS Max Power Output Ratings Total Max Power: 2300W RMS Power Ratings Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 1500W Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 1200W Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 700W Sound Tuning Crossover: Variable LPF: 50-400Hz (-24dB/oct) Crossover: Variable Subsonic: 8Hz-40Hz (-24dB/oct) General Power Requirements: 14.4 V.DC (9 - 16 V allowable) Input Sensitivity (RCA Input): Hi: 0.4V - 10V / Low: 0.1V - 4.0V High Level Input with automatic power on Cable size: Power Cable AWG 4, SPK Cable AWG 8 Frequency Response: 10Hz – 400Hz THD+N (@ 10W into 4 Ohms): 250 Weight: 5kg Dimensions Heat Sink (WxHxD) mm: 341 x 65 x 185
Pump up the audio in your ride with this Alpine Next Generation S-Series mono car amplifier. Delivering 600W at 4 ohms, or 1200W at 1 or 2 ohms, this amplifier is powerful enough for speakers and subwoofers.. The compact size provides mounting versatility. When using the speaker-level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a separate turn-on wire to the receiver or fuse box.
Listen to your favorite Hi-Res music and podcasts with this Alpine four-channel amplifier. The Next-Generation R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce up to 45kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The R2-A60F features a reduced footprint that’s 15% smaller than the previous model (R-A60F), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Beast
Amplifier is a beast; data sheet shows mine was rated at 964 watts (at 2 ohms).
