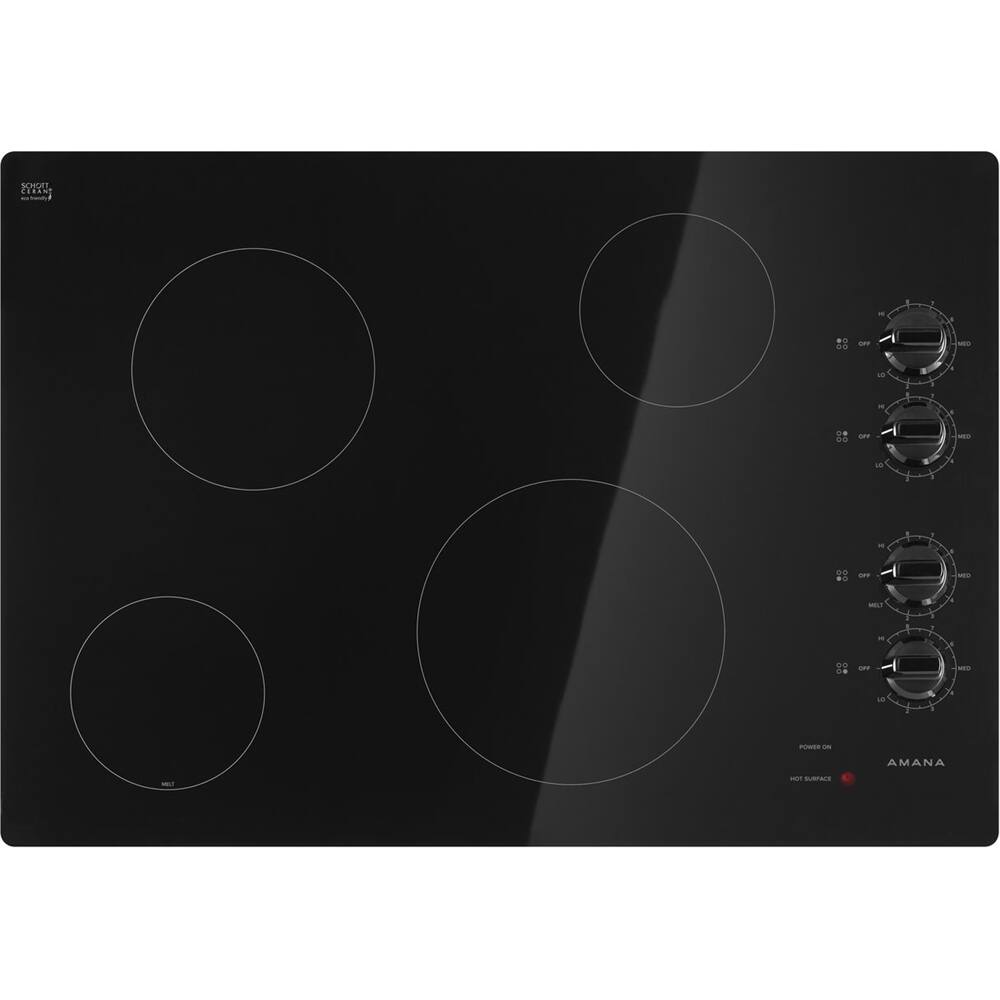

Amana - 30" Built-In Electric Cooktop - Black
Model: AEC6540KFB
SKU: 5818108
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black
- Product Height: 3 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Amana
- Model Number: AEC6540KFB
- Product Name: 30" Built-In Electric Cooktop
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 3 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 41 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 5 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 29 4/7 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 4/7 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Power-On Indicator Light(s): true
- Fingerprint Resistant: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Cooking Zones: 4
- Number of Elements: 4
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): No
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Element Wattage
- Element 1 Wattage: 1200 watts
- Element 2 Wattage: 1800 watts
- Element 3 Wattage: 2500 watts
- Element 4 Wattage: 1200 watts
- Power
- Cooktop Power Source: Electric
- Electrical
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.amana.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.amana.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049429908
Introduce a sleek look to your kitchen with this Amana electric cooktop, featuring radiant elements for a smooth appearance. This modern stovetop features right-side knobs for easy access, and an indicator light lets you know the stove is on. A separate light on this Amana electric cooktop warns of hot burners even after you turn them off.
- Ceramic-glass cooktop: Ensures a smooth surface that makes cleaning fast and simple.
- Four heating elements: Deliver 1200-2500 watts of power for versatile heating options.
- Hot surface indicator light: Lets you know when the cooktop's surface is too hot to touch, even after the heating element has been turned off.
- Heating element indicator light: Allows you to know when your elements are on.
- Control-lock capability: Helps prevent unintentional or unsupervised activation for safety.
Whats Included
- Amana 30" Built-In Electric Cooktop
Product Manuals
A: I called Amana directly and they said it was 30 amp.
A: HI cdndallas, the AEC6540KFB features a left front element of 6" and 1200W, a Left rear element at 7" and 1800W, a Right front element at 9" at 2500W and a Right rear element at 1200W and 6"
A: There is not a color change, that is just the lighting of the photo.
A: Wally, please visit https://bit.ly/3uCvMHJ and refer to page 5 for more information.
A: Hello Wally! The markings are for the only heating settings. We hope this helps.
Q: I’m replacing AK2T30 will I have to change the amps for this top
A: Specs 30 amp 240 voltage Had to cancel my installation.. have not installed yet. As long that it reads 30 amps with ** 240 voltage then it’s ok to install if you have a 40 amp. (Which I do) my understanding. I am not an electrician you might want to double check . Good luck !
A: Hello Lynn, the dimensions of model AEC6540KFB are Product Height 3 1/8 inches, Product Width 30 inches, and Product Depth 21 3/4 inches. Please see the link to the Installation Instructions for the cutout dimensions needed. bit.ly/3SbiGxW Thank you for your inquiry on our Amana appliances. We hope this helps.
