Antennas Direct - 8-Output ClearStream JUICE8 Distribution Amplifier - Silver
Related Item
Specifications
- Continuous Watts x Channel @ OhmsNot SpecifiedNumber of Channels8Network Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: Not Specified
- Number of Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): No network connectors
- General
- Brand: Antennas Direct
- Model Number: JUICE8
- Product Name: 8-Output ClearStream JUICE8 Distribution Amplifier
- Color: Silver
- Audio
- Continuous Watts x Channel @ Ohms: Not Specified
- Maximum Watts x Channel @ Ohms: Not Specified (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Amplifier Type: Power amplifiers
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: false (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: No speaker connections
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.53 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 90 days
- Warranty - Labor: 90 day
- Other
- UPC: 817848012535

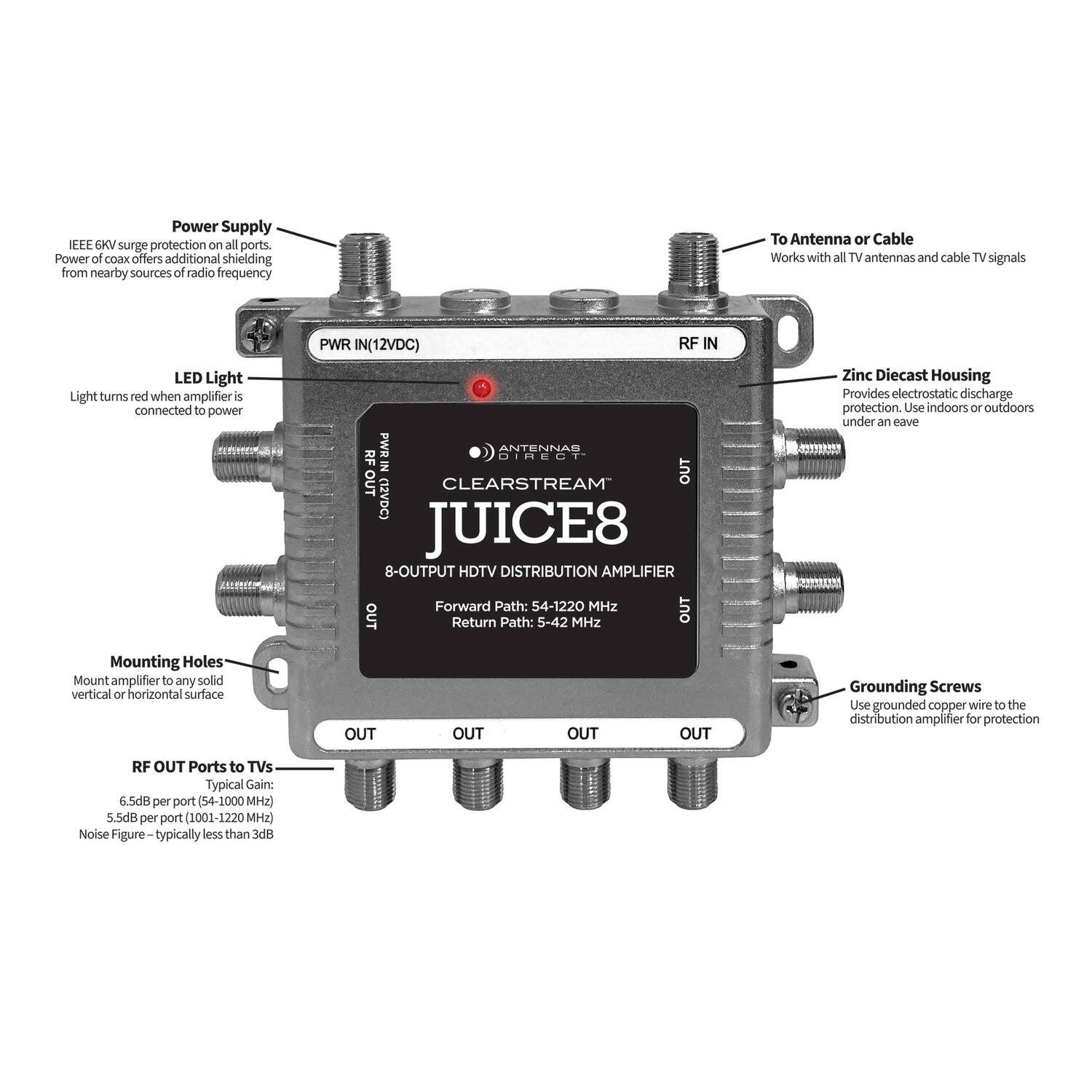

The Antennas Direct® ClearStream® JUICE8 Amplifier boosts the TV signal from your indoor or outdoor TV antenna or CATV system and distributes that signal to as many as 8 TVs. Distributing signal to multiple TVs and using 50 ft. or more of coaxial cable can result in some signal loss. The JUICE8 helps overcome these signal challenges by strengthening the signal coming in from the TV antenna’s coaxial cable for consistent reception and picture quality. This 8-output distribution amplifier is designed to be used in homes and professional settings in urban, suburban, and rural areas. Operating frequency extends to 1.2 GHz to accommodate CATV and cable broadband applications. Precision, machine-sealed, zinc die-cast housing protects against dust and water droplets and provides shielding from electrostatic discharge, with excellent surge protection on all ports. Can be used outdoors with 75-ohm F-termination caps, coaxial cables that have watertight F-connectors, and a power inserter (not included) to allow the power adapter to share the coaxial cable connected to the designated output shown on this device.
- Signal Boosting: Boosts signal for up to eight TVs or digital converter boxes without impacting quality, supporting ATSC 3.0 NEXTGEN TV and 4K 8K UHD
- Compact Design: Measures 4.25" H x 4.5" W x 1" D, ideal for indoor use with optional outdoor protection accessories
- Wide Frequency Range: Operates up to 1.2 GHz to support CATV and cable broadband applications
- Durable Build: Precision zinc diecast housing protects against dust, water droplets, and electrostatic discharge
- Surge Protection: Provides excellent surge protection on all ports to safeguard connected devices
Whats Included
- 12V DC power adapter, 40" high-performance coaxial cable, 2 wall screws, 2 grounding screws, instructions
