product image
Arctic

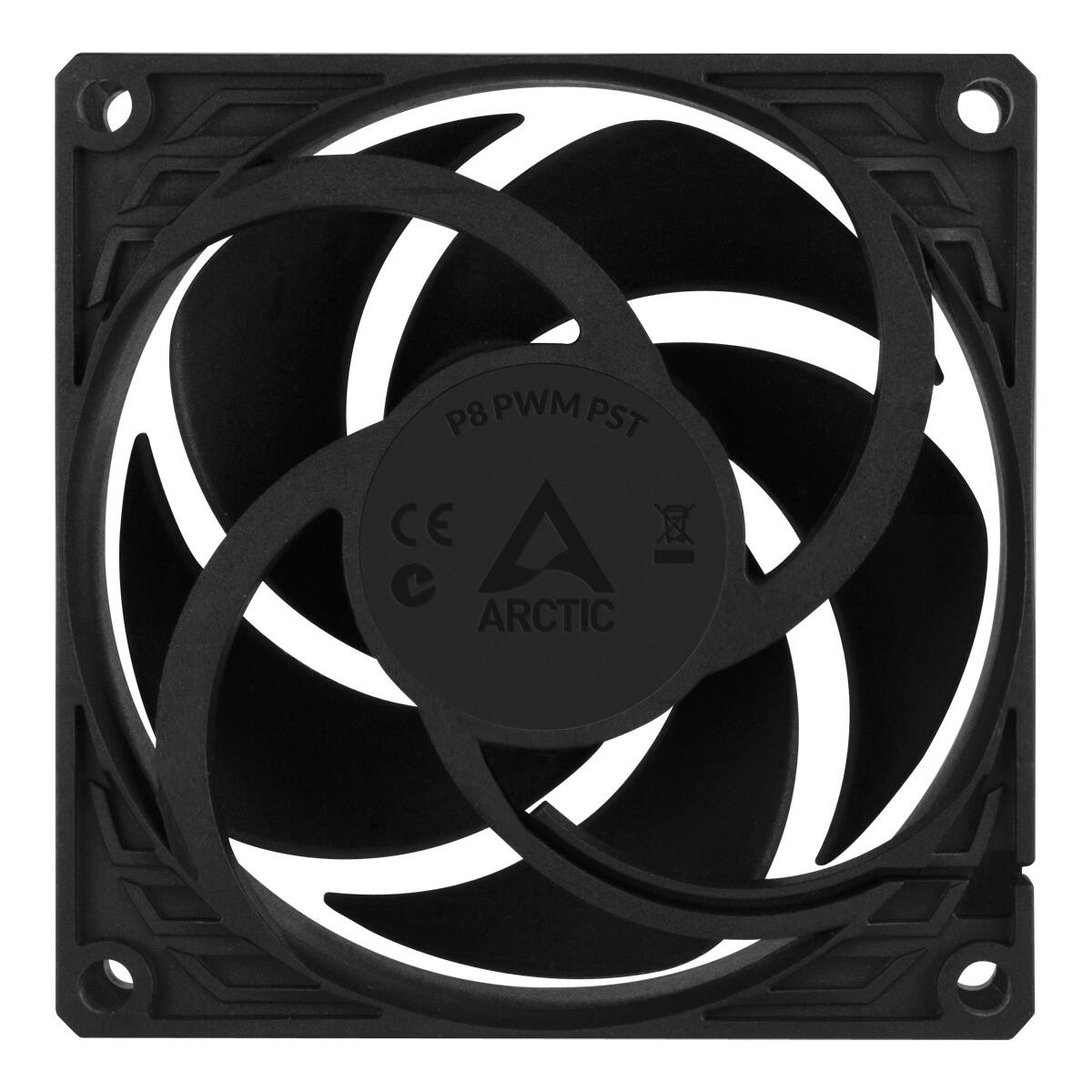

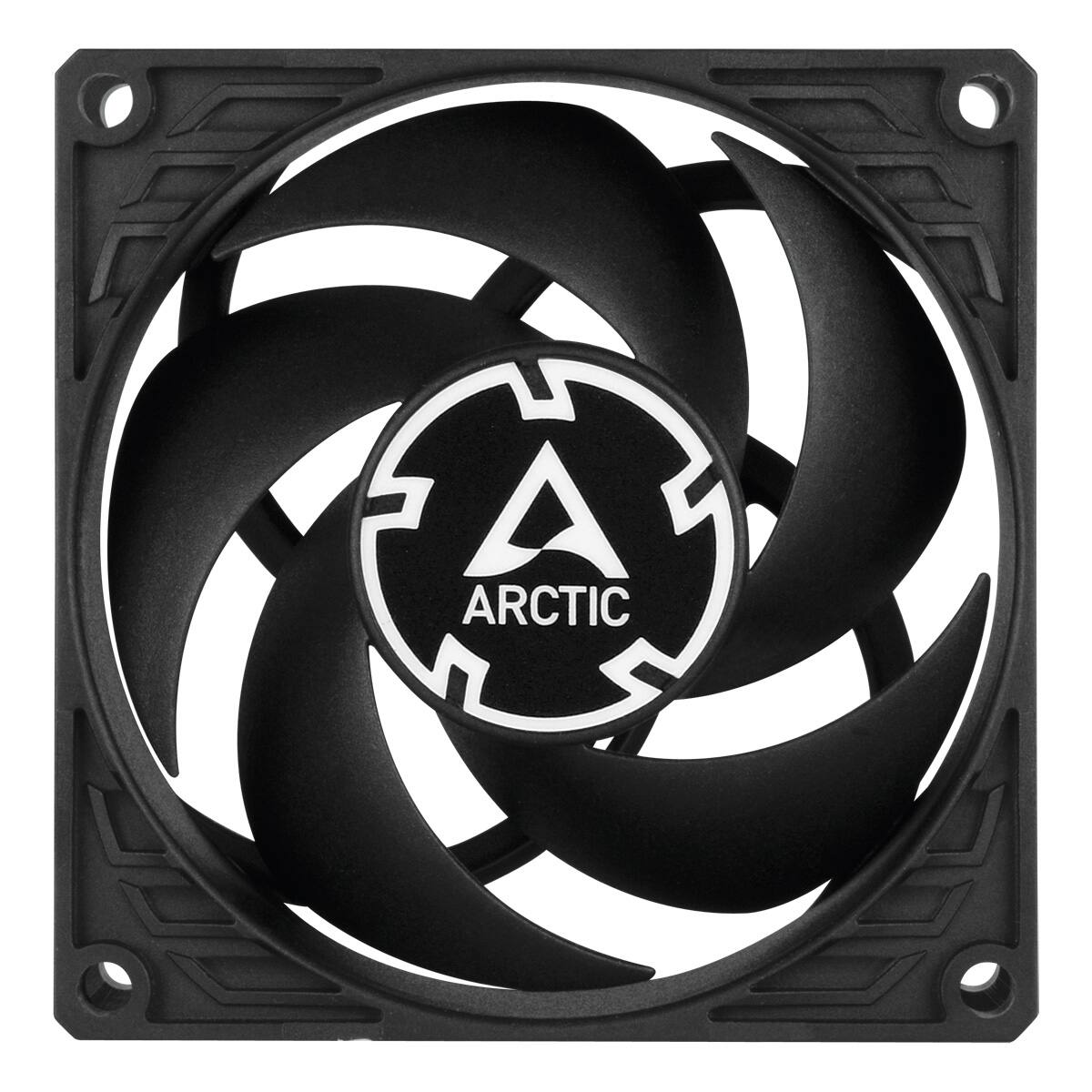

Arctic - P8 PWM PST 80 mm PWM Fan with Cable Splitter - 1 Pack - Black

Model: ACFAN00150A
SKU: 12359889

Reviews coming soon

This item is no longer available in new condition. See similar items below
  • Key Specs
    • Airflow Volume: 23.4 cubic feet per minute
    • Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
    • Fan Size: 80 millimeters
    • Fan Speed: 3000 revolutions per minute
    • Noise Level: 24.4 decibels adjusted
    • Number of Fans Included: 1
    • Lighting Type: None
    • Product Height: 0.98 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 3.15 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
  • General
    • Brand: Arctic
    • Model Number: ACFAN00150A
    • Product Name: P8 PWM PST 80 mm PWM Fan with Cable Splitter - 1 Pack
    • Color: Black
  • Cooling
    • Airflow Volume: 23.4 cubic feet per minute
    • Cooling Fan Type: Case
    • Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
    • Fan Size: 80 millimeters
    • Fan Speed: 3000 revolutions per minute
    • Noise Level: 24.4 decibels adjusted
    • Number of Fans Included: 1
  • Features
    • Lighting Type: None
  • Power
    • Power Consumption: 1.08 watts
  • Dimensions
    • Product Height: 0.98 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 3.15 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 3.15 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Weight: 2.86 ounces (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 6 Years
  • Other
    • UPC: 872767009929

3.15" Maximum Fan Diameter - 1 x Fan(s) - 23.40 CFM Maximum Airflow - 3000 rpm - Fluid Dynamic Bearing - 4-Pin Connector, 4-Pin Socket - Black - 1 - Heatsink, Radiator, Case

  • Optimised for Static Pressure: During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.
  • More Efficient Technology: The motor is driven by a latest-generation PWM IC, which enables the new P8 PWM PST to operate much more efficiently than its predecessors. This saves energy without compromising performance.
  • Maximum Quietness, Minimum Vibration: Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
  • Extended Life Span: A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.
  • 200 to 3000 rpm Regulated via PWM PST: Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
Whats Included
  • FALSE
