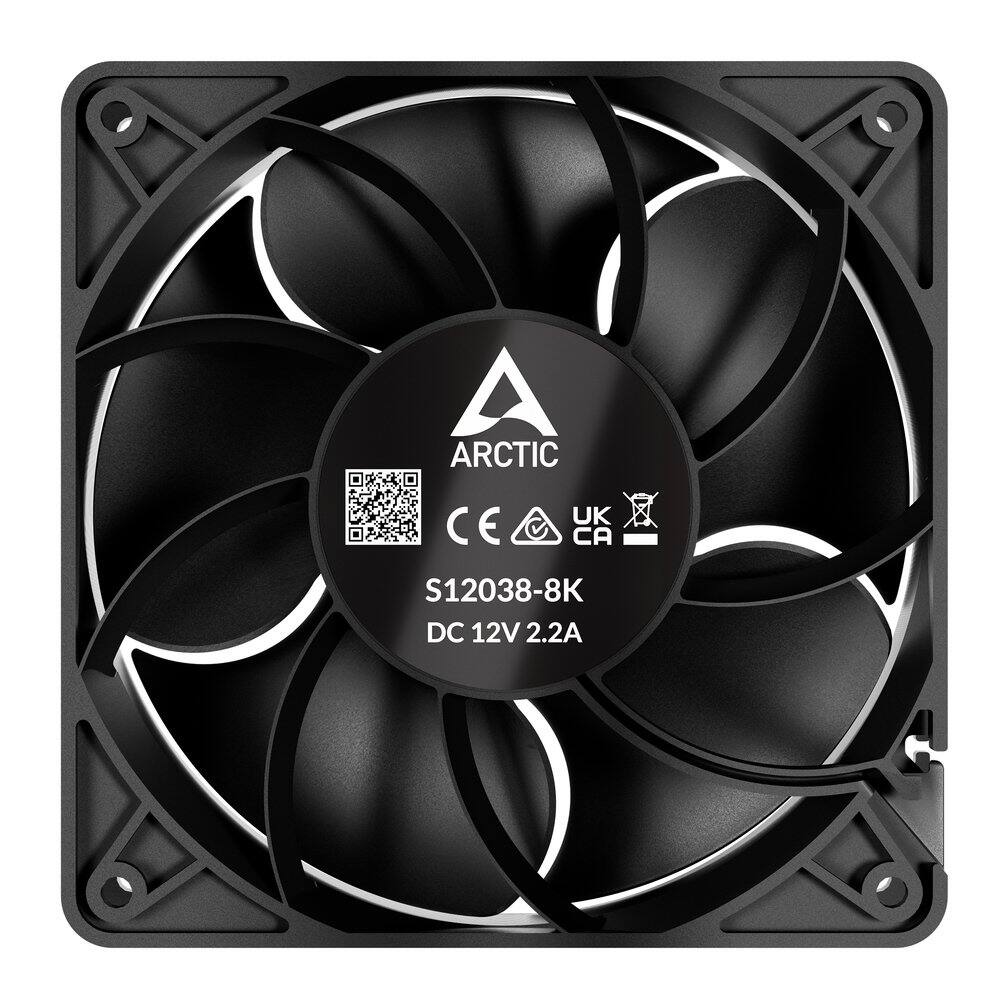

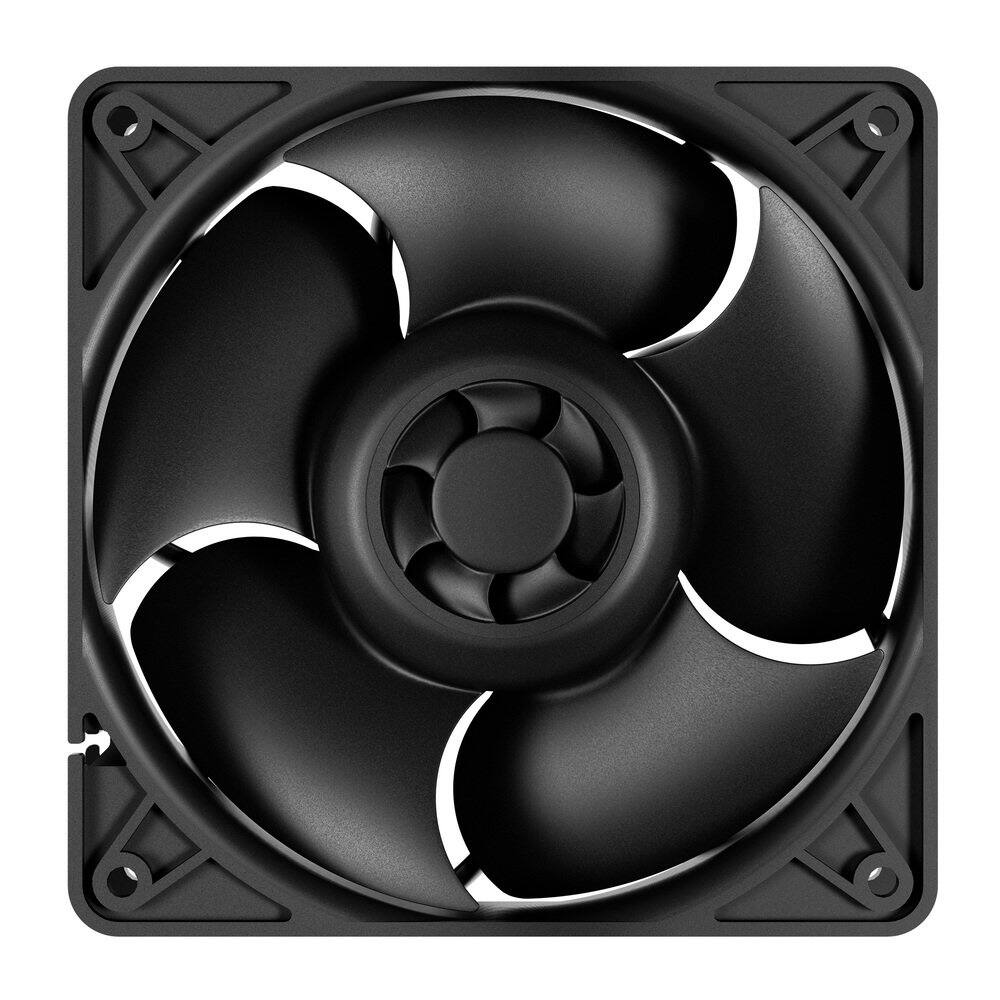

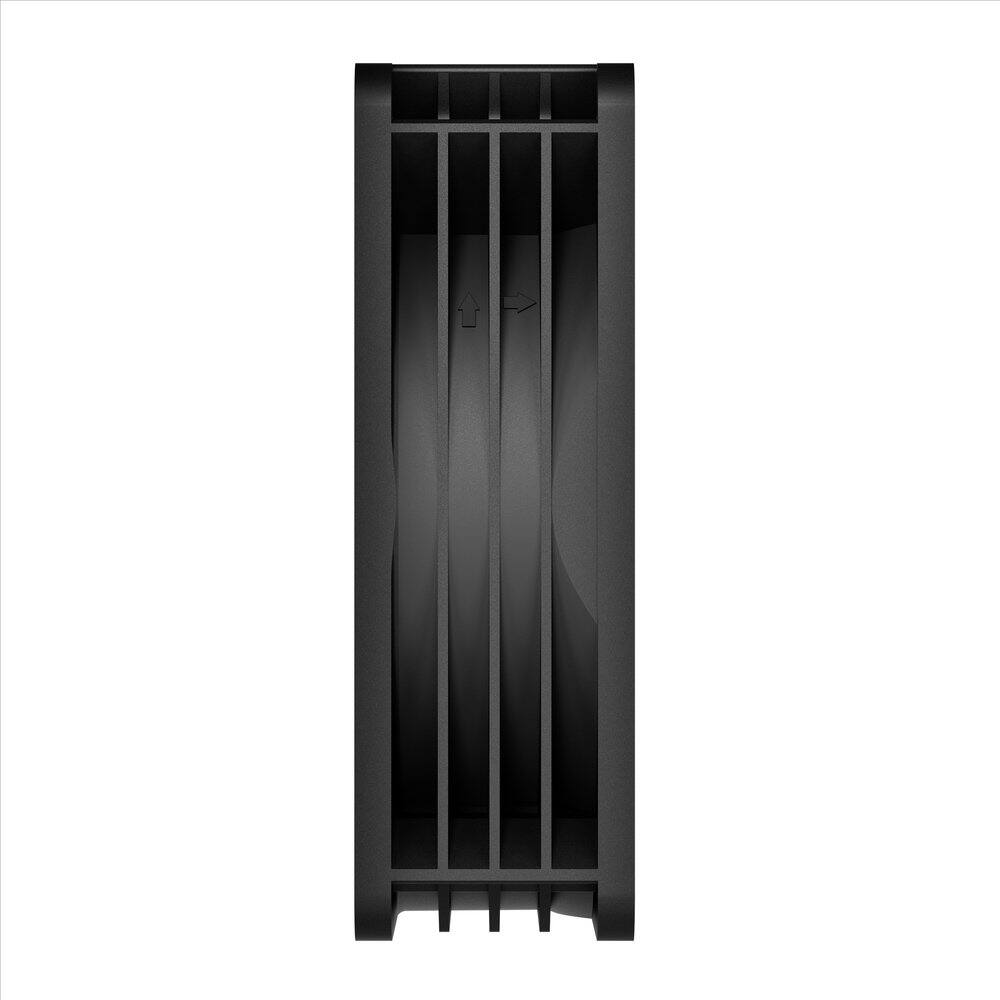

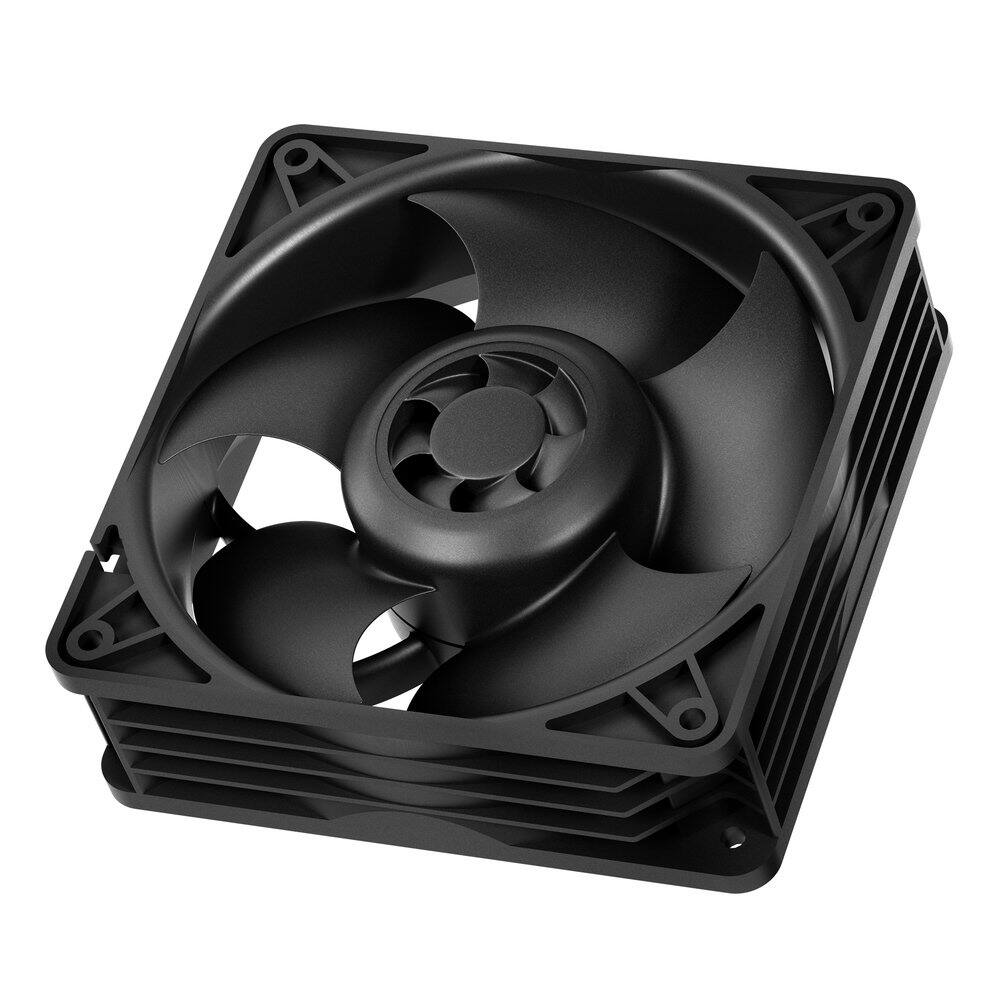

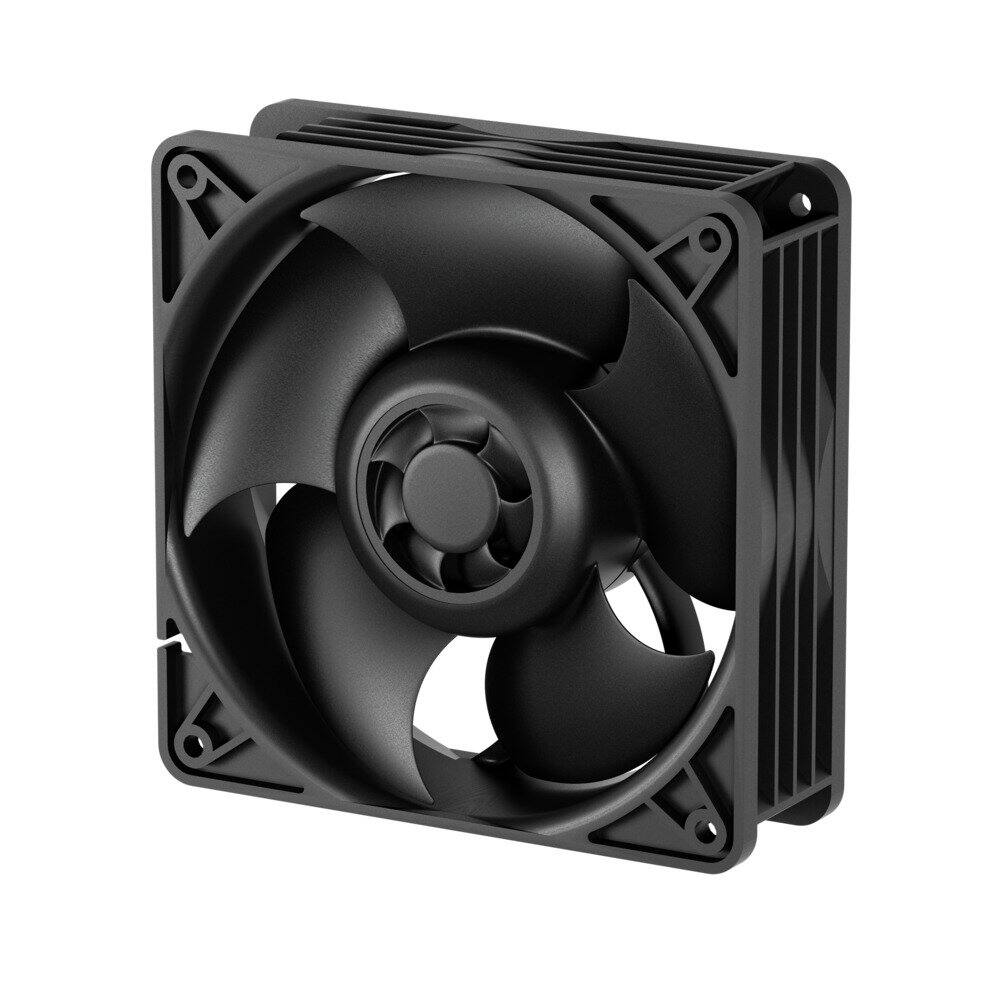

Arctic - S12038-8K 120 mm 8k rpm Server Fan - Black
Reviews coming soon
Specifications
- Airflow Volume220 cubic feet per minuteCooling SystemAirFan Size120 millimetersFan Speed8000 revolutions per minuteNoise Level50 decibels adjustedNumber of Fans Included1
- Key Specs
- Airflow Volume: 220 cubic feet per minute
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 8000 revolutions per minute
- Noise Level: 50 decibels adjusted
- Number of Fans Included: 1
- Lighting Type: None
- Product Height: 1.5 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.72 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- General
- Brand: Arctic
- Model Number: ACFAN00294A
- Product Name: S12038-8K 120 mm 8k rpm Server Fan
- Color: Black
- Cooling
- Airflow Volume: 220 cubic feet per minute
- Cooling Fan Type: Case
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 8000 revolutions per minute
- Noise Level: 50 decibels adjusted
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Power
- Power Consumption: 38.4 watts
- Dimensions
- Product Height: 1.5 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.72 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 4.72 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 11.57 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 6 Years
- Other
- UPC: 840033402538
The S12038-8K features a wide range of speeds from 800 to 8000 rpm, which can be controlled either via PWM or voltage regulation. This wide range enables precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions. The fan is equipped with a standard 4-pin connector, which also allows connection to 2-pin or 3-pin headers. The 30 cm long cable offers additional flexibility in fan placement.
- New Standard in Energy Efficiency: For the same performance, the S12038 consumes 22 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.
- Active Cooling for Extended Motor Lifespan: A 10 °C lower motor temperature roughly doubles the service life. The motor of the S12038-8K is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub.
- Ideal for Server Environments: Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S12038-8K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation.
- Ideal for Industrial Application: In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.
- High Airflow and Static Pressure: Heat sinks and radiators benefit from fans with high static pressure. The S12038-8K has a static pressure of 37 mmH₂O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 370 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.
