ASRock - Intel Arc B580 Challenger 12GB GDDR6 OC PCIe 4.0 Graphic Card - Black
Related Item
Specifications
- GPU Base Clock Frequency2.74 gigahertzGPU Boost Clock Frequency2.74 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.74 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.74 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 41 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 249 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 132 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): Intel Arc (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASRock
- Model Number: VGB580CL12GO
- Product Name: Intel Arc B580 Challenger 12GB GDDR6 OC PCIe 4.0 Graphic Card
- Color: Black
- GPU Chipset Manufacturer: Intel
- Graphics Processing Unit (GPU): Intel Arc (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Performance
- GPU Base Clock Frequency: 2.74 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.74 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 19 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 650 watts
- Recommended Power Supply: 650 watts
- Dimensions
- Product Height: 41 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 249 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 132 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.59 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 36 Month Limited
- Warranty - Labor: 36 Month Limited
- Other
- UPC: 4711581490031
Intel Arc B580 graphics - play, create, and generate with modern tech, better graphics, and better plays. Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect, at the prices you deserve. Increase performance, responsiveness, and more with Intel Arc gaming technologies. Get exceptional performance and visual quality in over 150 games enabled with AI-boosted, Intel Xe Super Sampling (XeSS) technology. Make your games play smoother and more responsive with Intel XeSS Frame Generation and Intel Xe Low Latency technologies from Intel.
- Powered by an Intel graphics processing unit: With a 2740MHz base speed to help meet the needs of demanding games.
- 12GB GDDR6 on-board memory: Provides the memory needed to create striking visual realism.

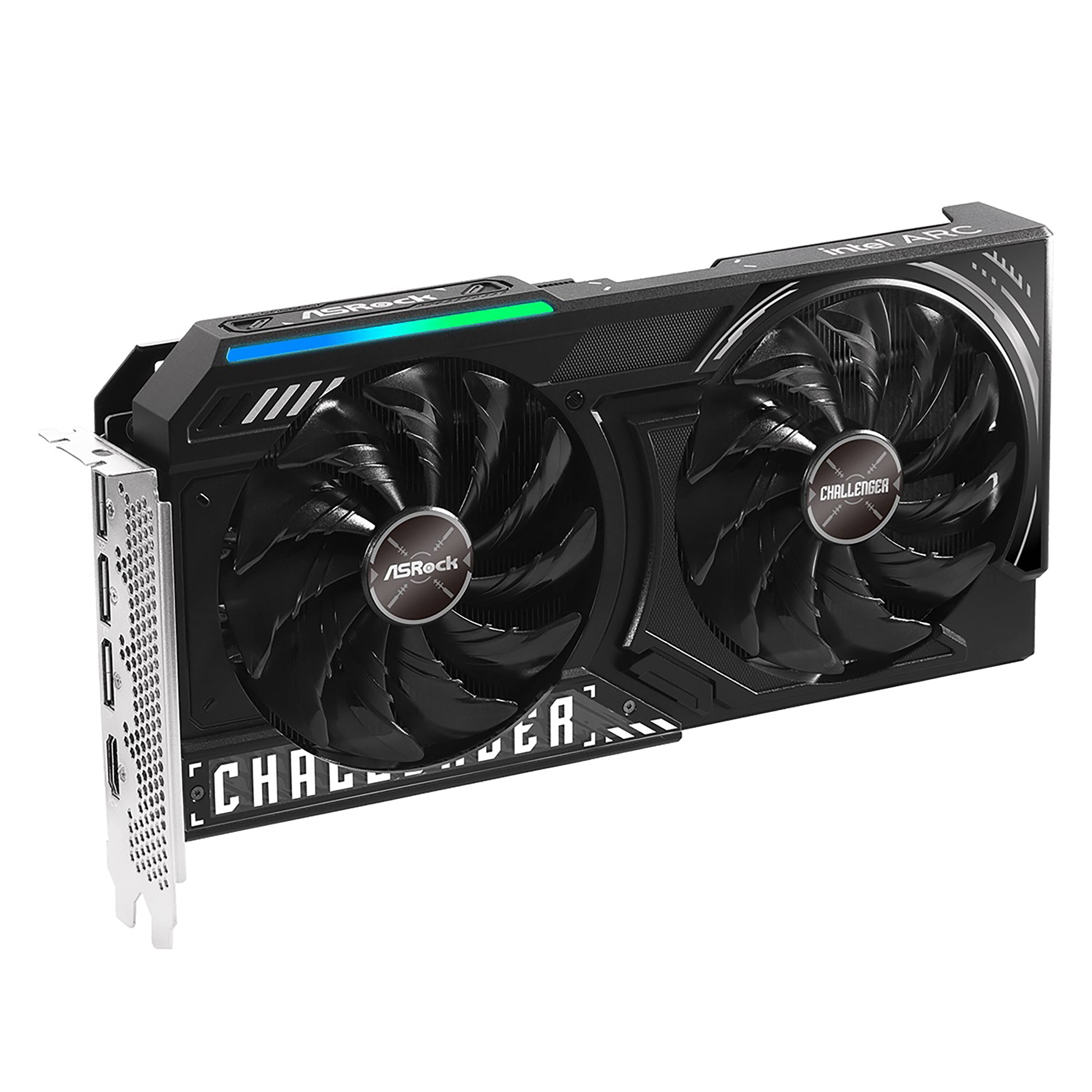

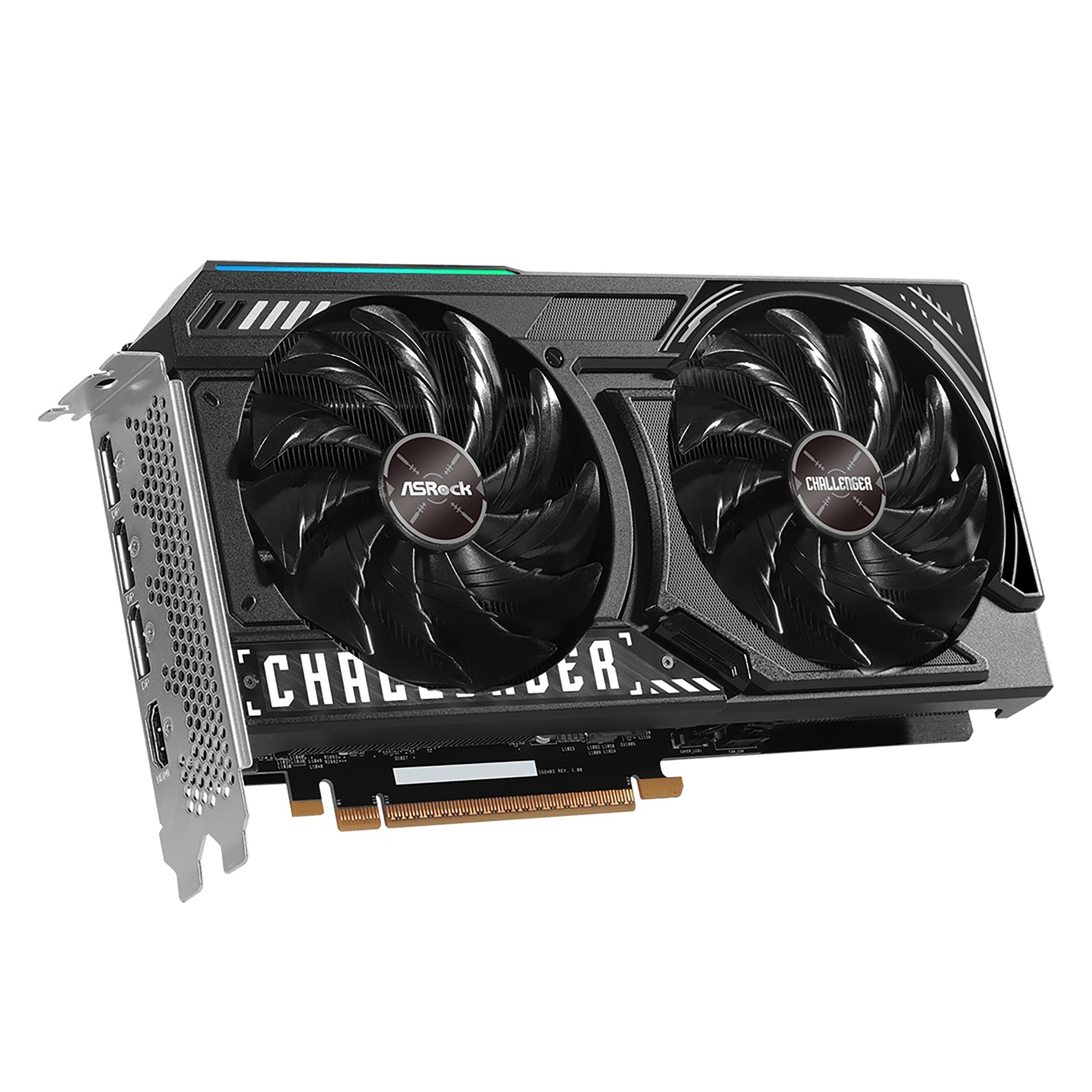

- Dual fan design optimizes cooling efficiency: Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

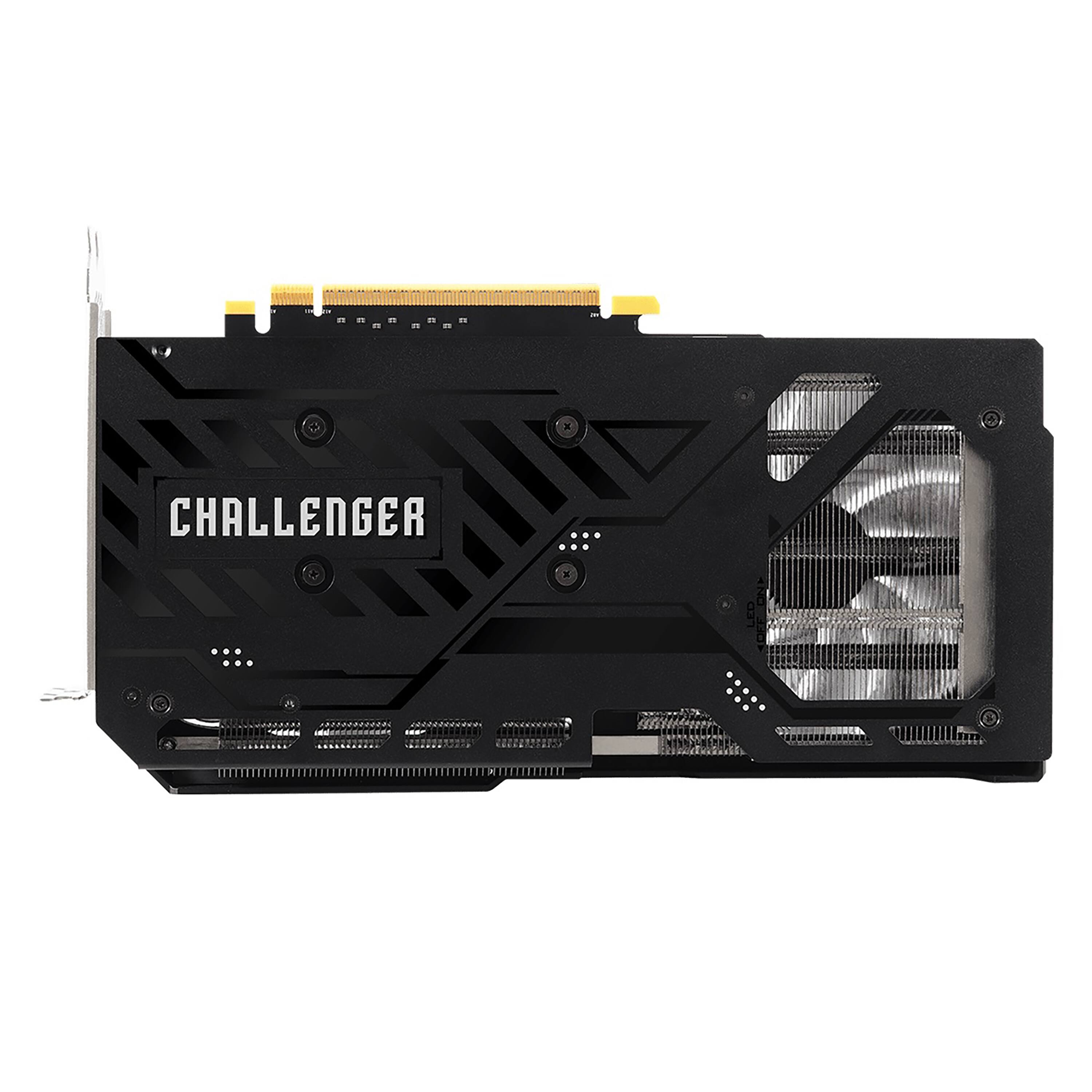

- Stylish metal backplate: The stylish metal backplate on the graphics cards makes it more fancy in visual and solid in construction. Also, the thermal pad at the backside helps to enhance the thermal efficiency.
- Striped axial fan is designed for enhanced airflow: ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

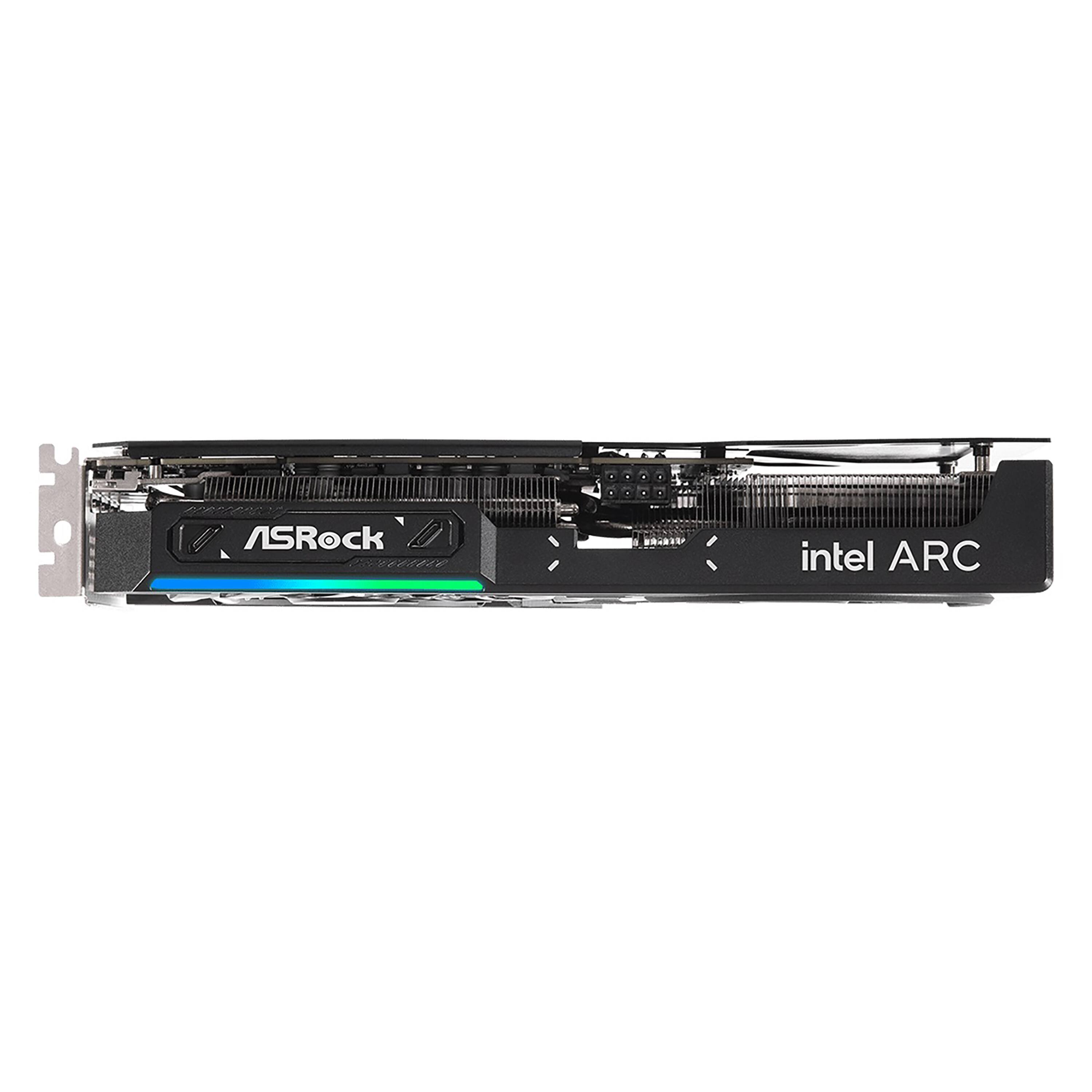

- LED indicator: Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
- 0dB silent cooling: The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
- LED switch: You can switch LED on or off depending on the scenarios or your need.
- Nano thermal paste: Eliminiate the gaps in the contact area to maximize heat transfer and thermal efficiency.
- Ultra-fit heatpipe is consolidated to maximize the contact: The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
- High-density metal welding improves heat dissipation: Effectively isolates all coverage of the gap between pipe and stacked fins, hence improving heat dissipation effectively.
- Precise screw torque optimizes mounting pressure: ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Whats Included
- ASRock Intel Arc B580 Challenger 12GB OC Graphic Card
- User Documentation
Disclaimers
- Intel, Pentium, Celeron, Core, Atom, Ultrabook, Intel Inside and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
