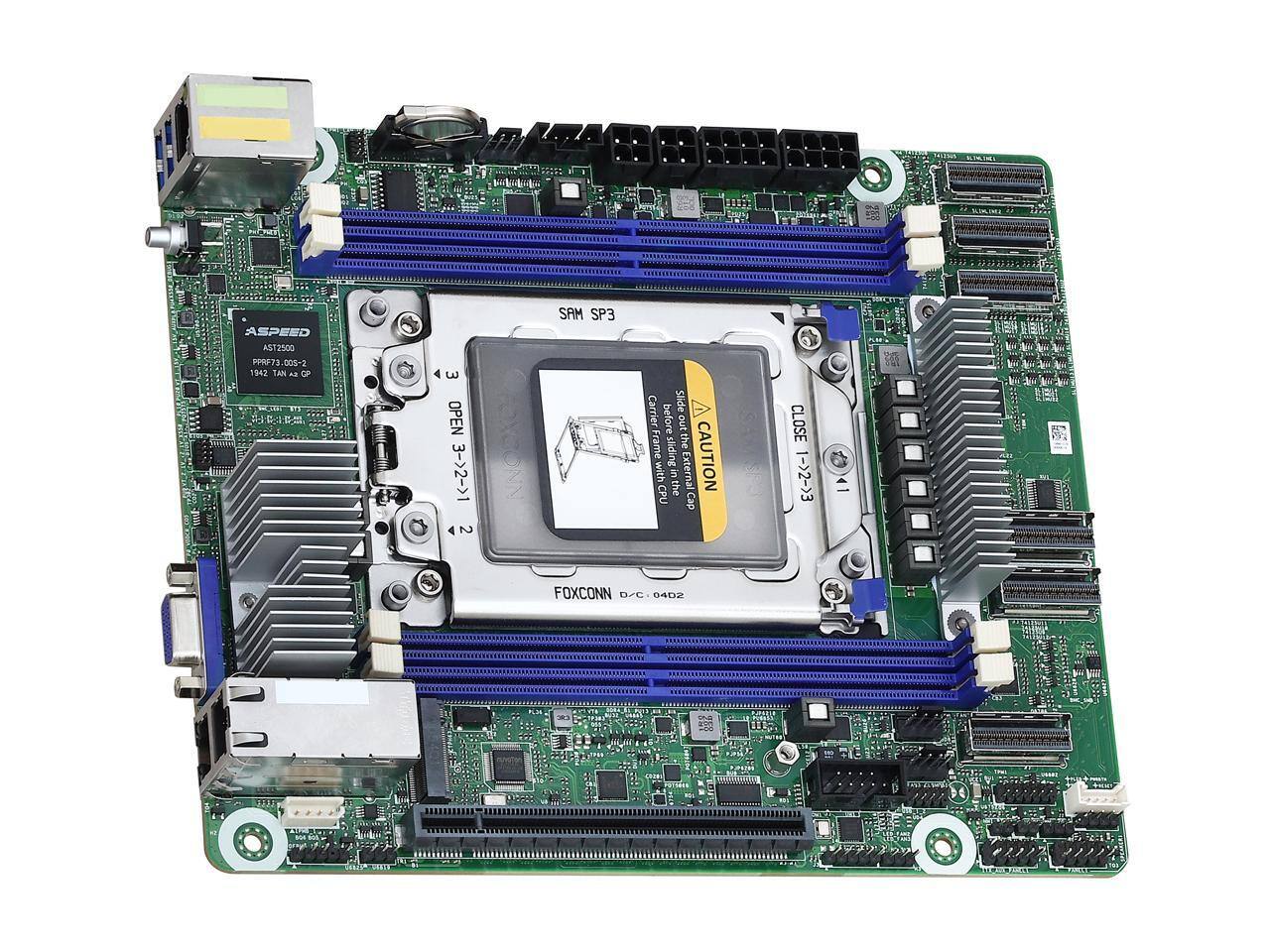

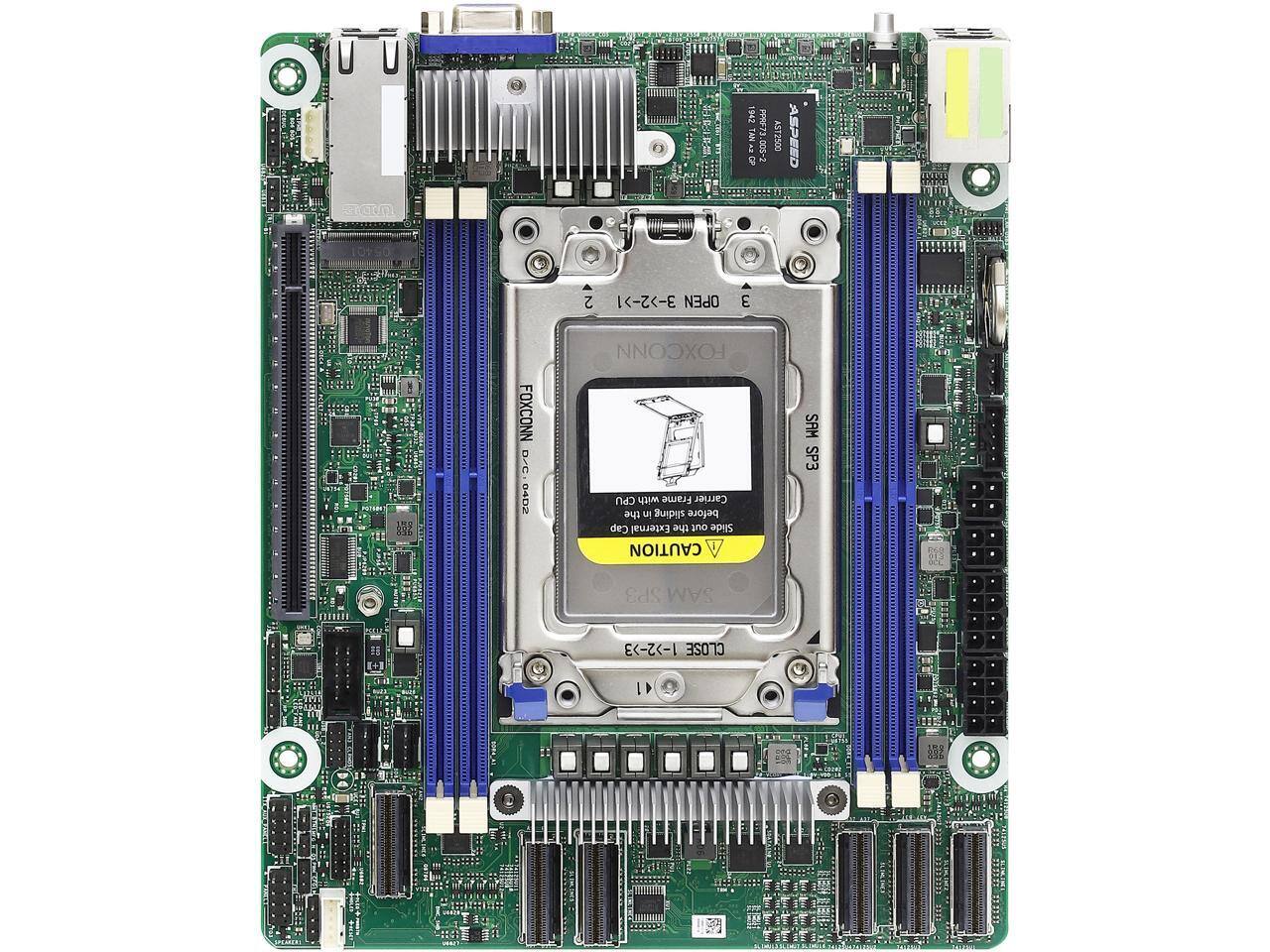

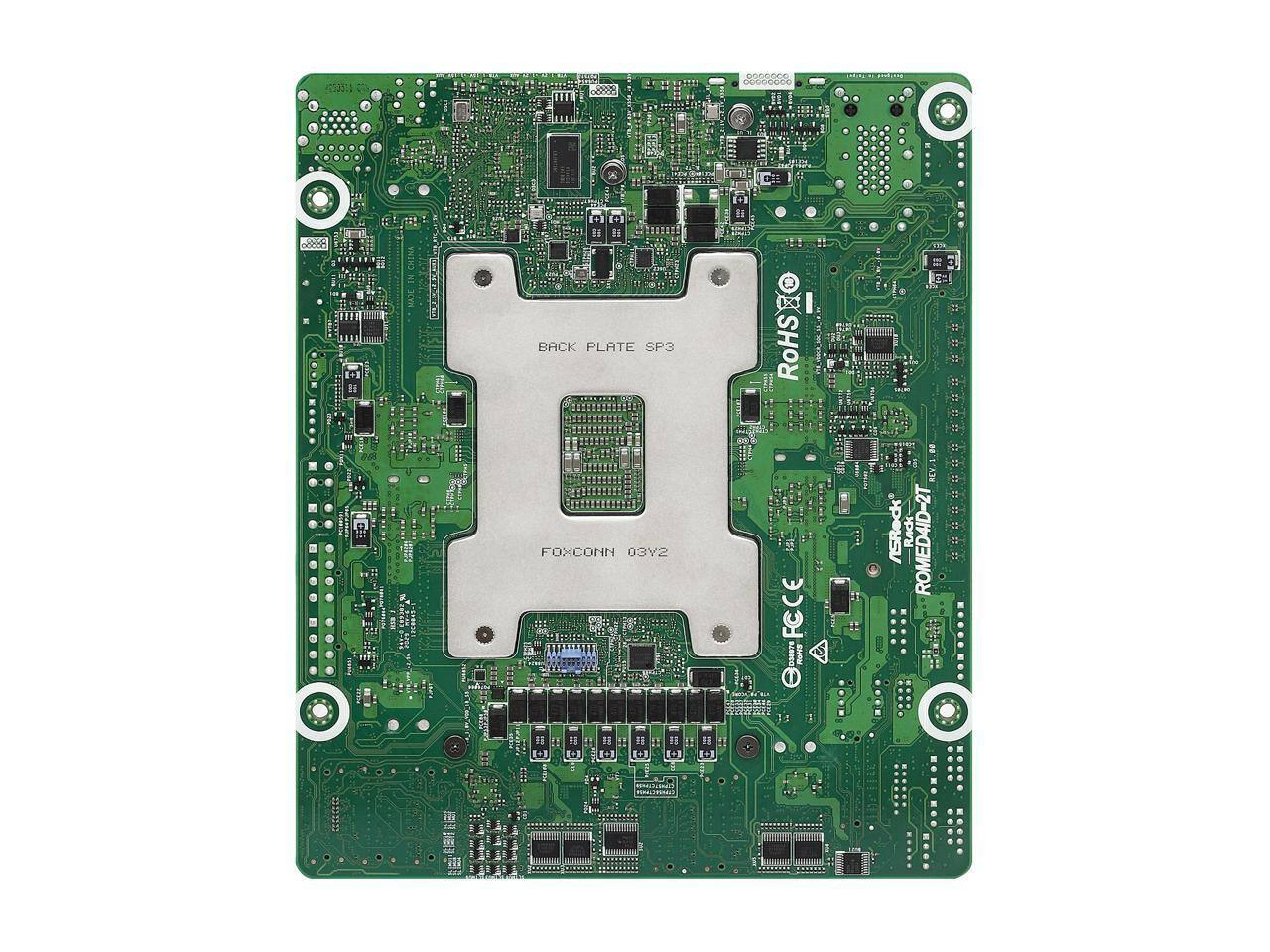

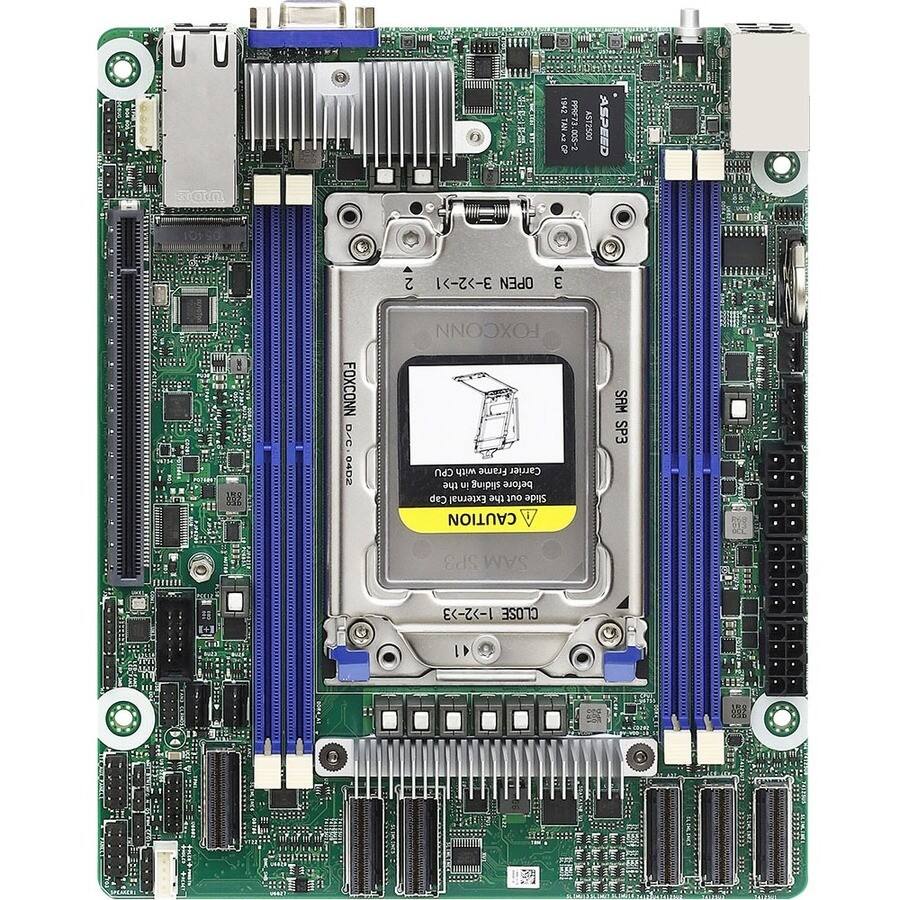

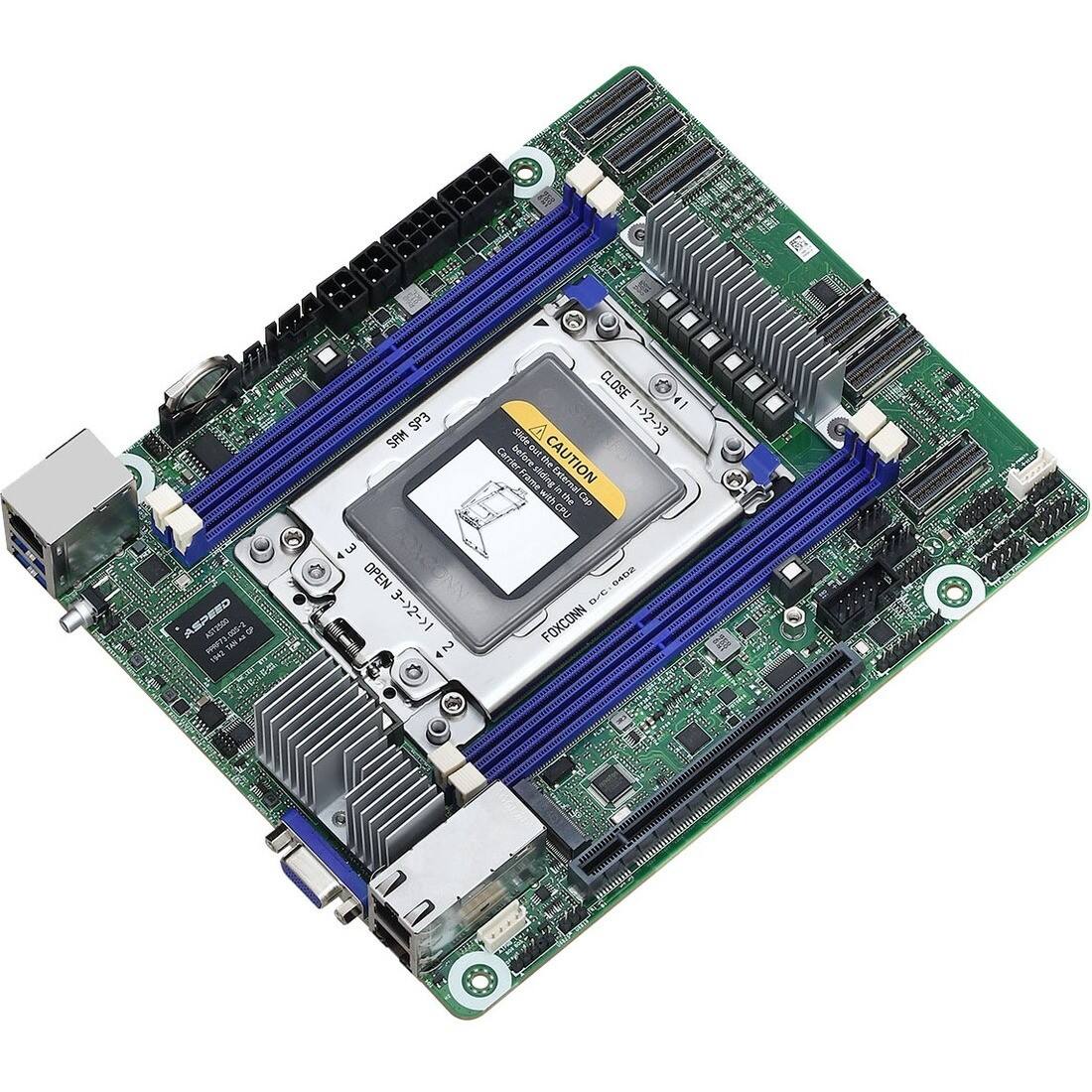

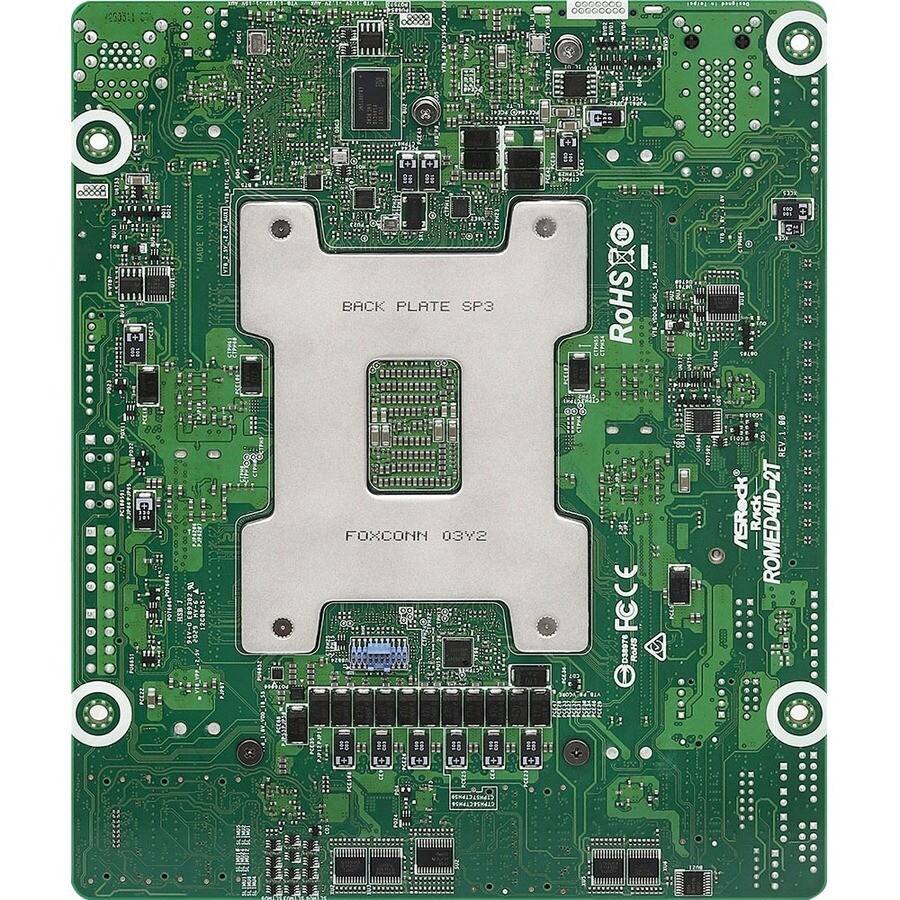

ASRock - ROMED4ID2T Desktop Motherboard
More Buying Options from Marketplace sellers
Specifications
- ChipsetAMD X870Form FactorProprietaryProcessor SocketSocket SP3 (LGA 4094)Wireless Networking StandardNo Wi-Fi standardNumber Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: Proprietary (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket SP3 (LGA 4094) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR4 SDRAM
- General
- Brand: ASRock
- Model Number: ROMED4ID-2T
- Product Name: ROMED4ID2T Desktop Motherboard
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: Proprietary (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket SP3 (LGA 4094) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD EPYC 7002 Series, AMD EPYC 7003 Series
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

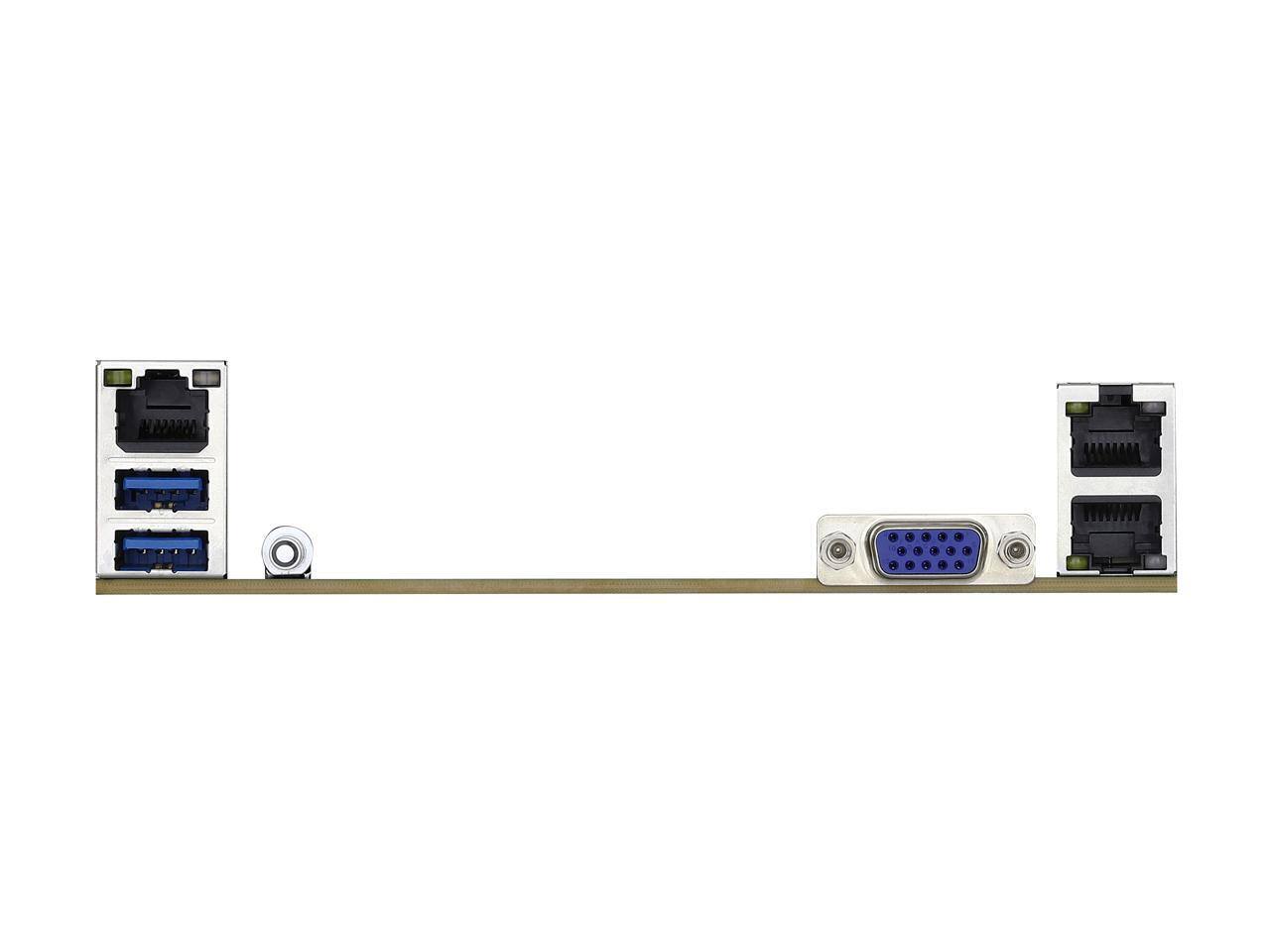

- USB Ports: 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 6.7 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.2 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 10.83 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR4 SDRAM
- Memory Format Supported: LRDIMM, RDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 3200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0), RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: Limited Warranty period (labor): 3 years
- Other
- UPC: 4710483933936
The ROMED4ID2T Desktop Motherboard is engineered for high-performance computing, supporting AMD EPYC 7002 and 7003 series processors. Its compact proprietary form factor (6.7" x 8.2") allows for efficient space utilization. The motherboard offers up to 256 GB of DDR4 memory across 4 DIMM slots and includes 1 PCIe 4.0 x16 slot and 1 M-key M.2 slot for expansion. Networking is robust with 2 10GbE LAN ports and 1 dedicated IPMI LAN port, ensuring reliable connectivity.

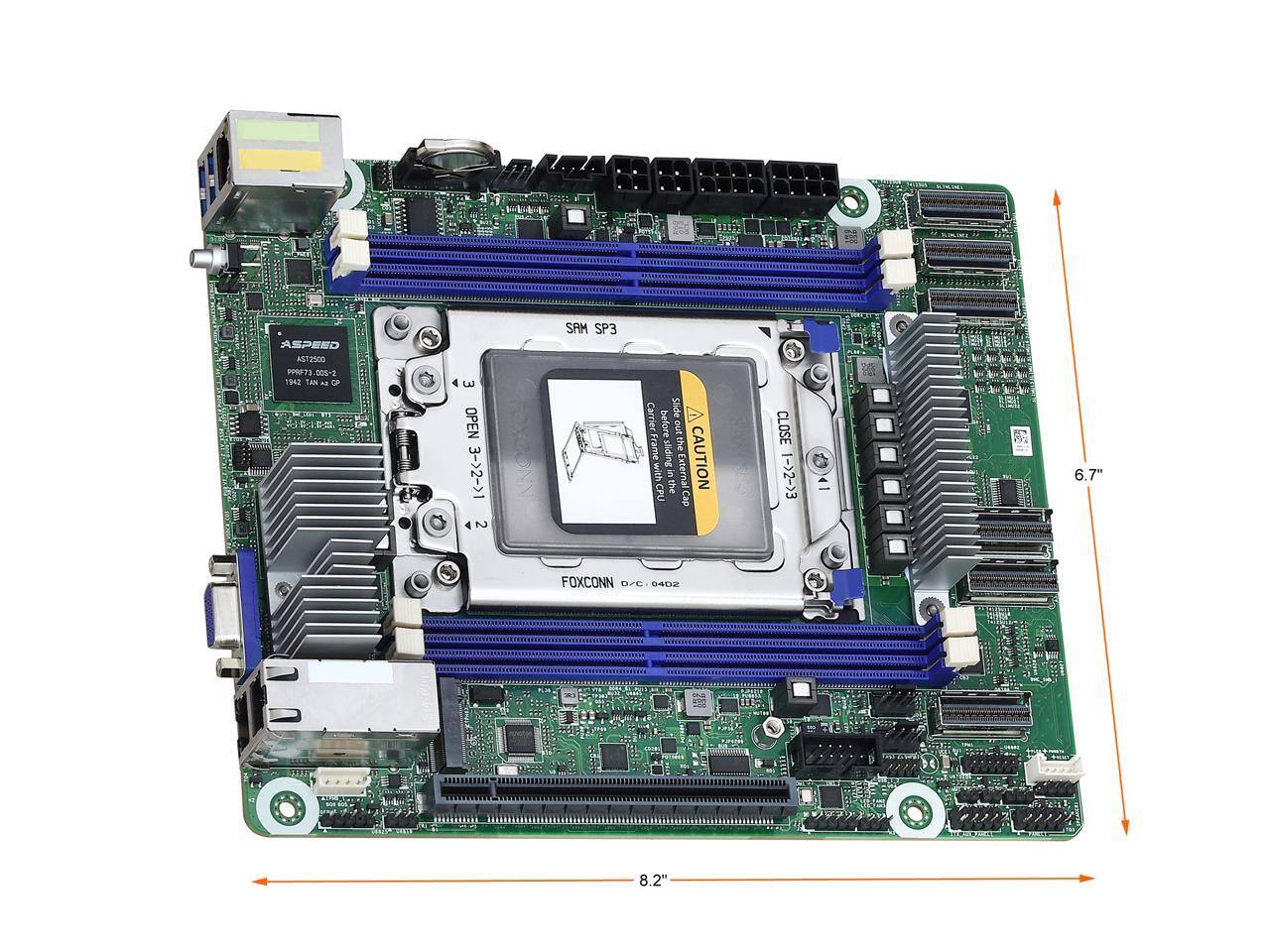

- Proprietary Form Factor: Compact design measuring 6.7" x 8.2" for space-efficient installations.
- AMD EPYC Processor Support: Compatible with AMD EPYC 7002 and 7003 series processors; BIOS update required for 7003 series.
- Memory Capacity: Supports up to 256 GB of DDR4 memory across 4 DIMM slots.
- Expansion Slots: Equipped with 1 PCIe 4.0 x16 slot and 1 M-key M.2 slot for versatile expansion.
- Networking Capabilities: Features 2 10GbE LAN ports and 1 dedicated IPMI LAN port for robust networking.
Whats Included
- AsRock Rack ROMED4ID-2T Proprietary (Deep mini-ITX) Server Motherboard Socket SP3
