ASUS - PRIME NVIDIA GeForce RTX 5070 Ti OC Edition 16GB GDDR7 PCI Express 5.0 Graphics Card - Black
Key Accessories:
- NZXT - Gold Core 1000W ATX 3.1 / PCIE 5.1 80 Plus Gold Cybenetics Platinum Fully Modular Power Supply - Black$124.99The price was $169.99
More Buying Options from Best Buy and Marketplace sellers
Related Item
Specifications
- GPU Base Clock Frequency2.497 gigahertzGPU Boost Clock Frequency2.527 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.497 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.527 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

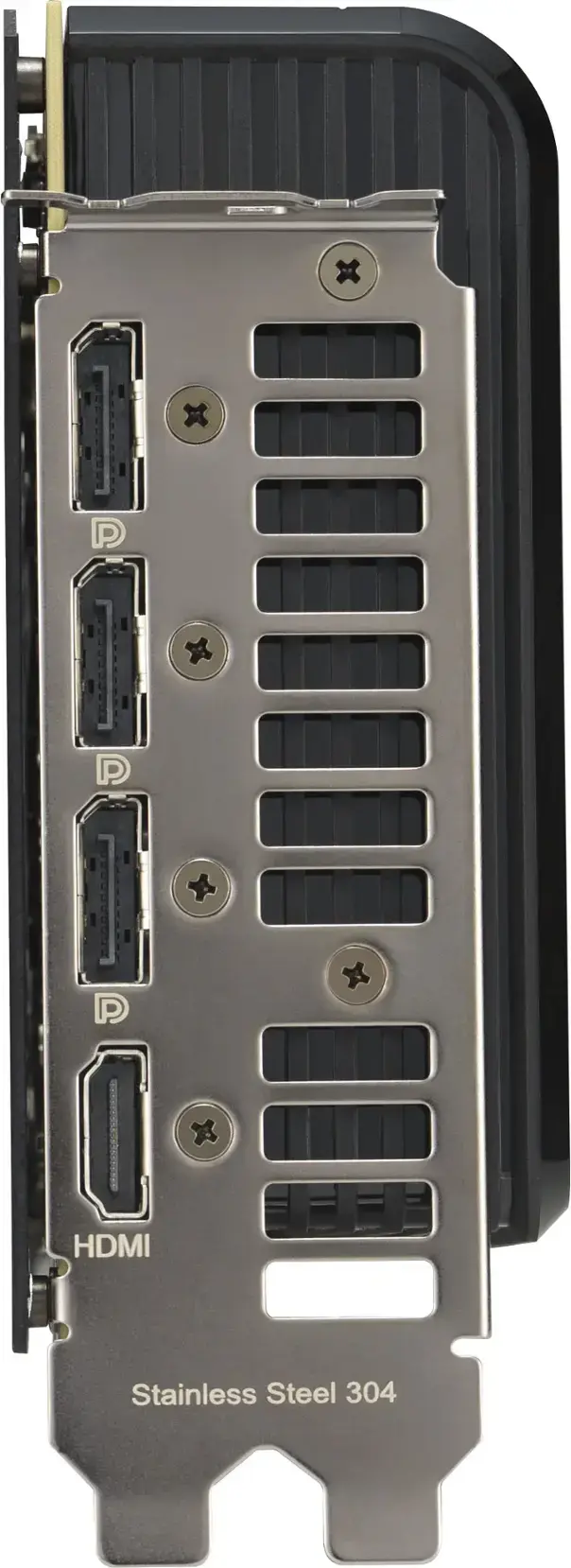

- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4

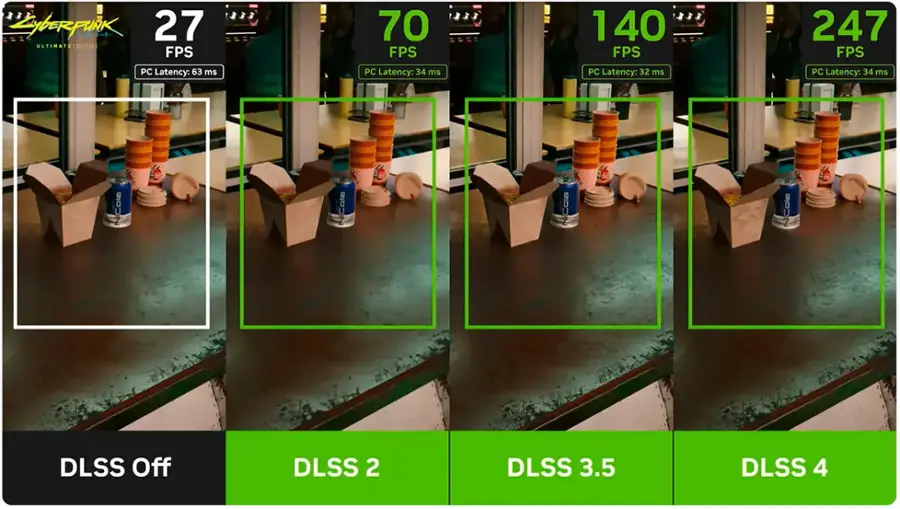

- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 306 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5070 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASUS
- Model Number: PRIME-RTX5070TI-O16G
- Product Name: PRIME NVIDIA GeForce RTX 5070 Ti OC Edition 16GB GDDR7 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5070 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.497 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.527 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 14 gigahertz
- Compatibility
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Windows 11 / Windows 10 (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 300 watts
- Recommended Power Supply: 750 watts
- Dimensions
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 306 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.58 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105878044

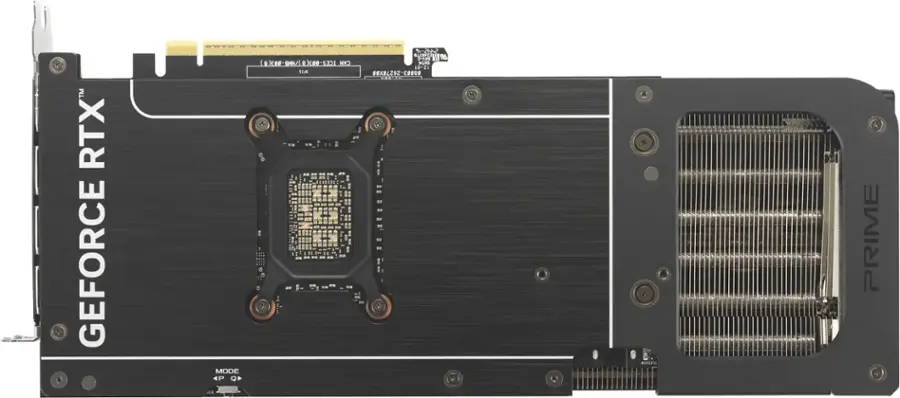

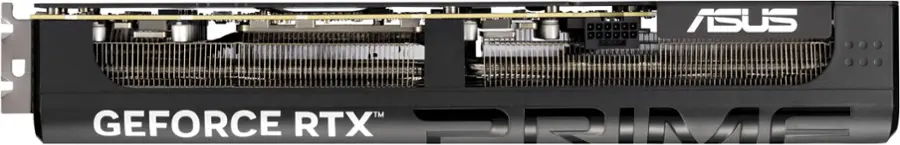

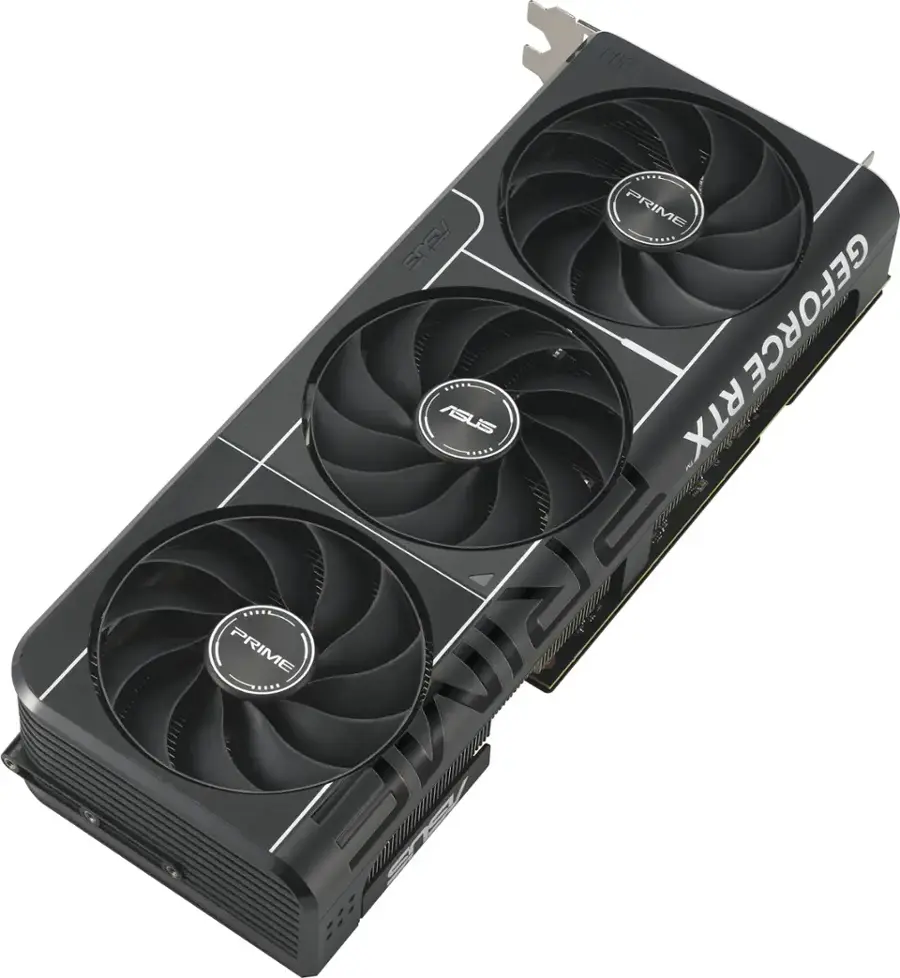

The ASUS Prime RTX 5070 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance. A premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
- Powered by: NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready enthusiast GeForce card: Compatible with small-form-factor builds
- Axial-tech fans: Feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- Phase-change GPU thermal pad: Helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
- 2.5-slot design: Allows for greater build compatibility while maintaining cooling performance
- Dual-ball fan bearings: Last up to twice as long as standard sleeve bearings
- 0dB technology: Lets you enjoy light gaming in relative silence
- Dual BIOS switch: Lets you toggle between Quiet and Performance BIOS profiles
- Auto-Extreme: Manufacturing process for precision and reliability
- GPU Tweak III: Software provides intuitive performance tweaking, advanced thermal control and system monitoring
Whats Included
- Speedsetup Manual
- ASUS Velcro Hook & Loop
- Thank you Card
- Adapter Cable
Q: What type of cooling system does this graphics card use?
A: This graphics card uses a fan cooling system.
Q: What is the recommended power supply for this graphics card?
A: The recommended power supply for this graphics card is 750 watts.
Q: Does this graphics card come with a BIOS switch?
A: Yes, it has a Dual BIOS switch that lets you toggle between Quiet and Performance BIOS profiles.
Q: What is the slot size of this graphics card?
A: The ASUS GeForce RTX 5070 Ti graphics card has a 2.5 slot design.
Q: How many displays does this graphics card support?
A: The ASUS GeForce RTX 5070 Ti graphics card can support a maximum of 4 displays.
Q: What version of PCI Express does this graphics card use?
A: This graphics card uses PCI Express 5.0.
Q: does this gpu come with a support bracket
A: The ASUS PRIME RTX 5070 Ti O16G Graphics Card does not come with a dedicated GPU support bracket included in the box.
A: Hello. It’s daily easy. Watching a short YouTube video can help a lot. If you want to be charged more money though I believe the Best Buy geek squad can install it. Just know it’s easy and takes less than a few mins to install. The old drivers for his current card should be uninstalled with a program called DDU uninstaller first and then remove the old card. Put the new one in and install the new drivers for the new card. This avoids any possible weird conflicts between the old cards software and the new cards. YouTube is your friend for both the physical and the software removal and install
Compare similar products
The ASUS Prime RTX 5070 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance. A premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Fearless and bold, GeForce RTX 5070 Ti 16G GAMING TRIO OC delivers strong performance to both gaming and content creation. It blends a fierce look with advanced cooling technologies, making it an unwavering ally on the gaming battlefield. GeForce RTX 5070 Ti 16G GAMING TRIO OC is the ideal choice for gamers who strive to give their all.
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load, and dominate with the ASUS TUF Gaming GeForce RTX 5070 Ti, designed to withstand the harshest conditions, and deliver unparalleled performance.
The PNY GeForce RTX 50 Series Overclocked line of GPUs will be available in four different configurations: GeForce RTX 5090, RTX 5080, RTX 5070 Ti, and RTX 5070, all powered by the NVIDIA Blackwell architecture, providing enhanced gaming realism, powerful real time ray tracing, and cutting-edge features to accelerate gaming performance.
| Pros for ASUS - PRIME NVIDIA GeForce RTX 5070 Ti OC Edition 16GB GDDR7 PCI Express 5.0 Graphics Card - Black | |||
|---|---|---|---|
| Noise Level, Graphics Performance, Heat Dissipation, Size, Power | There were no pros for this product— | Overall Performance, Temperature, Noise Level, Design, Frame Rate | Overall Performance, Temperature, Noise Level, Overclocking, Power Consumption |
| Cons for ASUS - PRIME NVIDIA GeForce RTX 5070 Ti OC Edition 16GB GDDR7 PCI Express 5.0 Graphics Card - Black | |||
| There were no cons for this product— | There were no cons for this product— | Size, VRAM | Size |
