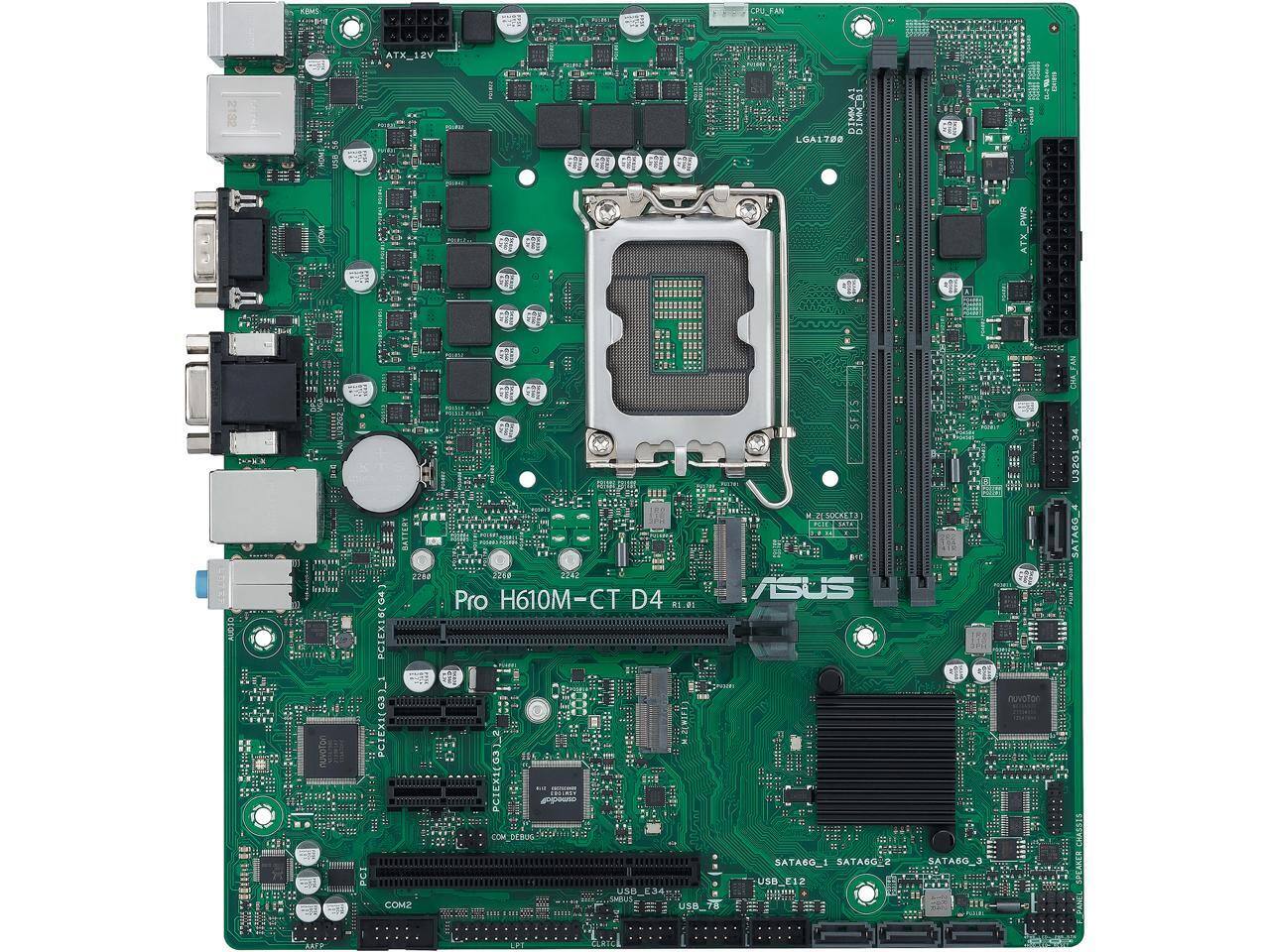

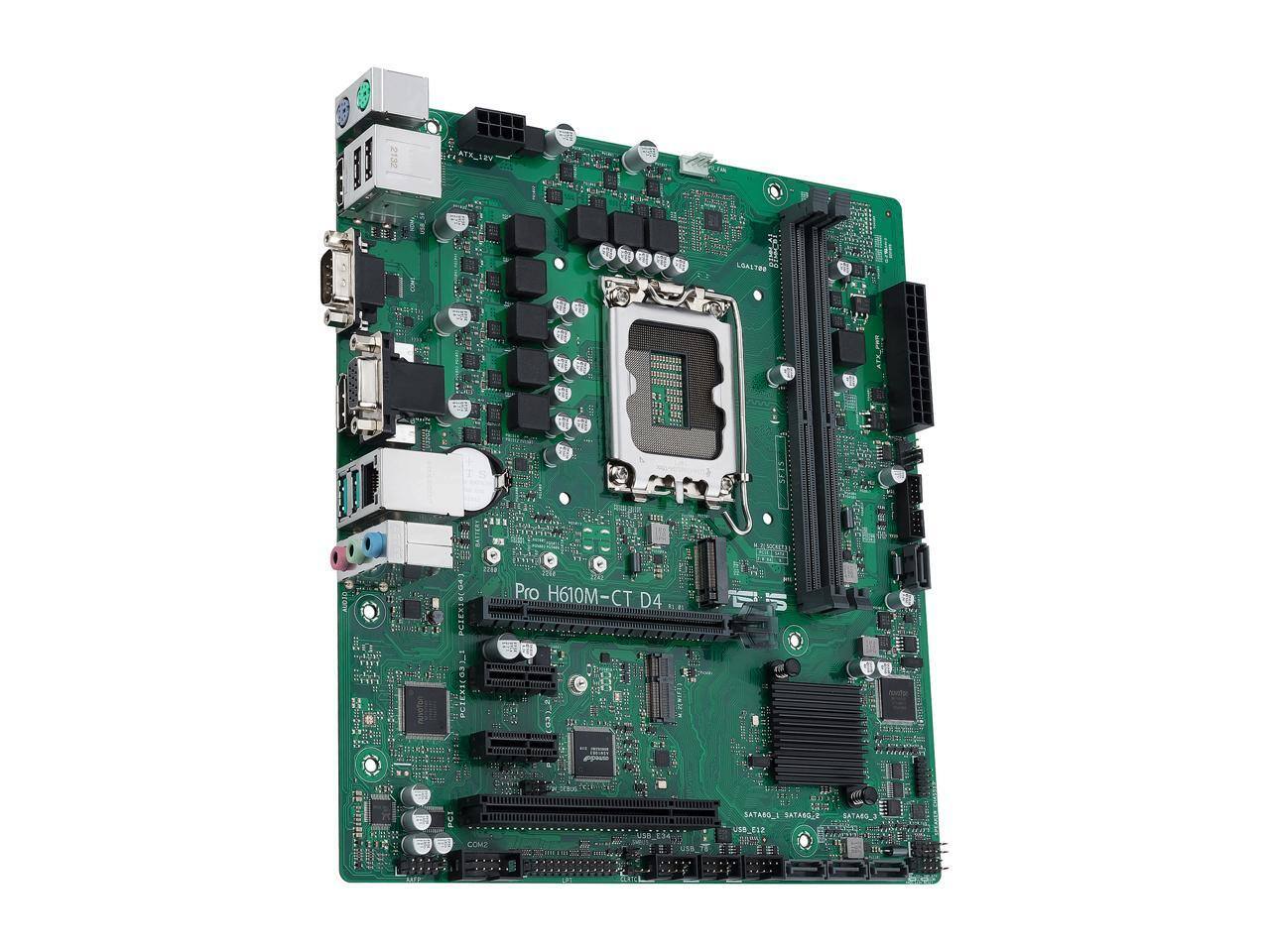

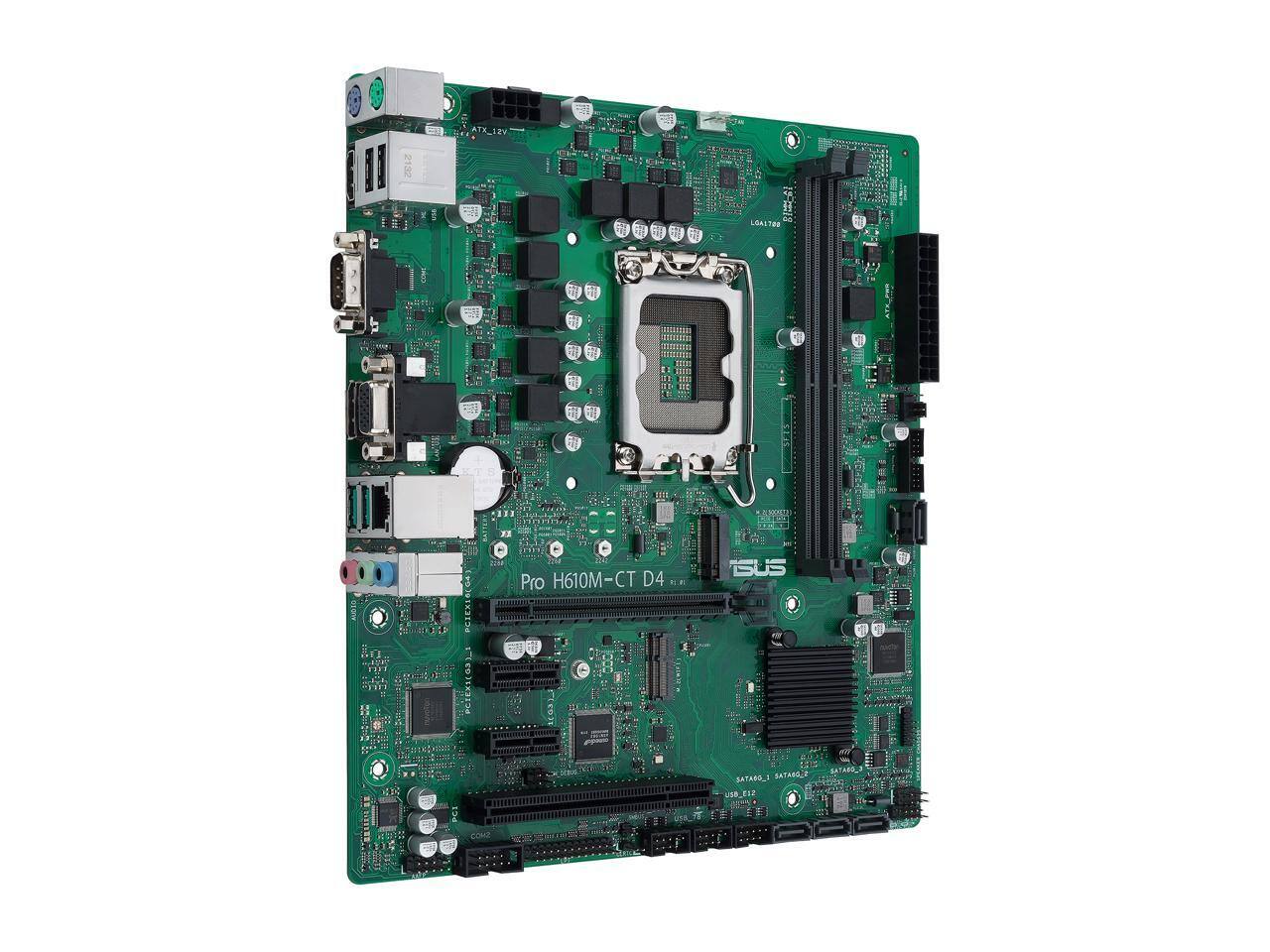

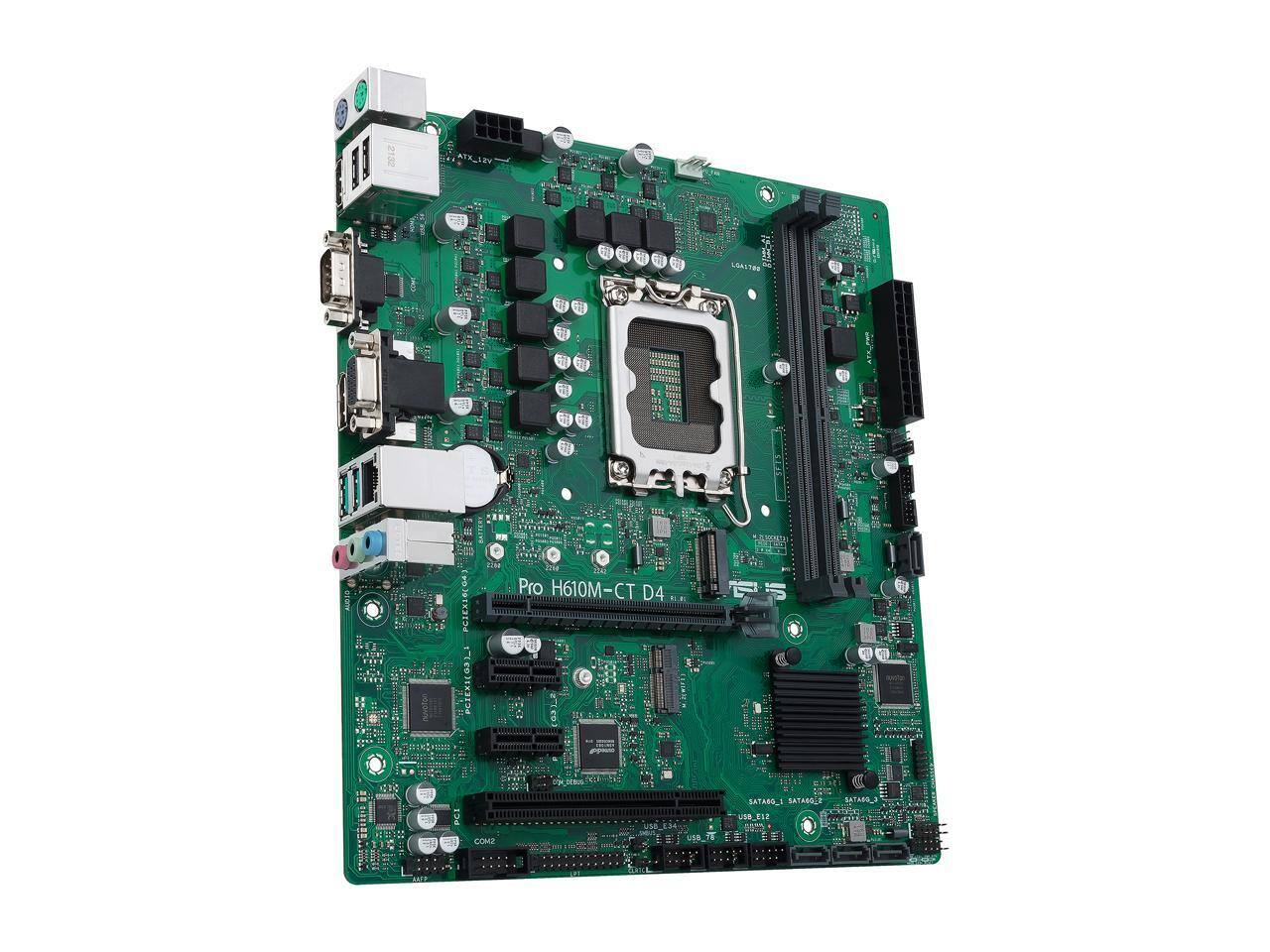

ASUS - PRO H610M-CT D4-CSM Desktop Motherboard
FREE shipping to
Intel - Core Ultra 7 265K 20-Cores 20-Threads - 4.6GHz (5.5 GHz Turbo) Socket LGA 1851 Unlocked Desktop Processor - Multi$311.99$429.99
Related Item
Specifications
- ChipsetIntel H610Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 6Number Of Memory Slots2Maximum Memory Supported64 gigabytes
- Key Specs
- Chipset: Intel H610
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: ASUS
- Product Name: PRO H610M-CT D4-CSM Desktop Motherboard
- Compatibility
- Chipset: Intel H610
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 2
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.7 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.5 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 2133,2400,2666,2800,2933,3000,3200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 36 months
- Warranty - Labor: 36 months
- Other
- UPC: 195553687652

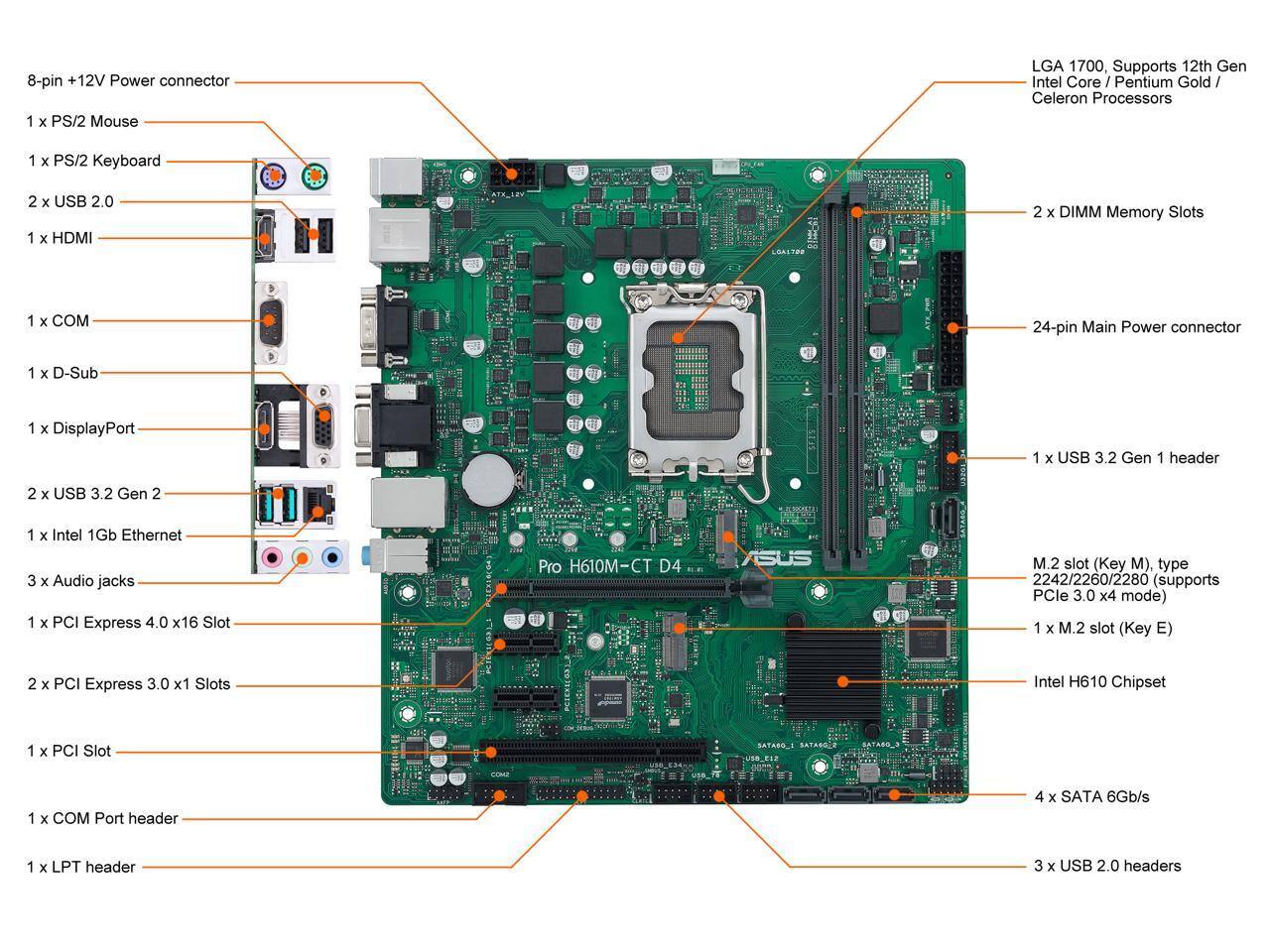

The PRO H610M-CT D4-CSM is a Micro ATX motherboard designed for business and professional use, offering robust features such as support for 12th to 14th Gen Intel Core processors, up to 64GB of DDR4 memory, and multiple graphics and expansion options. It also includes advanced security features like ASUS Self-Recovering BIOS and ASUS Control Center Express for efficient IT management.
- Processor Compatibility: Supports 12th, 13th, and 14th Gen Intel Core processors, as well as Pentium Gold and Celeron processors.
- Memory Support: Equipped with 2 DIMM slots, supporting up to 64GB of DDR4 memory at speeds ranging from 2133 MHz to 3200 MHz.

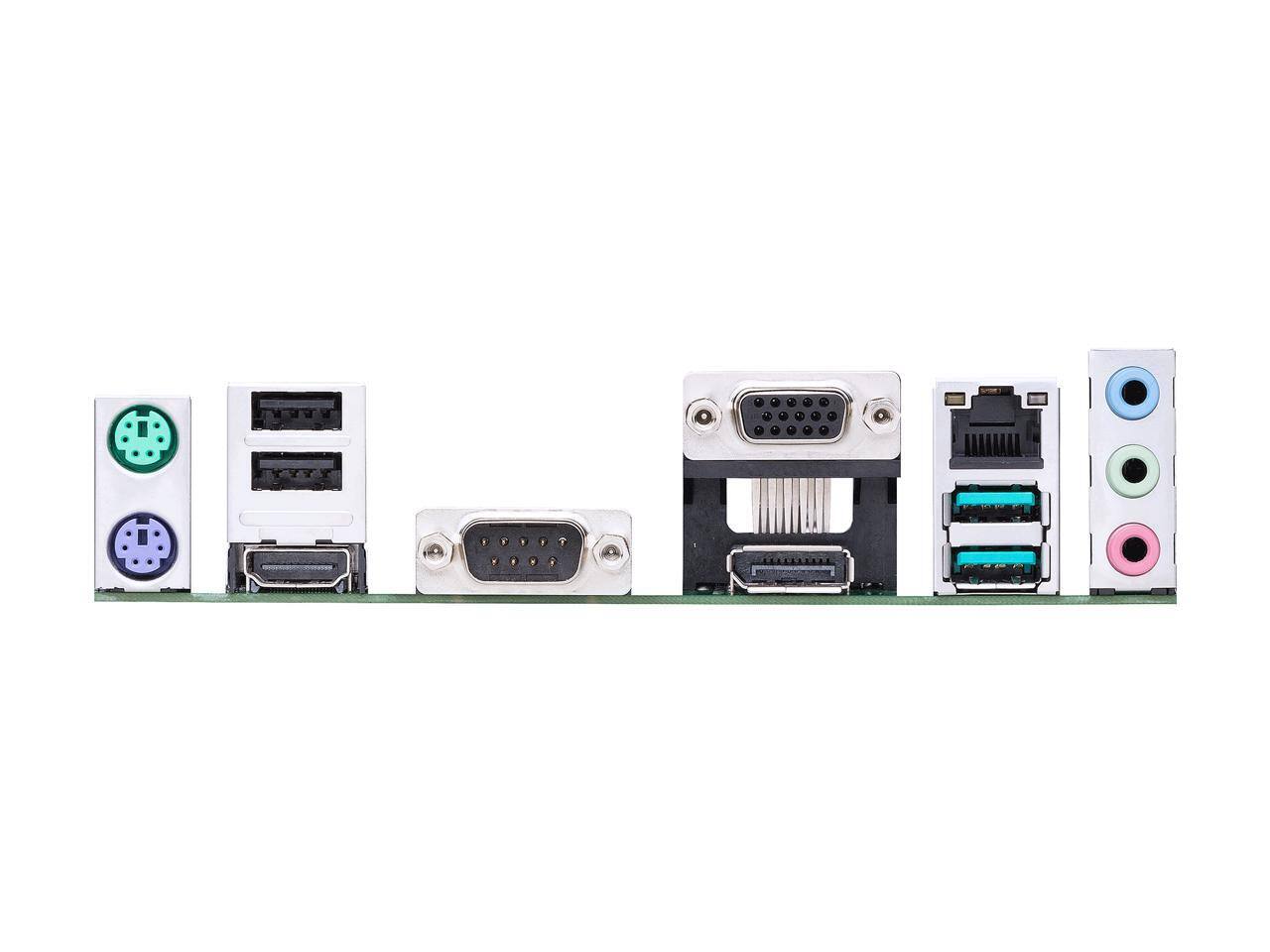

- Graphics Outputs: Offers DisplayPort, HDMI, and D-Sub ports for versatile display connectivity.
- Expansion Slots: Includes 1 PCIe 4.0 x16 slot, 2 PCIe 3.0 x1 slots, and 1 PCI slot for expansion options.
- Storage Interfaces: Provides 1 M.2 slot and 4 SATA 6Gb/s ports for flexible storage configurations.
- Processor Compatibility: Supports 12th, 13th, and 14th Gen Intel Core processors, as well as Pentium Gold and Celeron processors.
- Memory Support: Equipped with 2 DIMM slots, supporting up to 64GB of DDR4 memory at speeds ranging from 2133 MHz to 3200 MHz.
- Graphics Outputs: Offers DisplayPort, HDMI, and D-Sub ports for versatile display connectivity.
- Expansion Slots: Includes 1 PCIe 4.0 x16 slot, 2 PCIe 3.0 x1 slots, and 1 PCI slot for expansion options.
- Storage Interfaces: Provides 1 M.2 slot and 4 SATA 6Gb/s ports for flexible storage configurations.
