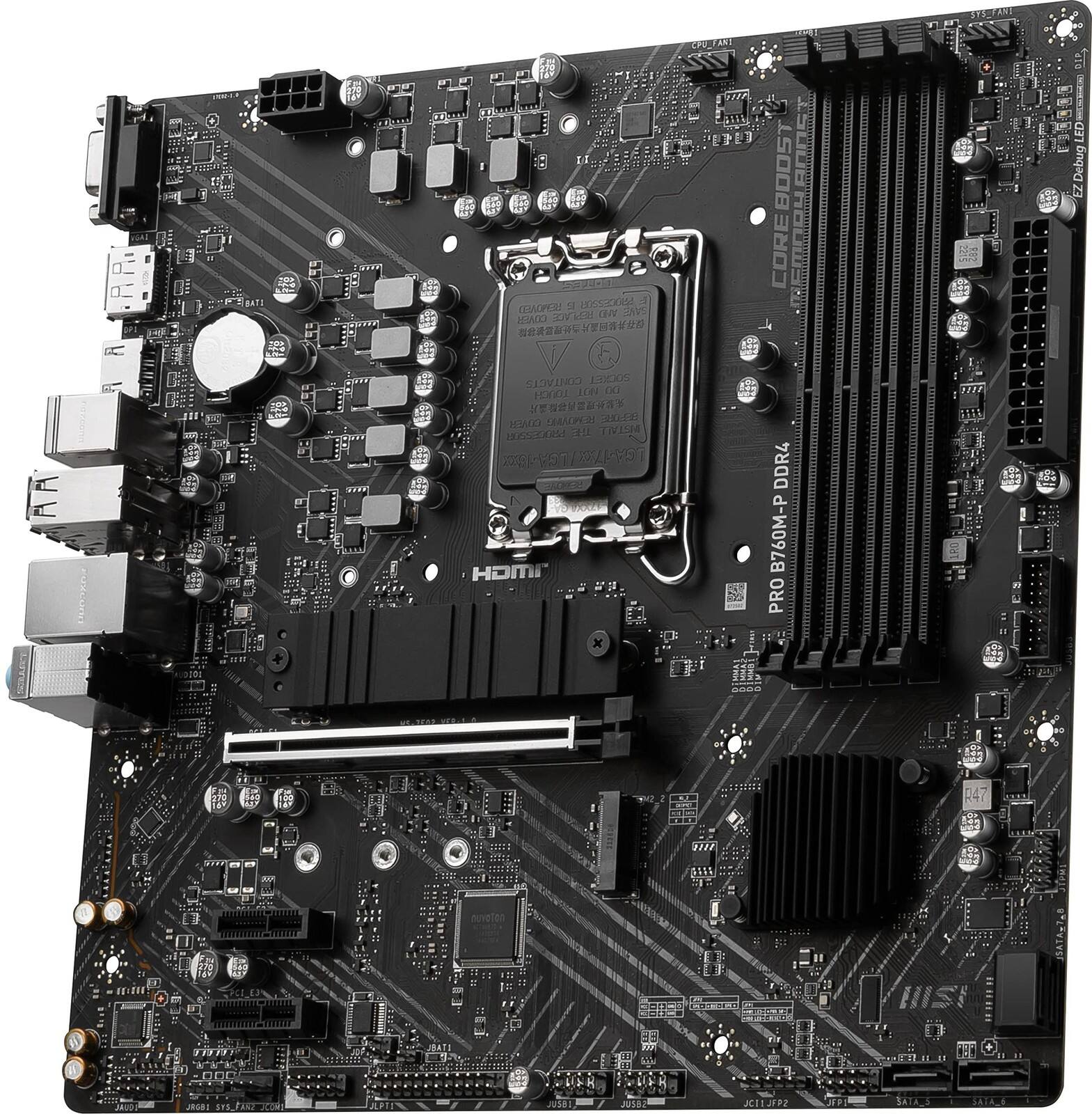

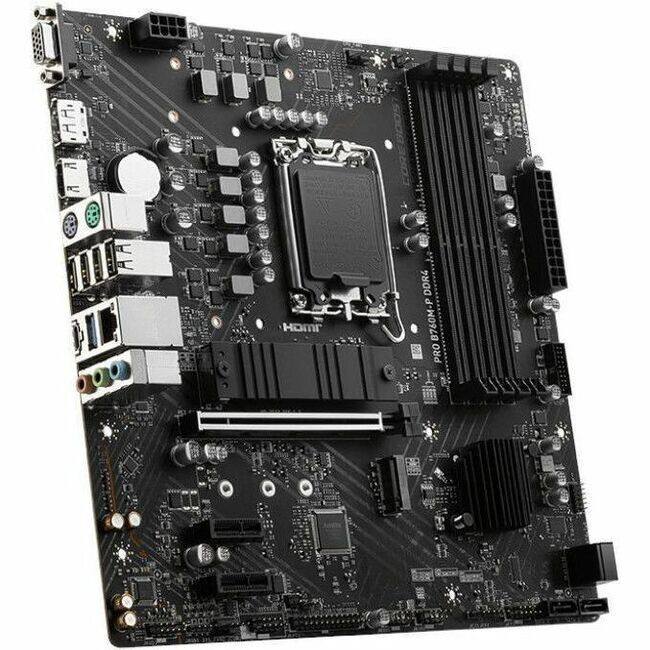

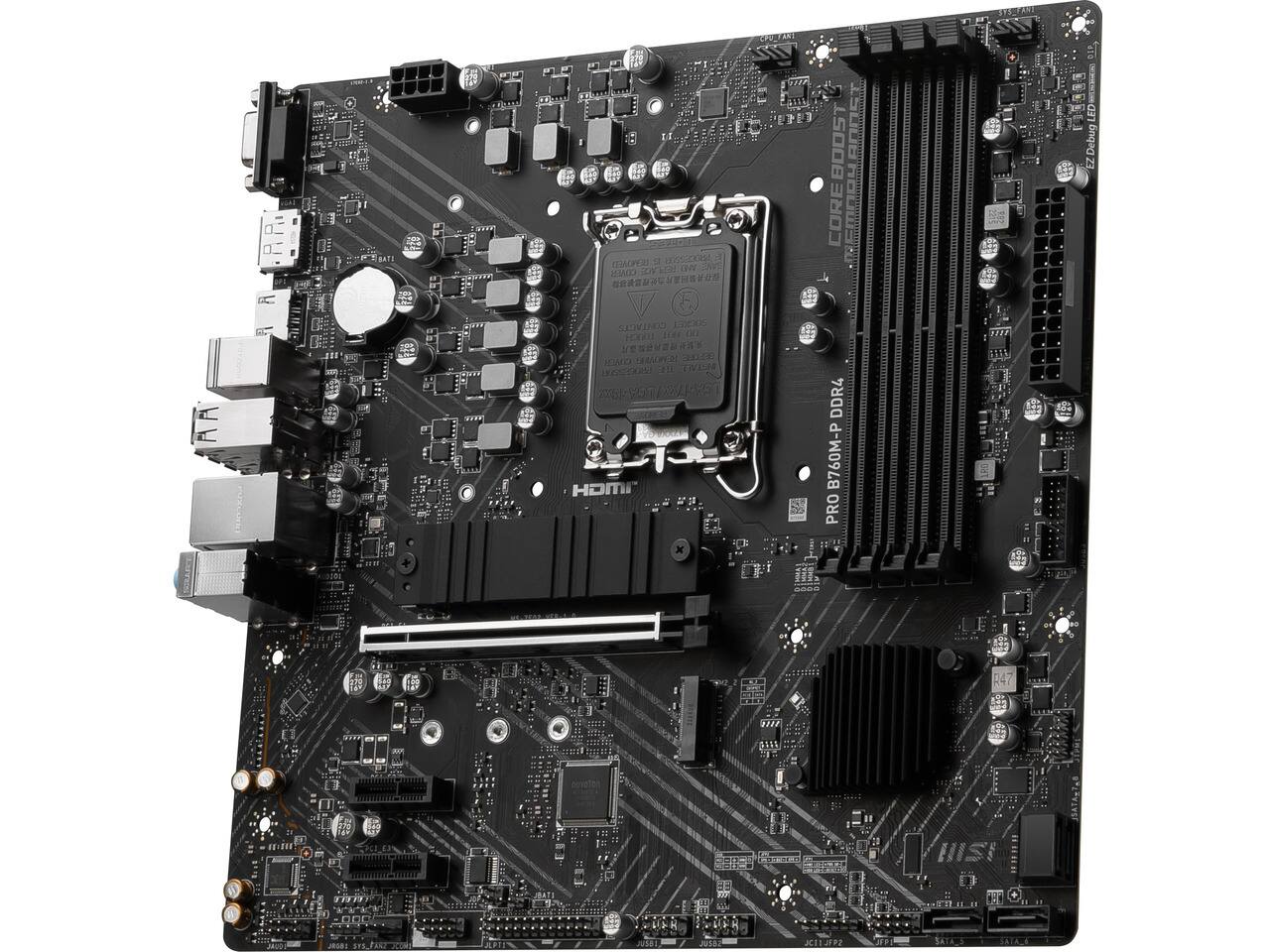

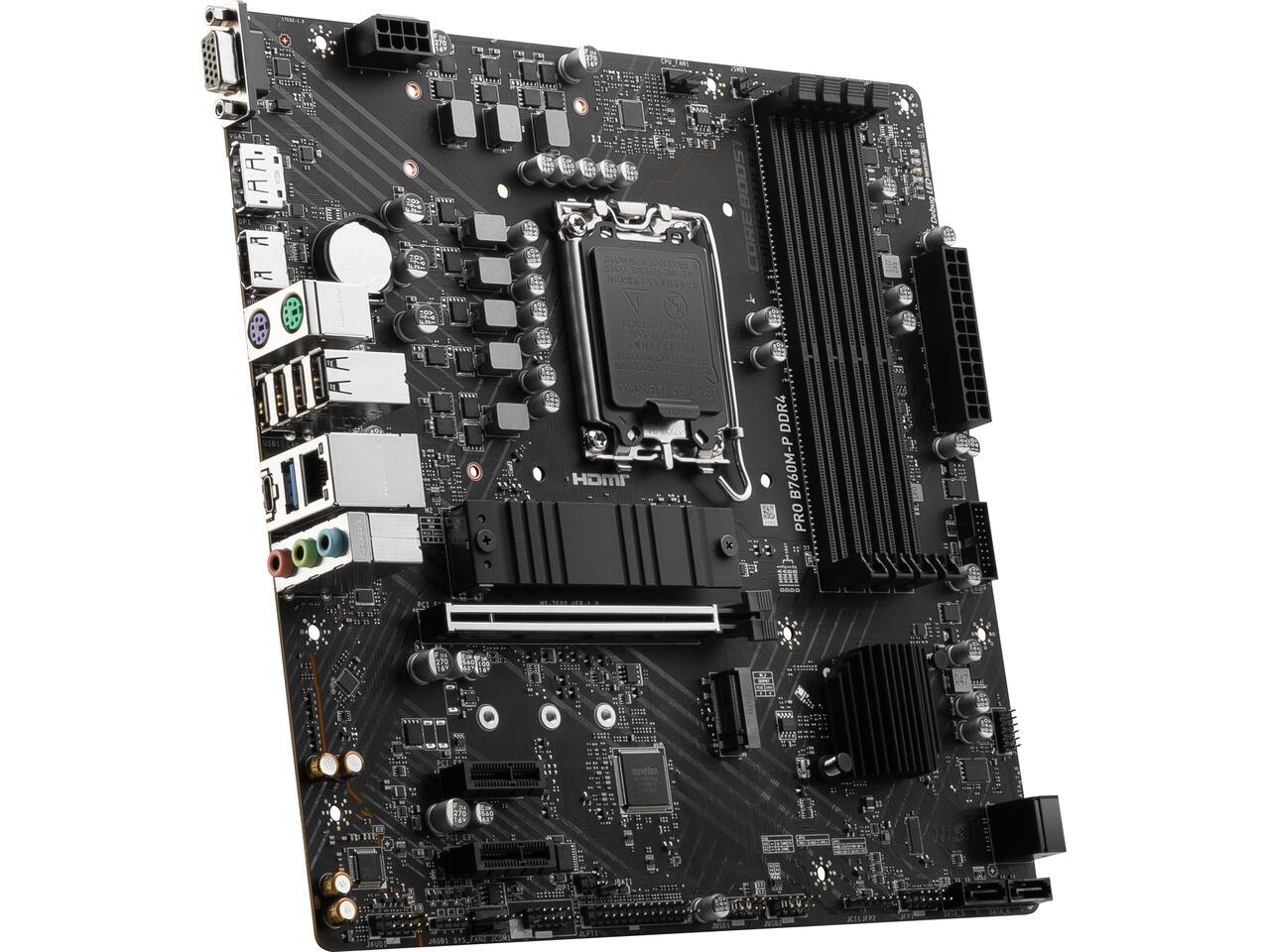

MSI - PRO B760M-P DDR4 LGA 1700 Micro-ATX Motherboard B760MPD4
FREE shipping to
Thermaltake - Toughpower GX2 600W 80 PLUS Gold ATX Power Supply - Black$69.99
More Buying Options
Specifications
- ChipsetIntel B760Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardNo Wi-Fi standardNumber Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: Intel B760
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: MSI
- Product Name: PRO B760M-P DDR4 LGA 1700 Micro-ATX Motherboard B760MPD4
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Pentium Gold, Intel Celeron, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 3.2, 1 x USB-C 3.2, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 30.4 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4800 OC|4600 OC|4400 OC|4266 OC|4200 OC|4000 OC|3800 OC|3733 OC|3600 OC|3466 OC|3400 OC|3333 OC|3200 JEDEC|2933 JEDEC|2666 JEDEC|2400 JEDEC|2133 JEDEC (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 1, RAID 5, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 824142308240

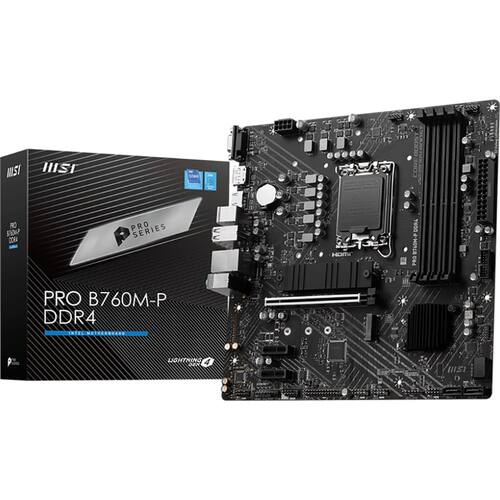

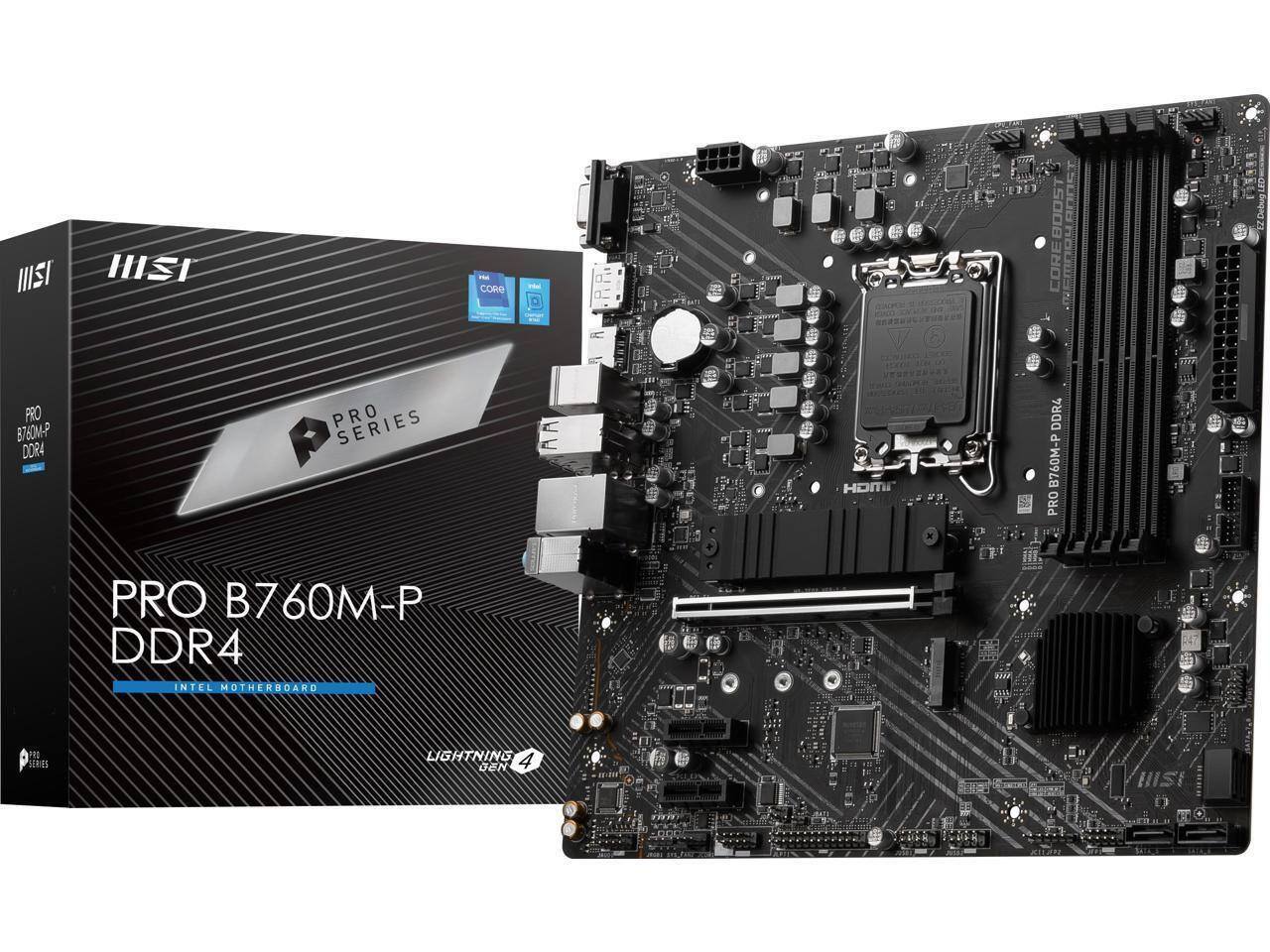

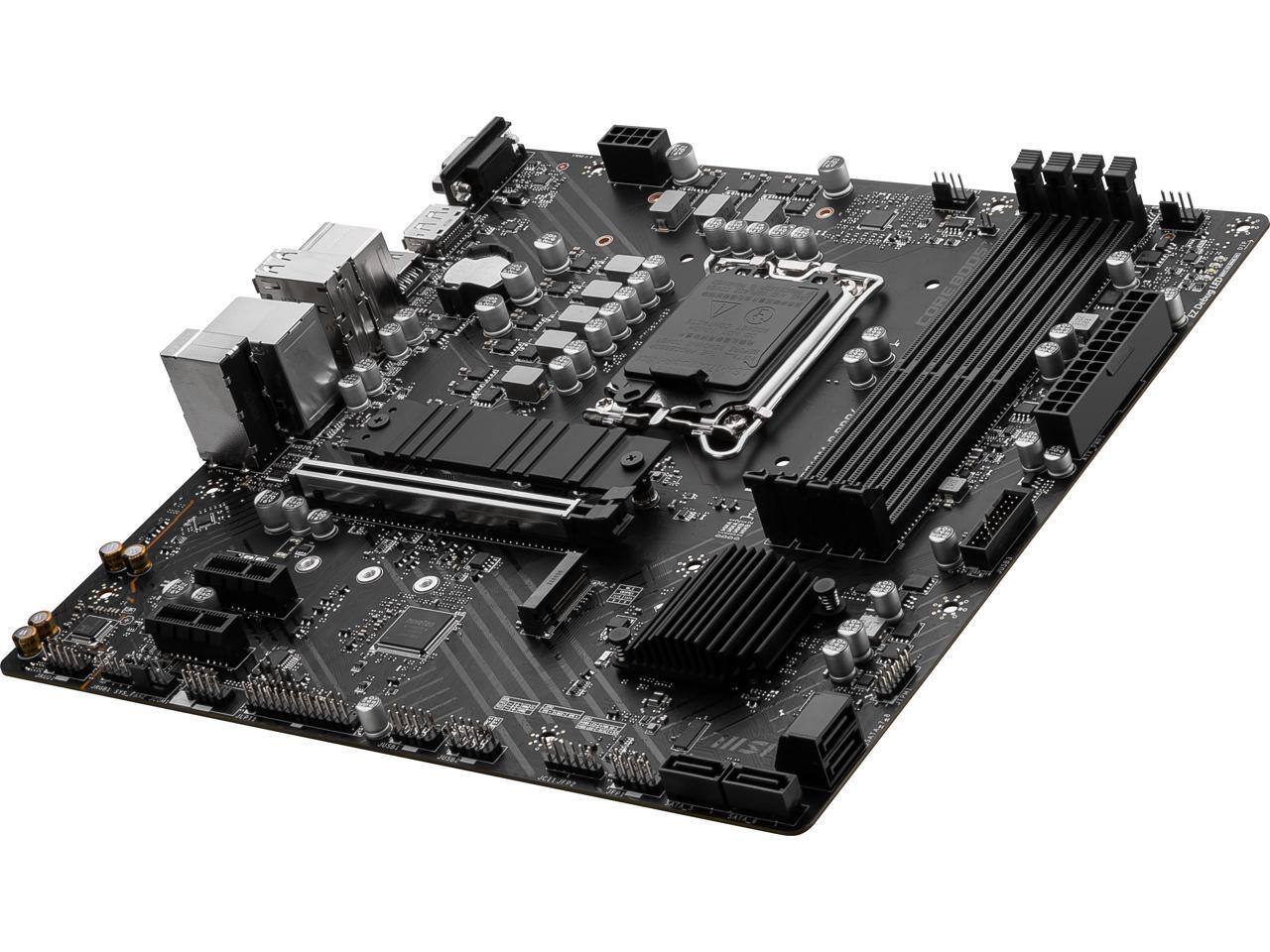

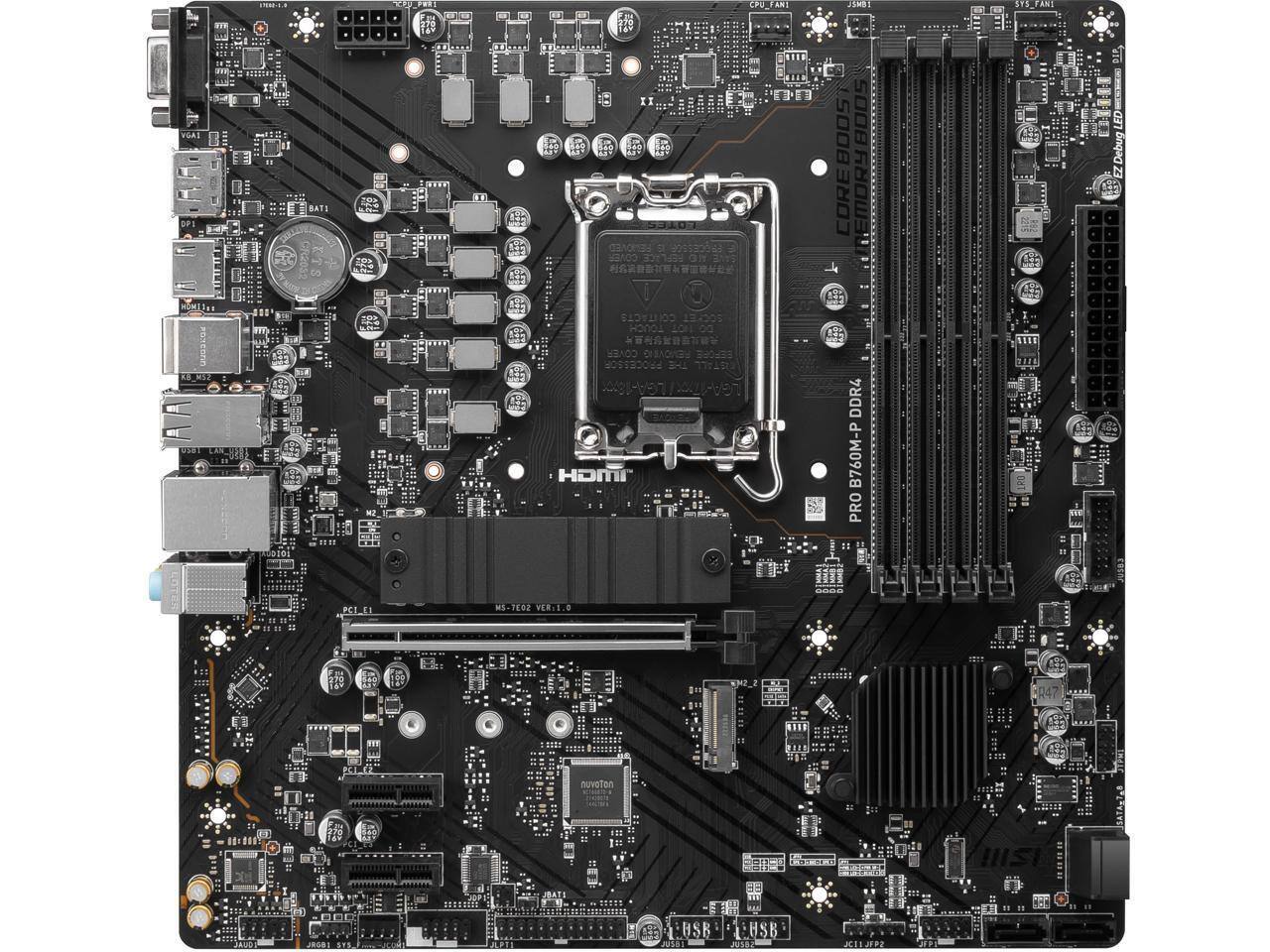

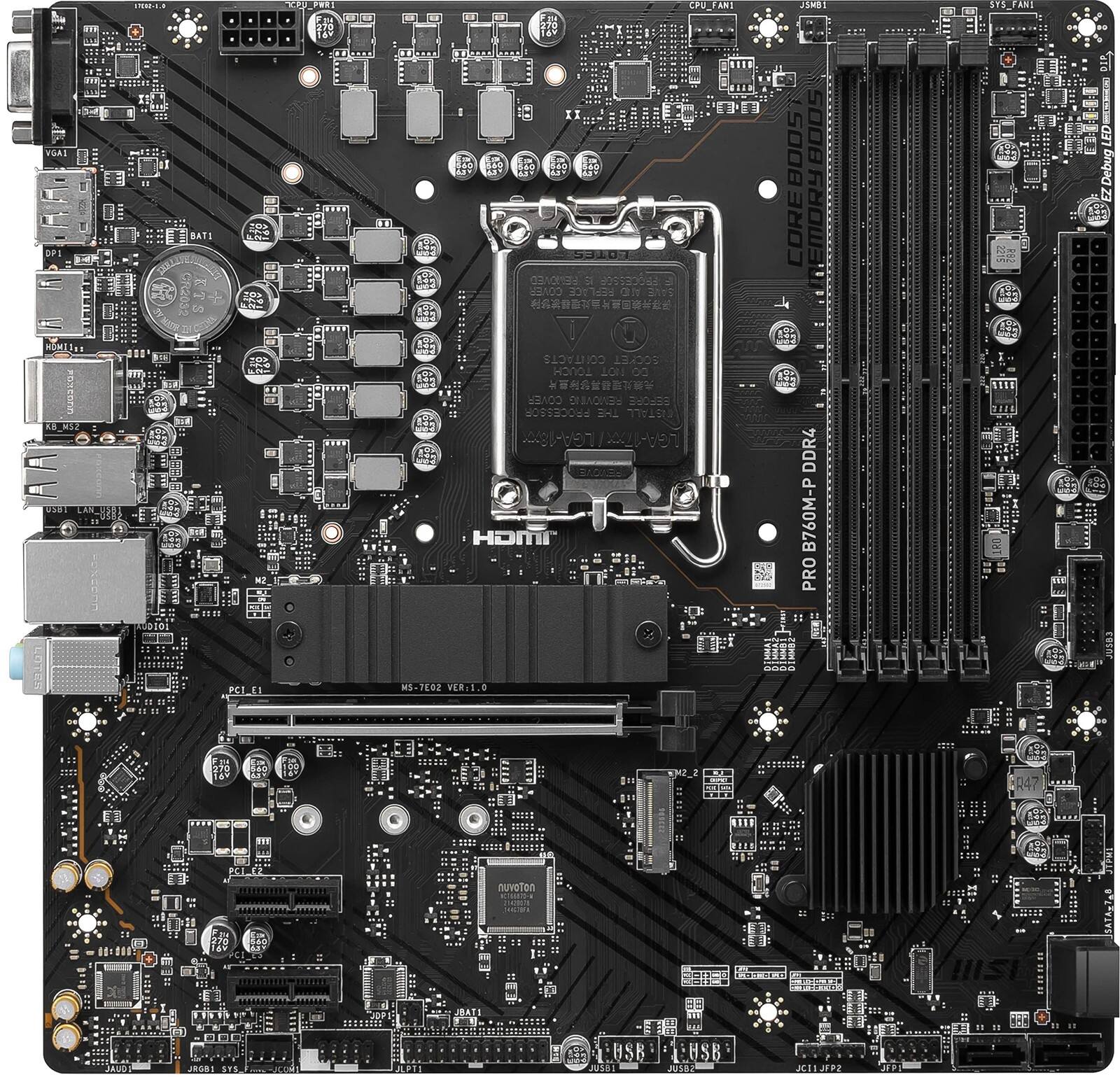

Set the foundation of your next business PC build with the robust MSI PRO B760M-P DDR4 LGA 1700 Micro-ATX Motherboard. Designed to leverage the power of 12th and 13th Gen Intel CPUs, the PRO enhances system performance suitable for operating multiple programs with speed and reliability. Intel's LGA 1700 socket rests at the heart of the PRO, allowing you to install a variety of 12th and 13th Gen processors to match your needs. Four DDR4 RAM slots allow you to install up to 128GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with one PCIe 4.0 x16 and two PCIe x1 expansion slots. Between back-panel connections and internal headers, you get several USB-A 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. You can connect to your network to download important assets with a single Gigabit Ethernet port.
- Cooling Capabilities: Designed to keep your system cool even under the heaviest power load, the PRO offers an M.2 Shield Frozr heat sink to keep your solid-state drives safe from thermal throttling. Fully Fan Control ensures your internal fans are meeting thermal demands properly through software that can operate automatically or manually.
- Memory Capacity: Supports up to 128GB of DDR4 memory across four slots, with overclocking capabilities up to 4800+ MHz.
- Expansion Slots: Equipped with one PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots for versatile expansion options.
- Storage Options: Offers two M.2 slots and four SATA 6Gb/s ports for flexible storage configurations.

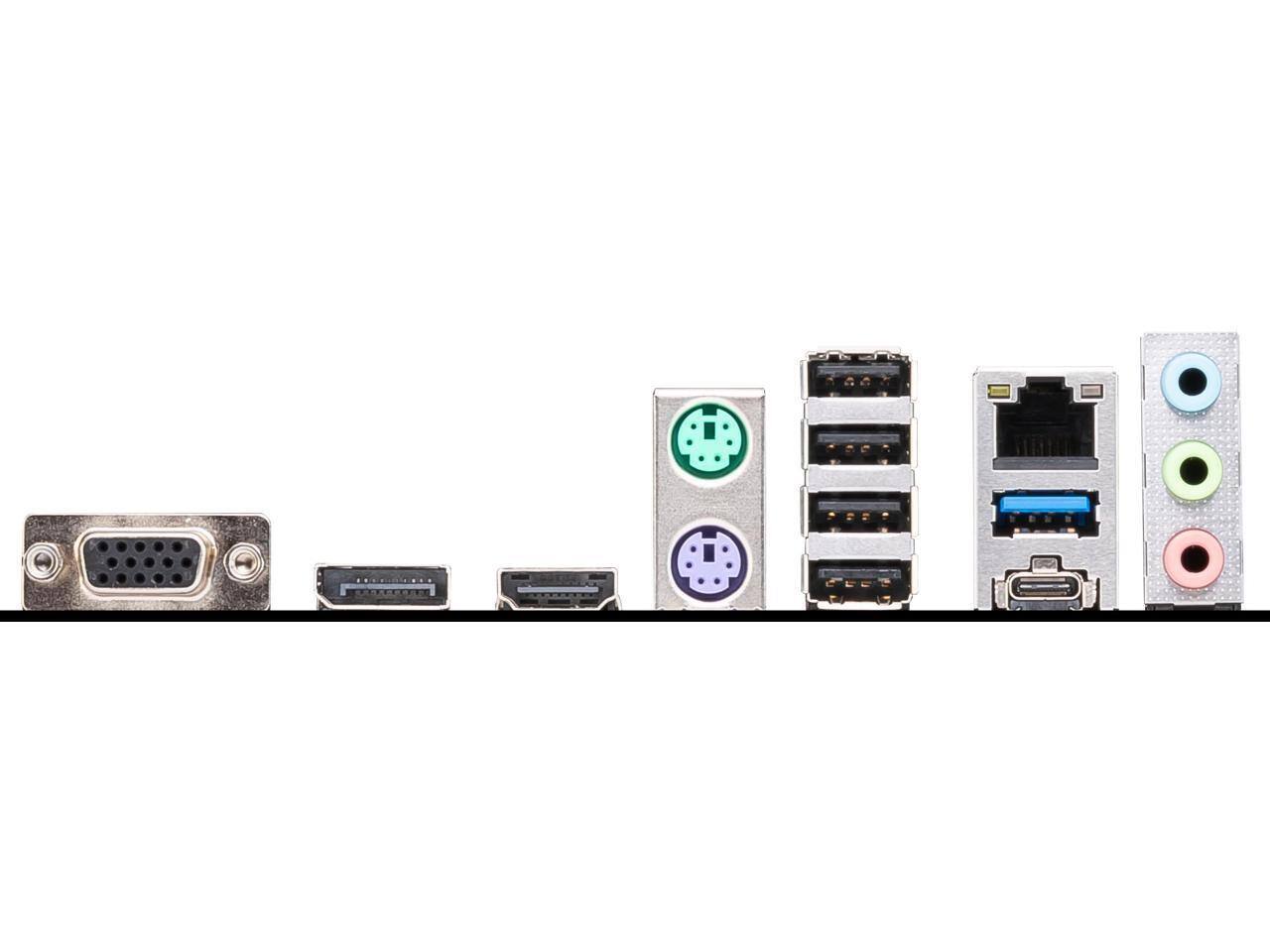

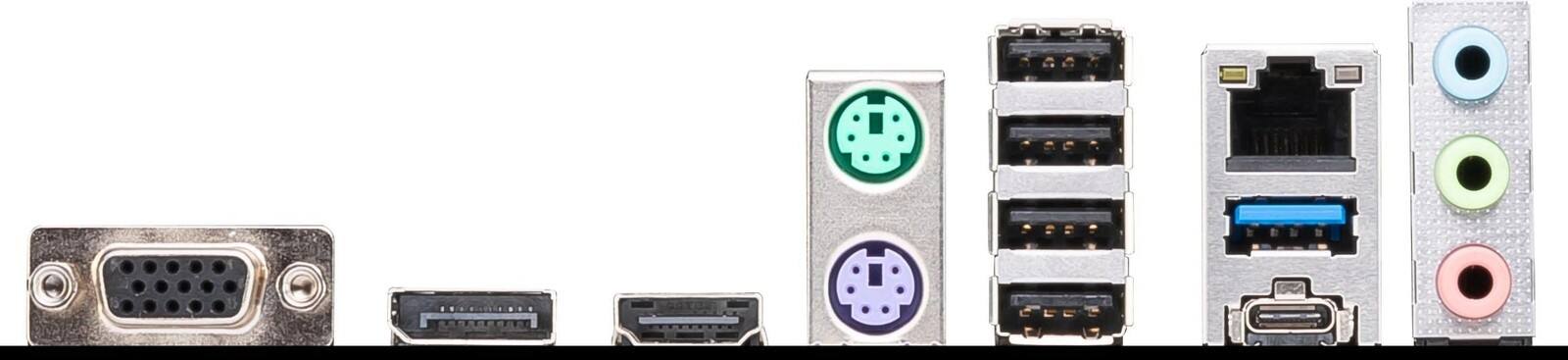

- Connectivity: Includes HDMI, DisplayPort, and VGA outputs, along with USB 2.0, USB 3.2 Gen 1 Type-A, and USB 3.2 Gen 2 Type-C ports.
- Cooling Capabilities: Designed to keep your system cool even under the heaviest power load, the PRO offers an M.2 Shield Frozr heat sink to keep your solid-state drives safe from thermal throttling. Fully Fan Control ensures your internal fans are meeting thermal demands properly through software that can operate automatically or manually.
- Memory Capacity: Supports up to 128GB of DDR4 memory across four slots, with overclocking capabilities up to 4800+ MHz.
- Expansion Slots: Equipped with one PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots for versatile expansion options.
- Storage Options: Offers two M.2 slots and four SATA 6Gb/s ports for flexible storage configurations.
- Connectivity: Includes HDMI, DisplayPort, and VGA outputs, along with USB 2.0, USB 3.2 Gen 1 Type-A, and USB 3.2 Gen 2 Type-C ports.
