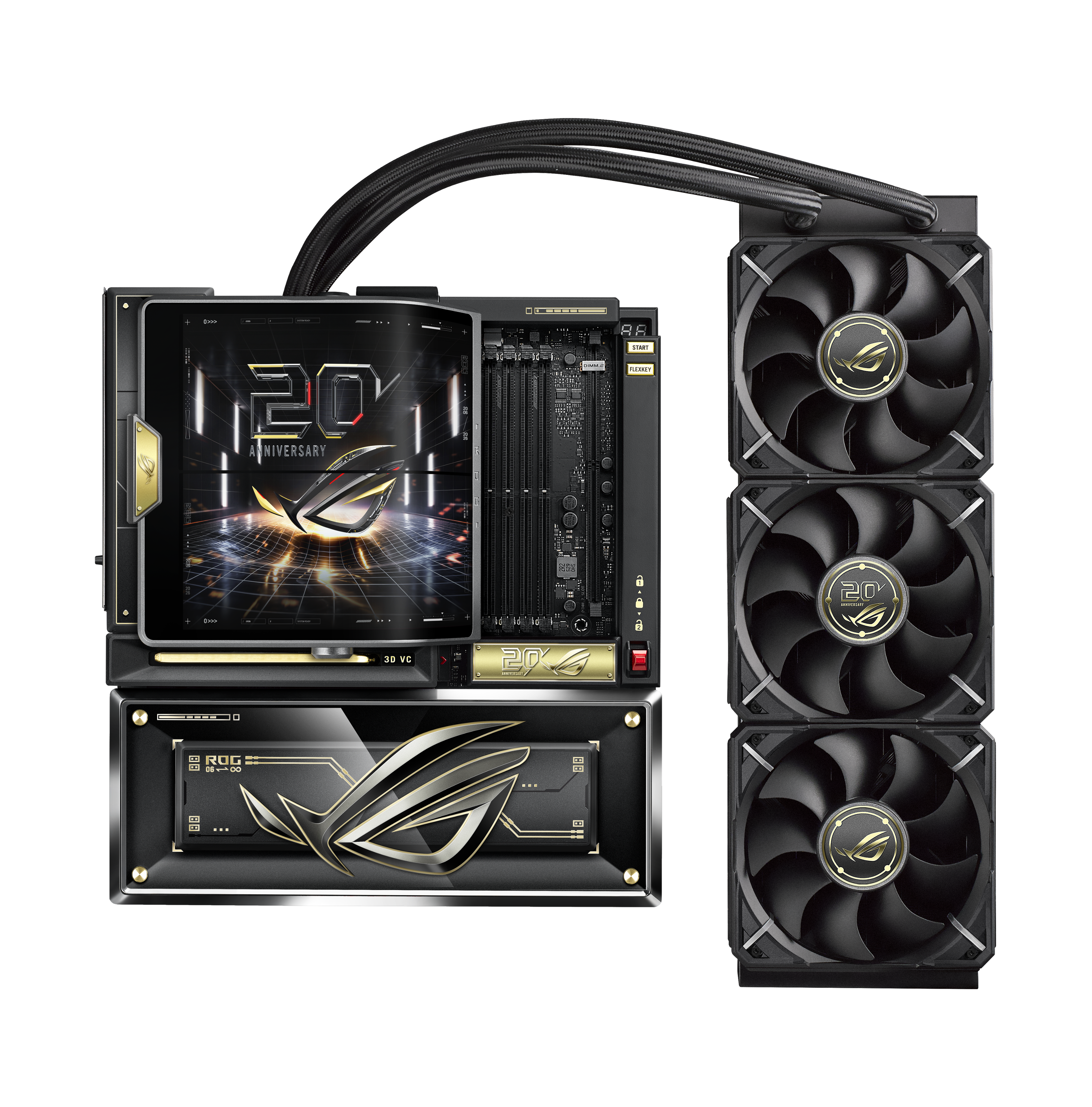

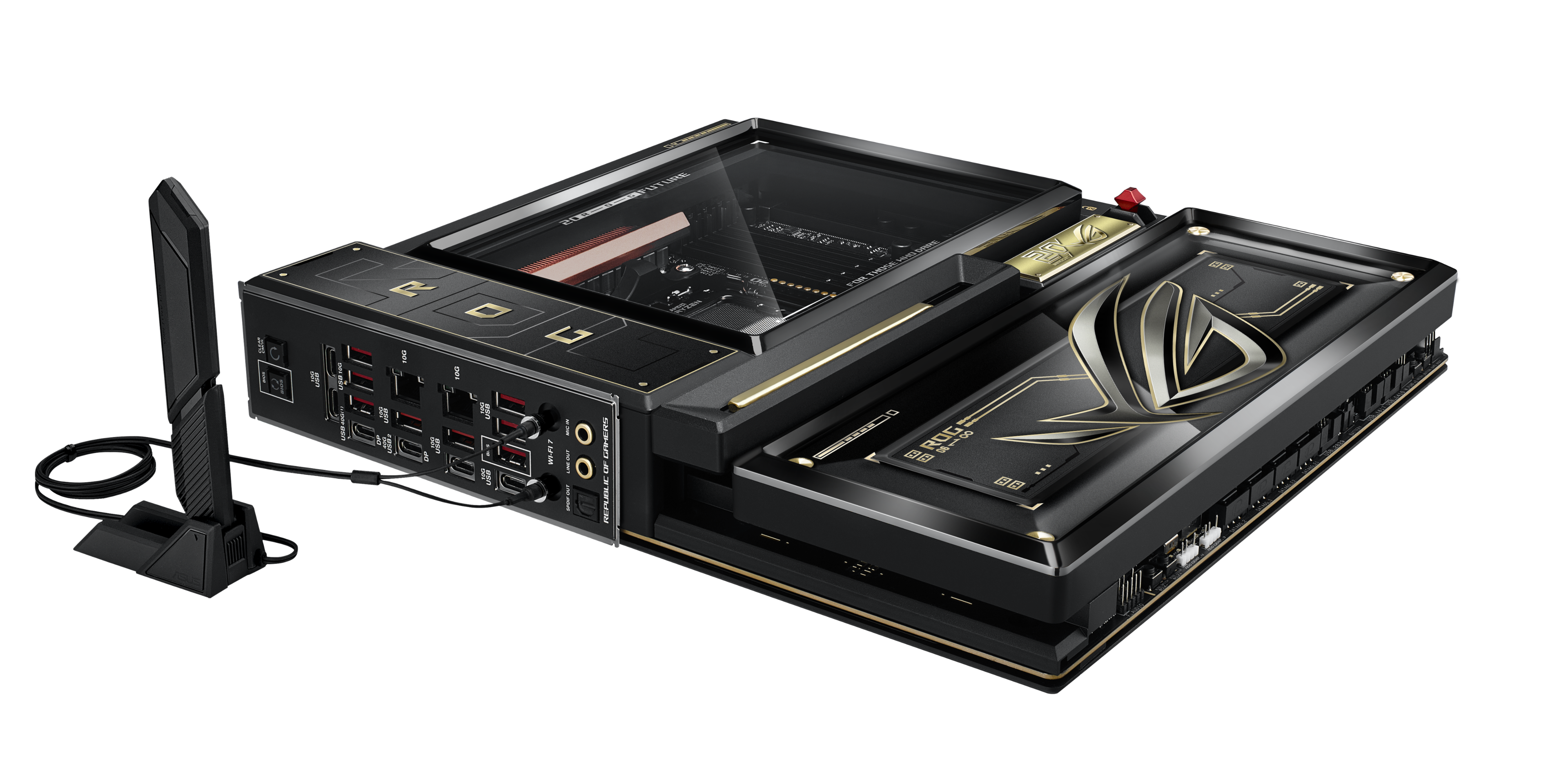

ASUS - ROG CROSSHAIR X870E (Socket AM5) AMD X870 E-ATX DDR5 Wi-Fi 7 Motherboard with Integrated ROG RYUJIN 360 Liquid Cooler - 20th Edition
Model: ROG CROSSHAIR X870E EDITION 20
SKU: 6683661
Reviews coming soon
Sold byBest Buy
$3,299.99
or
$275.00/mo.
suggested payments with 12-Month Financing
Show me how
Sold by
Specifications
- ChipsetAMD X870Form FactorEATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots2Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG CROSSHAIR X870E EDITION 20
- Product Name: ROG CROSSHAIR X870E (Socket AM5) AMD X870 E-ATX DDR5 Wi-Fi 7 Motherboard with Integrated ROG RYUJIN 360 Liquid Cooler
- Color: 20th Edition
- Year of Release: 2026
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 3 7000 Series
- Operating System Compatibility: Windows 11 Pro, Windows 11 Home, Windows 10 Pro, Windows 10 Home
- Slot
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Number of M.2 Slots: 9 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1x24 Pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 2 x USB-C 4, 6 x USB-C 3.2, 8 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 277 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 172.67 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8600+MT/s(OC)**/8200+MT/s(OC)***, 9600+MT/s(OC)**/9200+MT/s(OC)***, 8000+MT/s(OC)**/8000+MT/s(OC)***, ECC and Non-ECC, Un-buffered DIMM* (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 199291650985

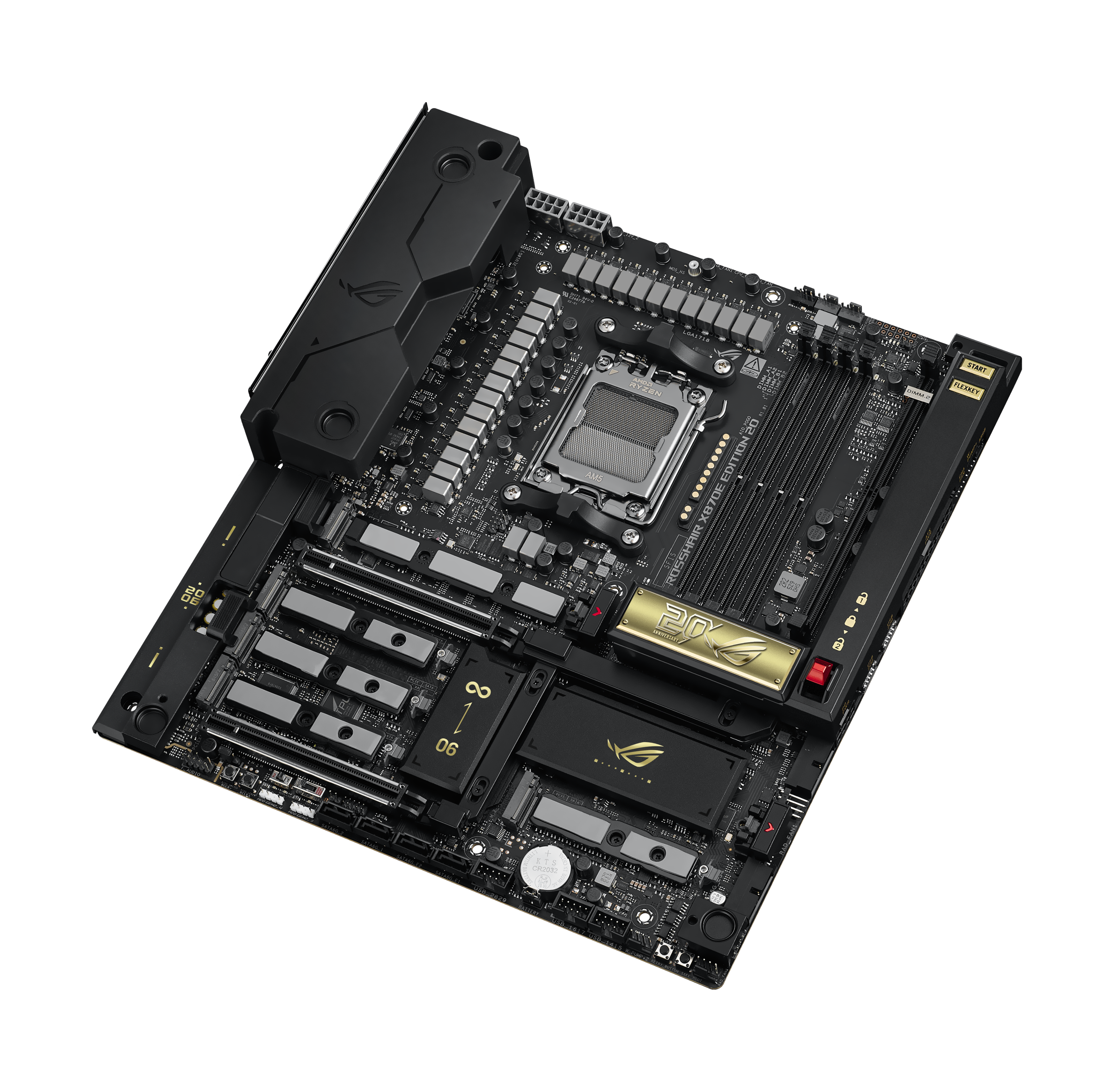

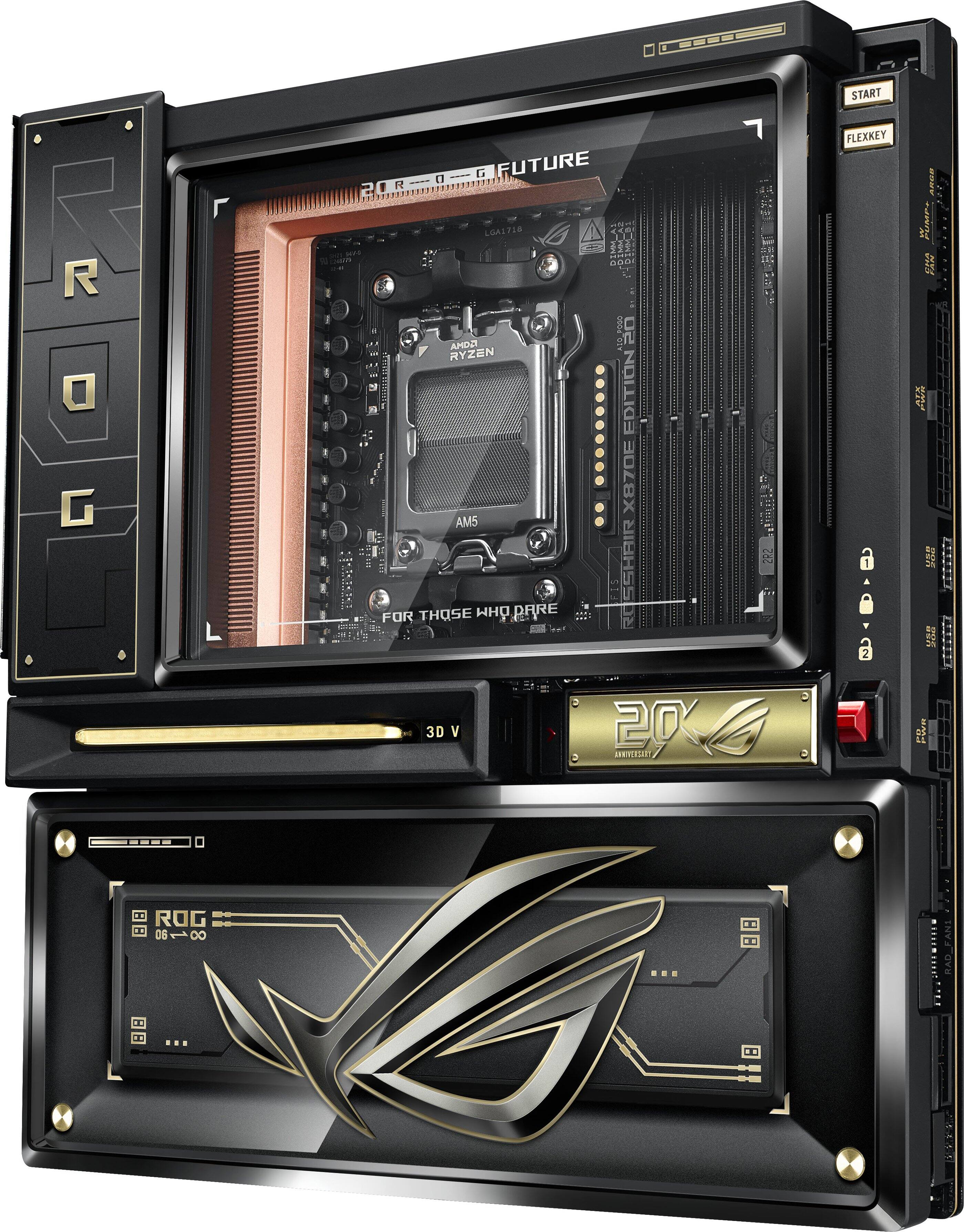

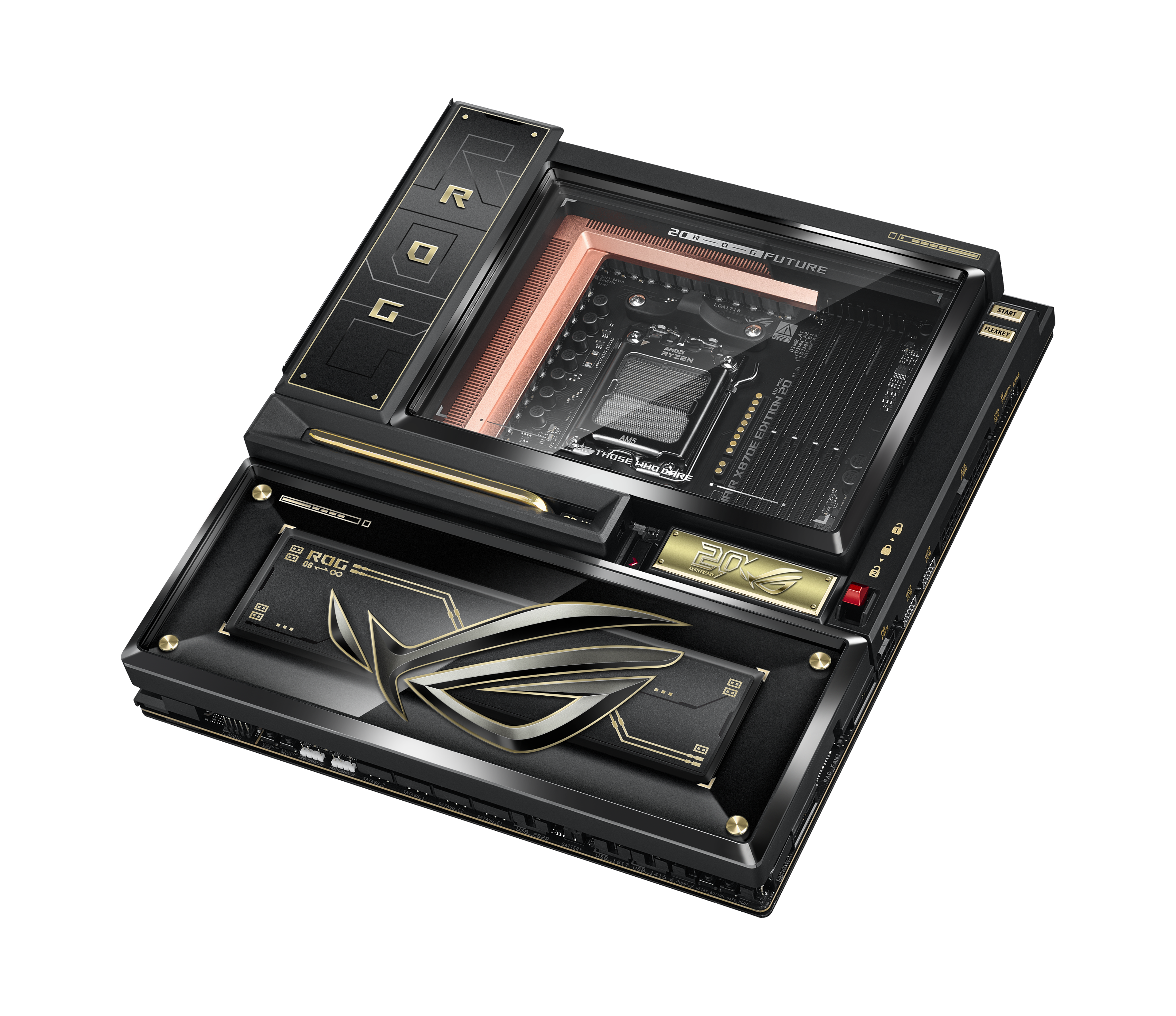

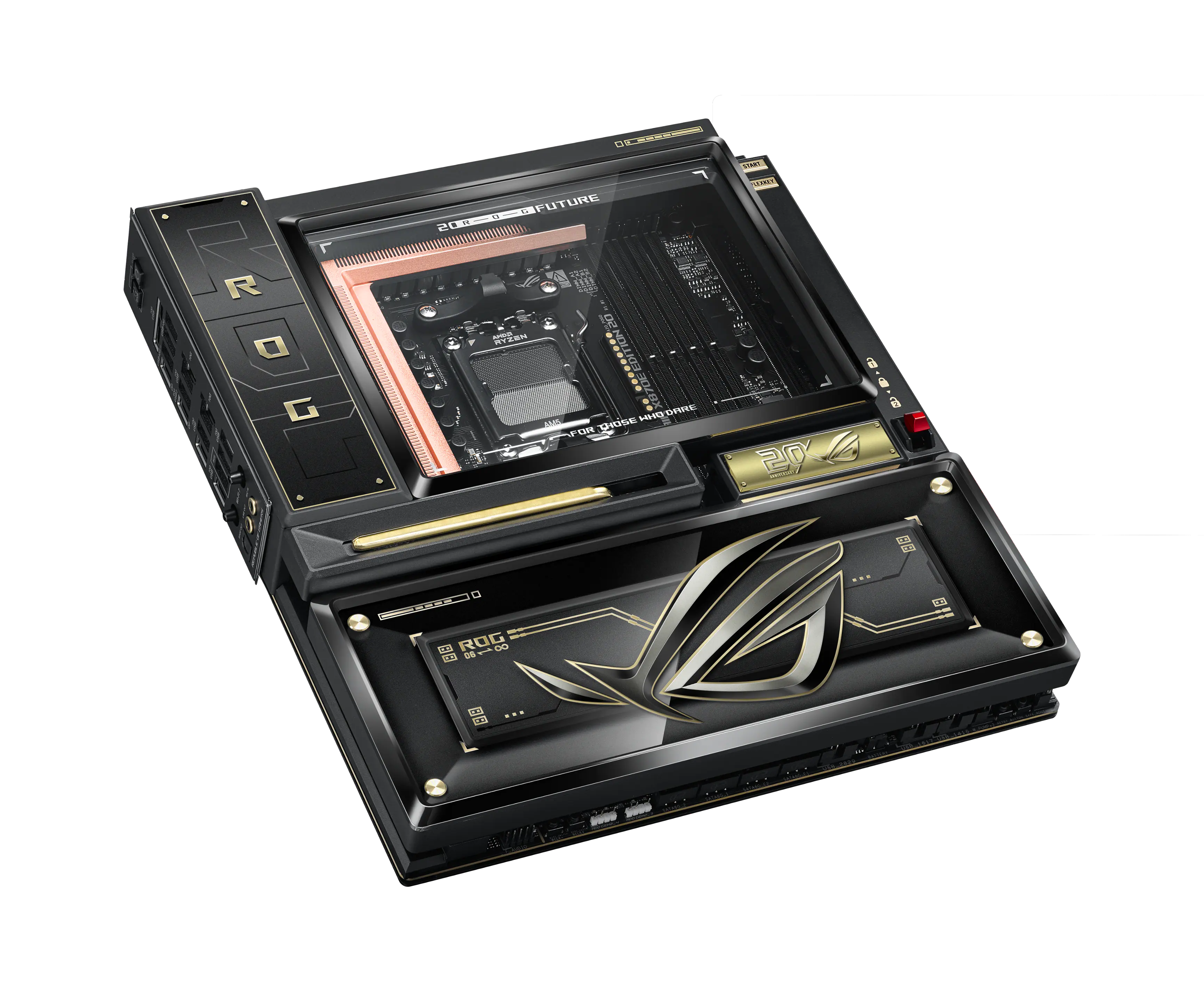

ROG CROSSHAIR X870E 20th Edition AM5 E-ATX motherboard, 24+2+2 power stages, DDR5, PCIe 5.0, DIMM Fit, Wi-Fi 7, 10Gb Ethernet, 9xM.2, 2x USB4, 2x 20Gb USB-C. Paired exclusively with the ROG RYUJIN 360 20th Edition AIO Cooler, Swivel Dual 6.67" AMOLED LCD, Display Sync-Up Mode and AIO Q-Connector.
- AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors

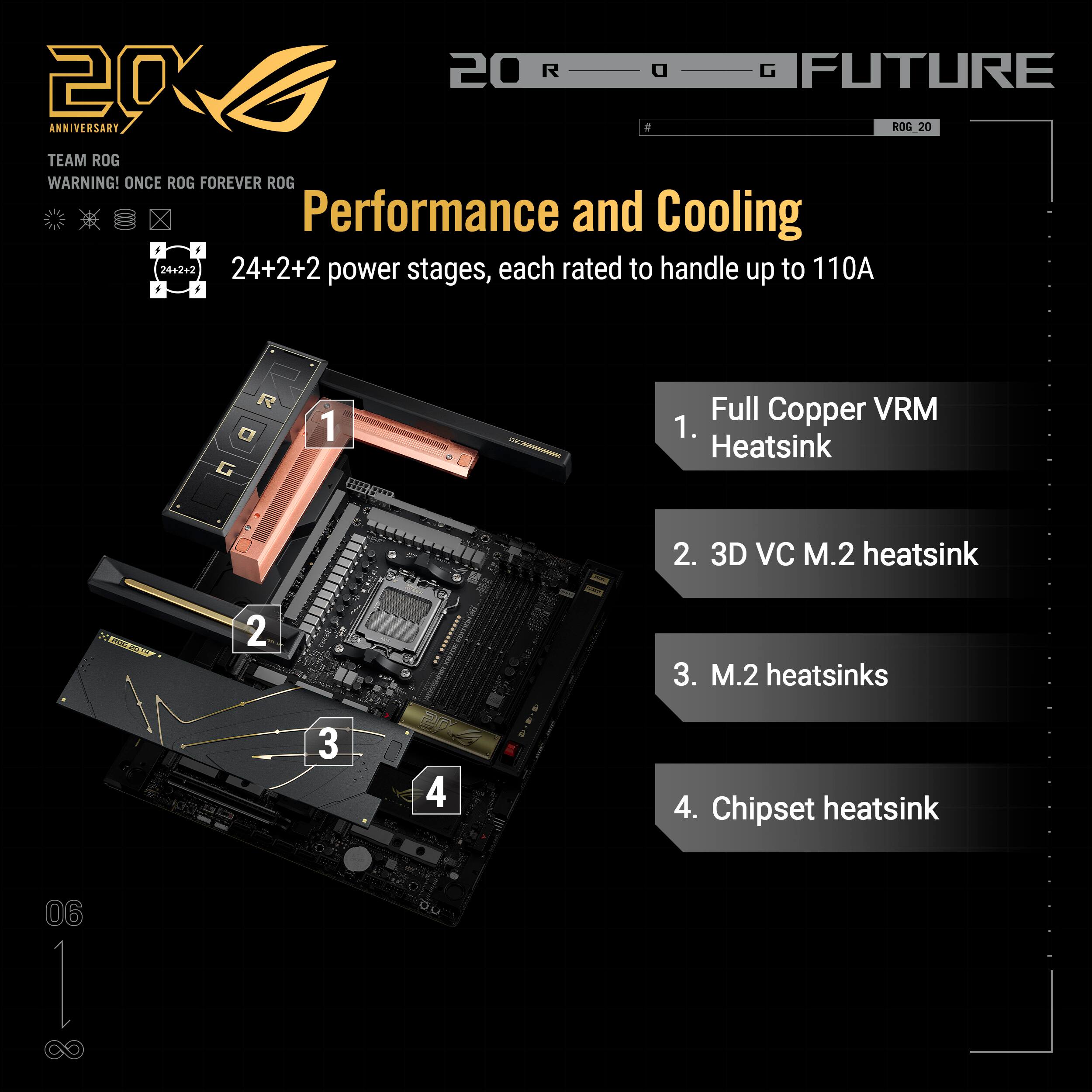

- Robust Power Solution: 24+2+2 power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

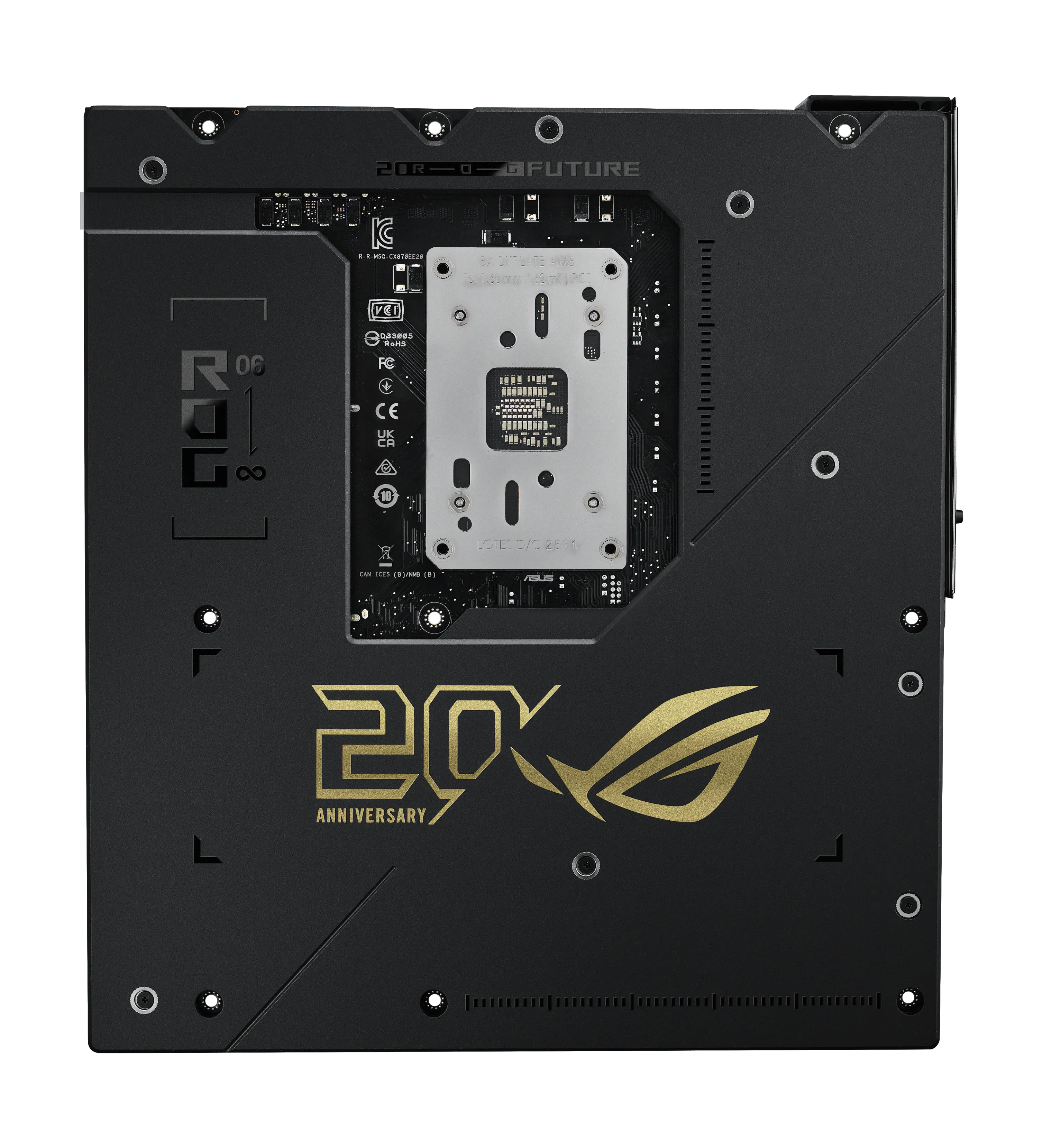

- Optimized Thermal Design: Full-width thermal deck with pure copper heatsink, 3D VC M.2 heatsink for one PCIe 5.0 M.2 slot, 3mm Backplate heatsink, massive heatsinks integrated with the I/O cover, joined by two L-shaped heatpipes and connected to the power stages with high-conductivity thermal pads, ROG Memory Q-Fan

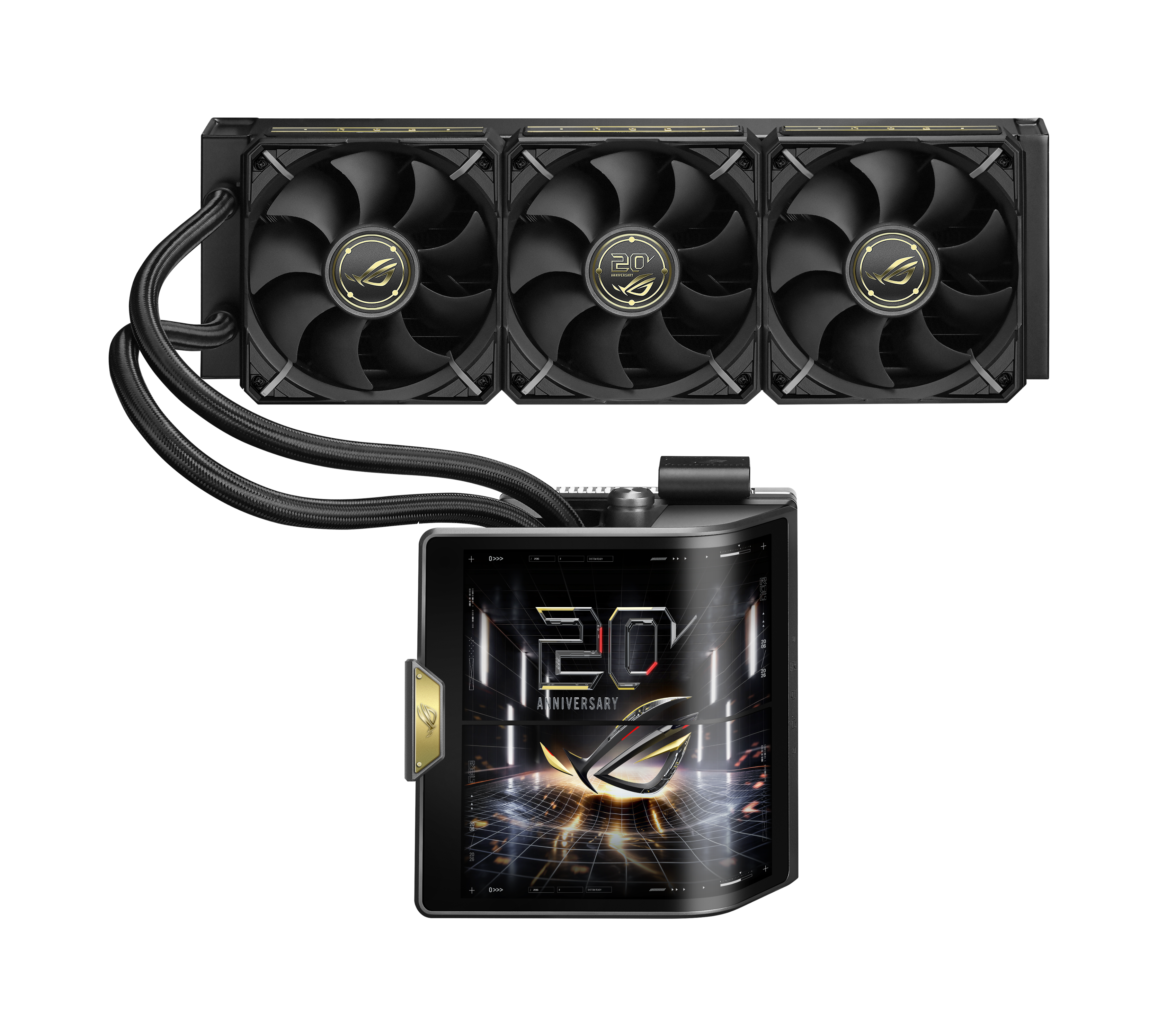

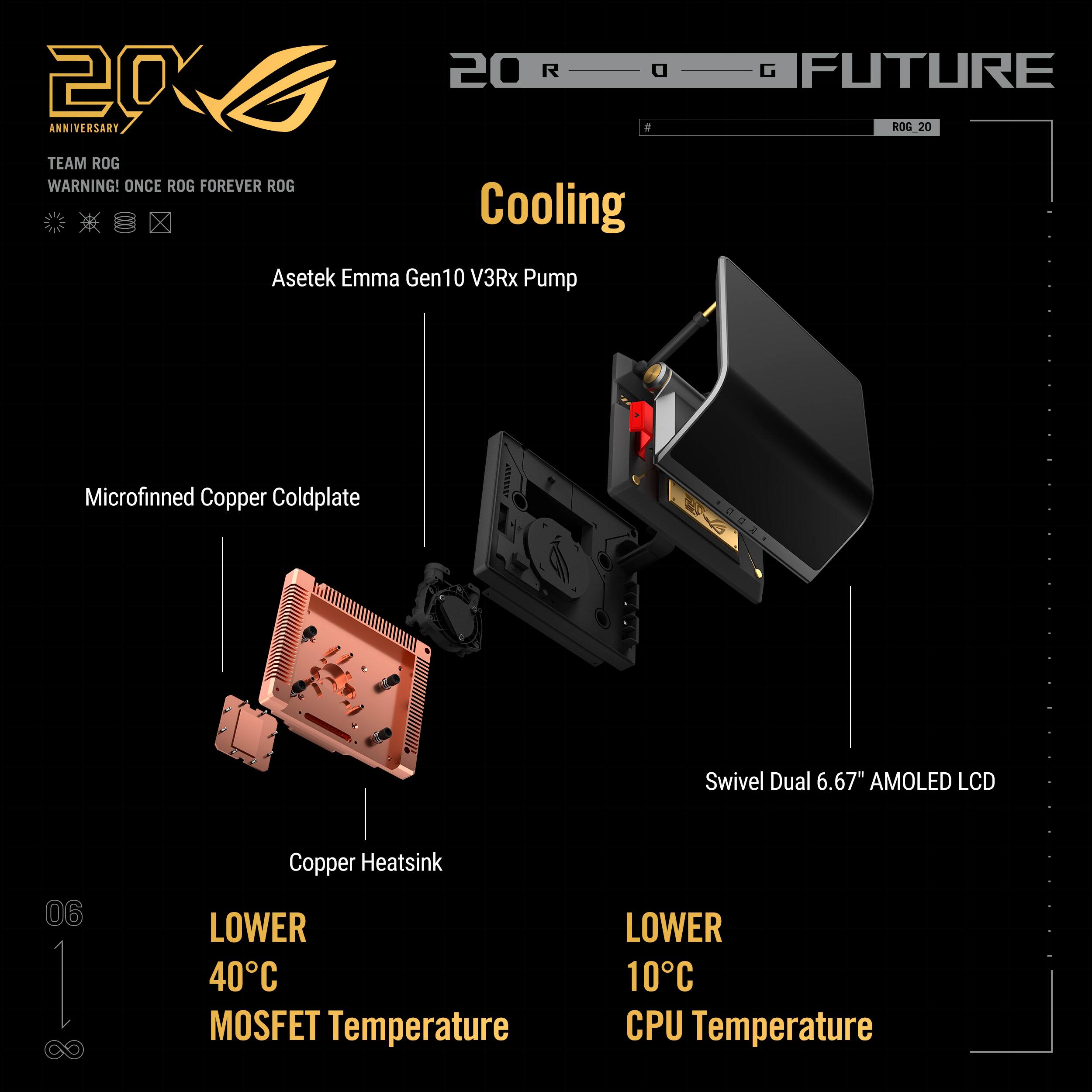

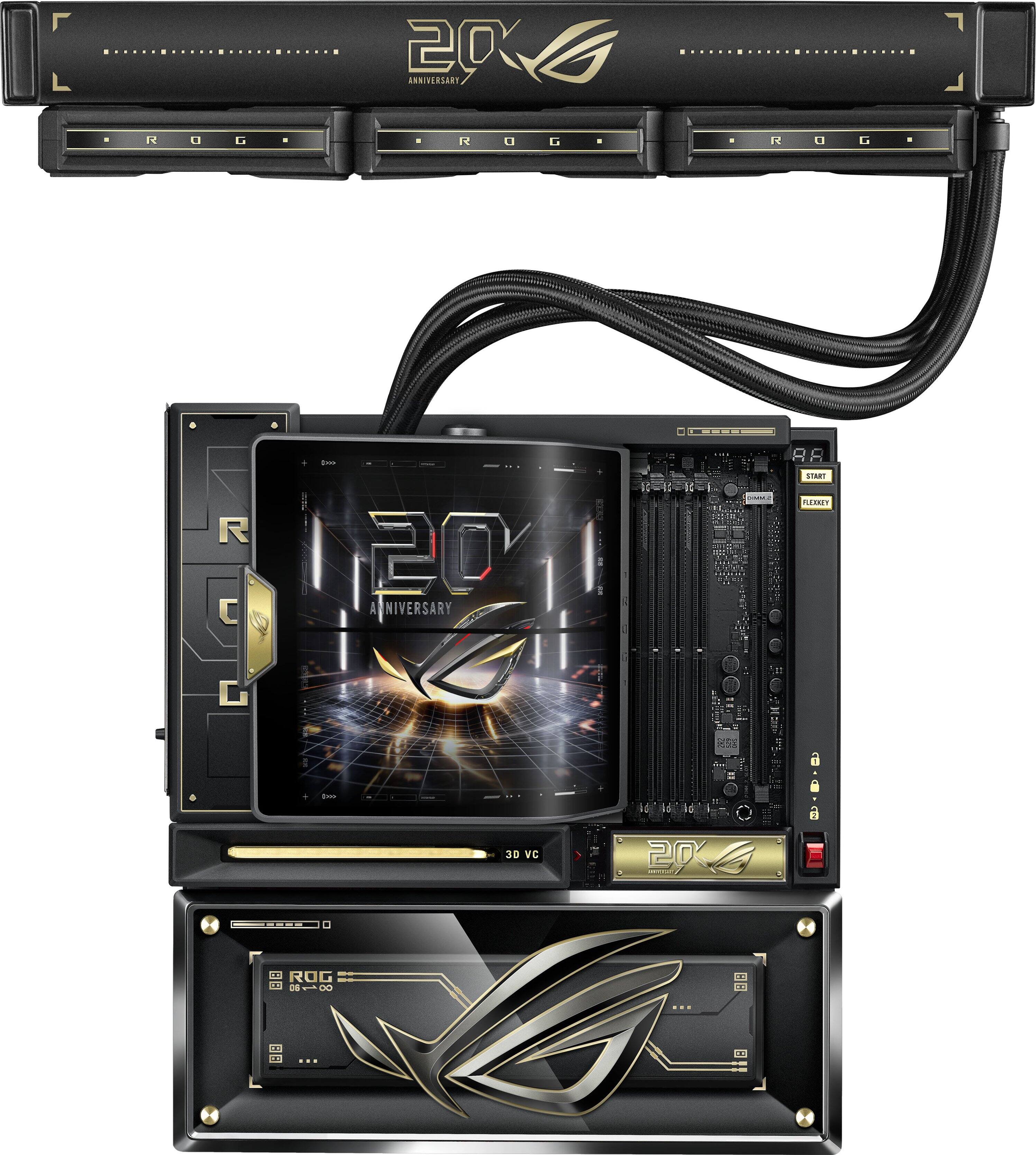

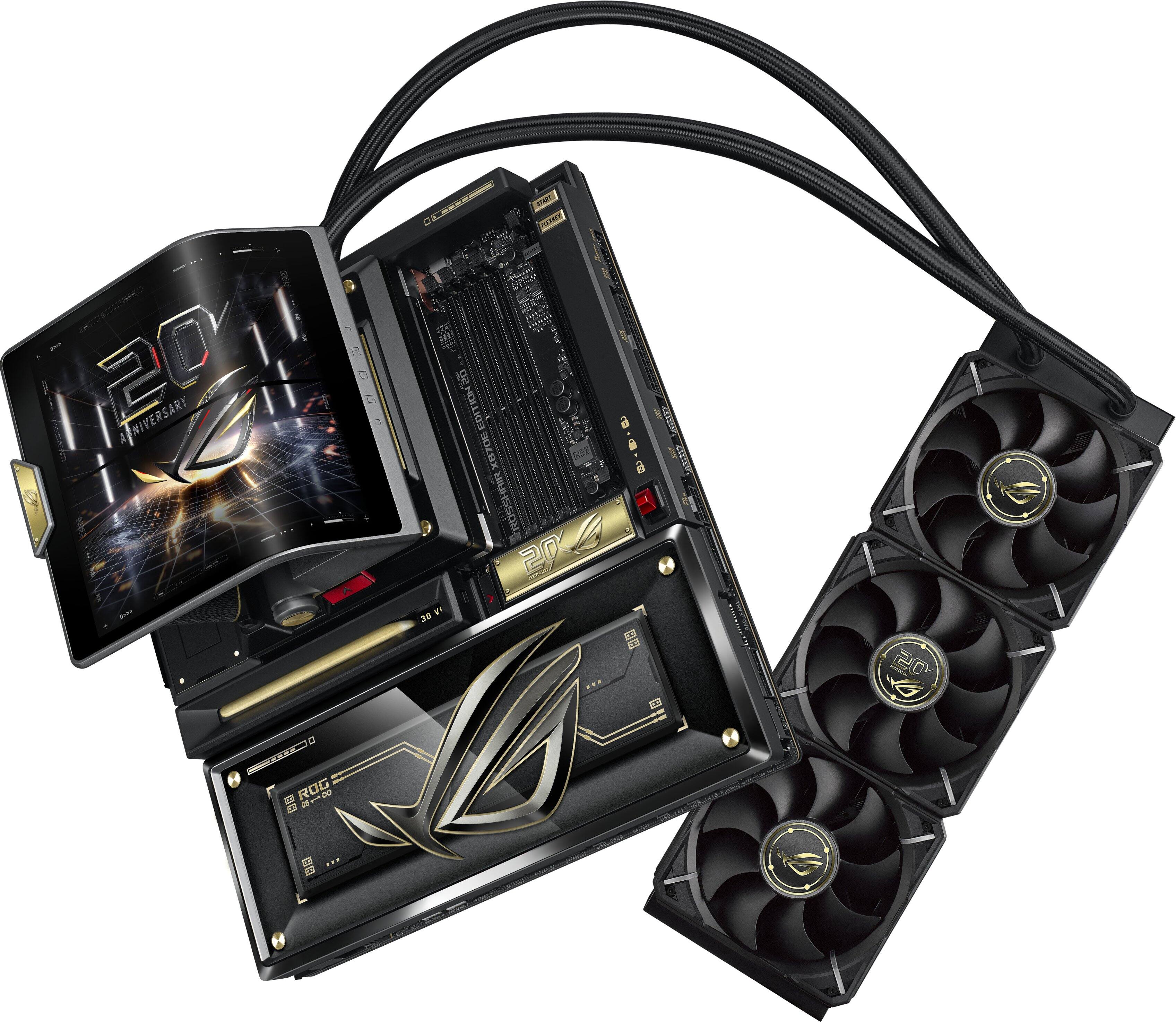

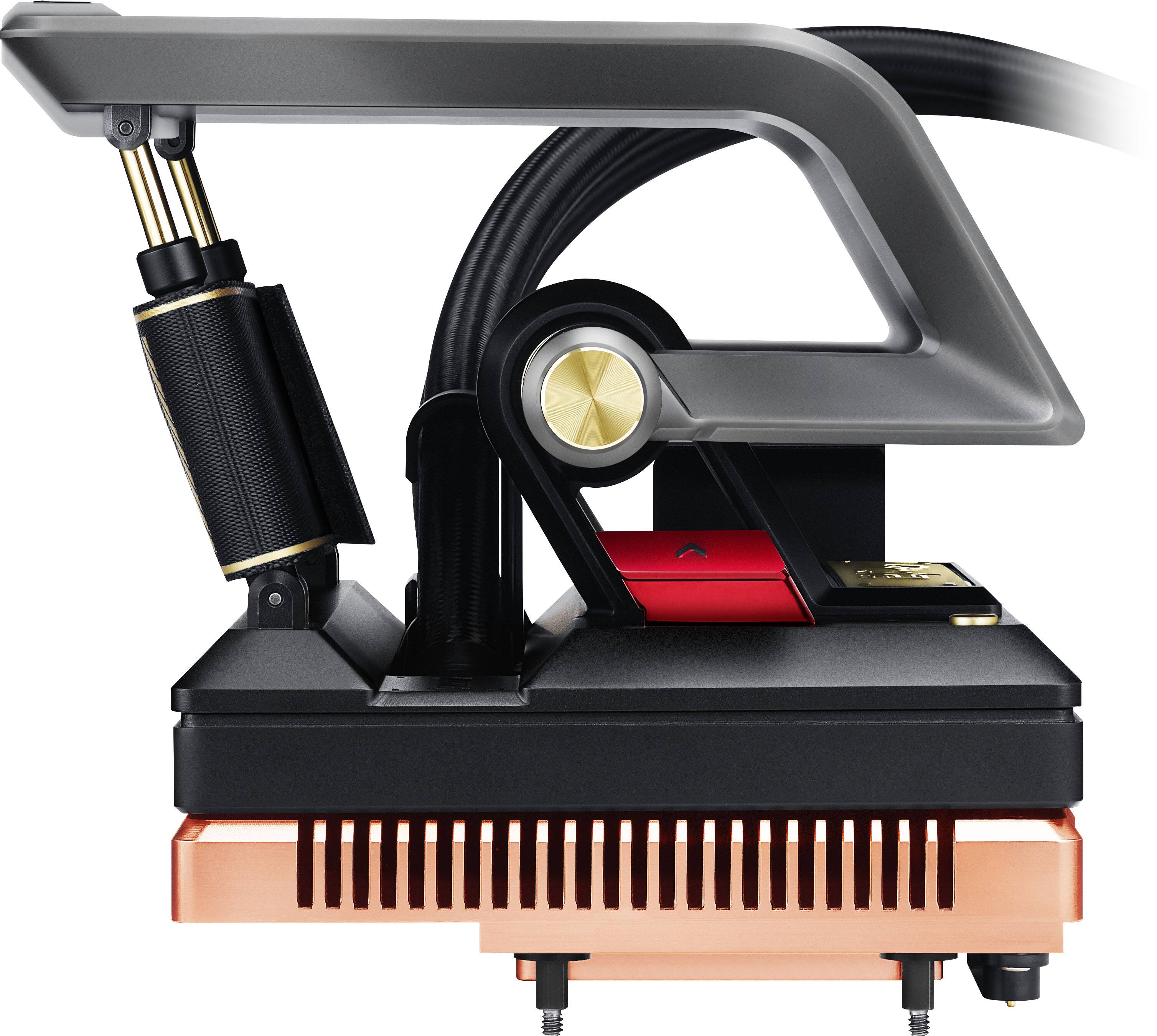

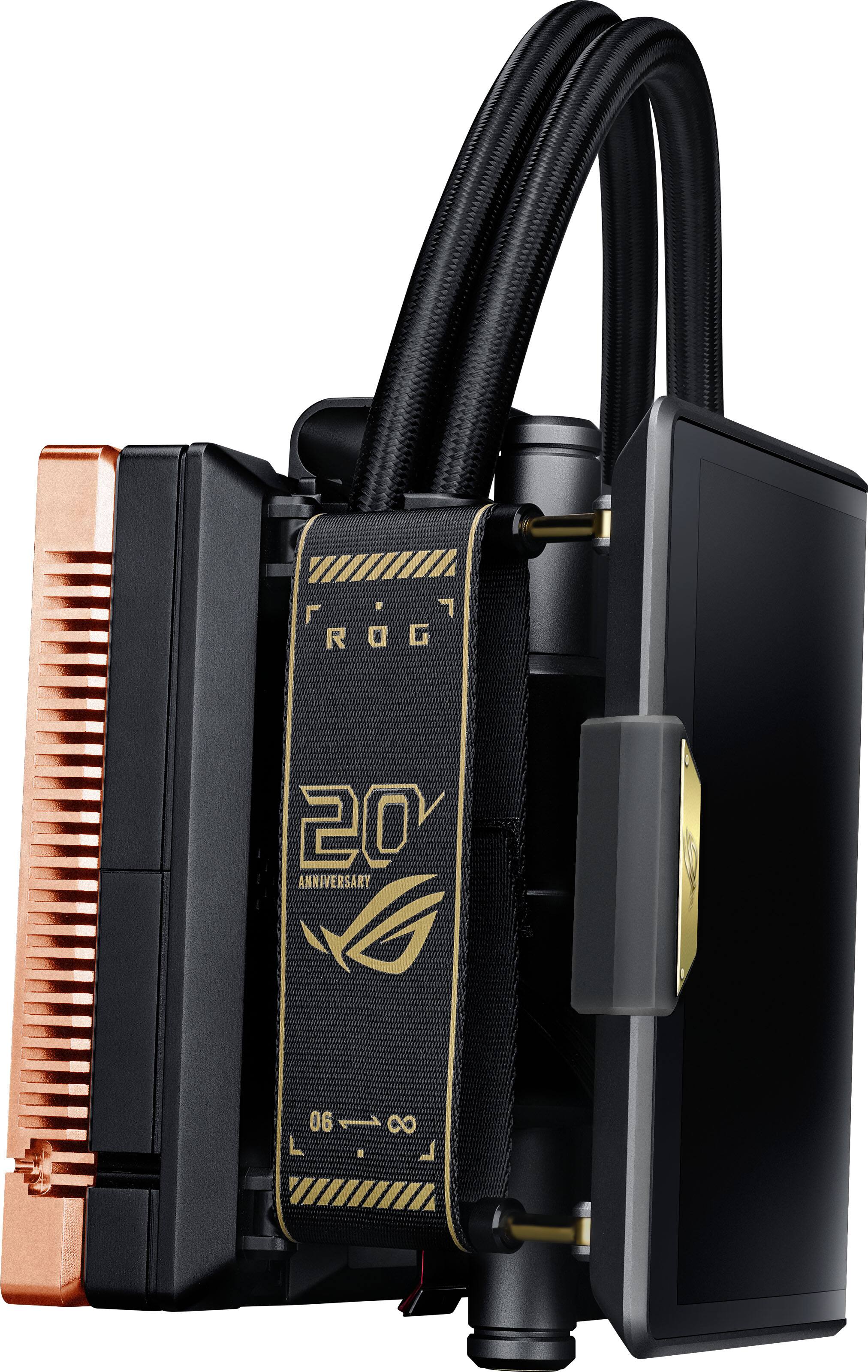

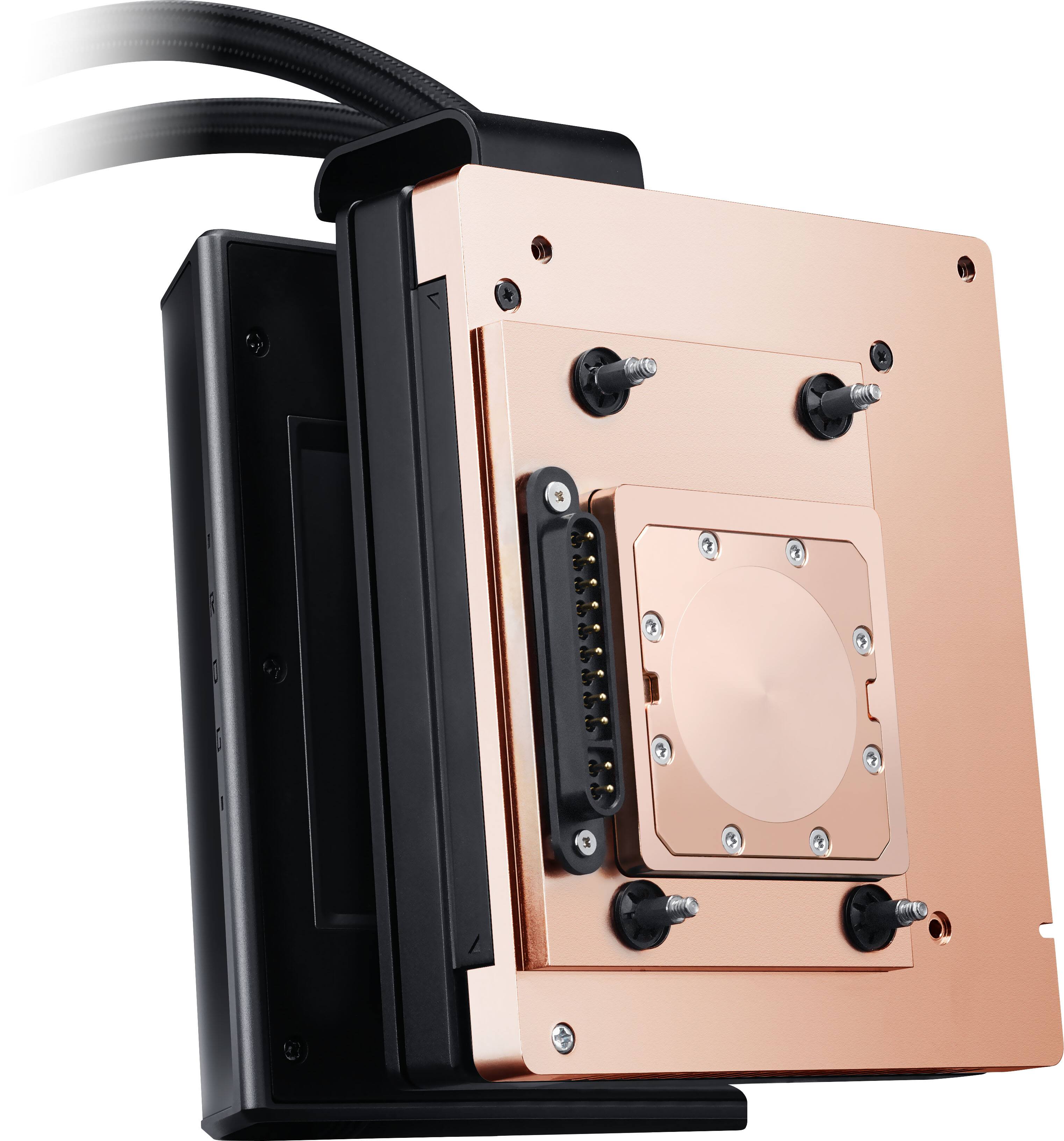

- Dedicated AIO Cooler: ROG RYUJIN 360 20th Edition powered by ASETEK EMMA GEN10 V3RX pump, with 40mm thick, 20 FPI non-louvered radiator

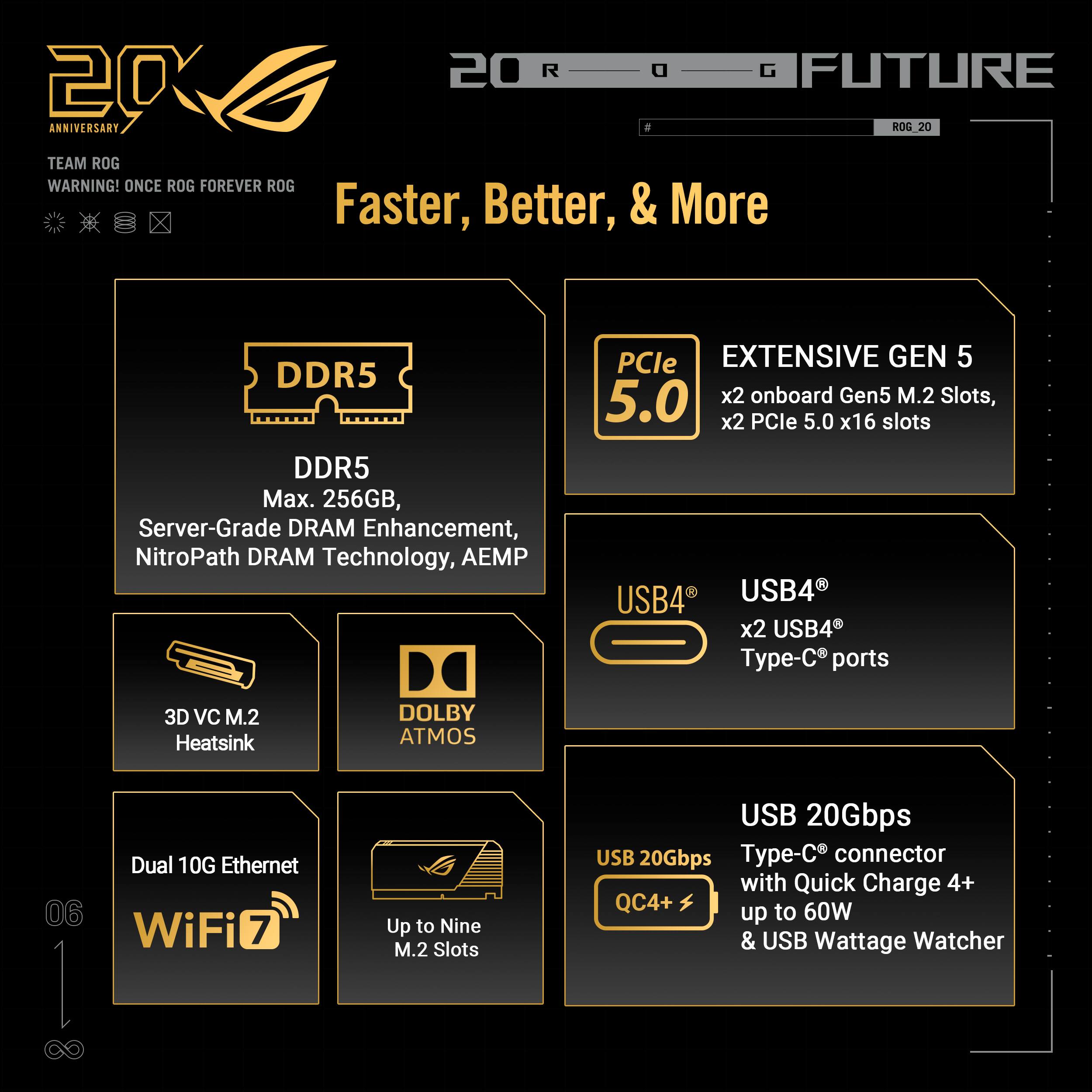

- Nine M.2 Support: Five onboard slots plus two slots via ROG Hyper M.2 card and two slots via ROG Q-DIMM.2
- Advanced DDR5 Memory Technologies: DIMM Fit and DIMM Fit Pro for intelligent module analysis and memory optimization, NitroPath DRAM Technology, and ASUS Enhanced Memory Profile (AEMP)
- ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Intelligent Control: ASUS-exclusive AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

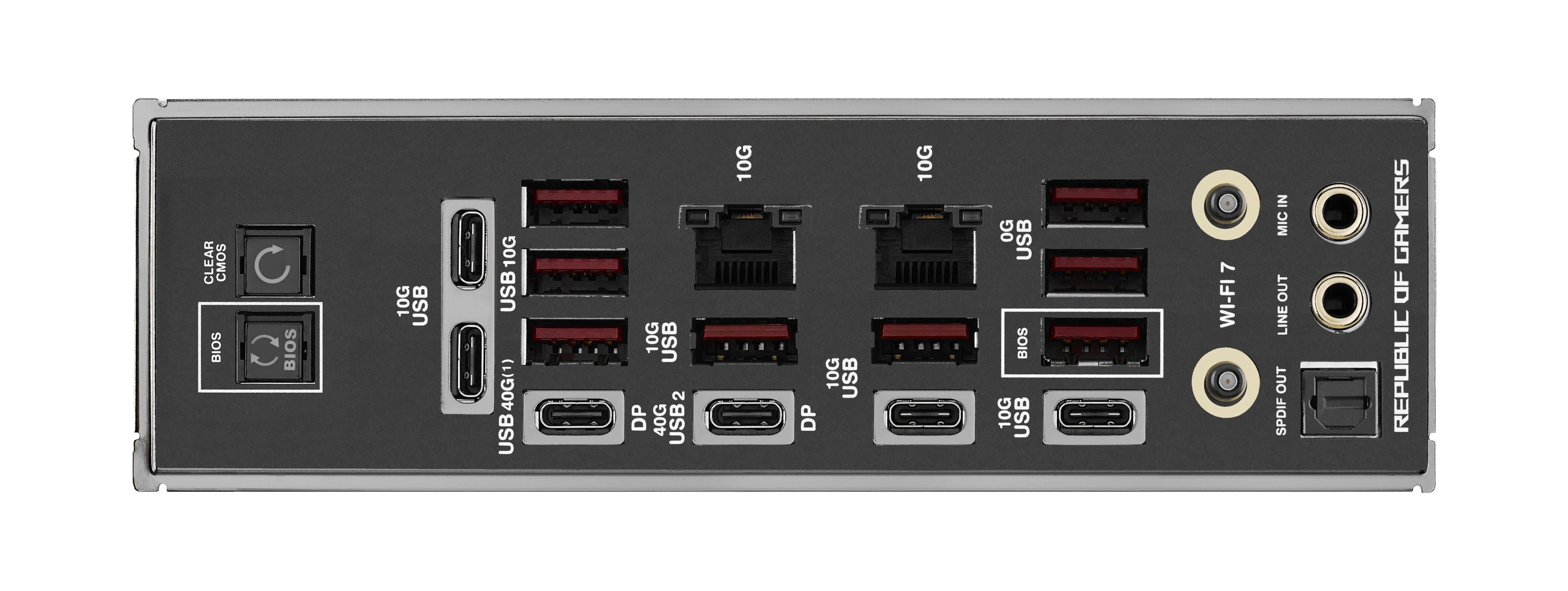

- Abundant Connectivity: Dual USB4 Type-C ports, two USB 20Gbps Type-C front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), twelve additional USB 10Gbps ports, 3 x USB 2.0 headers, two PCIe 5.0 x16 SafeSlots
- High-Performance Networking: Dual Realtek 10G Ethernet, On-board Wi-Fi 7 (802.11be) with ASUS Wi-Fi Q-Antenna
- DIY Friendly Design: ASUS AIO Q-Connector, PCIe Slot Q-Release Switch, M.2 Q-Release, New M.2 Q-Latch, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield, ROG Memory Q-Fan
- Immersive Audio: ROG SupremeFX ALC4082 codec, with ESS ES9219 Quad DAC for up to 32-Bit/384 kHz playback, and also support the latest Buletooth audio technology such as LE Audio and LHDC

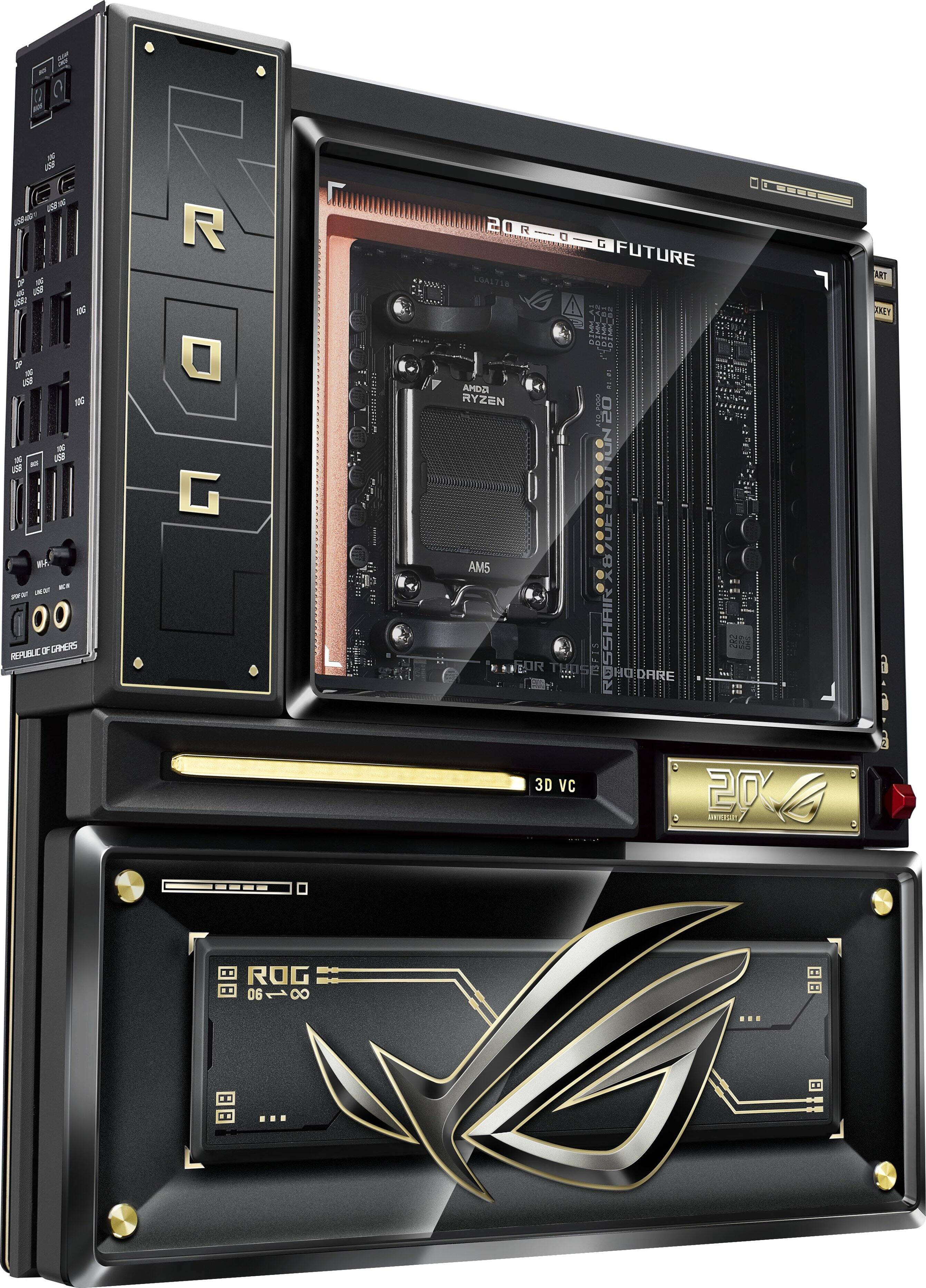

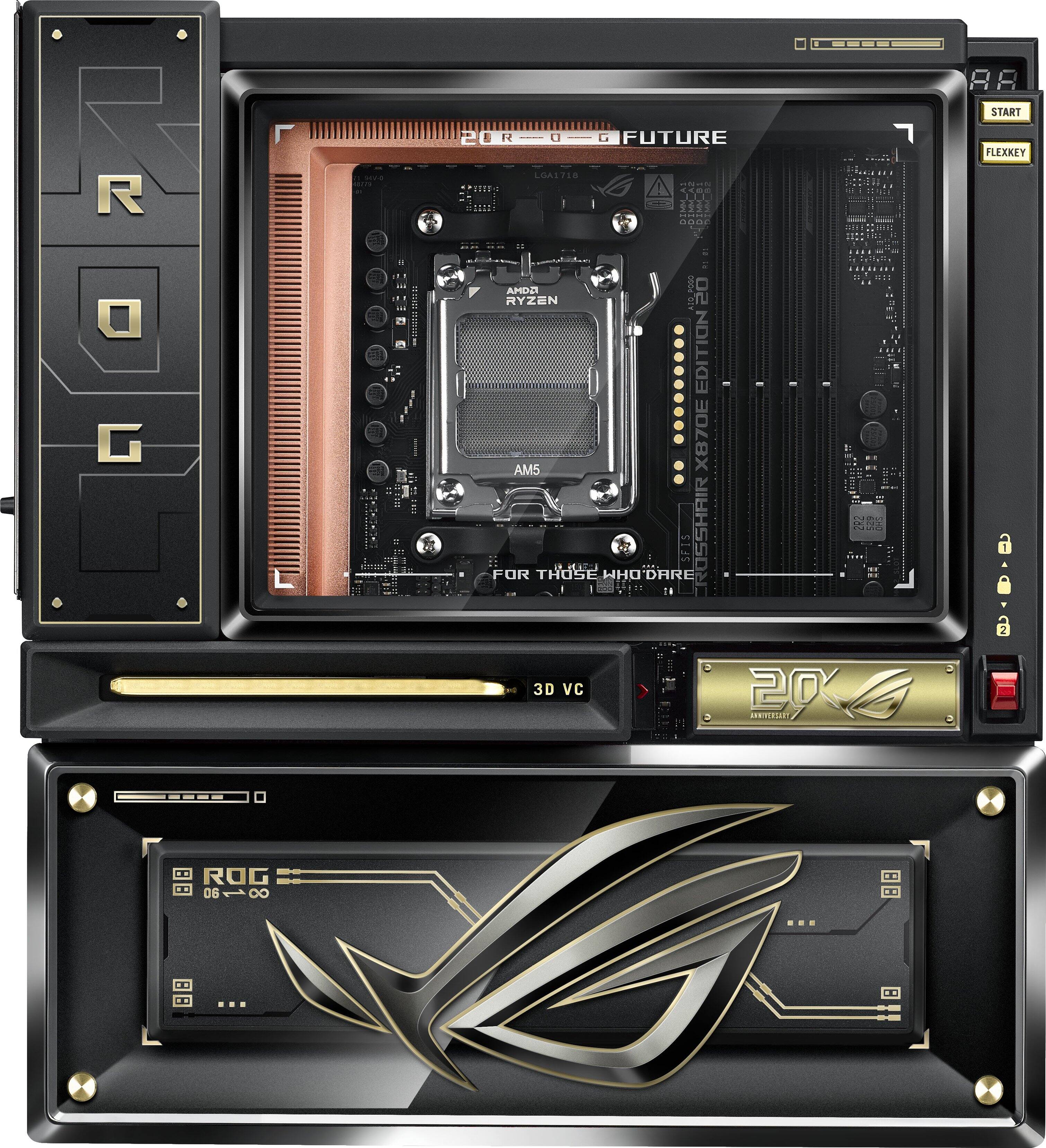

- Unmatched Personalization: Swivel Dual 6.67 AMOLED LCD, Display Sync-Up Mode, two Gen 2 ARGB headers, and a 6-pin Gen 2 ARGB header to support two Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: BIOS 64 MB, ASUS DriverHub, Dolby Atmos, TurboV Core, GlideX, HWiNFO, Integrated Wi-Fi Driver Support

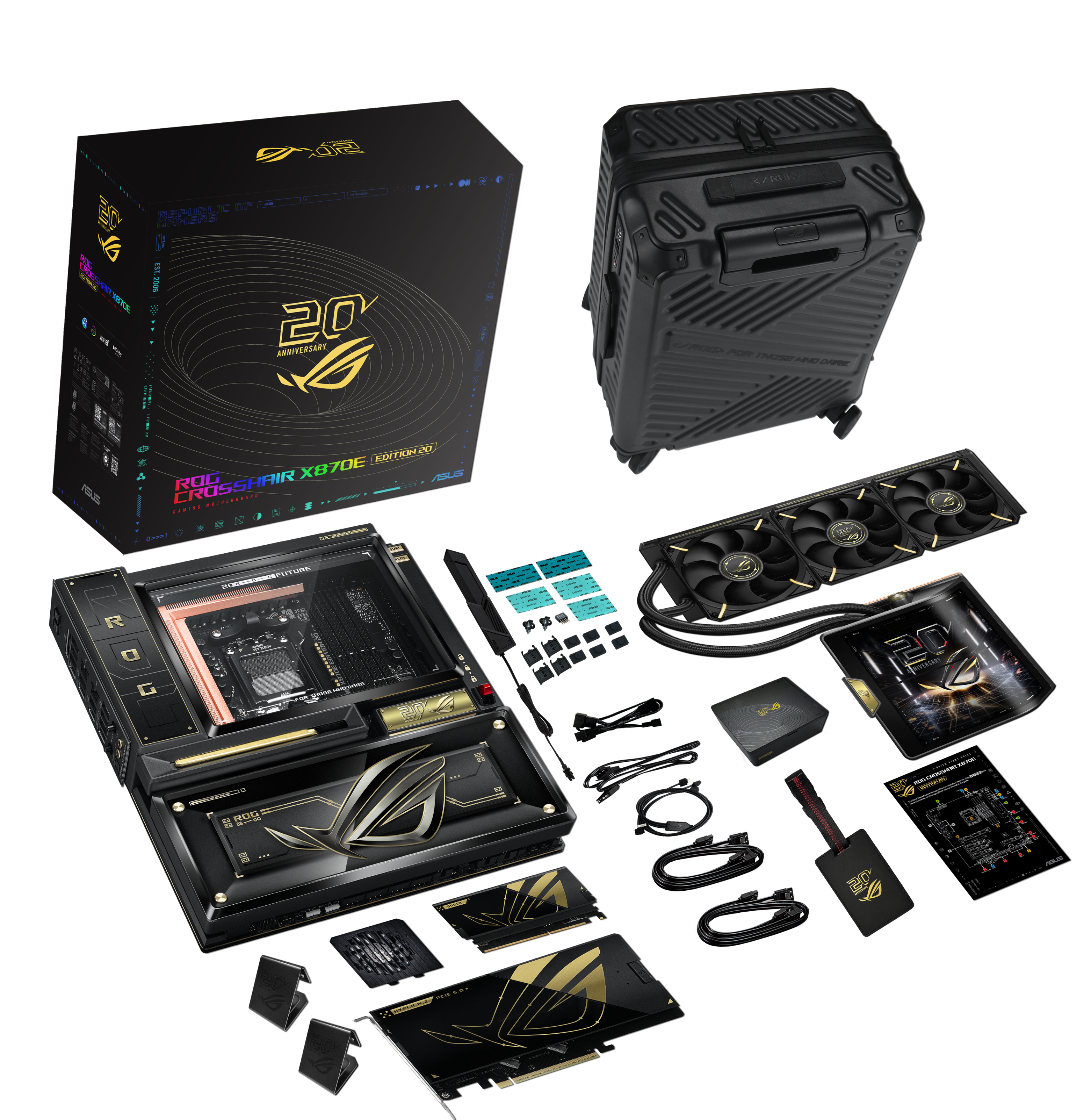

Whats Included
- ROG CROSSHAIR X870E EDITION 20 Motherboard & Integrated CPU Cooler
- 3x 120mm Pre-connected 20th Edition Fans and 1x ROG RYUJIN 360 Edition Screw Set
- 1-to-4, 1-to-2 ARGB Splitter Cables and 2x 1-to-3 Fan Splitter Cables
- 2x ROG Weave SATA 6G Cable Packages

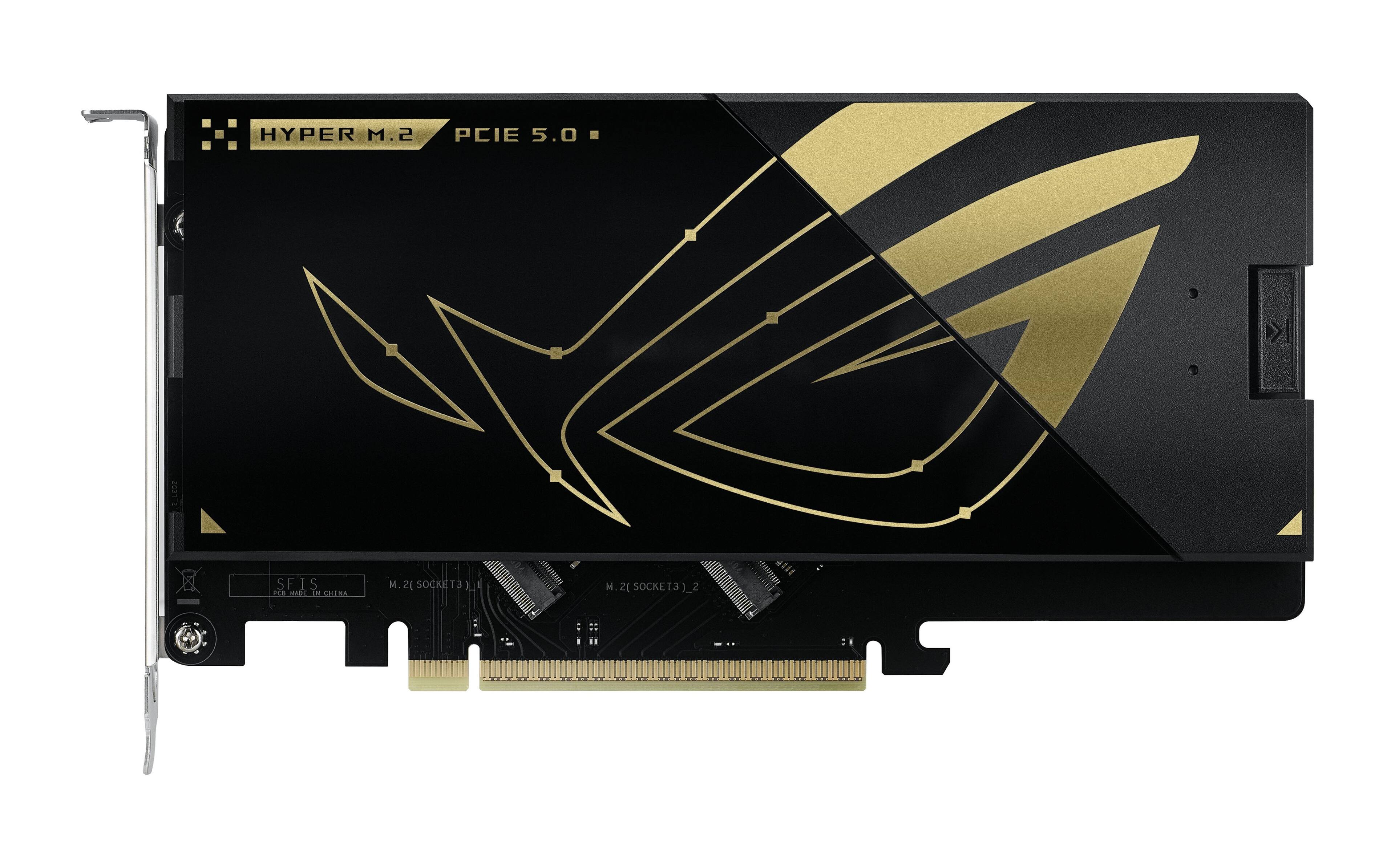

- 1x ROG Hyper M.2 with Heatsink, 1x M.2 Pad Package for ROG Q-DIMM.2 and 2x Thermal Pad for ROG Hyper M.2 Card

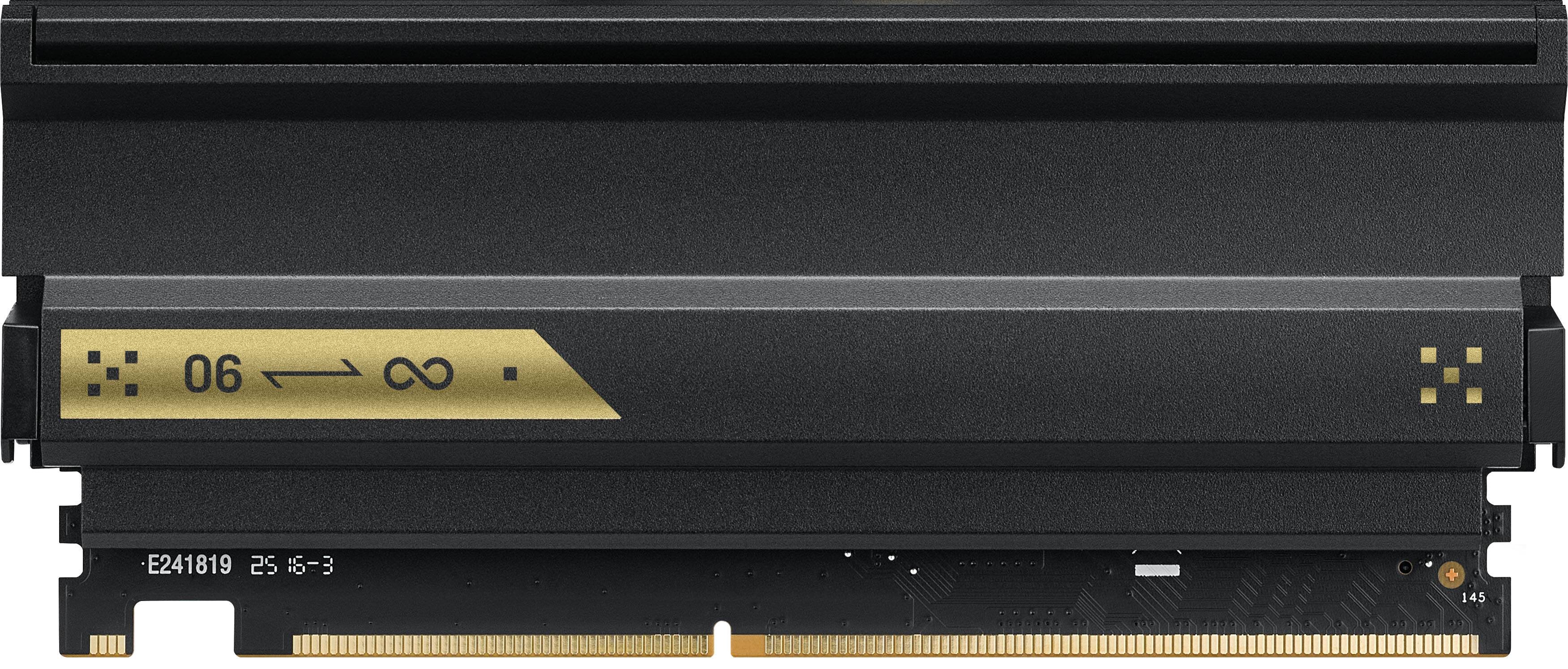

- 1x ROG DIMM.2 with Heatsink, 1x M.2 Pad Package for ROG Q-DIMM.2 and 2x Thermal Pad for ROG Q-DIMM.2
- 3x Thermal Pad for M.2 22110 and 1x ROG Memory Q-Fan
- 1x ASUS Wi-Fi Q-Antenna, 1x Q-Connector, 3x M.2 Q-Slide Package and 5x M.2 Backplate Rubber Packages

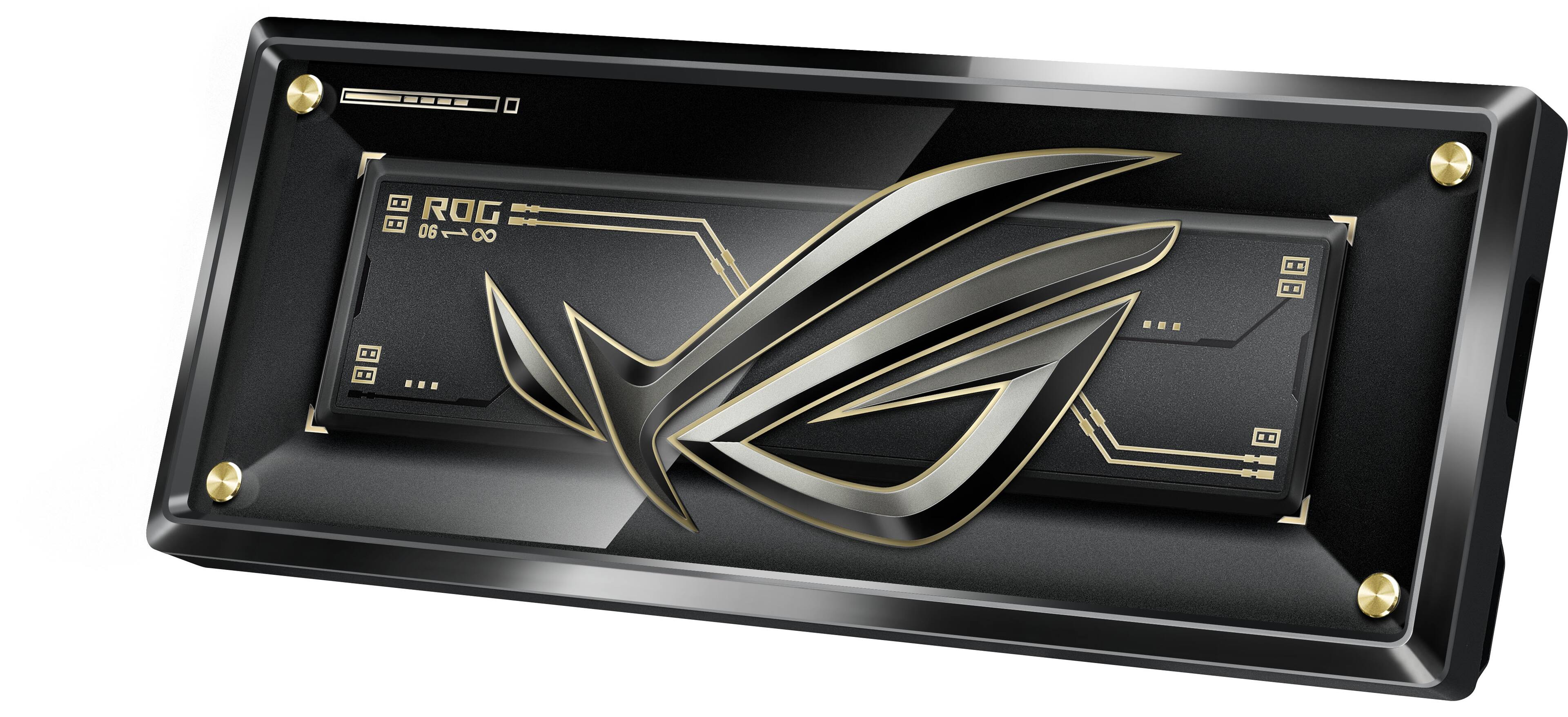

- 1x Backplate for ROG 20th Edition Nameplate, 1x Backplate for ROG 20th Edition Photo Frame and 2x Backplate Holders
- 1x ROG Stickers, 1x ROG Luggage Tag, Quick Start Guide and Warranty Card
Disclaimers
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- ** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
- *** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/
- **** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
