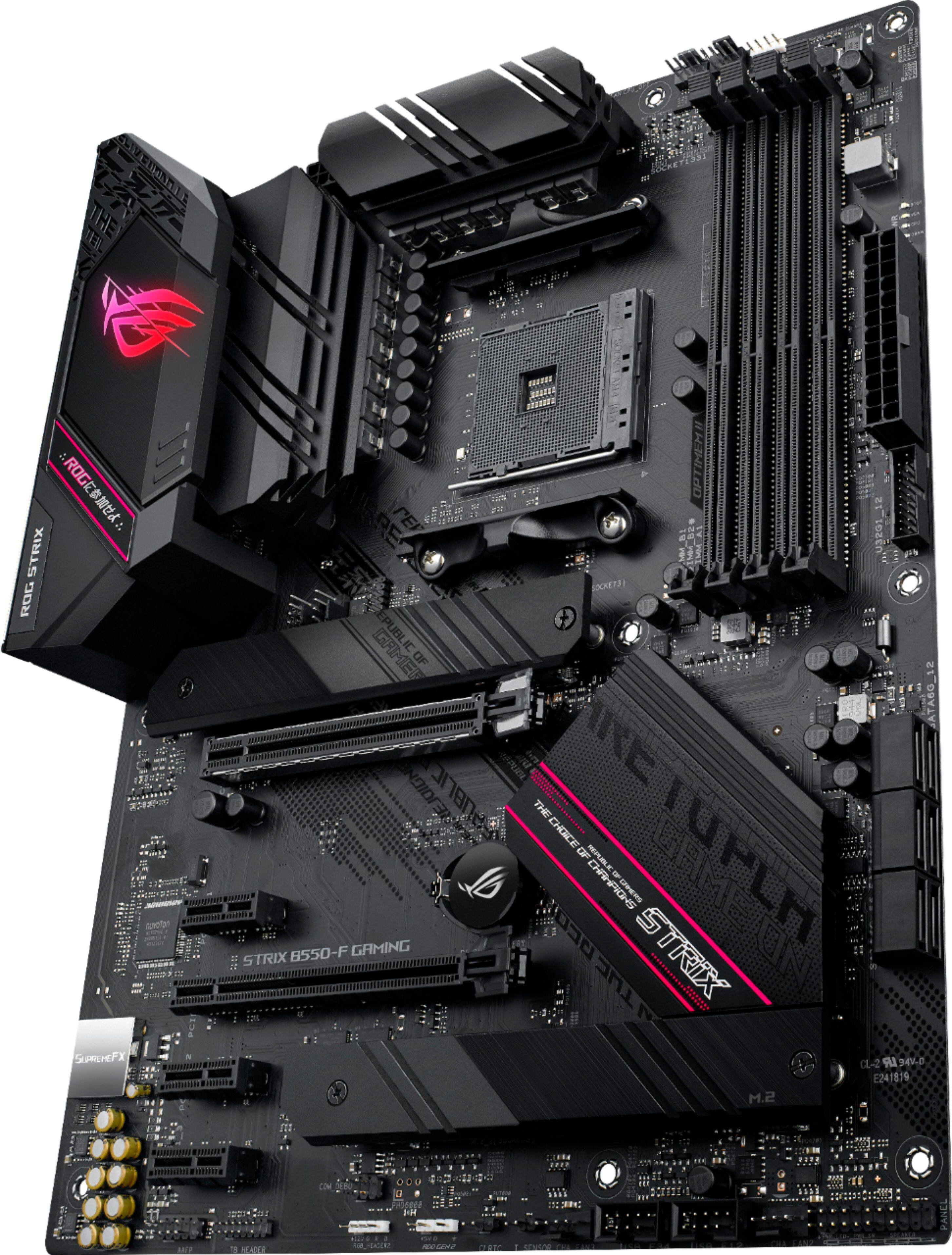

ASUS - ROG STRIX B550-F GAMING (Socket AM4) AMD B550 ATX DDR4 Motherboard - Black
Model: ROG STRIX B550-F GAMING
SKU: 6422283
This item is no longer available in new condition. See similar items below
- Key Specs
- Chipset: AMD B550
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 5 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: ASUS
- Model Number: ROG STRIX B550-F GAMING
- Product Name: ROG STRIX B550-F GAMING (Socket AM4) AMD B550 ATX DDR4 Motherboard
- Color: Black
- Year of Release: 2022
- Compatibility
- Chipset: AMD B550
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 3000 Series, AMD Ryzen 3 4000 Series, AMD Ryzen 5 3000 Series, AMD Ryzen 5 4000 Series, AMD Ryzen 5 5000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 5 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x1 Slots: 3
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin main power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 6x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 4-pin (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-C 3.2, 7 x USB-A 3.2, 6 x USB-A 2.0 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 1 x Thunderbolt 1 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 5
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305.05 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 66.4 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4400(O.C)/4266(O.C)/4133(O.C)/4000(O.C)/3866(O.C)/3600(O.C)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory* (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: CrossFire
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 192876749692
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs
- Processor Compatibility: AMD AM4 Socket 3rd Gen AMD Ryzen Processors
- Speed: 4 x DIMM
- Graphics: Integrated graphics processor
- Memory: 128GB, DDR4
- Audio: ROG supremefx 8-Channel High Definition Audio
- Interfaces: Rear USB Port ( Total 8 ), 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C), 4 x USB 3.2 Gen 1 port(s)(4 x Type-A), 2 x USB 2.0 port(s), Front USB Port ( Total 6 ), 2 x USB 3.2 Gen 1 port(s), 4 x USB 2.0 port(s)
- Expansion Slots: 3rd Gen AMD Ryzen Processors, 1 x pcie 4.0 x16 (x16 mode), AMD B550 Chipset, 1 x pcie 3.0 x16 (x4 mode) *, 3 x pcie 3.0 x1, 1 x pcie 3.0 x16 (x16 mode), Intel Z490 Chipset, 1 x pcie 3.0 x16 (x4 mode), 3 x pcie x1
- Ai Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay
- Operating System: Windows 10 64-bit
Whats Included
- User's manual
- Supporting DVD
- M.2 SSD screw packages
- M.2 Rubber packages
- Cable ties packs
Q: Does this motherboard have built-in Wi-Fi?
A: No, this motherboard does not have built-in Wi-Fi.
Q: What is the maximum memory supported by this motherboard?
A: The motherboard supports a maximum memory of 128 GB.
Q: How many M.2 slots does this motherboard have?
A: This motherboard has 2 M.2 slots.
Q: Which processor socket does this motherboard use?
A: This motherboard uses the Socket AM4 (PGA 1331) processor socket.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR4 type memory.
Q: What is the form factor of this motherboard?
A: The form factor of this motherboard is ATX.
Q: Does this support 256GB Ram?
A: No 128gb max who needs 256 unless you’re rendering a Pixar film
Q: Does it come with wifi and bluetooth?
A: No, but there is a version that comes with WiFi
