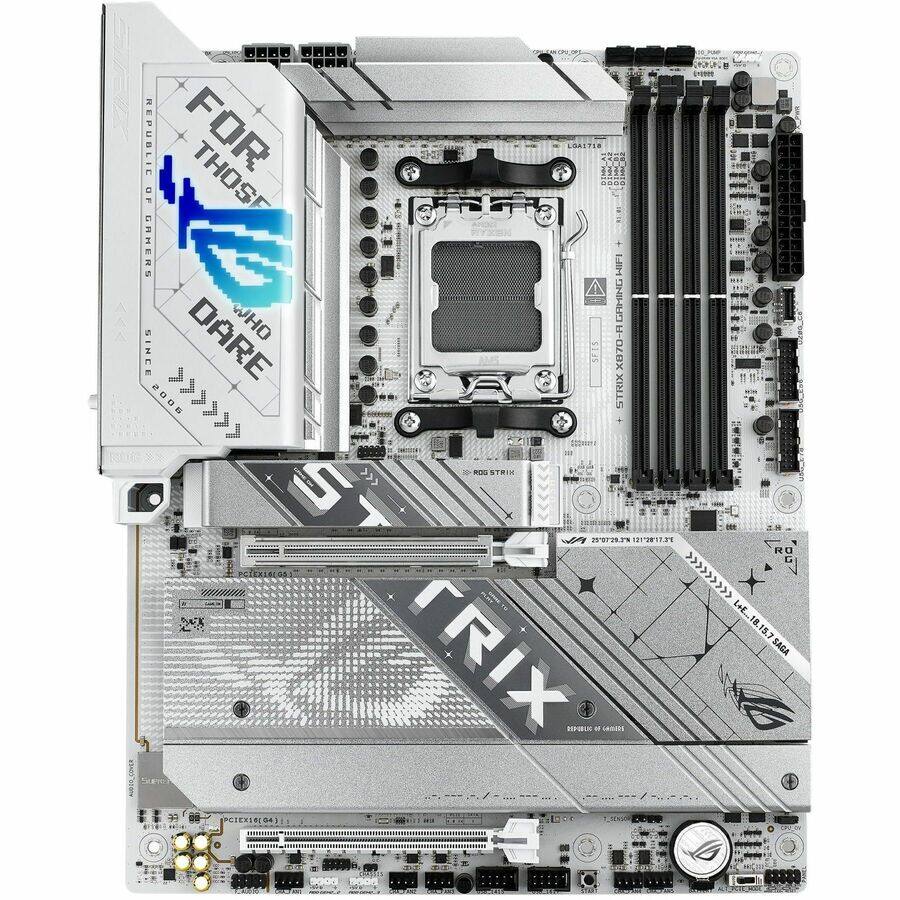

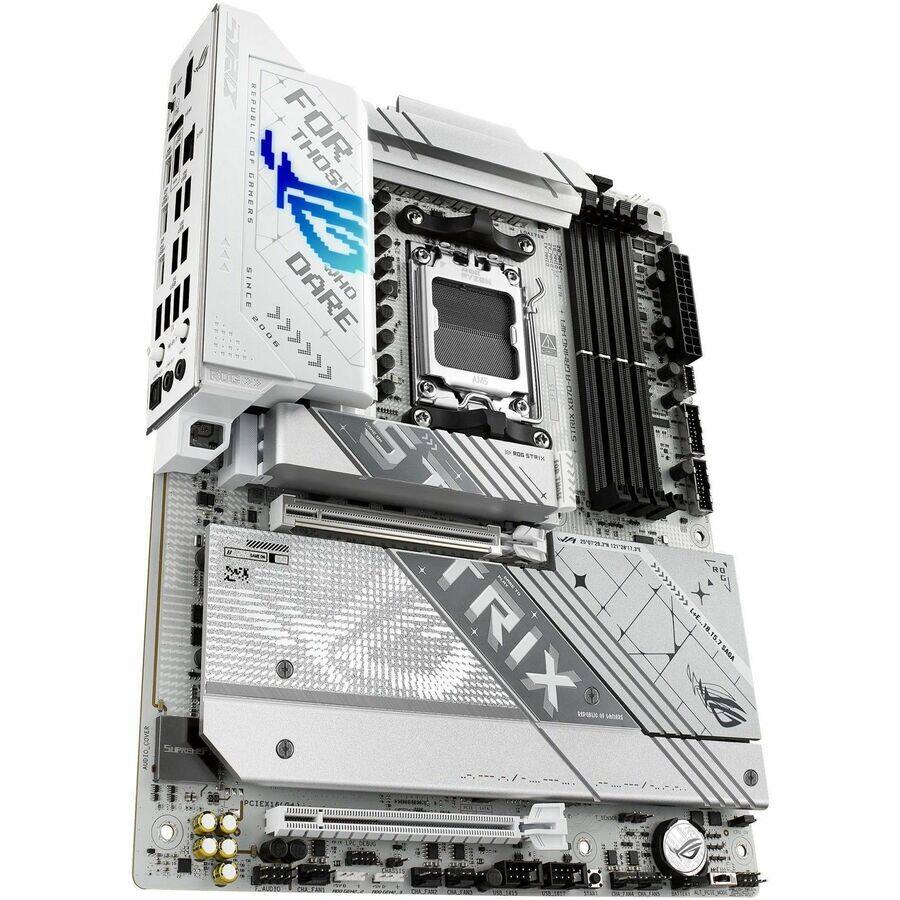

ASUS - ROG STRIX X870A GAM WIFI - White
More Buying Options
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: 90MB1IF0-MVAAY0
- Product Name: ROG STRIX X870A GAM WIFI
- Color: White
- Year of Release: 2024
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 5 9000 Series
- Operating System Compatibility: Windows 11 Home, Windows 11 Pro, Windows 10, Windows 10 Pro
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1x 24-pin ATX, 2x 8-pin EPS 12V (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 2x SATA 6Gb/s (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1x 4-pin CPU Fan, 1x 4-pin CPU OPT, 1x 4-pin AIO Pump, 5x 4-pin Chassis Fan (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 3 x USB-C, 9 x USB-A (The number and type of USB ports the product has.)
- Audio Ports: 5x 3.5mm audio jacks, 1x Optical S/PDIF out
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 13.9 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 10.7 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 5.6 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4000 MT/s (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: CrossFire
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105737853
The ROG STRIX X870A GAM WIFI motherboard is engineered for high-performance computing, featuring an AMD AM5 socket compatible with Ryzen 7000, 8000, and 9000 series processors. It offers intelligent control with ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and AEMP, facilitating enhanced performance and ease of setup. Designed to meet the demands of advanced AI applications, it provides robust power solutions with 16+2+2 power stages rated for 90A per stage, dual ProCool II connectors, high-quality alloy chokes, and durable capacitors. The motherboard also incorporates overclocking technologies such as Dynamic OC Switcher, Core Flex, Asynchronous Clock, and PBO Enhancement to optimize performance.
- AMD AM5 Socket: Supports AMD Ryzen 7000, 8000, and 9000 series desktop processors.
- Intelligent Control: Features ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and AEMP for enhanced performance.
- Advanced AI Computing: Designed for demanding AI applications with robust power and connectivity.
- Robust Power Solution: 16+2+2 power stages rated for 90A per stage with dual ProCool II connectors, high-quality alloy chokes, and durable capacitors.
- Overclocking Technologies: Includes Dynamic OC Switcher, Core Flex, Asynchronous Clock, and PBO Enhancement for optimized performance.
- AMD AM5 Socket: Supports AMD Ryzen 7000, 8000, and 9000 series desktop processors.
- Intelligent Control: Features ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and AEMP for enhanced performance.
- Advanced AI Computing: Designed for demanding AI applications with robust power and connectivity.
- Robust Power Solution: 16+2+2 power stages rated for 90A per stage with dual ProCool II connectors, high-quality alloy chokes, and durable capacitors.
- Overclocking Technologies: Includes Dynamic OC Switcher, Core Flex, Asynchronous Clock, and PBO Enhancement for optimized performance.
Whats Included
- ROG STRIX X870-A GAMING WIFI motherboard, Wi-Fi Q-Antenna, SATA cables, ROG keychain, ROG Strix stickers & thank you card, quick start guide
- ROG STRIX X870-A GAMING WIFI motherboard, Wi-Fi Q-Antenna, SATA cables, ROG keychain, ROG Strix stickers & thank you card, quick start guide
