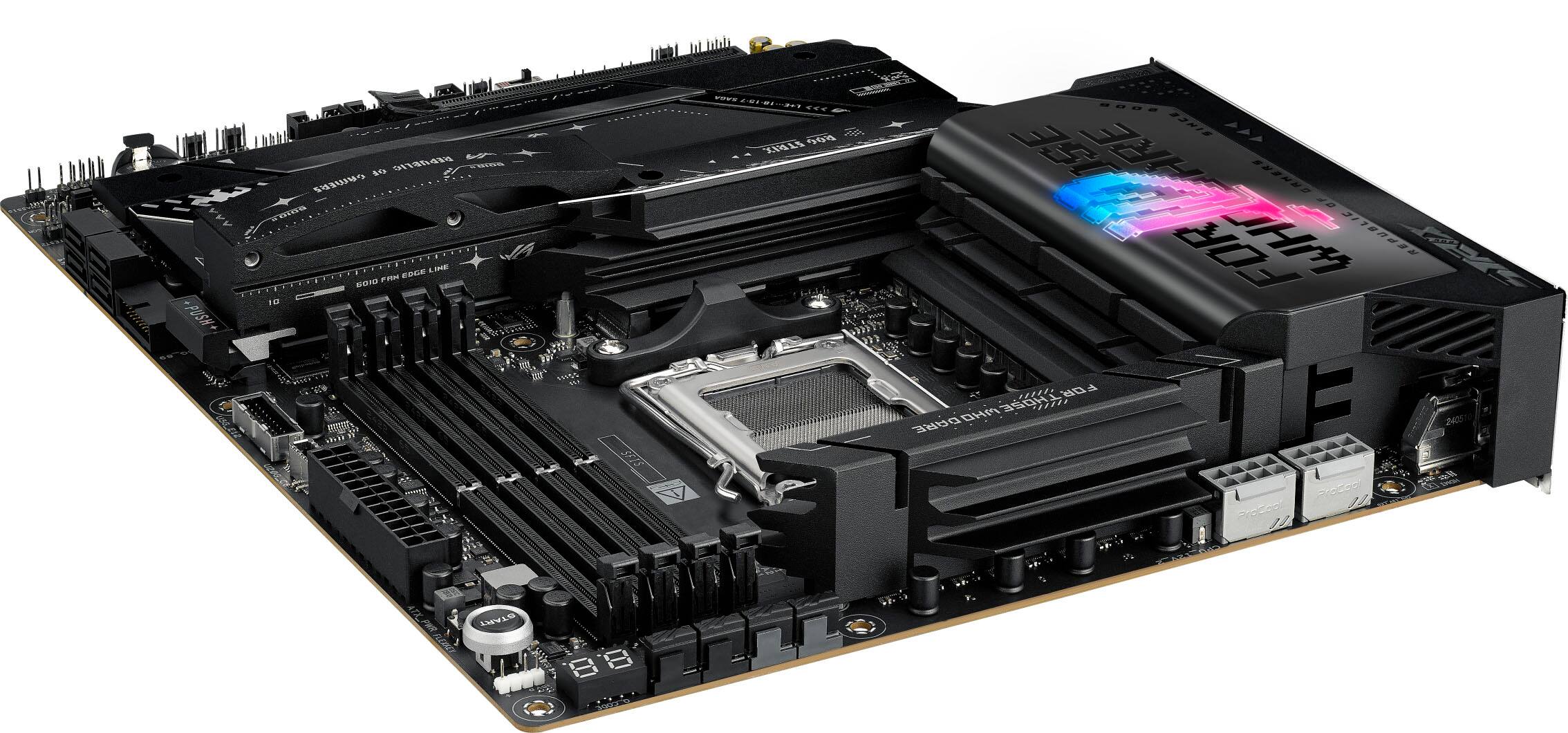

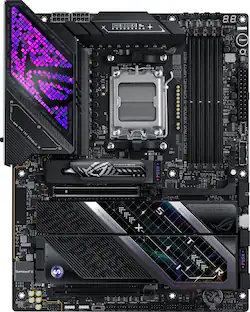

ASUS - ROG STRIX X870E-E GAMING WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
More Buying Options from Marketplace sellers
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots2Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG STRIX X870E-E GAMING WIFI
- Product Name: ROG STRIX X870E-E GAMING WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2024
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 5 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

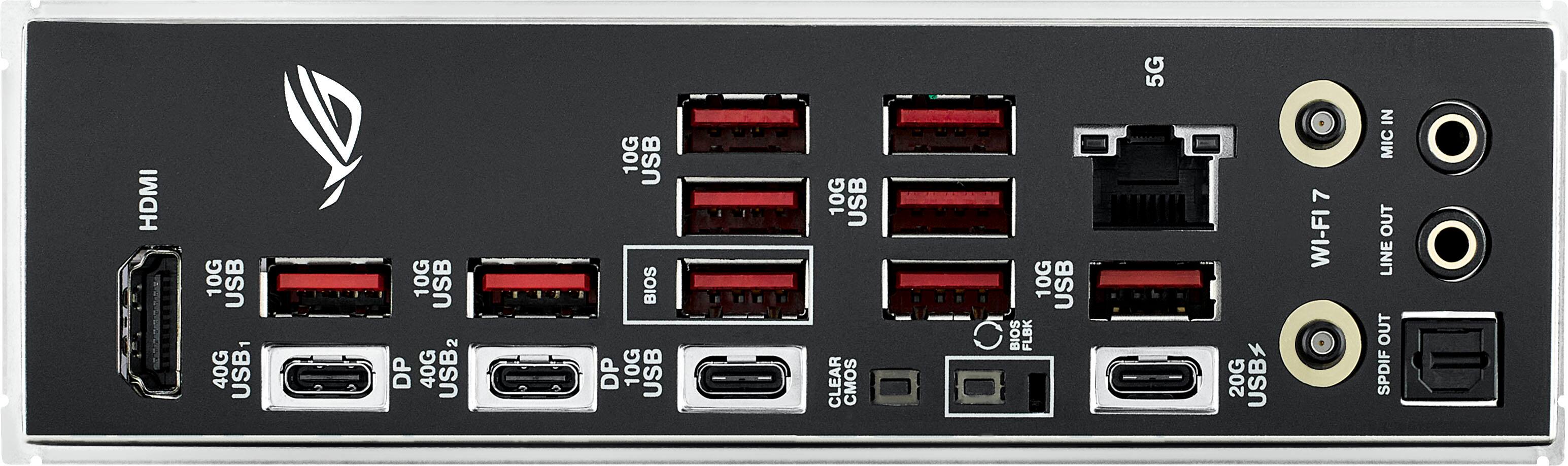

- USB Ports: 8 x USB-A 3.2, 2 x USB-C 3.2, 4 x USB-A 3.1, 6 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 79.68 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5600/5200/4800 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 1, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105724167
ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 X870 ATX motherboard 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 5x M.2, PCIe 5.0, Q-Release Slim, USB4, AI OCing & Networking
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance
- ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust Power Solution: 18+2+2 power solution rated for 110A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Q: Does the motherboard have a built-in Wi-Fi 7 module?
A: This motherboard does have a built-in Wi-Fi 7 module.
Q: What is the maximum memory capacity supported by the motherboard?
A: The maximum memory capacity supported by the motherboard is 192 gigabytes.
Q: Does the motherboard support PCIe® 5.0?
A: This motherboard does offer support for PCIe® 5.0.
Q: What is the number of SATA connectors on the motherboard?
A: This motherboard has four SATA connectors.
Q: Are there any USB4® ports on the motherboard?
A: This motherboard includes USB4® support.
Q: How many power stages does the motherboard have?
A: The ROG STRIX X870E-E GAMING WIFI motherboard has 18+2+2 power stages.
Q: What is the width and height
A: The ASUS ROG STRIX X870E‑E GAMING WIFI motherboard measures 12.0 inches (30.5 cm) in length and 9.6 inches (24.4 cm) in width.
Q: Does this motherboard have on board Bluetooth?
A: Yes, the ASUS ROG STRIX X870E-E GAMING WIFI motherboard includes onboard Bluetooth functionality. https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/spec/
Compare similar products

ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 X870 ATX motherboard 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 5x M.2, PCIe 5.0, Q-Release Slim, USB4, AI OCing & Networking

ASUS ROG CROSSHAIR X870E HERO AMD X870E AM5 ATX motherboard, Advanced AI PC ready, 18+2+2 power stages, DDR5, PCIe 5.0, 5x M.2, Wi-Fi 7, USB4, AI Overclocking, Core Flex, PCIe Slot Q-Release Slim

The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking; courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess; it delivers comprehensive support for cutting-edge graphics cards and storage; making it the ultimate platform for AM5 AMD Ryzen performance enthusiasts.

ASUS ROG STRIX X870-F GAMING WIFI, AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe 5.0 x16 SafeSlots with PCIe Q-Release Slim, two USB4 ports, USB 10Gbps Type-C with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking, and Aura Sync RGB lighting.
| Pros for ASUS - ROG STRIX X870E-E GAMING WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Overall Performance, Overclocking, Design, Port Quantity, Compatibility |
| Cons for ASUS - ROG STRIX X870E-E GAMING WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | RAM |
