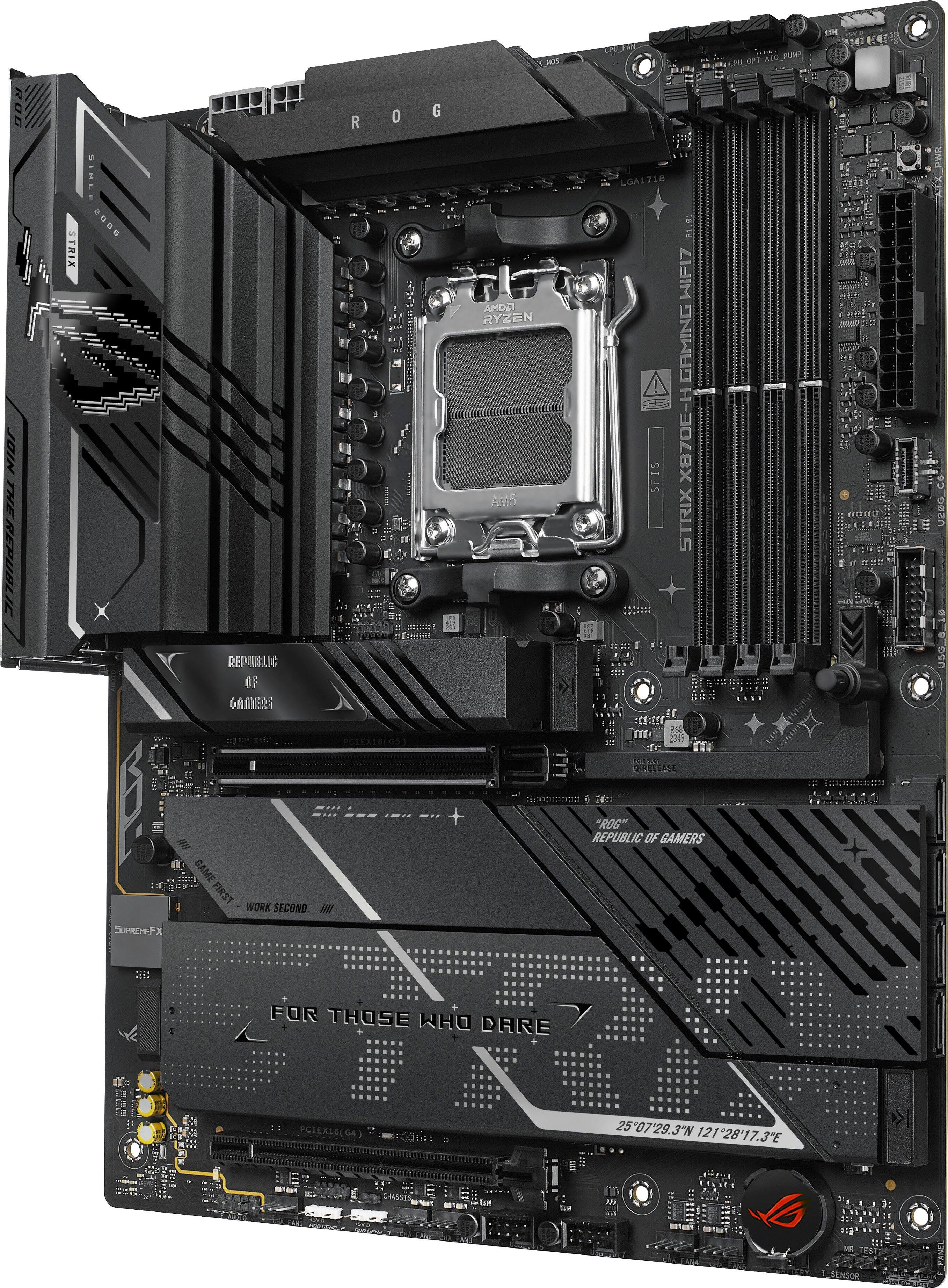

ASUS - ROG STRIX X870E-H (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 BE Motherboard - Black
Model: ROG STRIX X870E-H GAMING WIFI7
SKU: 11013275
Black Friday Deal
$269.99
Save $130.00
Comp. Value: $399.99
or
Finance OptionsView your offers
Availability
FREE shipping to
Sold & shipped by
(58)
GIGABYTE - X870 AORUS ELITE WIFI7 (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - BlackBlack Friday Deal$219.99$319.99
More Buying Options
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG STRIX X870E-H GAMING WIFI7
- Product Name: ROG STRIX X870E-H (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 BE Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 11 Home, Windows 11 Pro, Linux
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x4 Slots: 1
- Number Of PCI-E x1 Slots: 0
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 8 (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 2 x USB-C 4, 2 x USB-C 3.2, 10 x USB-A 3.2, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Audio Ports: 3
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 58.88 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: Up to 8000+MT/s (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: None
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 199291167209
The ASUS ROG STRIX X870E-H GAMING WIFI7 delivers a robust power solution with 16+2+1 power stages, DDR5 support with AEMP, Dynamic OC Switcher, Core Flex, Wi-Fi 7 with ASUS Q-Antenna, four M.2 slots with Q-Release, PCIe 5.0 x16 SafeSlots, dual USB4 ports, and a USB-C 10Gbps port with up to 30W fast charging.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Robust Power Solution: 16+2+1 power solution rated for 80A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Intelligent Control: ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP to simplify setup and improve performance

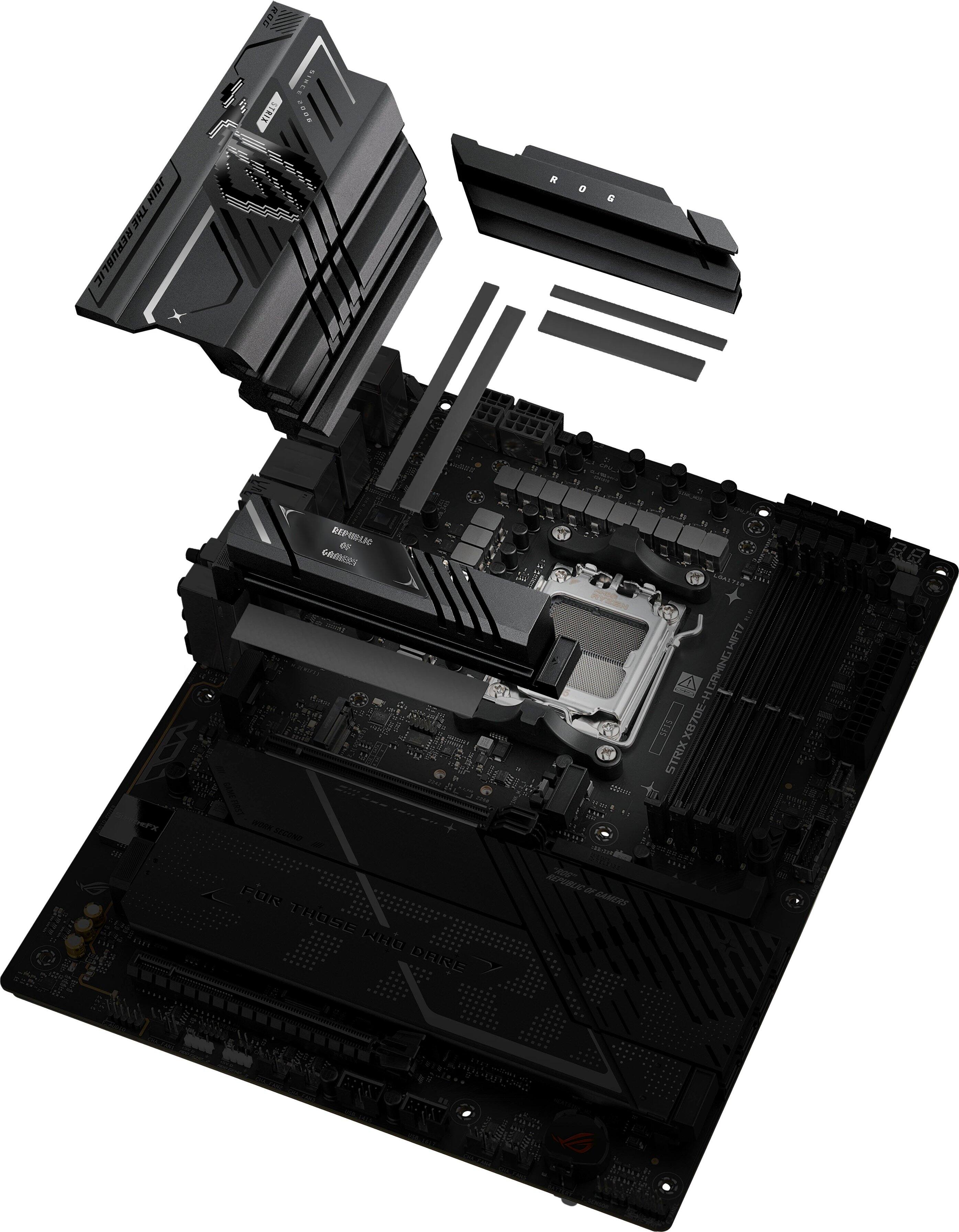

- Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad
- Latest M.2 Support: Two onboard PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions

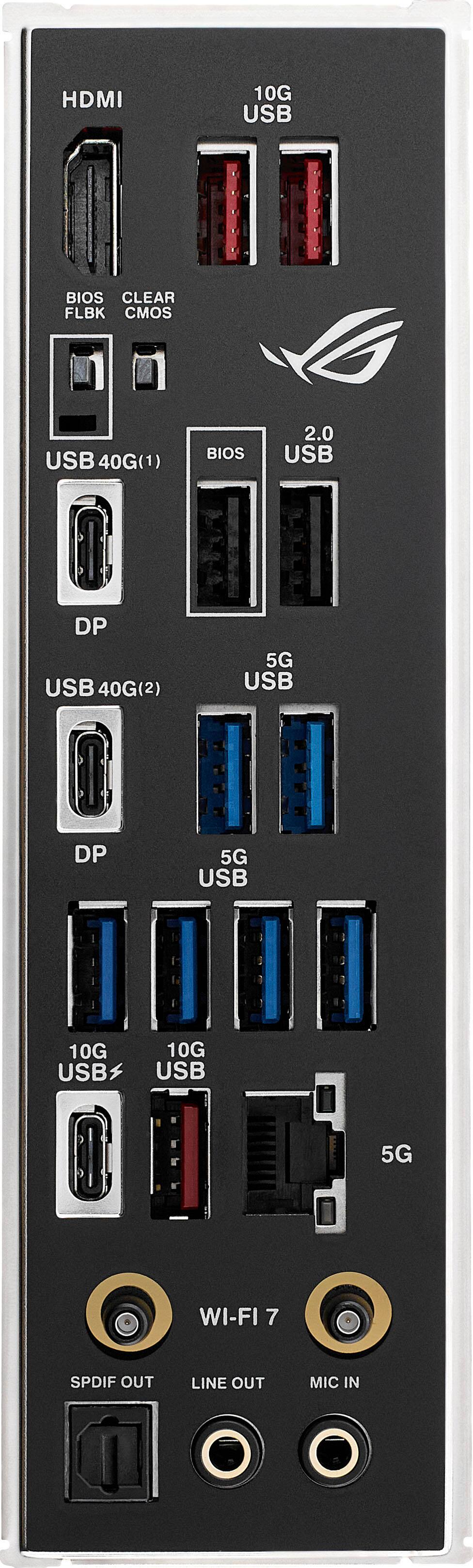

- Abundant Connectivity: Dual USB4® Type-C ports, USB 20Gbps Type-C® front-panel connector, one USB 10Gbps Type-C® rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, three additional USB 10Gbps Type-A ports, PCIe 5.0 x16 SafeSlots, HDMI™ port
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with Realtek® 5Gb Ethernet

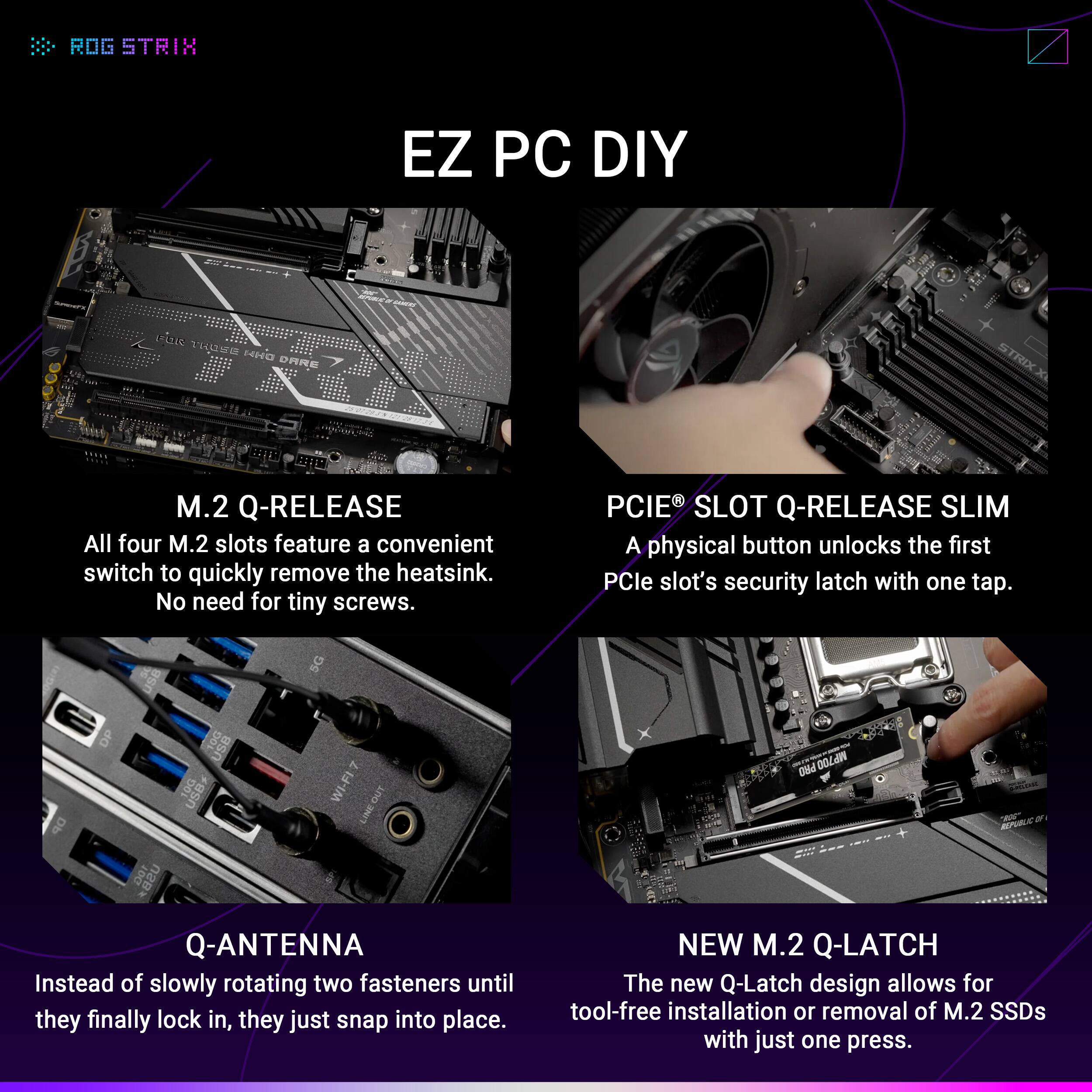

- DIY Friendly Design: M.2 Q-Release on all M.2 Slots, PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* with Savitech SV3H712 AMP
- Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard

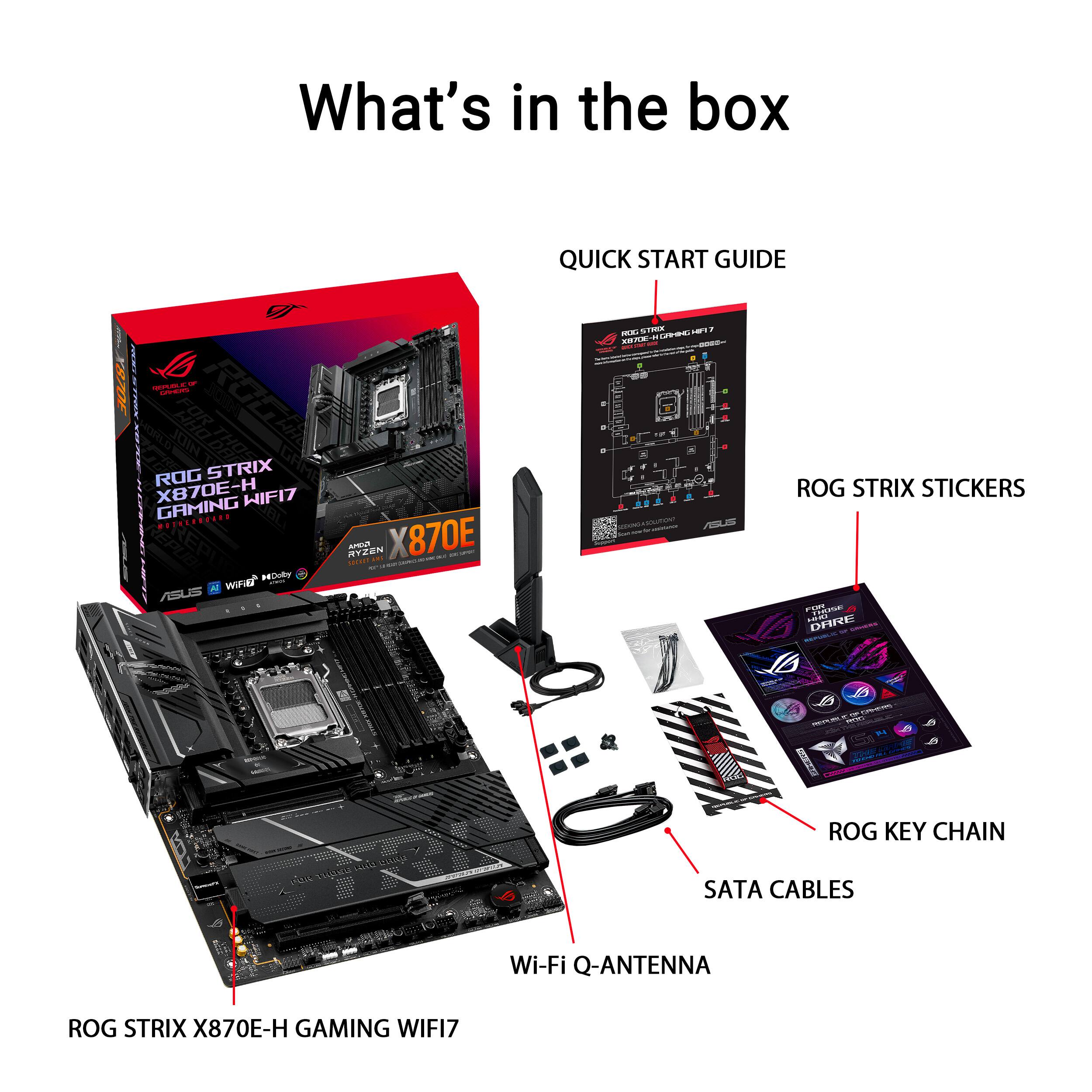

Whats Included
- ROG STRIX X870E-H GAMING WIFI7 Motherboard
- 2x SATA 6Gb/s Cables

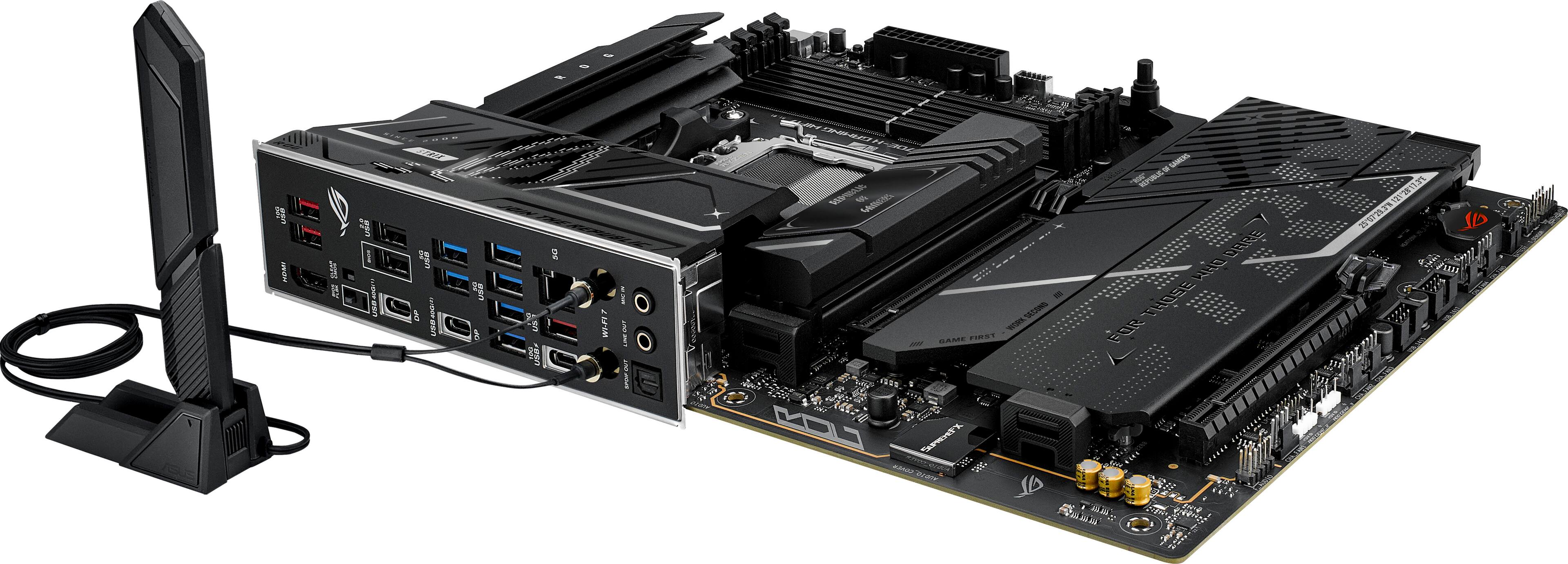

- 1x ASUS Wi-Fi Q-Antenna
- 1x Cable Ties Package
- 1x M.2 Q-Latch Package
- 1x ROG Key Chain
- 1x ROG Strix Stickers
- 4x M.2 Rubber
- 1x Quick Start Guide
