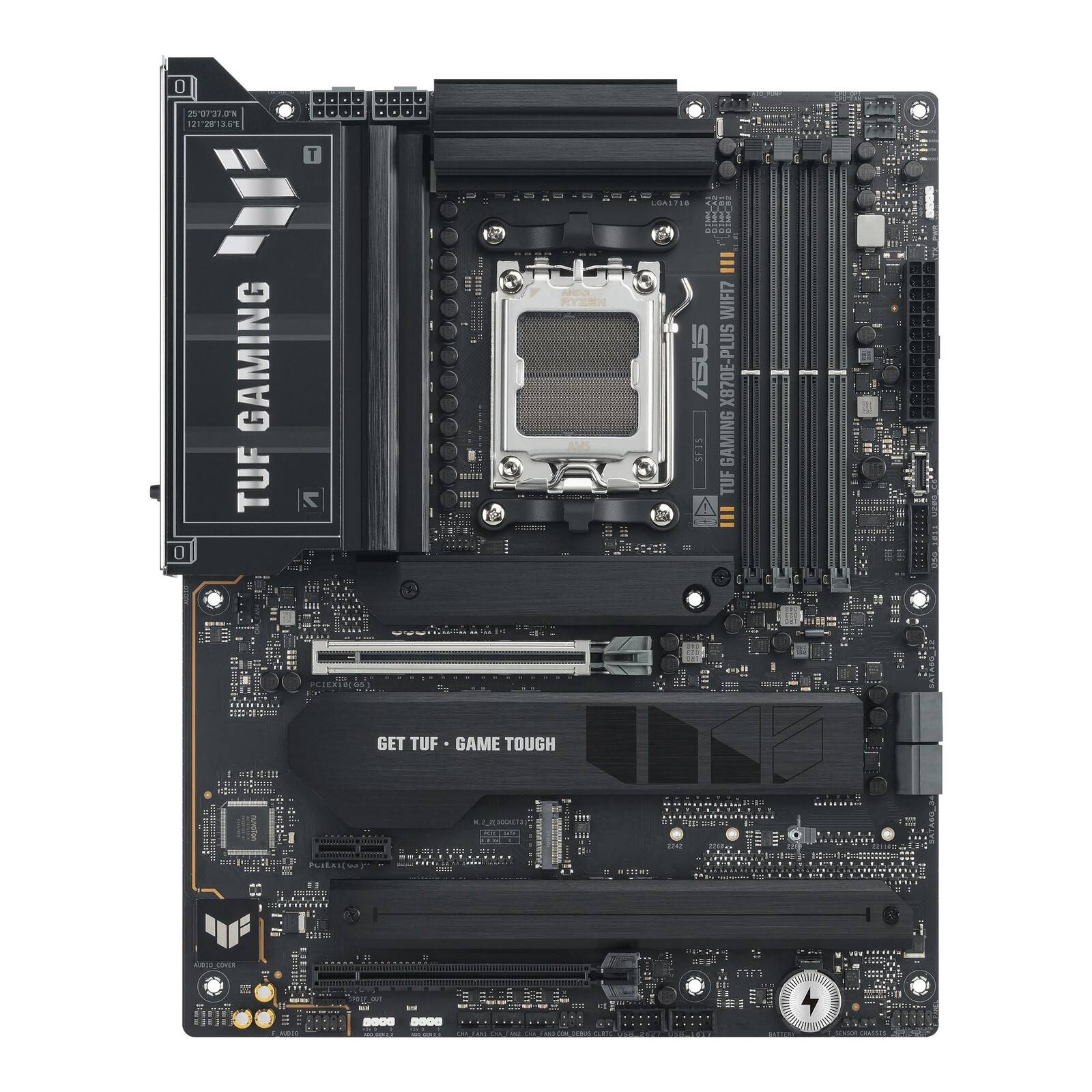

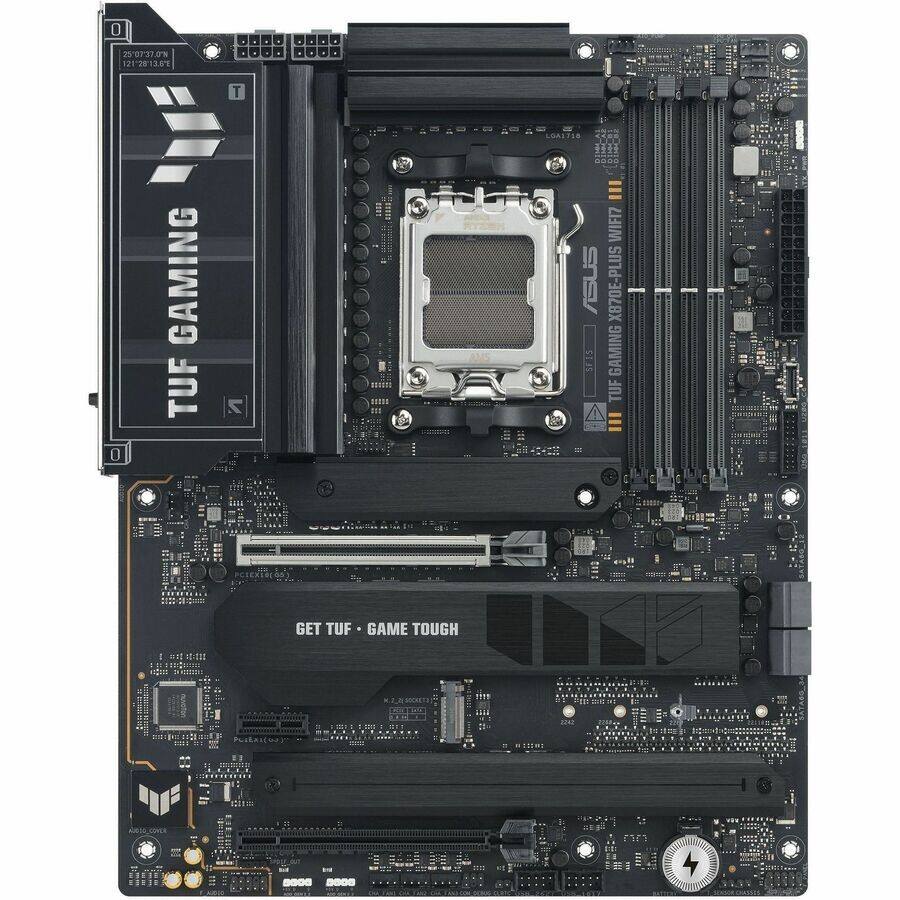

ASUS - TUF X870E-PLUS WiFi7 ATX Motherboard
FREE shipping to
CanaKit - Raspberry Pi 5 Starter MAX Kit (8GB) - Turbine White$179.95
Related Item
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Product Name: TUF X870E-PLUS WiFi7 ATX Motherboard
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 5 9000 Series
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 7 x USB-A (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12.0 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.4 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8000+ (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 199291100343
The TUF X870E-PLUS WiFi7 ATX Motherboard is designed for AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors, featuring an AMD AM5 Socket and AMD X870E Chipset. It supports DDR5 memory with speeds up to 8000+ MHz (OC) and a maximum capacity of 256GB across four 288-pin DIMM slots. Storage options include two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, along with four SATA 6Gb/s ports. Connectivity features Wi-Fi 7 (802.11be) with tri-band support (2.4, 5, and 6 GHz), Bluetooth 5.4, and Realtek 2.5Gb Ethernet. The motherboard offers multiple USB ports, including two USB4 (40Gbps) Type-C ports, three USB 10Gbps Type-A ports, four USB 5Gbps Type-A ports, and one USB 2.0 Type-A port. Audio is provided by Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC. Expansion slots include one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 mode), and one PCIe 3.0 x1 slot. The motherboard is built with a 12 x 9.6-inch ATX form factor and is compatible with Windows 11 64-bit operating system.
- AMD AM5 Socket: Supports AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors.

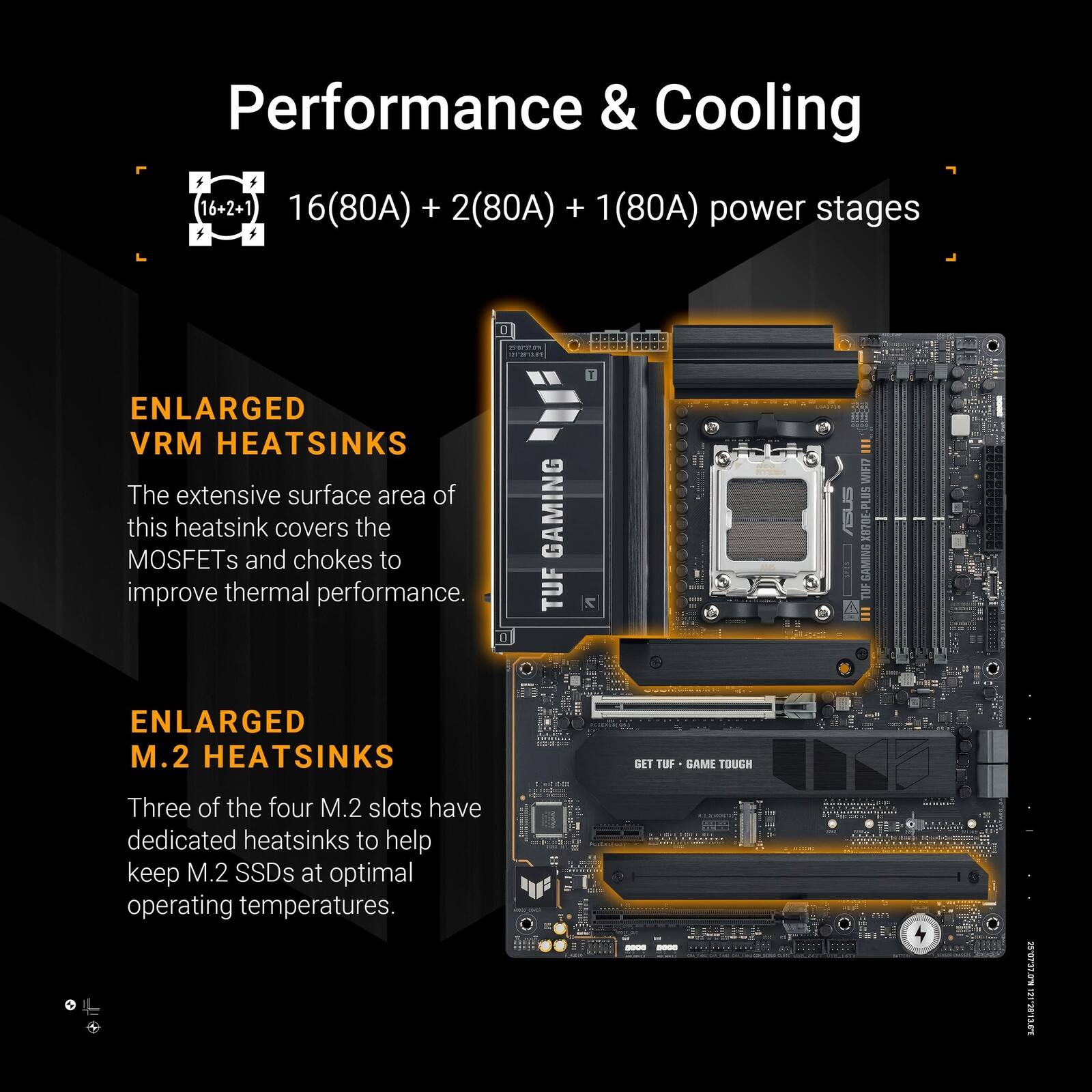

- Comprehensive Cooling: Features enlarged VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4 with AI Cooling II.

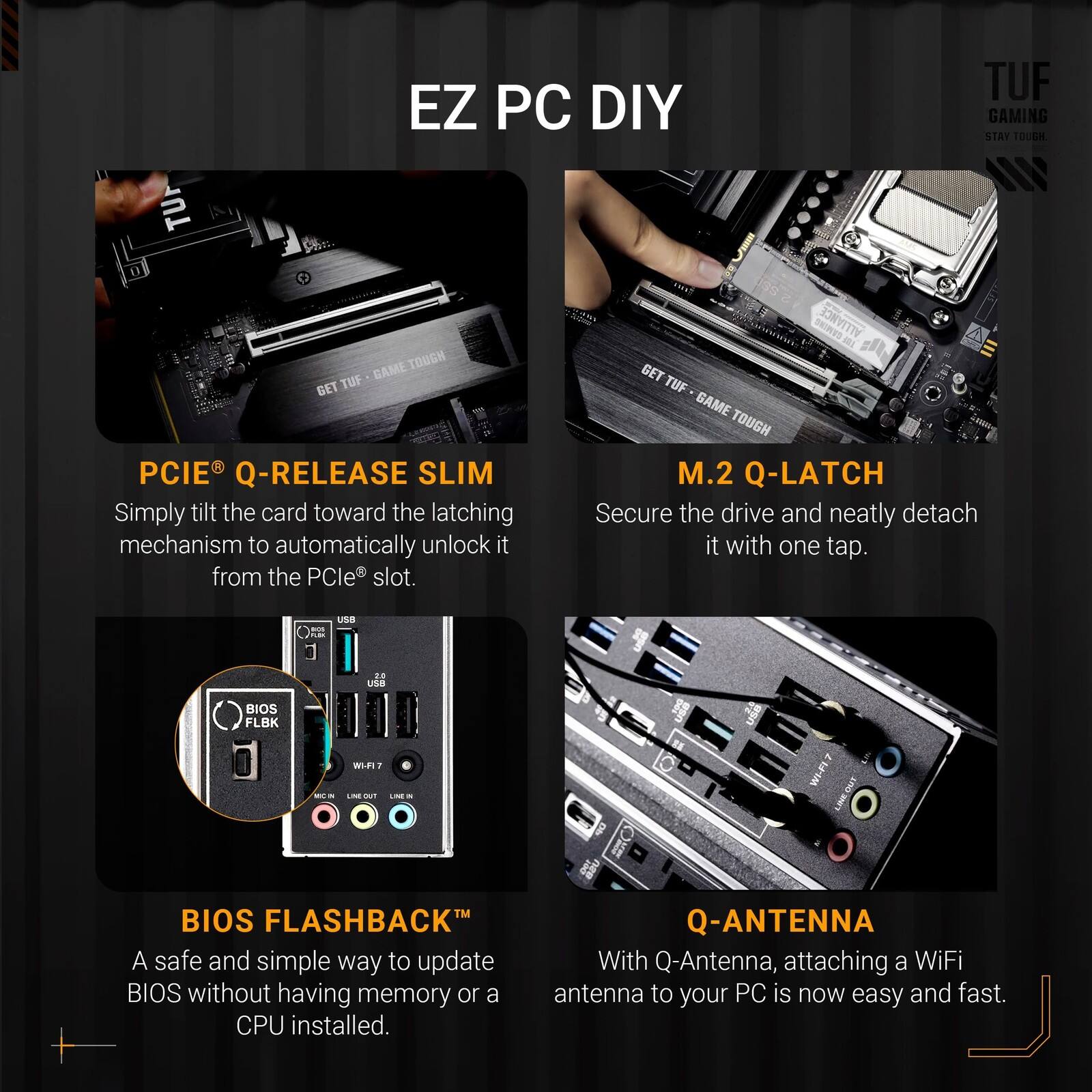

- DIY Friendly Design: Includes PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-LED, BIOS FlashBack, and pre-mounted I/O shield.
- Enhanced Power Solution: Equipped with 16+2+1 80A power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes, and durable capacitors.

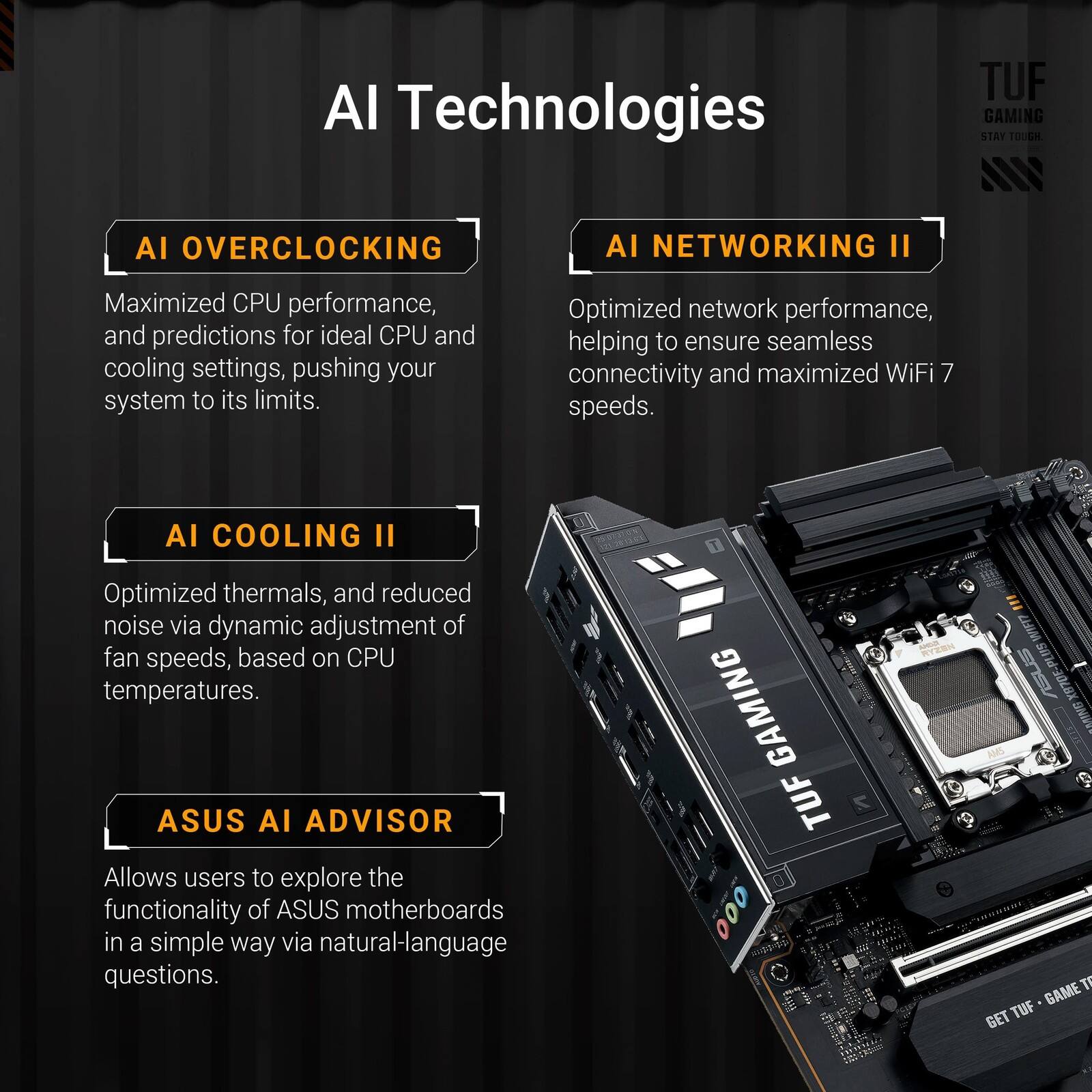

- Intelligent Control: Offers ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II, and AEMP for simplified setup and improved performance.
