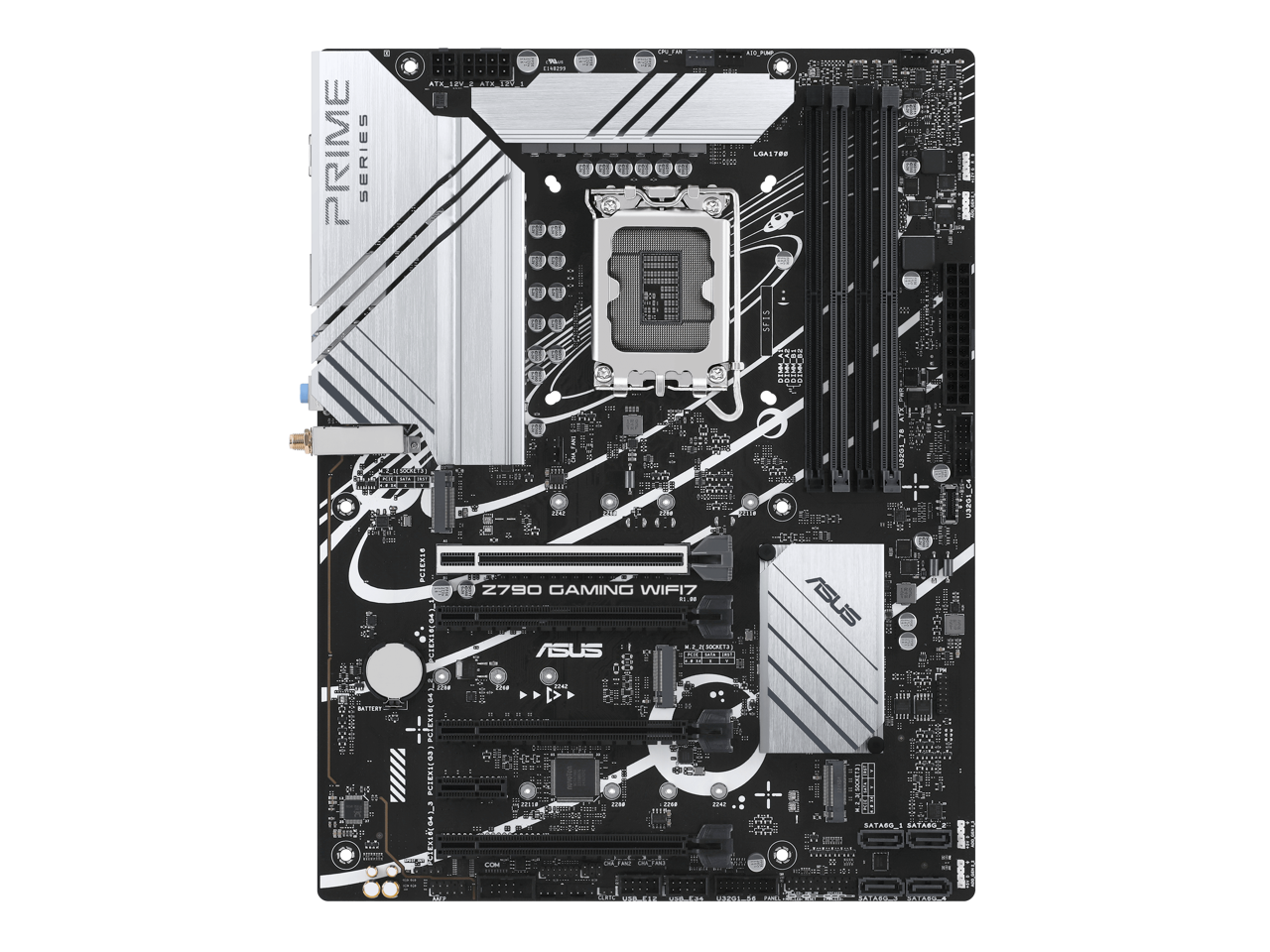

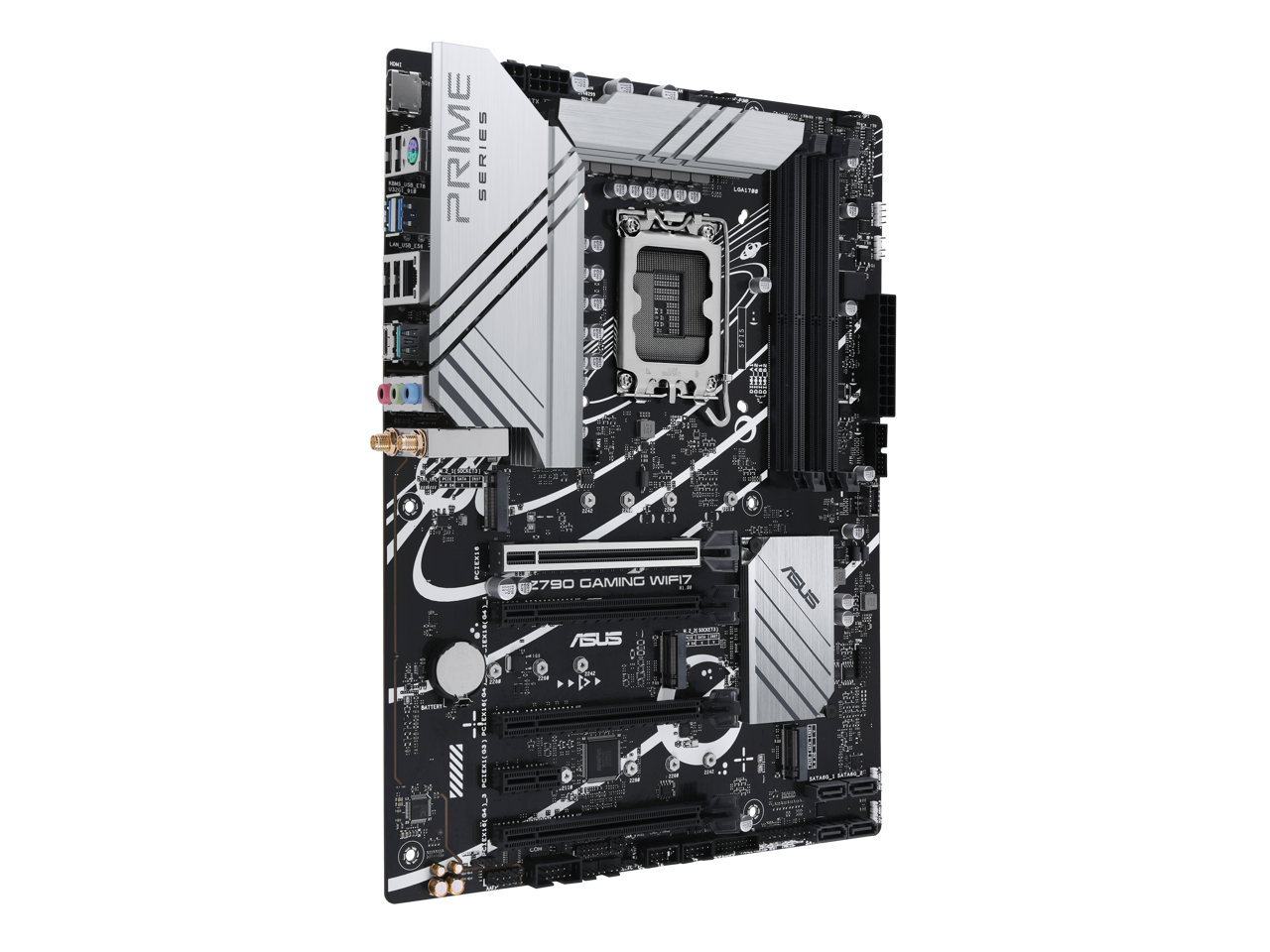

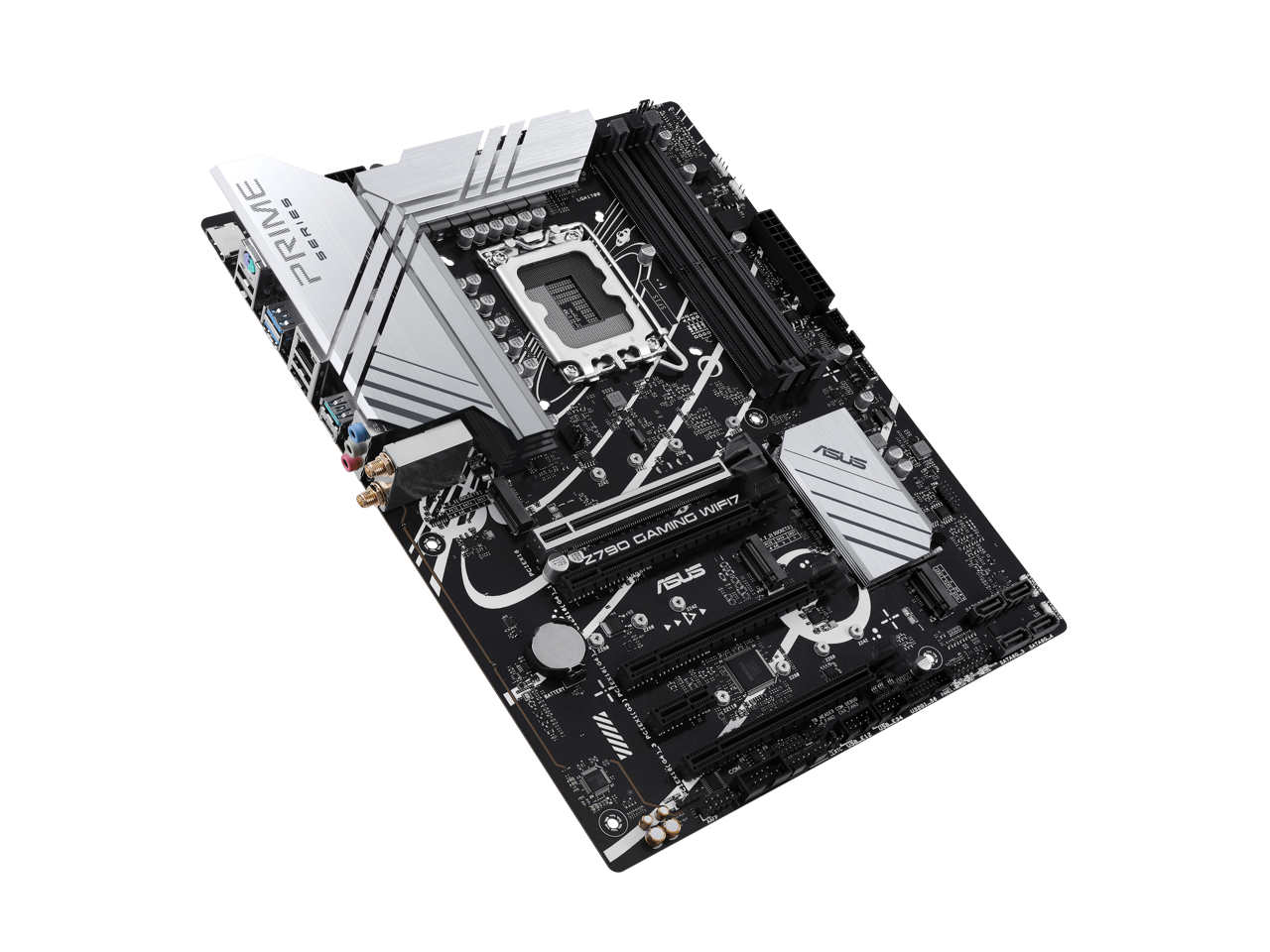

ASUS - Z790 GAMING WIFI7 Motherboard
SKU: 11334714
$179.14
Save $2.00
Comp. Value: $181.50
or
Finance OptionsView your offers
Availability
FREE shipping to
Sold & shipped by
(38)
Intel - Core Ultra 9 285K 24-Cores 24-Threads - 4.6GHz (5.7 GHz Turbo) Socket LGA 1851 Unlocked Desktop Processor - Multi$509.99$619.99
Related Item
Specifications
- ChipsetIntel Z790Form FactorATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported192.0 gigabytes
- Key Specs
- Chipset: Intel Z790
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192.0 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Product Name: ASUS Z790 GAMING WIFI7 Motherboard
- Compatibility
- Chipset: Intel Z790
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Pentium Gold
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

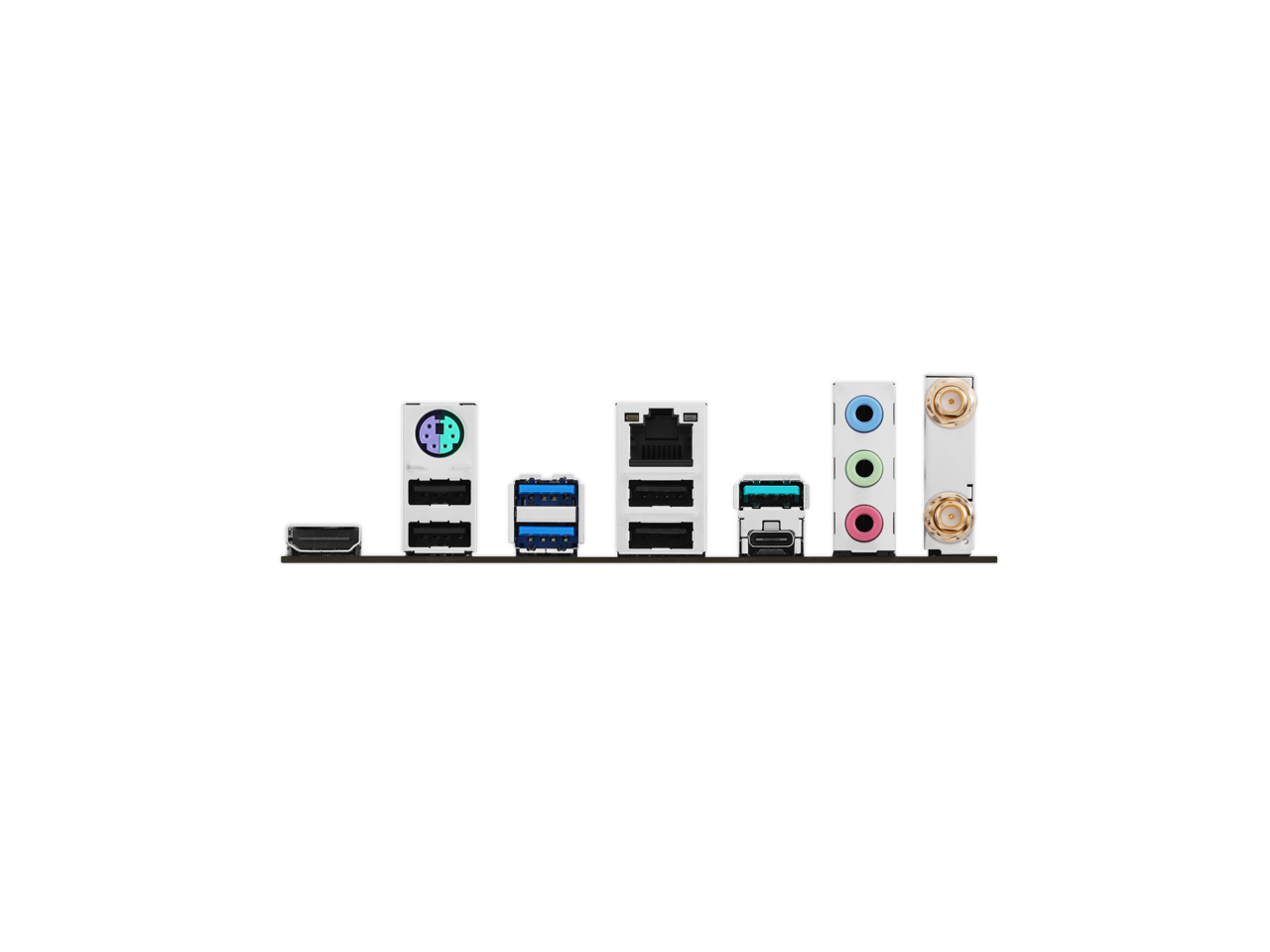

- USB Ports: 3 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 337.82 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 279.40 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 59.2 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192.0 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR5 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Limited Warranty period (parts): 1095 days
- Warranty - Labor: Limited Warranty period (labor): 1095 days
- Other
- UPC: 197105511699
ASUS Z790 GAMING WIFI7 LGA 1700 ATX motherboard with PCIe 5.0, three M.2 slots, 14+1 DrMOS, DDR5, WIFI 7, Realtek 1Gb LAN, HDMI TM, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt USB4
- Advanced connectivity features for high-speed performance: Next-gen connectivity: DDR5 memory, Wi-Fi 7, PCIe 5.0, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt (USB4®) header support, 3 PCIe 4.0 M.2
- Enhanced Power Solution: Intel LGA 1700 socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
- Exclusive Memory Technology: Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Intel LGA 1700 Socket Compatibility: Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Next-Gen Connectivity: Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
