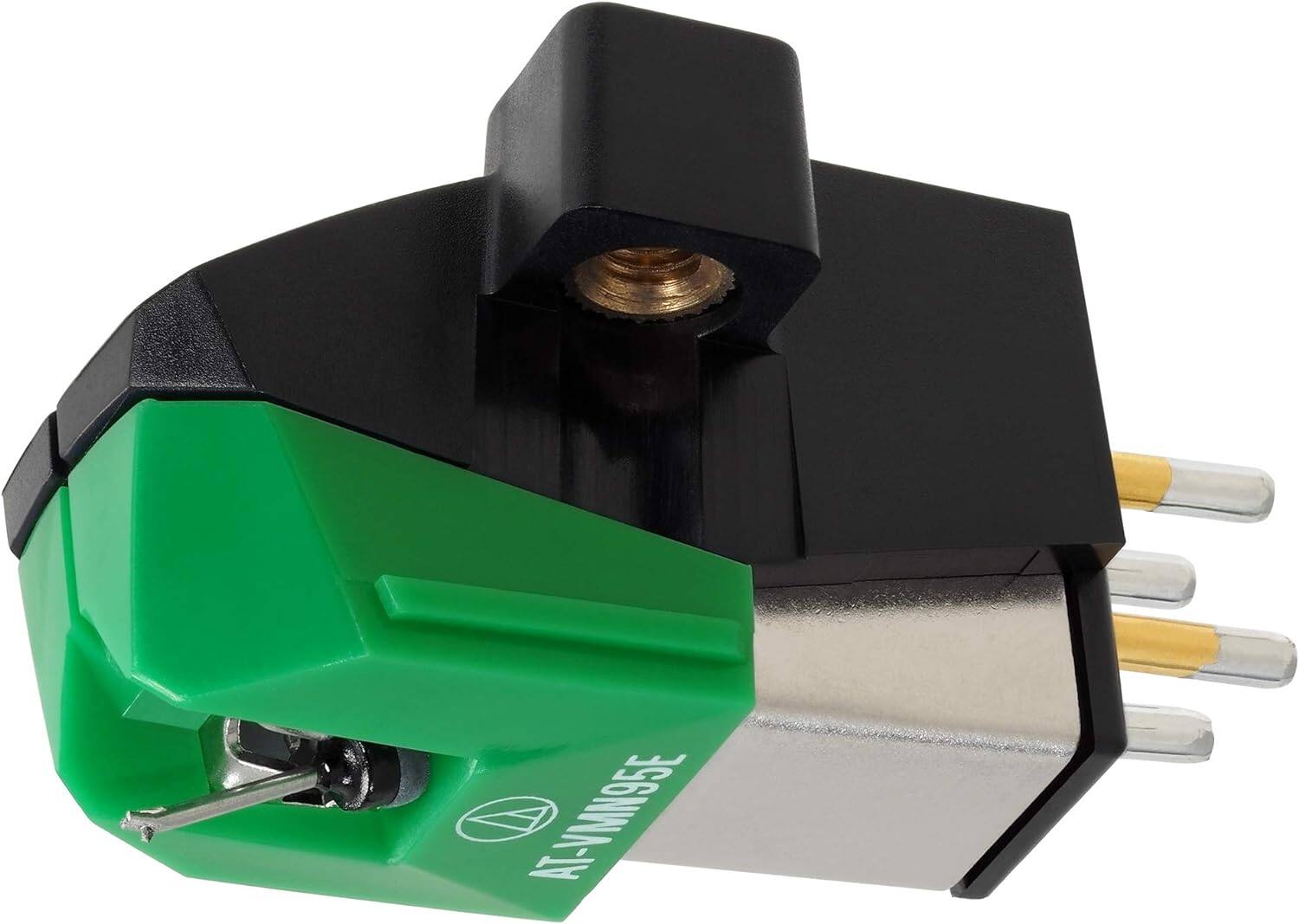

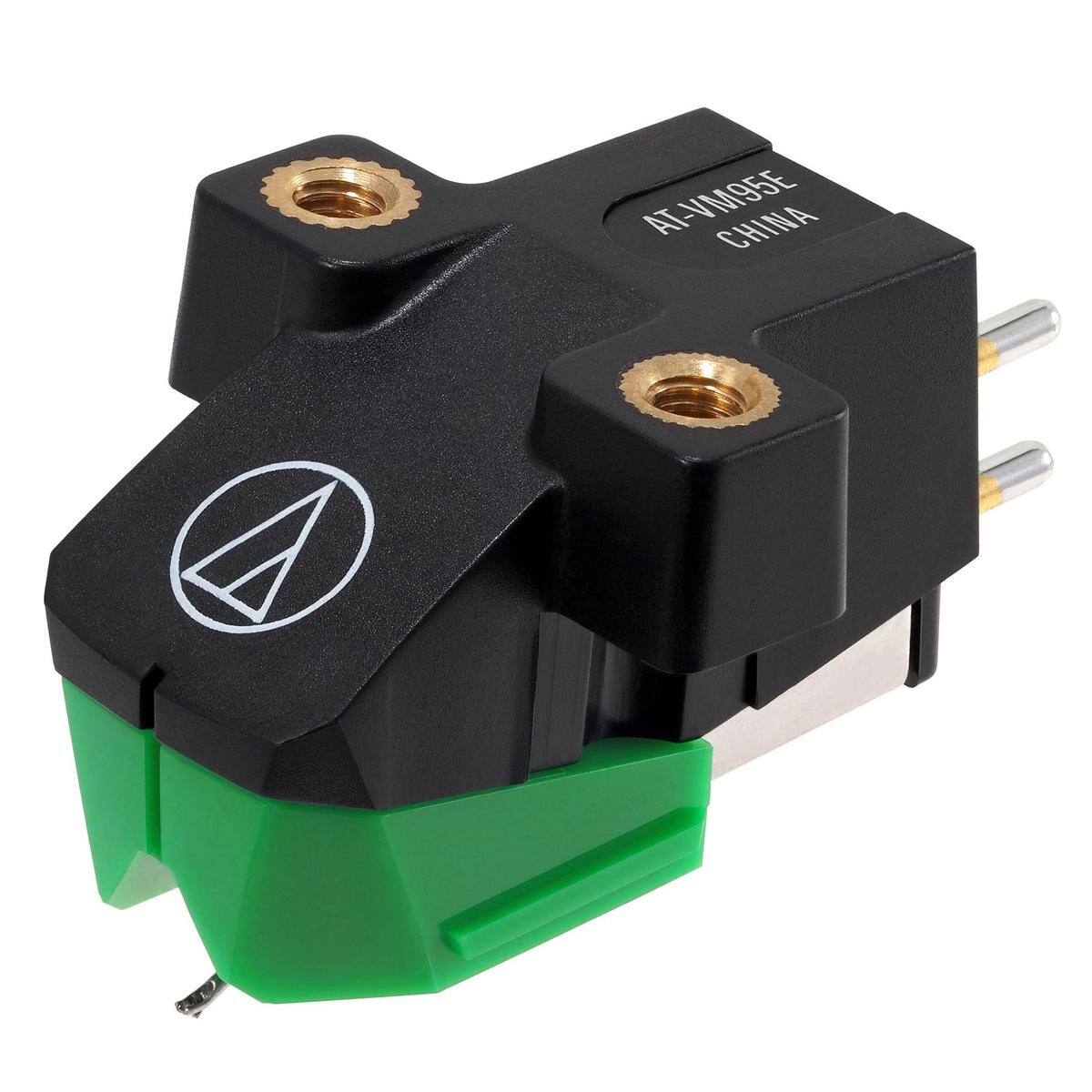

Audio-Technica - AT-VM95E Dual Moving Magnet Cartridge - Green
FREE shipping to
More Buying Options
About This Item
- Key Specs
- Accessory Type: Other
- Model Compatibility: Universal
- General
- Brand: Audio-Technica
- Model Number: ATVM95E
- Product Name: Audio-Technica AT-VM95E Dual Moving Magnet Cartridge
- Color: Green
- Features
- Accessory Type: Other
- Quantity: 1
- Compatibility
- Model Compatibility: Universal
- Dimensions
- Product Height: 0.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 0.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: None
- Other
- UPC: 4961310157319

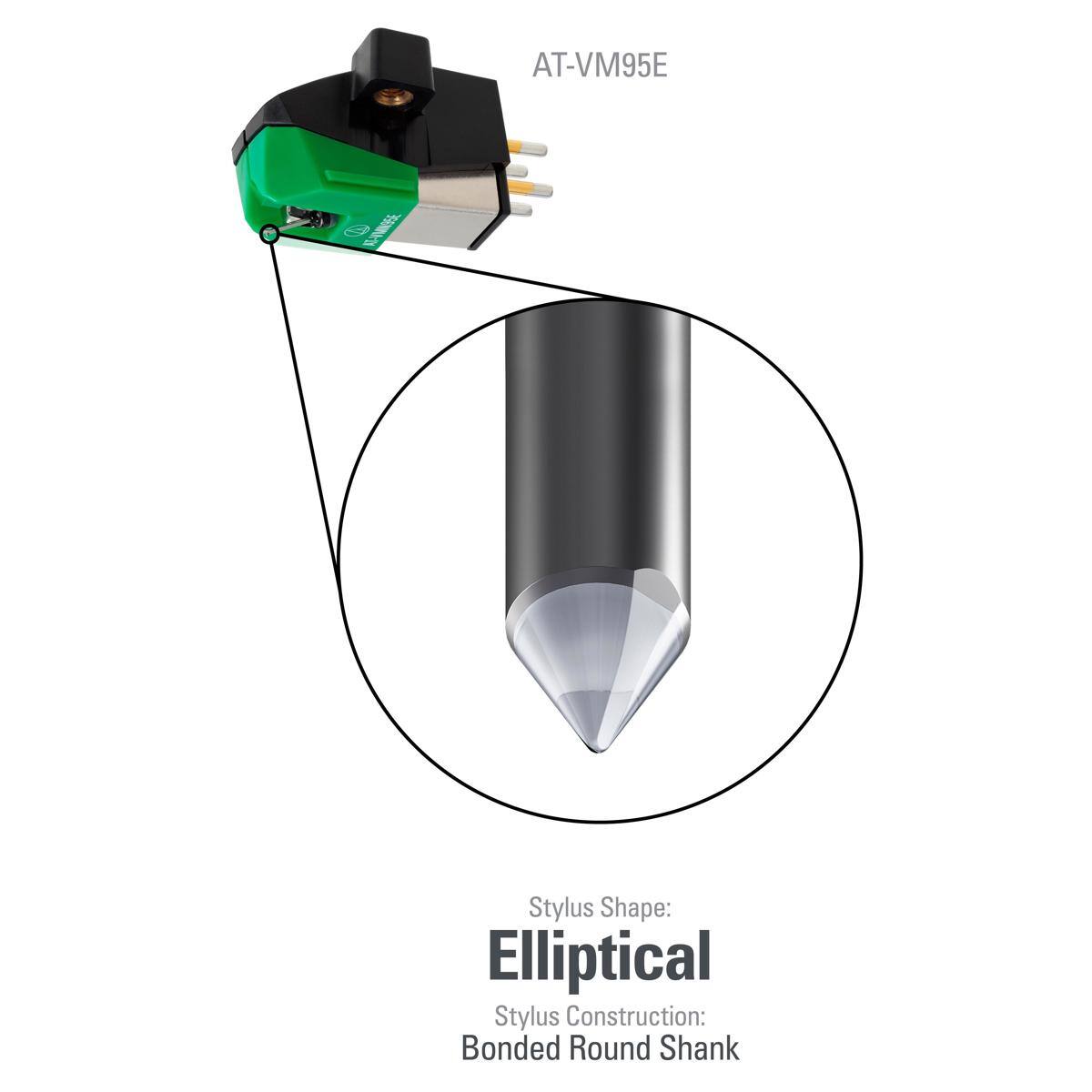

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli. FeaturesVM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylusAluminum cantileverSpecially wound coils increase output voltageDurable low-resonance polymer housingThreaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts requiredCompatible with any AT-VMN95 replacement stylusWhat's in the BoxAT-VM95E Dual Moving Magnet CartridgeTwo 11mm installation screwsTwo 8mm installation screwsTwo washersSpecificationsFrequency response: 20 - 22000HzChannel separation: 20dB at 1kHzVertical tracking force: 1.8 - 2.2g (2.0g standard)Stylus construction: Bonded round shankRecommended load impedance: 47000 ohmsOutput: 4.0mV (1kHz 5cm/sec)Channel balance: 2.0dB (1kHz)Stylus shape: 0.3 x 0.7 mil ellipticalCantilever: Aluminum pipeMount: Half-inchReplacement stylus: AT-VMN95ECoil impedance: 3.3k ohms (1kHz)DC resistance: 485 ohmsLoad capacitance: 100 to 200pFCoil inductance: 550mH (1kHz)Vertical tracking angle: 23°Dimensions (H x W x D): 0.68" x 0.74" x 1.2"Weight: 0.22 ounces
- Premium Audio & Video Accessory: VM95 Series dual Magnet cartridge with 0.3 x 0.7 mil Elliptical stylus
Whats Included
- Audio-Technica ATVM95E with product manual
