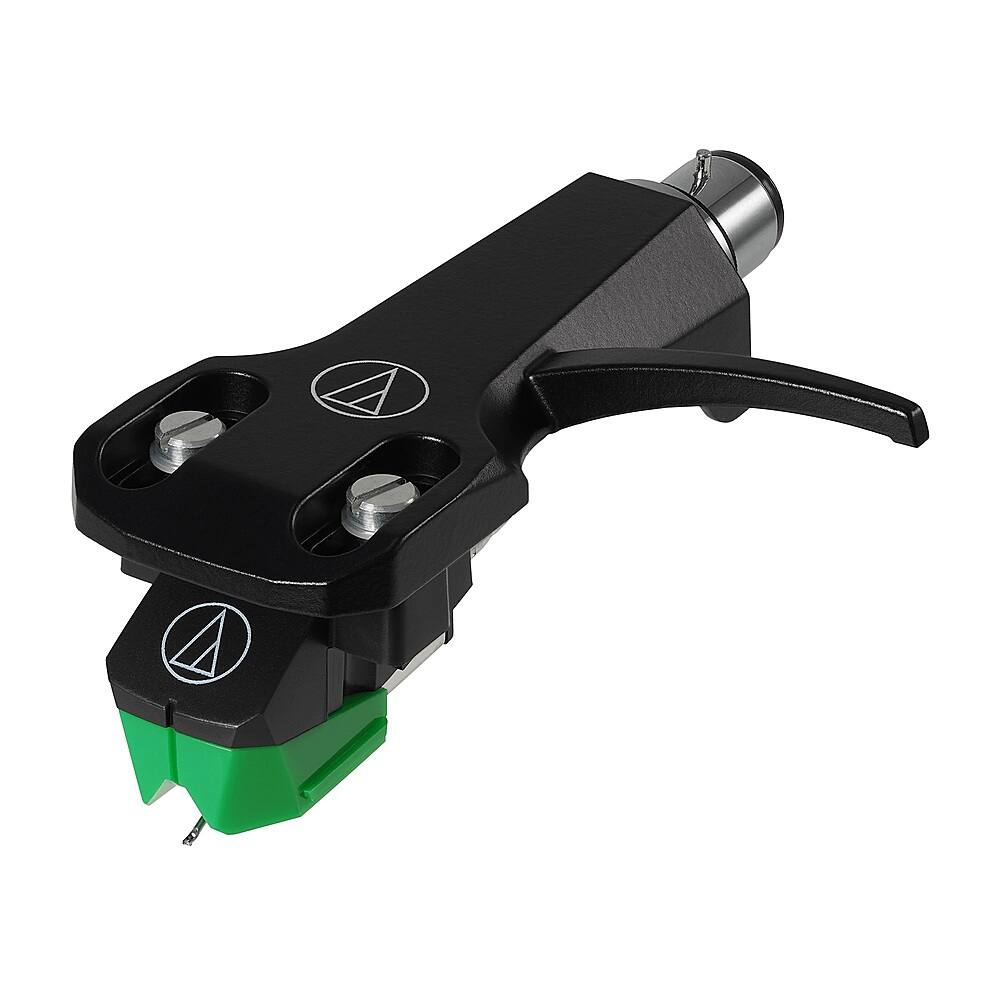

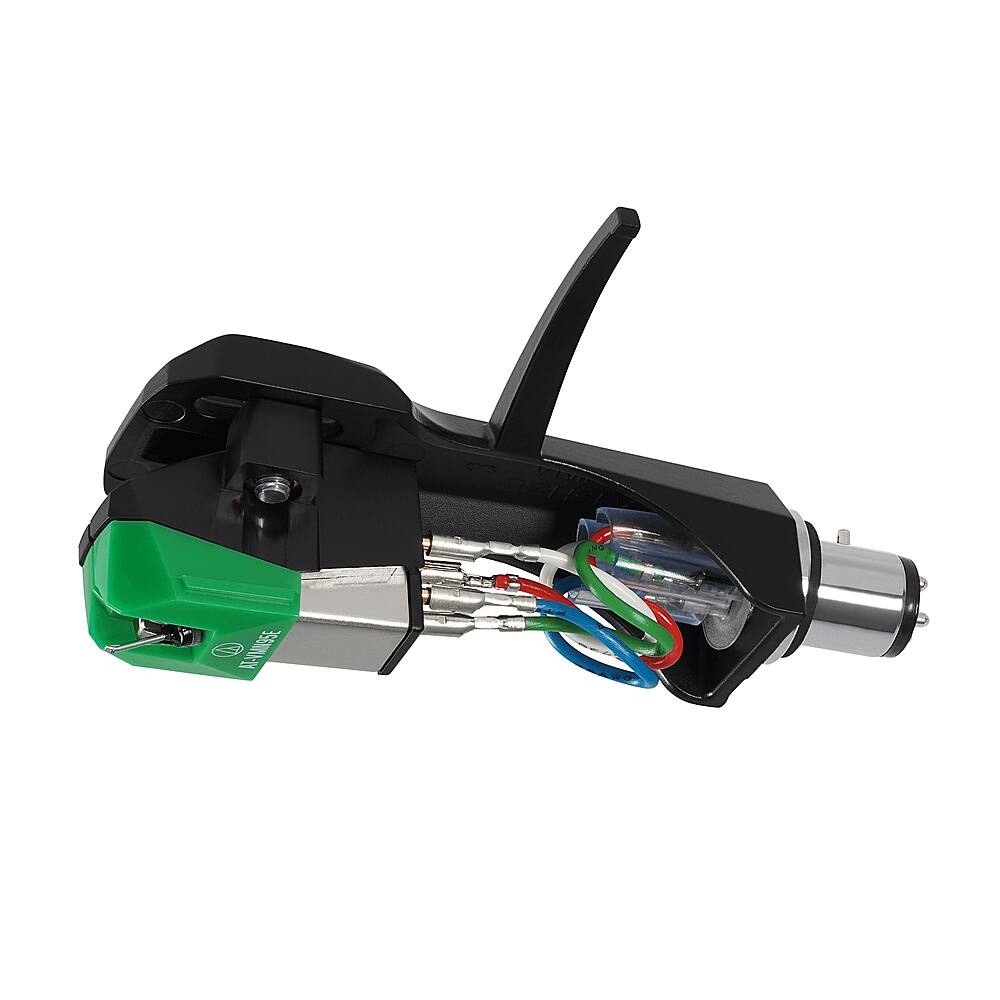

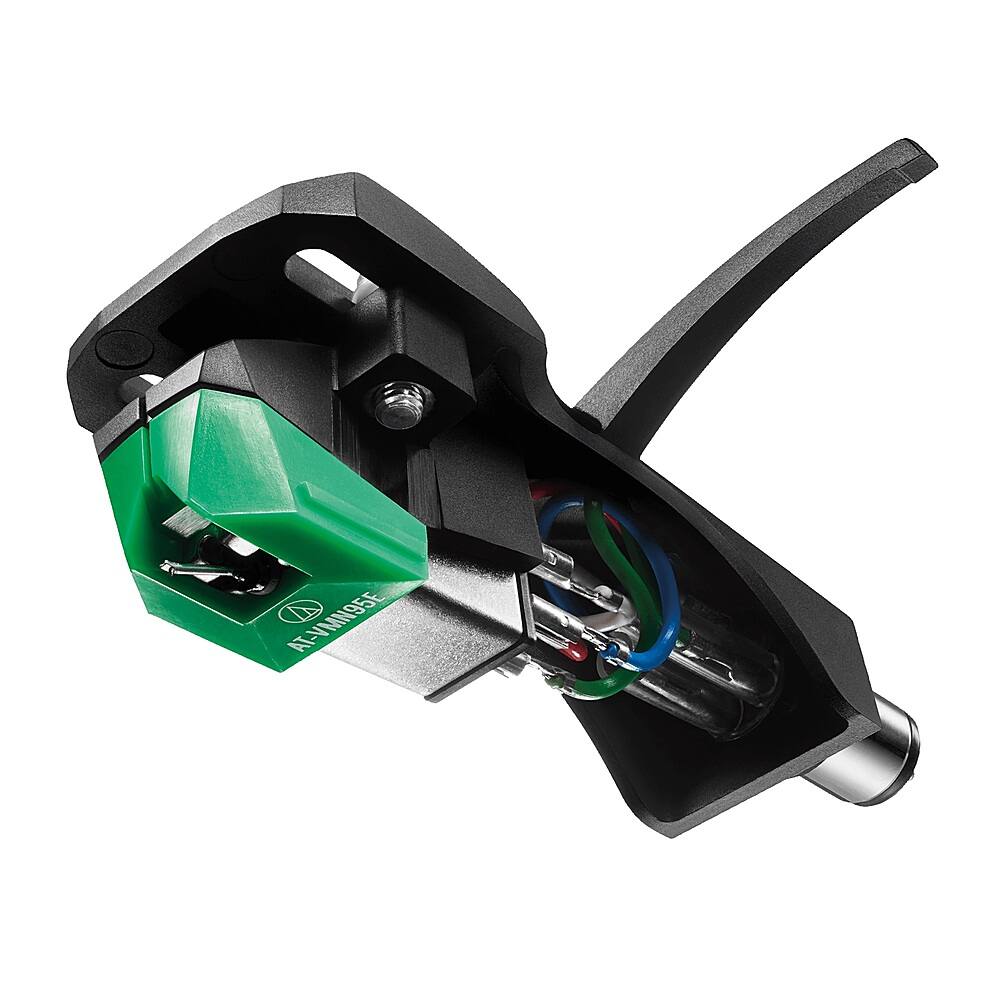

Audio-Technica - Audio Technica AT-VM95E/H Headshell/Cartridge Kit - Green

Rating 5 out of 5 stars with 21 reviews

$109.00

Audio-Technica - Audio Technica AT-VM95E/H Headshell/Cartridge Kit - Green

Model: AUD ATVM95EH
SKU: 10104324
$109.00
or
Finance OptionsView your offers
Sold & shipped by
Better Home
(9)

About This Item

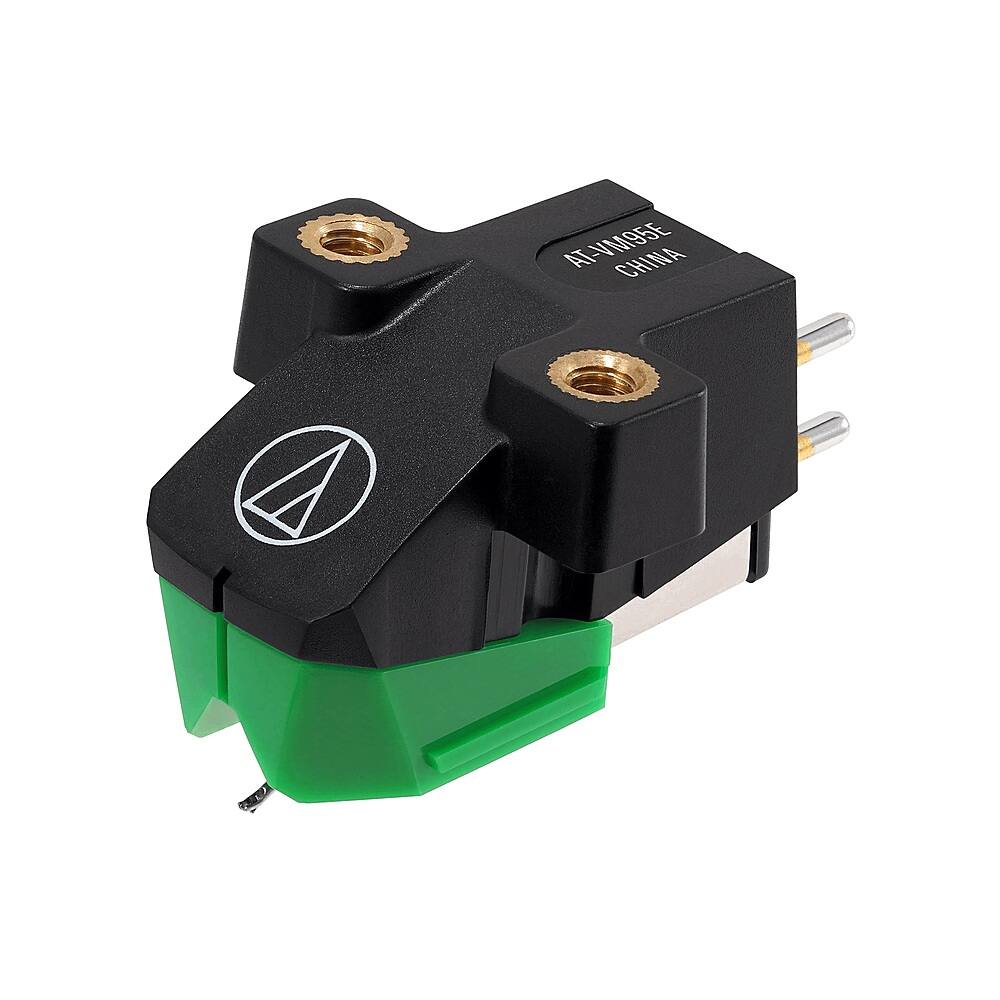

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell. VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus. Aluminum cantilever. Specially wound coils increase output voltage. Durable low-resonance polymer housing. Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required. Compatible with any AT-VMN95 replacement stylus. Universal ½"-mount headshell for 4-pin turntable cartridges. Frequency Response: 20-22,000 Hz. Channel Separation: 20 (dB at 1 kHz). Vertical Tracking Force: 1.8-2.2 g (2.0 g standard). Stylus Construction: Bonded round shank. Recommended Load Impedance: 47,000 ohms. Output: 4.0 mV (1 kHz, 5 cm/sec.). Channel Balance: 2.0 dB (1 kHz). Stylus Shape: 0.3 x 0.7 mil elliptical. Cantilever: Aluminum pipe. Mount: Half-inch. Replacement Stylus: AT-VMN95E. Coil Impedance: 3.3 k ohms (1 kHz). DC Resistance: 485 ohms. Load Capacitance: 100 to 200 pF. Coil Inductance: 550 mH (1 kHz). Vertical Tracking Angle: 23°. Dimensions (Cartridge): 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D. Weight (Cartridge): 6.1 g (0.22 oz). Dimensions (Cartridge & Headshell): 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D. Weight (Cartridge & Headshell): 15.5 g (0.55 oz). Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers.
  • Key Specs
    • Accessory Type: Turntable Accessory
    • Model Compatibility: Audio-Technica Turntables
  • General
    • Brand: Audio-Technica
    • Model Number: AUD ATVM95EH
    • Product Name: Audio Technica AT-VM95E/H Headshell/Cartridge Kit
    • Color: Green
  • Features
    • Accessory Type: Turntable Accessory
    • Quantity: 1
  • Compatibility
    • Model Compatibility: Audio-Technica Turntables
  • Dimensions
    • Product Height: 2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
  • Warranty
    • Warranty - Parts: U.S. ONE-YEAR LIMITED END-USER WARRANTY
    • Warranty - Labor: U.S. ONE-YEAR LIMITED END-USER WARRANTY
  • Other
    • UPC: 4961310146528

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell. VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus. Aluminum cantilever. Specially wound coils increase output voltage. Durable low-resonance polymer housing. Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required. Compatible with any AT-VMN95 replacement stylus. Universal ½"-mount headshell for 4-pin turntable cartridges. Frequency Response: 20-22,000 Hz. Channel Separation: 20 (dB at 1 kHz). Vertical Tracking Force: 1.8-2.2 g (2.0 g standard). Stylus Construction: Bonded round shank. Recommended Load Impedance: 47,000 ohms. Output: 4.0 mV (1 kHz, 5 cm/sec.). Channel Balance: 2.0 dB (1 kHz). Stylus Shape: 0.3 x 0.7 mil elliptical. Cantilever: Aluminum pipe. Mount: Half-inch. Replacement Stylus: AT-VMN95E. Coil Impedance: 3.3 k ohms (1 kHz). DC Resistance: 485 ohms. Load Capacitance: 100 to 200 pF. Coil Inductance: 550 mH (1 kHz). Vertical Tracking Angle: 23°. Dimensions (Cartridge): 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D. Weight (Cartridge): 6.1 g (0.22 oz). Dimensions (Cartridge & Headshell): 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D. Weight (Cartridge & Headshell): 15.5 g (0.55 oz). Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers.

  • Frequency Response: 20-22,000 Hz
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Stylus Shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Aluminum pipe
  • Mount: Half-inch
  • Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
Whats Included
  • Audio Technica AT-VM95E/H Headshell/Cartridge Kit
Product Manuals

Q: Will this cartridge/headshell kit fit on my Music Hall MMF-1.5 turntable, an is the cartridge premounted on headshell?

A: Yes, it will fit and the cartridge comes pre-mounted and pre-wired to to the headshell. Stylus overhang is set at 15.5mm.

Q: Will this fit on my AT-LP3 turntable as a "plug and play" to replace the AT91R cartridge and headshell that came with the turntable (and will is sound different)?. Thanks.

A: No, it will not. You must use the ANGLED headshell that was provided with your AT-LP3 Turntable. Get the AT-VM95E Cartridge (cartridge only) instead.

Q: Will this fit a Denon DP DJ 100? Thank you

A: It will fit, the only thing you will need to check on is the stylus overhang distance. Our Headshell/Cartridge Combo Kits come with the overhang set at 15.5mm. We have not been able to determine what the stylus overhang distance for the Denon turntable is, we advise being within .5mm of the turntable manufactures specified stylus overhang distance.

Q: Will this fit my Sony PS-LX3 turntable?

A: It will not. You can use the cartridge itself, the AT-VM95E, but not the headshell. Your turntable has a straight tonearm and an angled headshell, you must use the Sony angled headshell.

Q: Just purchased to replace the stock head shell and cartridge on my lp120 do they come pre aligned to my turntable specs??

A: Our Headshell/Cartridge Combo Kits come with the stylus overhang distance set at 15.5mm, the AT-LP120-USB Turntable calls for a stylus overhang distance of 16mm. We recommend stylus overhang be within 1mm of that specified by the turntable manufacturer, so the AT-VM95EN/H is good to go out of the package with this turntable.

Q: Will this work on my Fluance RT80?

A: It will fit but is not the best match for the tonearm in terms of cartridge suspension compliance. If you replaced the headshell with one of a lighter weight, say this 6.7-gram model available from Parts Express, Part #230-010 the compliance would be better suited to the lighter effective mass of the tonearm assembly.

Q: Will this work on a vintage 1979 Mitsubishi DP-EC10?

A: It will, but please note a couple of things, you will need to adjust the stylus overhang distance from 15.5mm, which it comes preset at, to 14mm which is the distance specified for your tone arm and make certain that you are NOT using any sub-weight in the end of your tonearm. The cartridge + headshell weight range for your tonearm without a sub-weight is 11 to 16.5g. The AT-VM95E/H Headshell Cartridge combo kit weighs 15.5g.
