Audio-Technica - Audio Technica AT-VM95ML/H Headshell/Cartridge Kit - Red
About This Item
- Key Specs
- Accessory Type: Turntable Accessory
- Model Compatibility: Audio-Technica Turntables
- General
- Brand: Audio-Technica
- Model Number: AUD ATVM95MLH
- Product Name: Audio Technica AT-VM95ML/H Headshell/Cartridge Kit
- Color: Red
- Features
- Accessory Type: Turntable Accessory
- Quantity: 1
- Compatibility
- Model Compatibility: Audio-Technica Turntables
- Dimensions
- Product Height: 2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Warranty - Labor: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Other
- UPC: 4961310146504

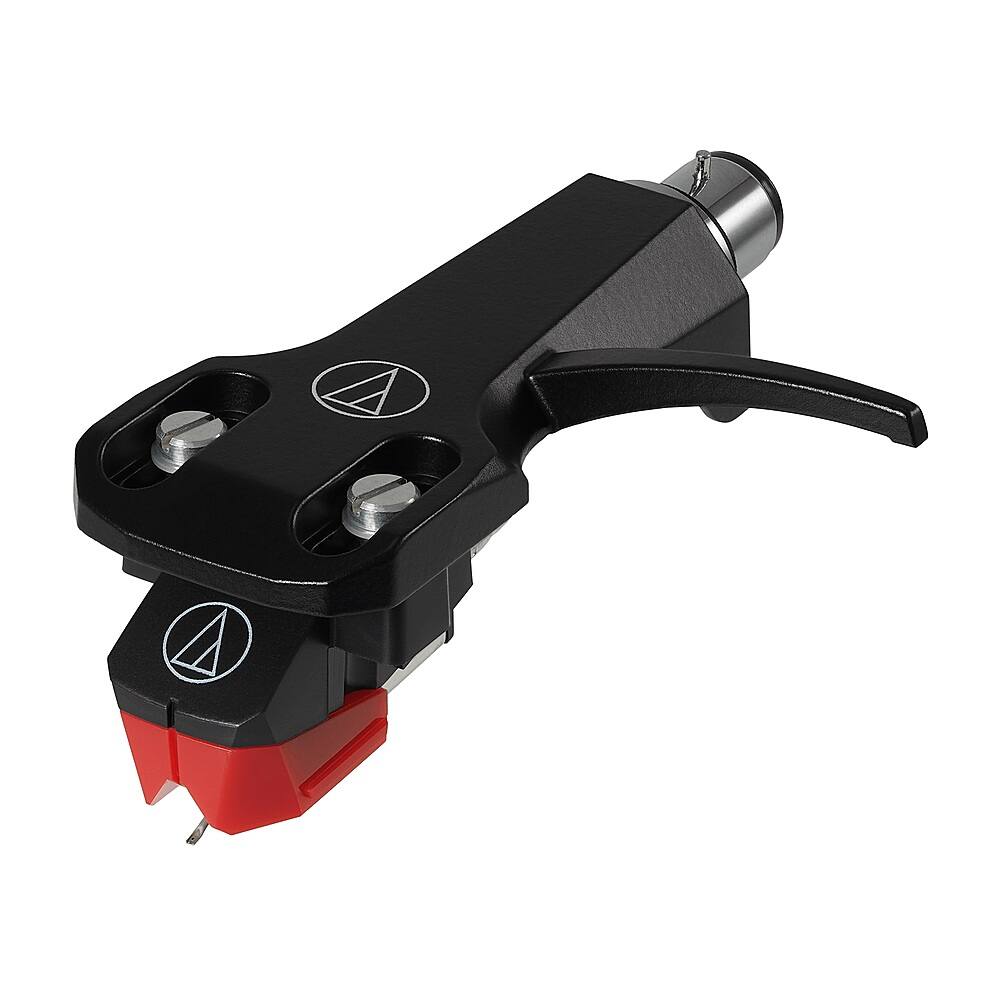

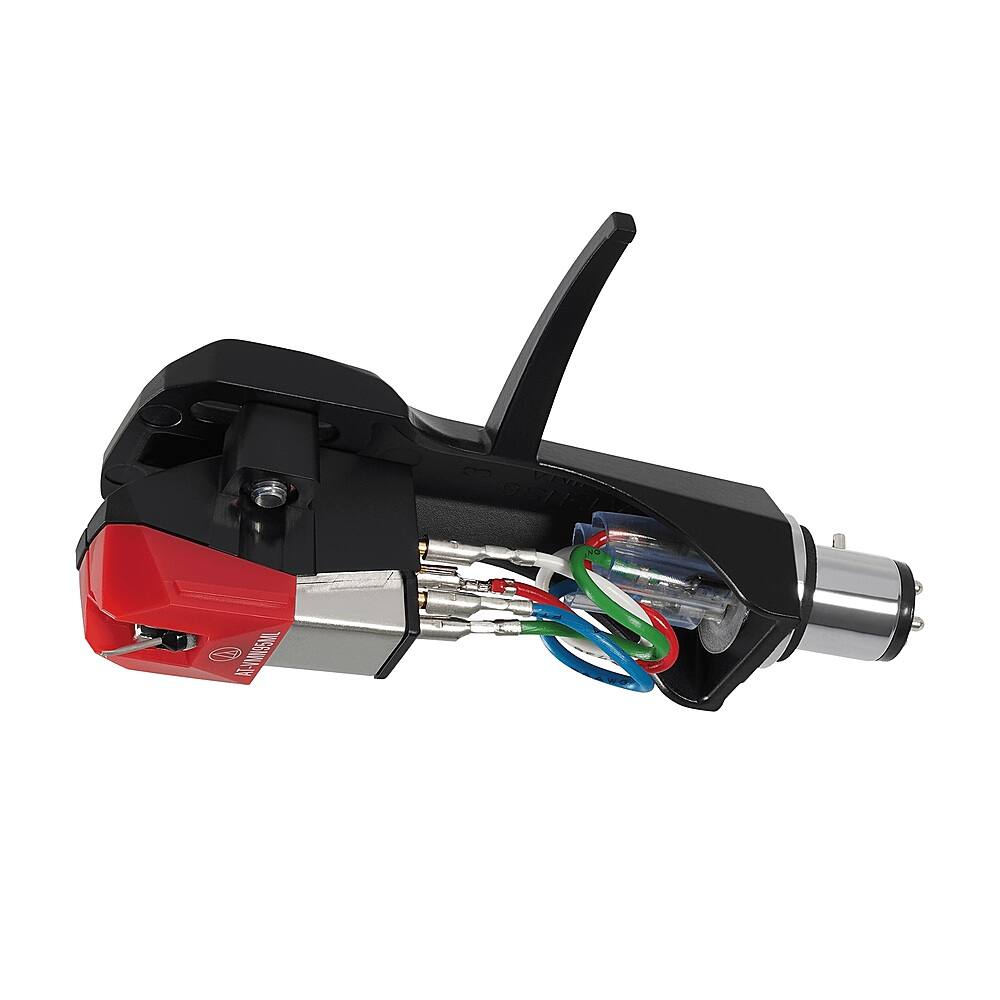

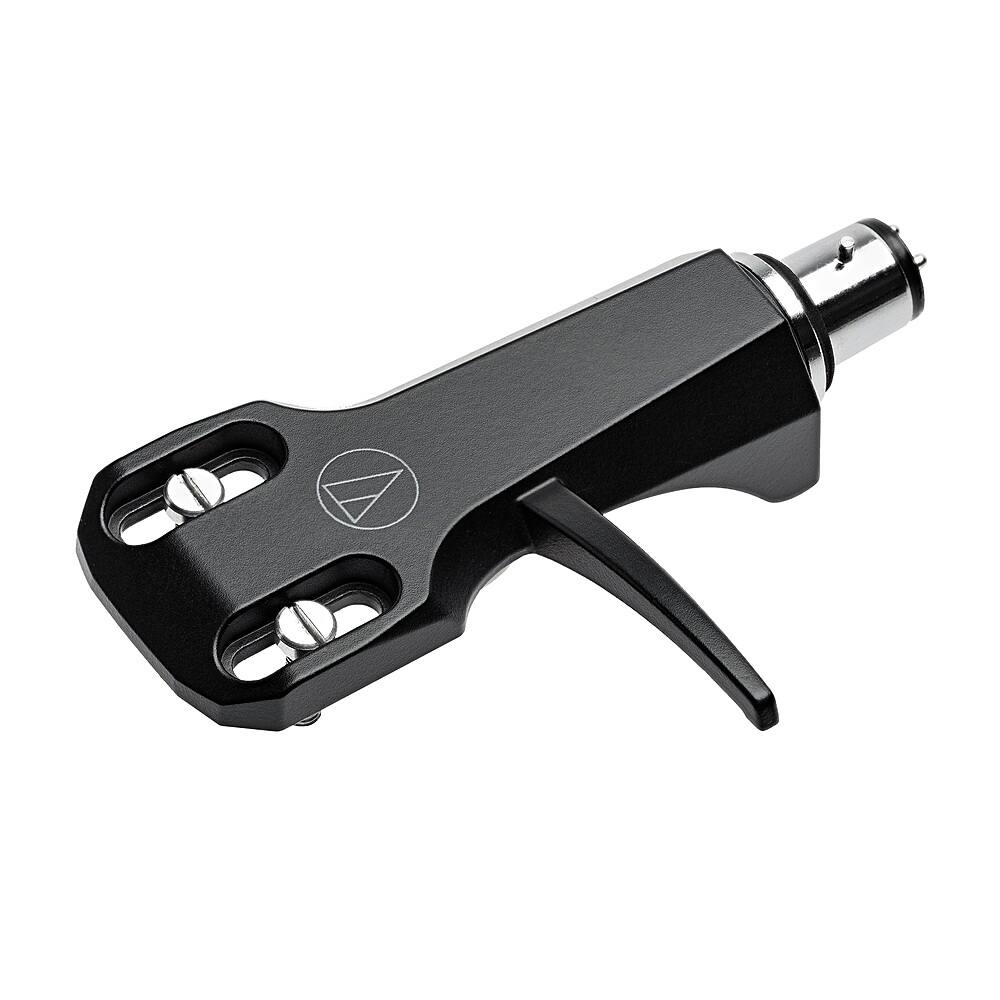

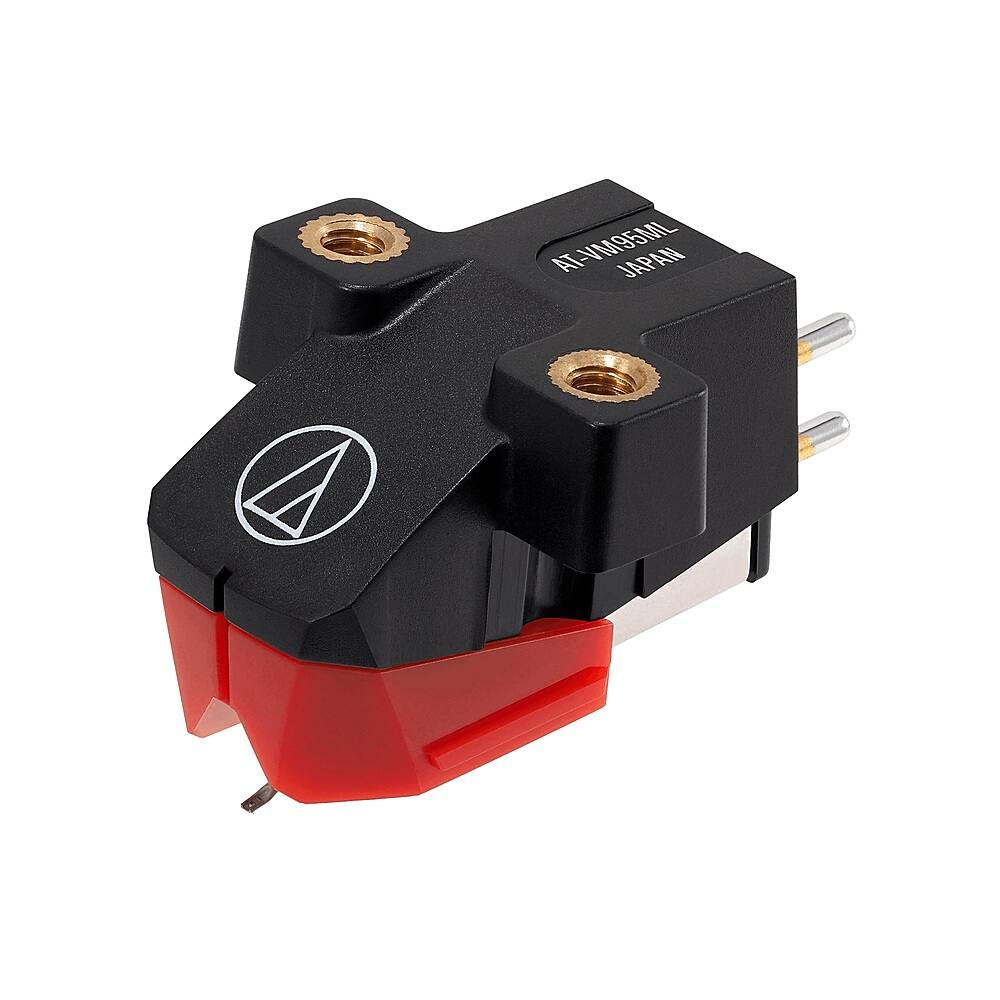

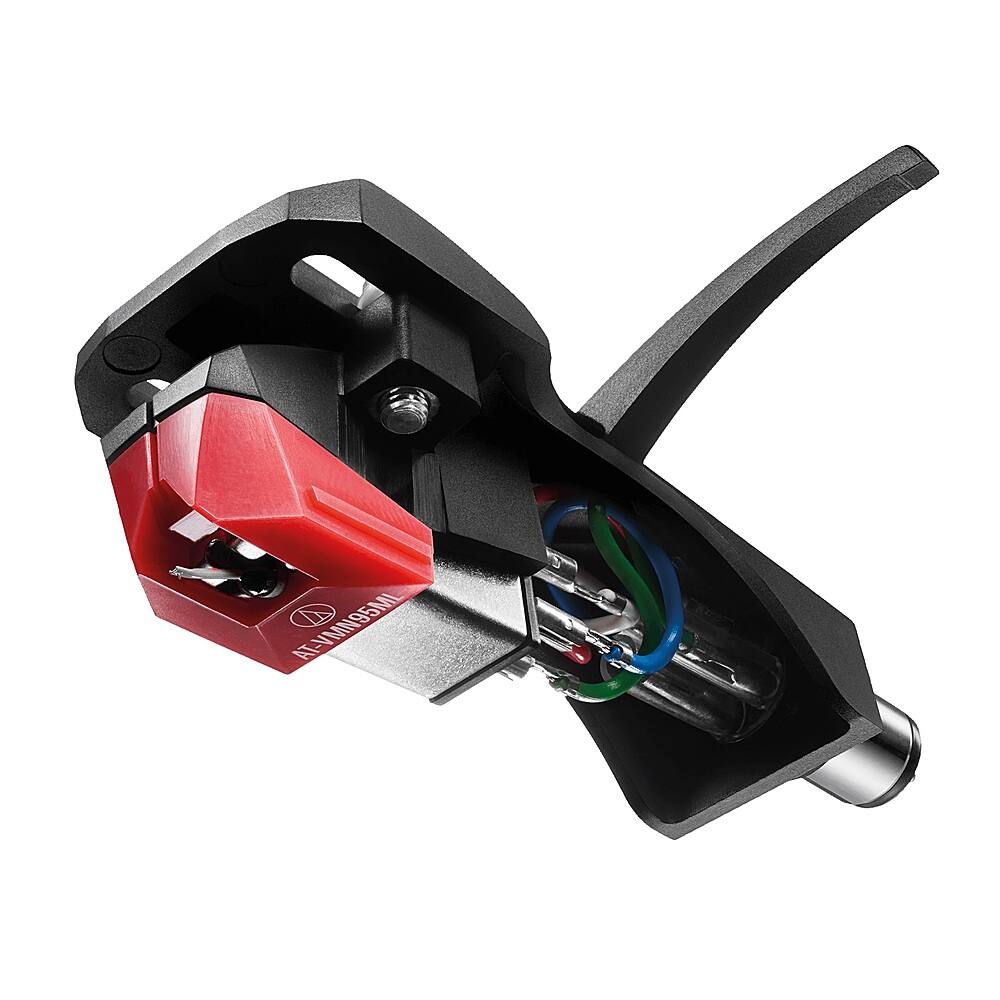

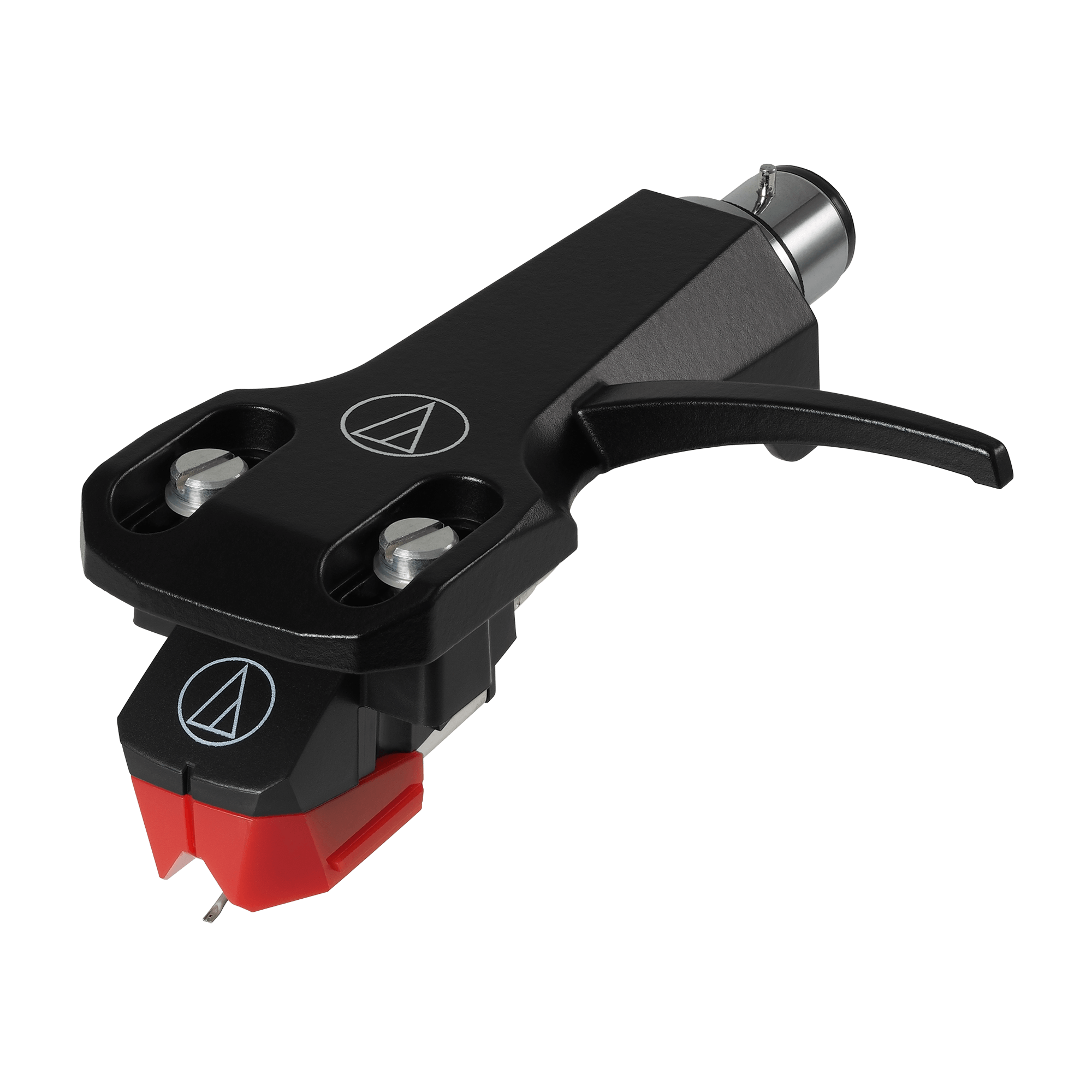

The AT-VM95ML/H combo kit includes the AT-VM95ML dual moving magnet cartridge premounted on the AT-HS6BK headshell. VM dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus. Aluminum cantilever. Specially wound coils increase output voltage. Durable low-resonance polymer housing. Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required. Compatible with any AT-VMN95 replacement stylus. Universal ½"-mount headshell for 4-pin turntable cartridges.
- Frequency Response: 20-25,000 Hz
- Stylus Construction: Nude square shank
- Recommended Load Impedance: 47,000 ohms
- Stylus Shape: 2.2 x 0.12 mil Microlinear
- Cantilever: Aluminum pipe
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Whats Included
- Audio Technica AT-VM95ML/H Headshell/Cartridge Kit
Product Manuals
A: Yes, it will fit and the cartridge comes pre-mounted and pre-wired to to the headshell. Stylus overhang is set at 15.5mm.
A: No, it will not. You must use the ANGLED headshell that was provided with your AT-LP3 Turntable. Get the AT-VM95E Cartridge (cartridge only) instead.
Q: Will this fit a Denon DP DJ 100? Thank you
A: It will fit, the only thing you will need to check on is the stylus overhang distance. Our Headshell/Cartridge Combo Kits come with the overhang set at 15.5mm. We have not been able to determine what the stylus overhang distance for the Denon turntable is, we advise being within .5mm of the turntable manufactures specified stylus overhang distance.
Q: Will this fit my Sony PS-LX3 turntable?
A: It will not. You can use the cartridge itself, the AT-VM95E, but not the headshell. Your turntable has a straight tonearm and an angled headshell, you must use the Sony angled headshell.
Q: Will the AT-VM95ML/H work on a Fisher MT-6224 turntable?
A: Yes, it will.
A: Our Headshell/Cartridge Combo Kits come with the stylus overhang distance set at 15.5mm, the AT-LP120-USB Turntable calls for a stylus overhang distance of 16mm. We recommend stylus overhang be within 1mm of that specified by the turntable manufacturer, so the AT-VM95EN/H is good to go out of the package with this turntable.
Q: Will this work on my Fluance RT80?
A: It will fit but is not the best match for the tonearm in terms of cartridge suspension compliance. If you replaced the headshell with one of a lighter weight, say this 6.7-gram model available from Parts Express, Part #230-010 the compliance would be better suited to the lighter effective mass of the tonearm assembly.
Q: Will this work on a vintage 1979 Mitsubishi DP-EC10?
A: It will, but please note a couple of things, you will need to adjust the stylus overhang distance from 15.5mm, which it comes preset at, to 14mm which is the distance specified for your tone arm and make certain that you are NOT using any sub-weight in the end of your tonearm. The cartridge + headshell weight range for your tonearm without a sub-weight is 11 to 16.5g. The AT-VM95E/H Headshell Cartridge combo kit weighs 15.5g.
Reviews
Customers are saying
Customers commend the Audio Technica AT-VM95EN/H Headshell/Cartridge Kit for its excellent sound quality. Users also appreciate the ease of installation. Overall, customers seem to be very satisfied with this product.
- Sound Quality (16)
- Ease of use (4)
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Compare similar products
The AT-VM95ML/H combo kit includes the AT-VM95ML dual moving magnet cartridge premounted on the AT-HS6BK headshell. VM dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus. Aluminum cantilever. Specially wound coils increase output voltage. Durable low-resonance polymer housing. Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required. Compatible with any AT-VMN95 replacement stylus. Universal ½"-mount headshell for 4-pin turntable cartridges.
2.2 x 0.12 mil microlinear replacement stylus for AT-VM95ML dual moving magnet cartridge.What's in the BoxAT-VMN95ML Replacement StylusSpecificationsFrequency Response: 20-25000 HzChannel Separation: 23 dB at 1 kHzVertical Tracking Angle: 23°Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)Stylus Construction: Nude square shankRecommended Load Impedance: 47000 ohmsCoil Impedance: 3.3 k ohms (1 kHz)DC Resistance: 485 ohmsCoil Inductance: 550 mH (1 kHz)Output Voltage: 3.5 mV (1 kHz 5 cm/sec.)Output Channel Balance: 1.5 dB (1 kHz)Stylus Shape: 2.2 x 0.12 mil MicrolinearCantilever: Aluminum pipeStatic Compliance: 20 x 10^-6 cm/dyneDynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz)Mounting: Half-inchCartridge Weight: 6.1 gDimensions (W x H x D): 18.9 mm x 17.2 mm x 28.3 mm
Microlinear (2.2 x 0.12 mil) replacement stylus with solid boron cantilever for the Audio-Technica AT-VM745xML cartridge.What's in the BoxAT-VMN45xML VMx Microlinear Replacement Stylus for AT-VM745xML Cartridge*Please Note: Replacement stylus shown with cartridge. Cartridge sold separately.SpecificationsTracking force: 1.8 to 2.2 g (2.0 g standard)Stylus: Nude MicrolinearCartridge (sold separately): AT-VM745xML
The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.FeaturesElliptical Bonded Stylus on an Aluminum CantileverDual Moving Magnet DesignDurable Low-Resonance HosingHigh Output Level (4.0mV)VM95 SeriesThis VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.What's in the BoxAT-VM95E/H Headshell & MM Cartridge Combo KitInstallation HardwareSpecificationsFrequency Response: 20-22000 HzChannel Separation: 20 (dB at 1 kHz)Vertical Tracking Angle: 23°Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)Stylus Construction: Bonded round shankRecommended Load Impedance: 47000 ohmsCoil Impedance: 3.3 k ohms (1 kHz)DC Resistance: 485 ohmsCoil Inductance: 550 mH (1 kHz)Output Voltage: 4.0 mV (1 kHz 5 cm/sec.)Output Channel Balance: 2.0 dB (1 kHz)Stylus Shape: 0.3 x 0.7 mil ellipticalCantilever: Aluminum pipeStatic Compliance: 17 x 10 – 6 cm / dyneDynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)Mounting: Half-inchDimensions (Cartridge & Headshell): 0.84" x 0.83" × 2.46"Model: AT-VM95E/HMounting Feature: H
