Audio-Technica - Audio Technica AT-VM95EN/H Headshell/Cartridge Kit - Orange
FREE shipping to
More Buying Options
About This Item
- Key Specs
- Accessory Type: Turntable Accessory
- Model Compatibility: Audio-Technica Turntables
- General
- Brand: Audio-Technica
- Model Number: AUD ATVM95ENH
- Product Name: Audio Technica AT-VM95EN/H Headshell/Cartridge Kit
- Color: Orange
- Features
- Accessory Type: Turntable Accessory
- Quantity: 1
- Compatibility
- Model Compatibility: Audio-Technica Turntables
- Dimensions
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Warranty - Labor: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Other
- UPC: 4961310146511

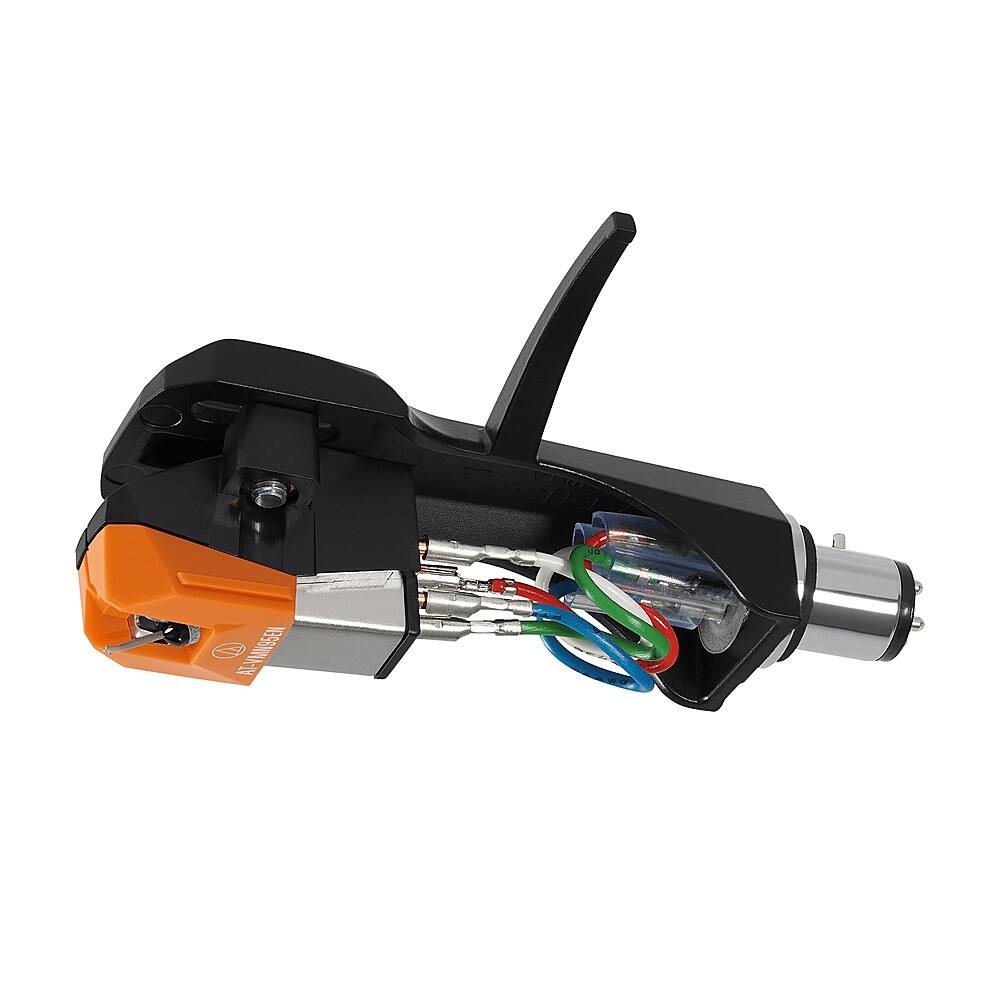

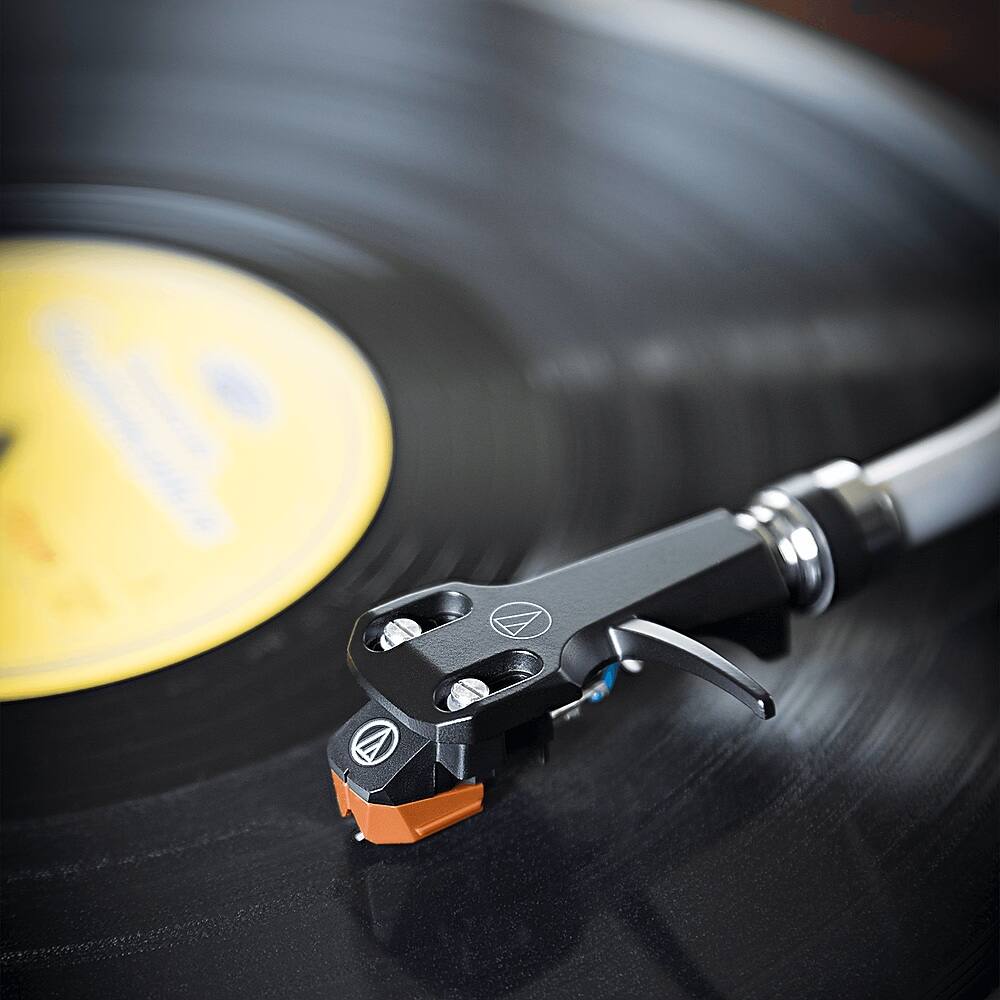

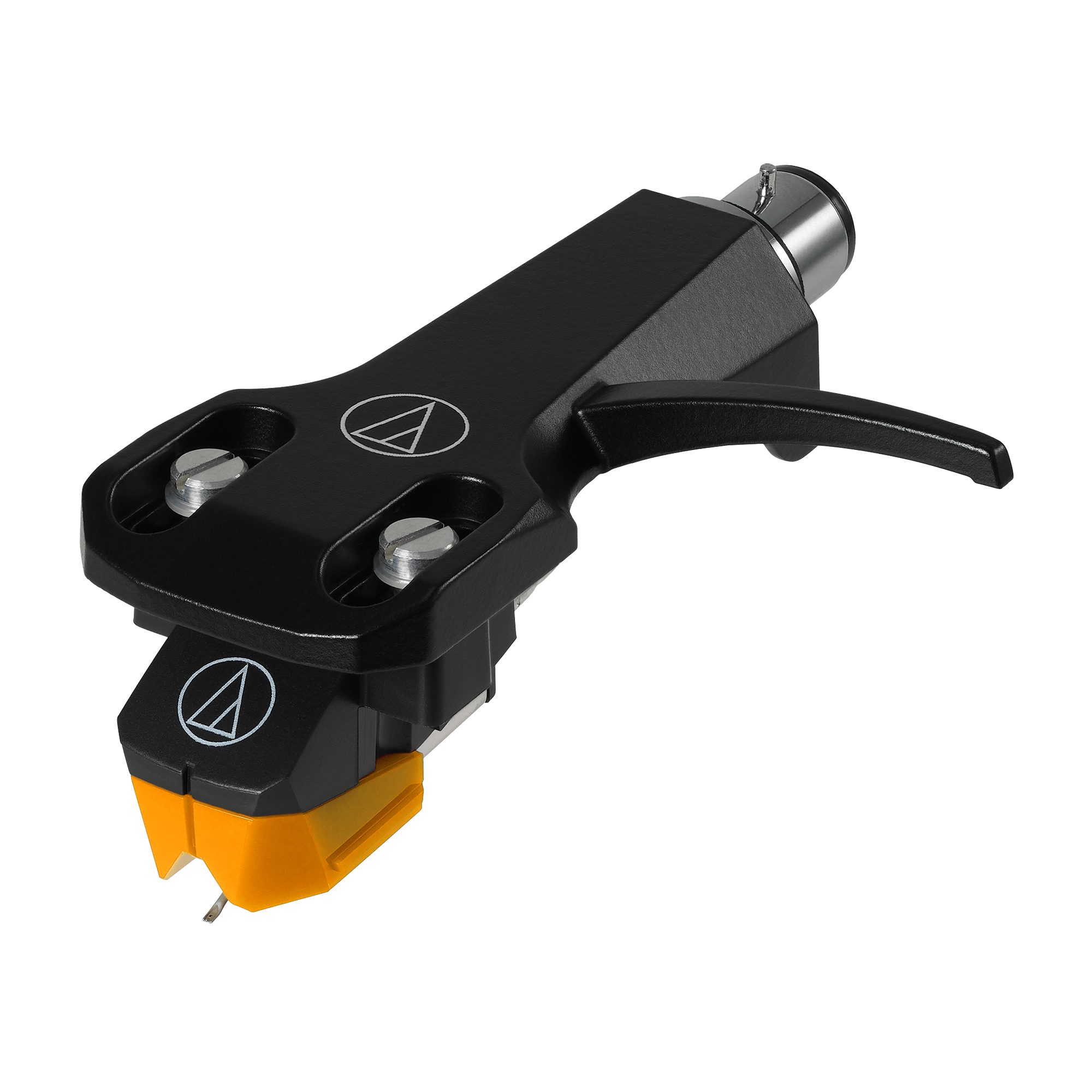

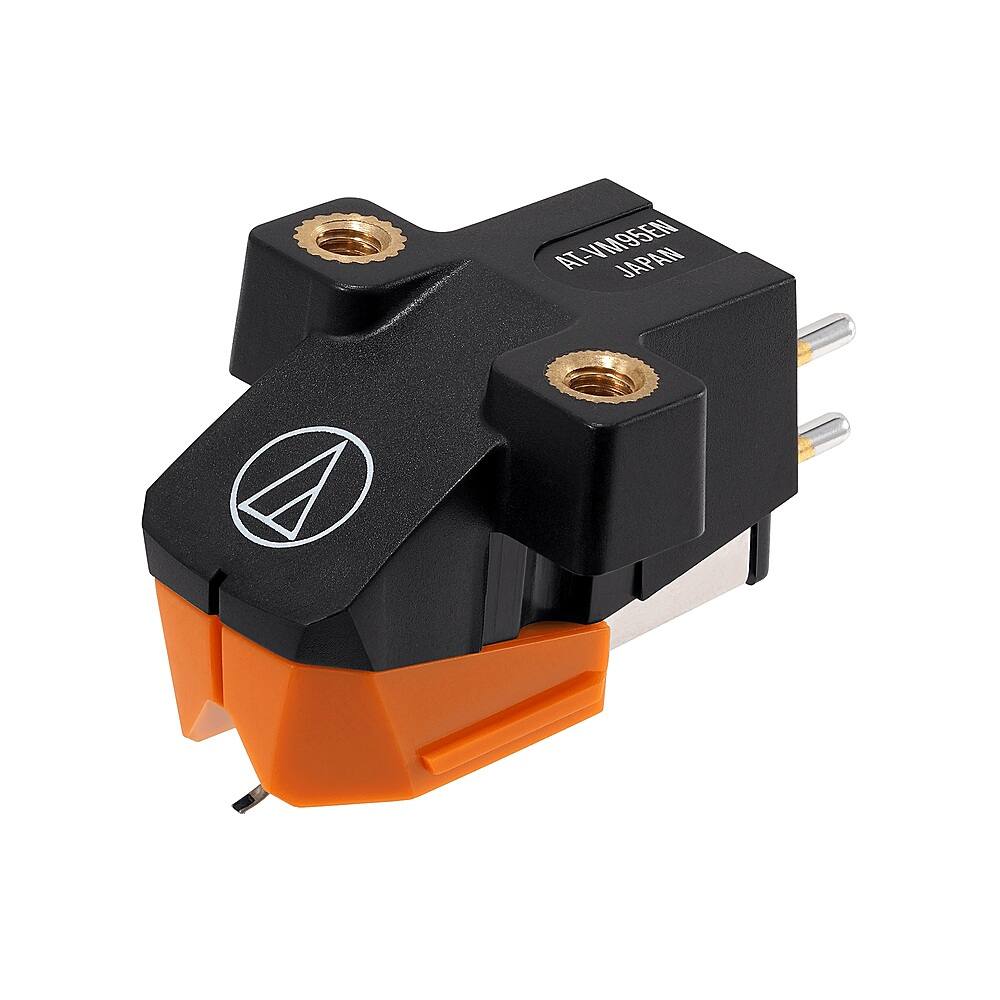

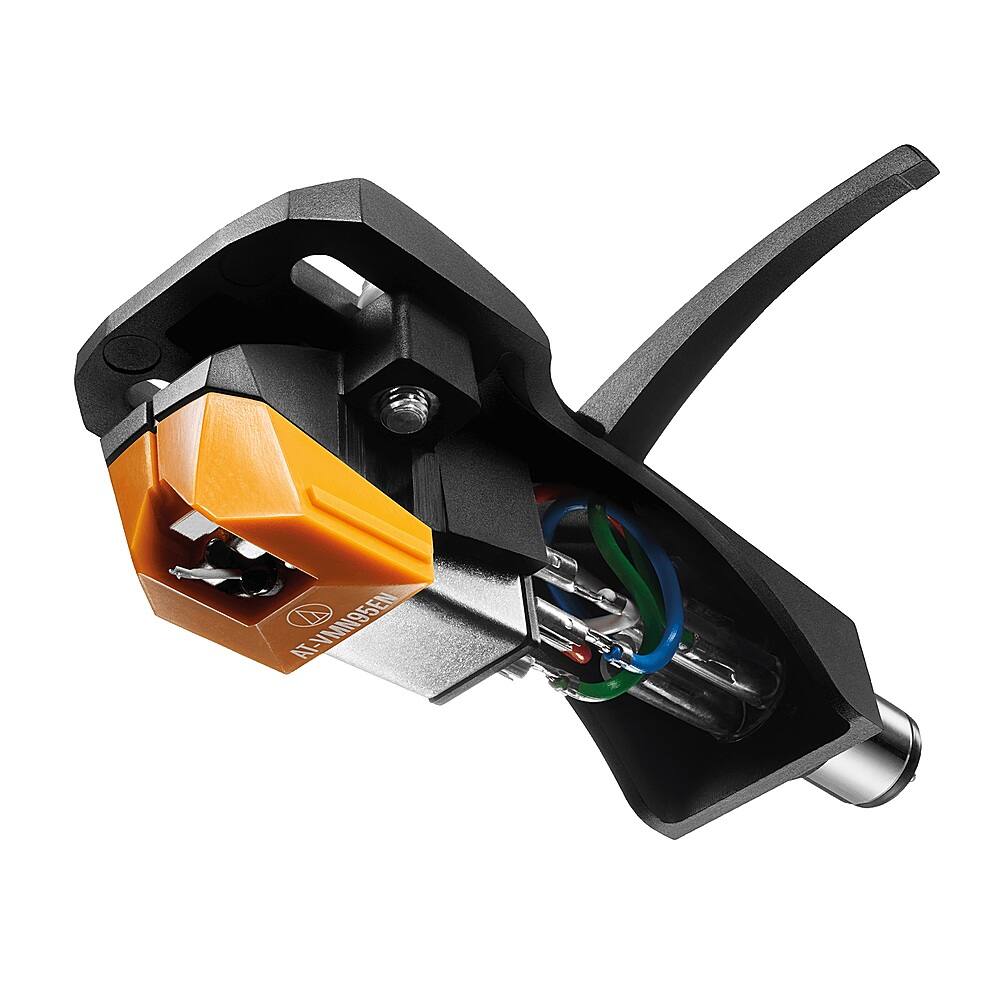

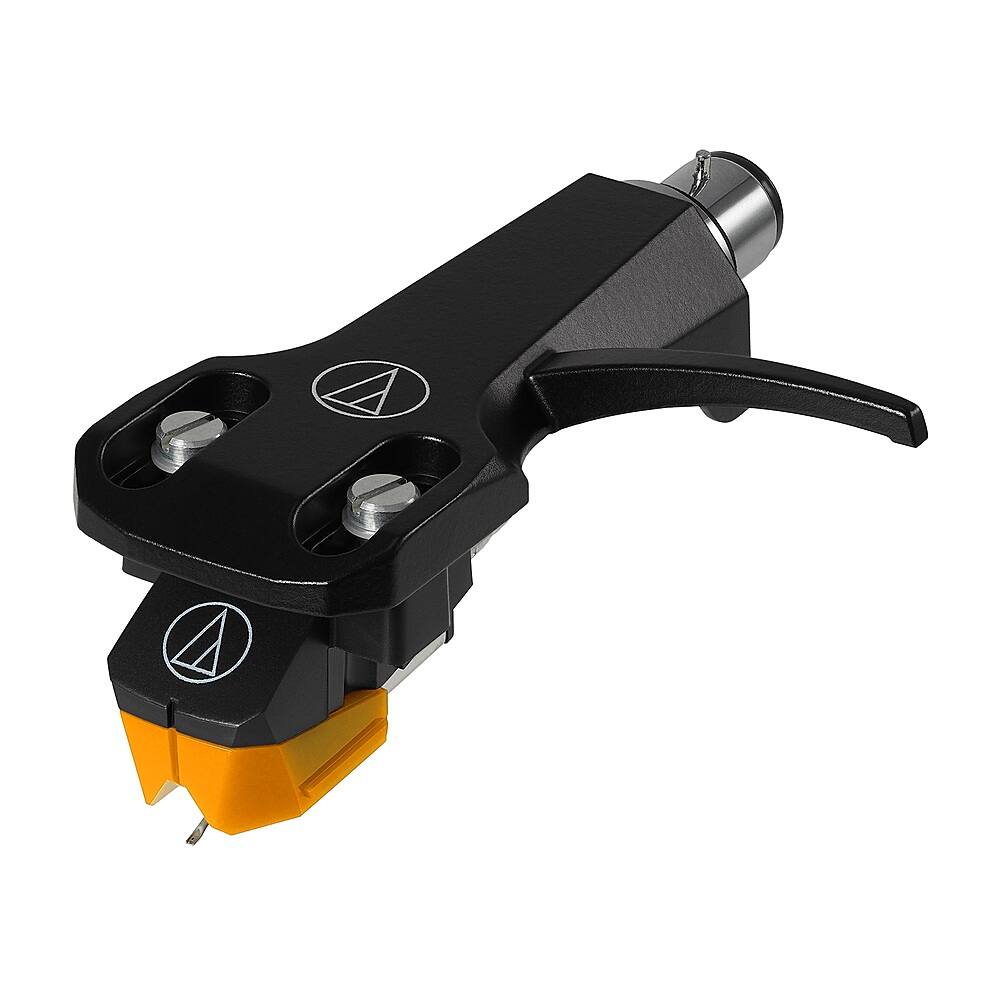

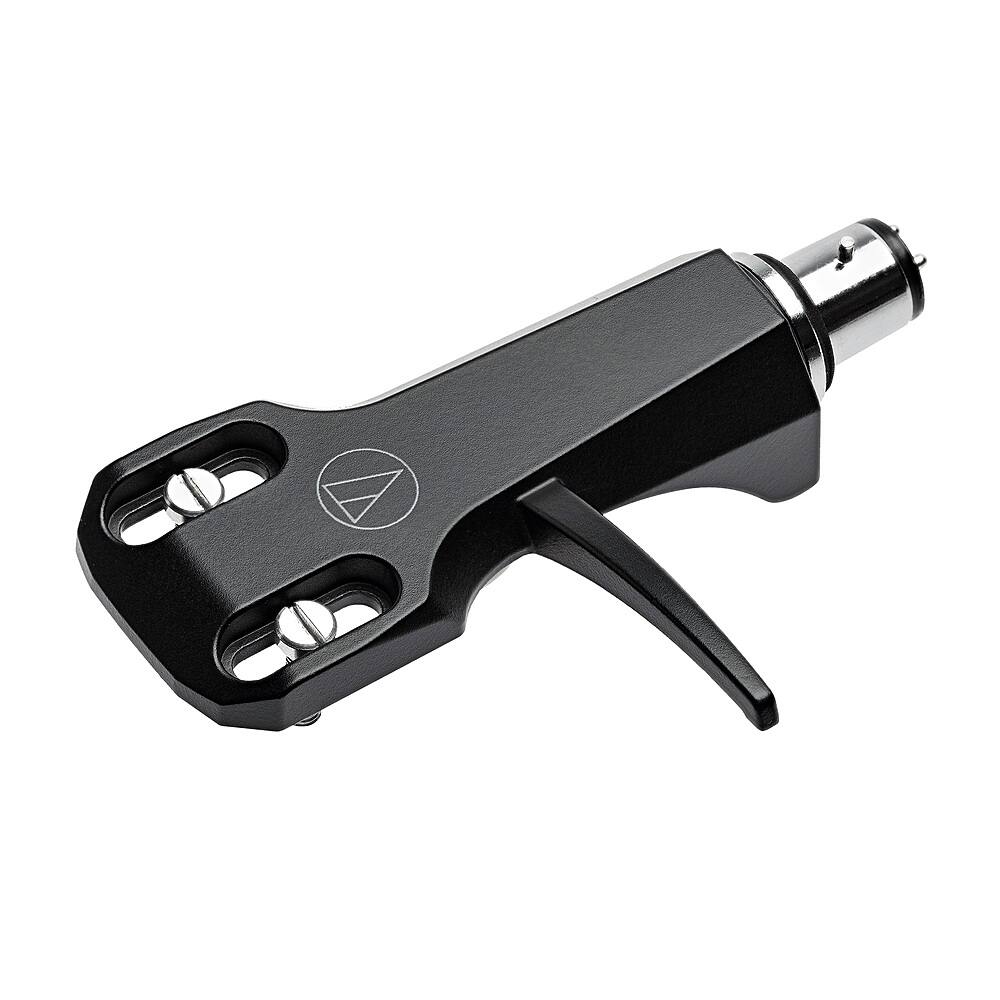

The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell. VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus. Aluminum cantilever. Specially wound coils increase output voltage. Durable low-resonance polymer housing. Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required. Compatible with any AT-VMN95 replacement stylus. Universal ½"-mount headshell for 4-pin turntable cartridges.
- Frequency Response: 20-23,000 Hz
- Stylus Construction: Nude round shank
- Recommended Load Impedance: 47,000 ohms
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
- Frequency Response: 20-23,000 Hz
- Stylus Construction: Nude round shank
- Recommended Load Impedance: 47,000 ohms
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Whats Included
- Audio Technica AT-VM95EN/H Headshell/Cartridge Kit
- Audio Technica AT-VM95EN/H Headshell/Cartridge Kit
Product Manuals
A: Yes, it will fit and the cartridge comes pre-mounted and pre-wired to to the headshell. Stylus overhang is set at 15.5mm.
A: Our Headshell/Cartridge Combo Kits come with the stylus overhang distance set at 15.5mm, the AT-LP120-USB Turntable calls for a stylus overhang distance of 16mm. We recommend stylus overhang be within 1mm of that specified by the turntable manufacturer, so the AT-VM95EN/H is good to go out of the package with this turntable.
Q: Will this work with a Sanusi F DR35?
A: undefined
Q: Will this fit a Dual 506 turntable?
A: It will not, not the headshell anyway. You may use the cartridge only, the AT-VM95EN, but you must use the Dual headshell and Dual cartridge mounting plate.
Q: I would assume this will fit and work perfectly with any Audio Technica Turntable ??
A: As long as it is one of our models with an S or J shaped tonearm and uses a straight detachable head shell, yes.
Q: Will this work with a Luxman vintage turntable with a Stax UA-7 Tonearm?
A: It depends. Which tonearm are you using, the shorter or longer one, and what is the effective mass of the tonearm including the headshell? How much does the headshell weigh? The compliance of the AT-VM95EN Cartridge is 12cu @ 10 Hz and the mass of the cartridge is 6.5 grams including the mounting screws. The AT-HS6 Headshell included with the AT-VM95EN/H Headshell/Cartridge combo kit weighs 9 grams. The cartridge is suitable for use with tonearms whose effective mass is anywhere from 12 to 28 grams.
Q: Will it fit on a audio technical at lp 120xbt usb
A: Yes, it will.
Q: Will it fit a audio technical at lp 120x bt usb
A: Yes, it will.
