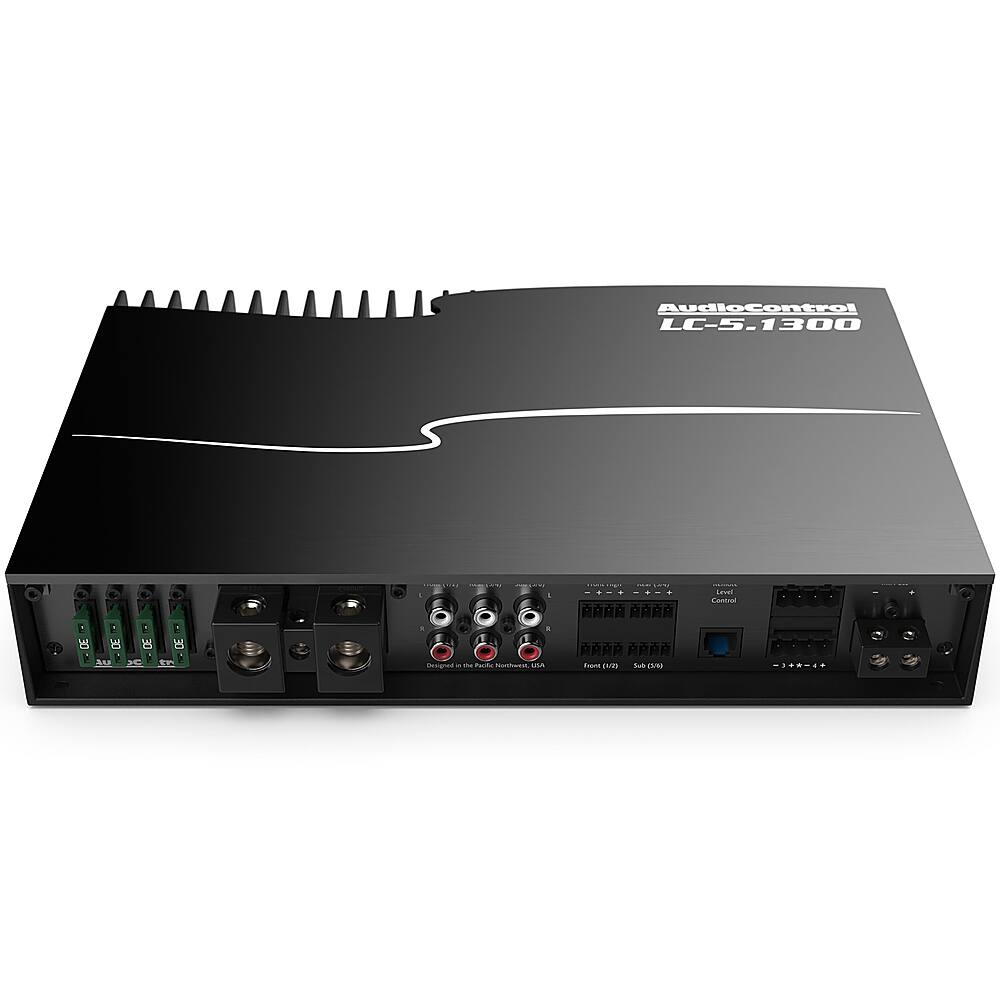

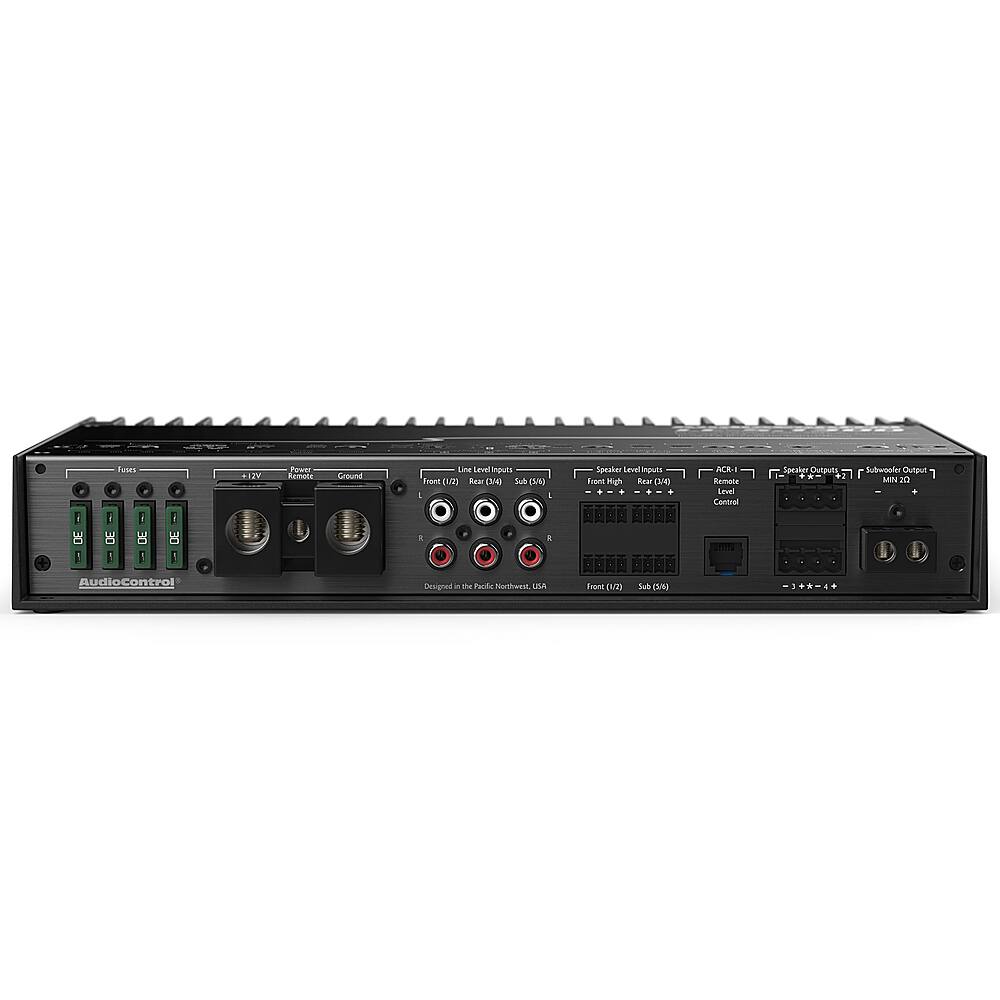

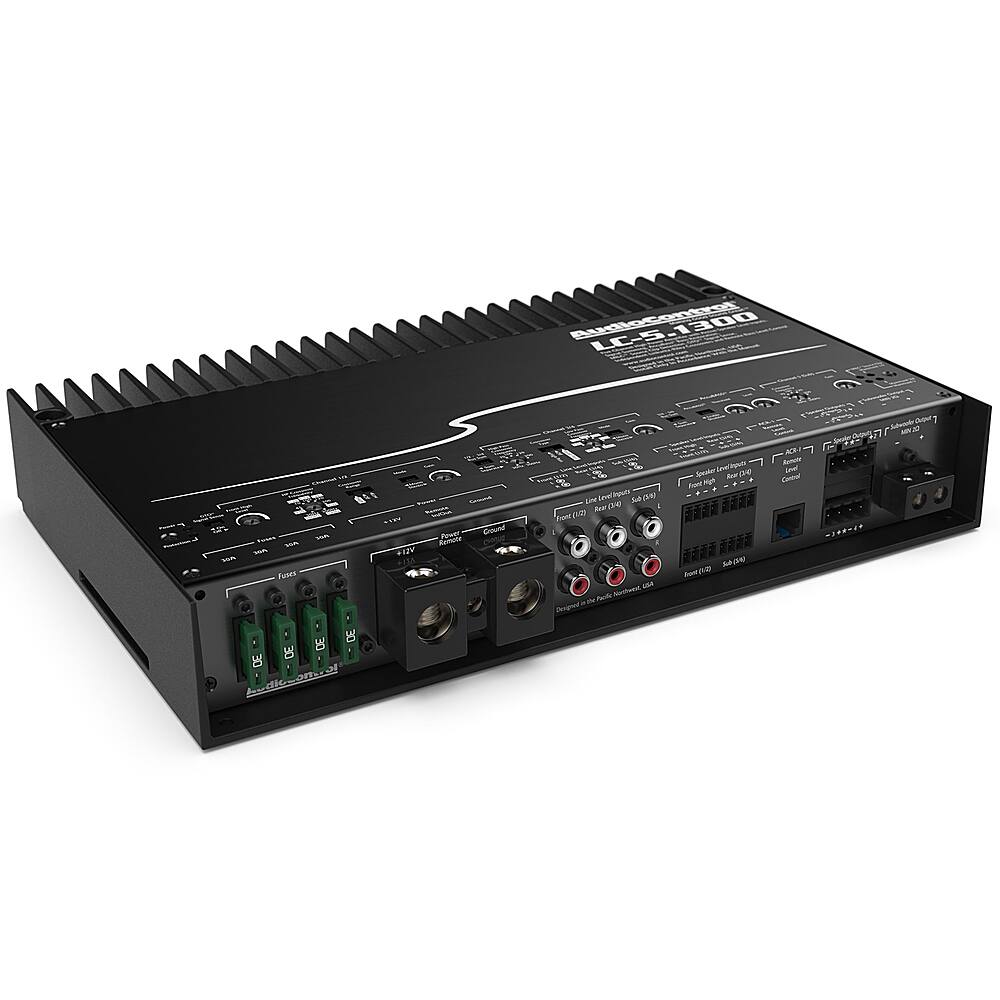

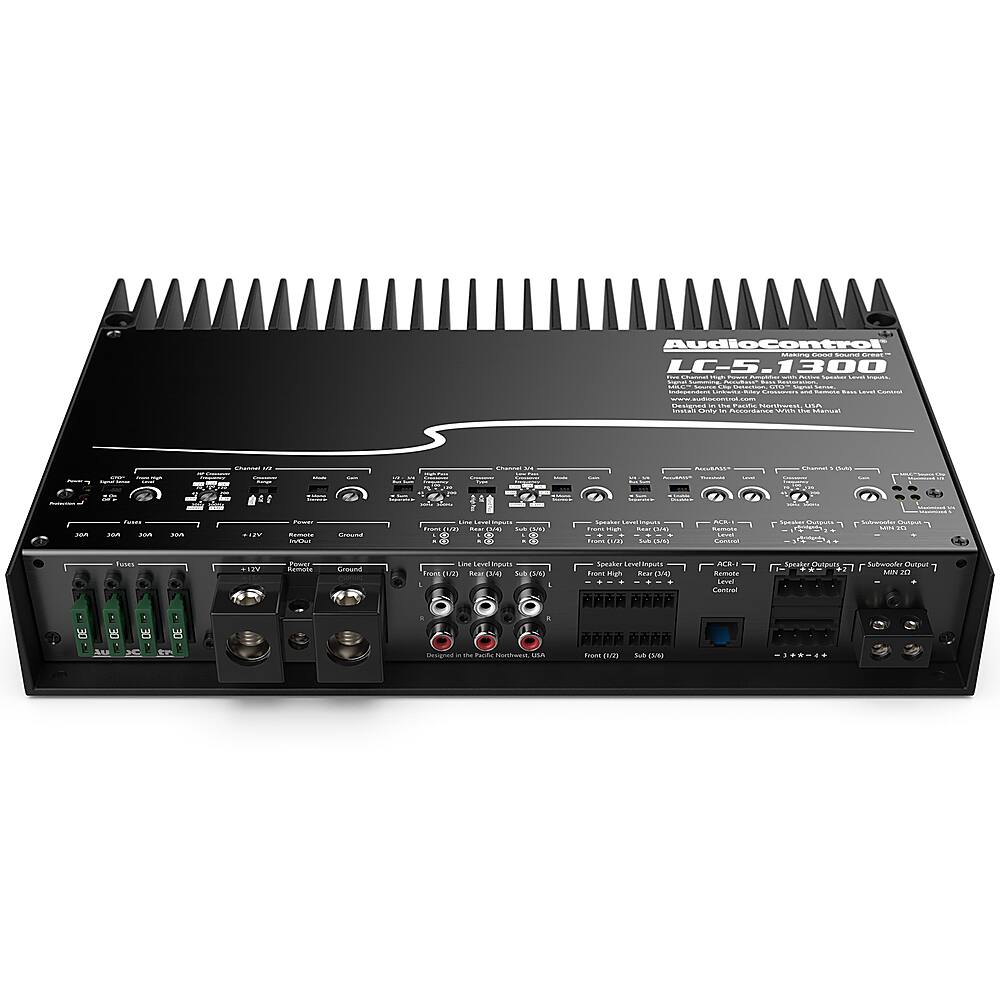

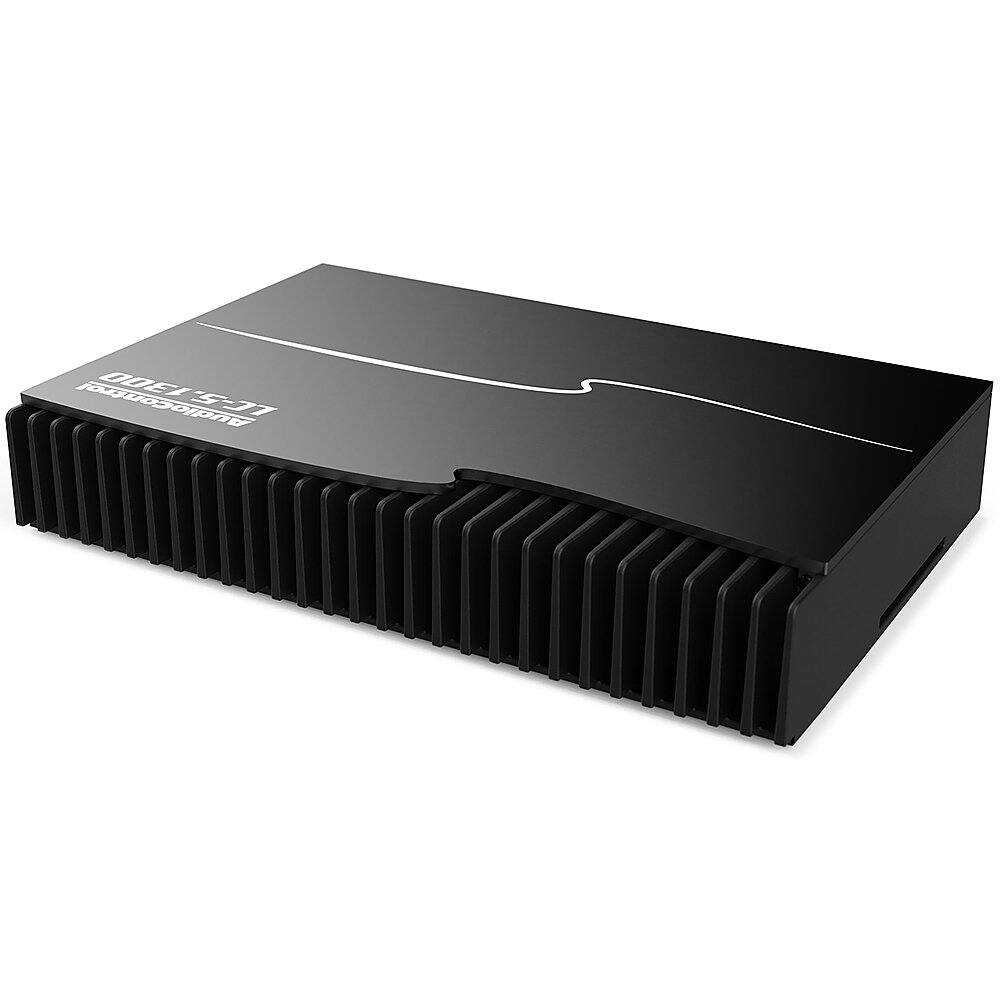

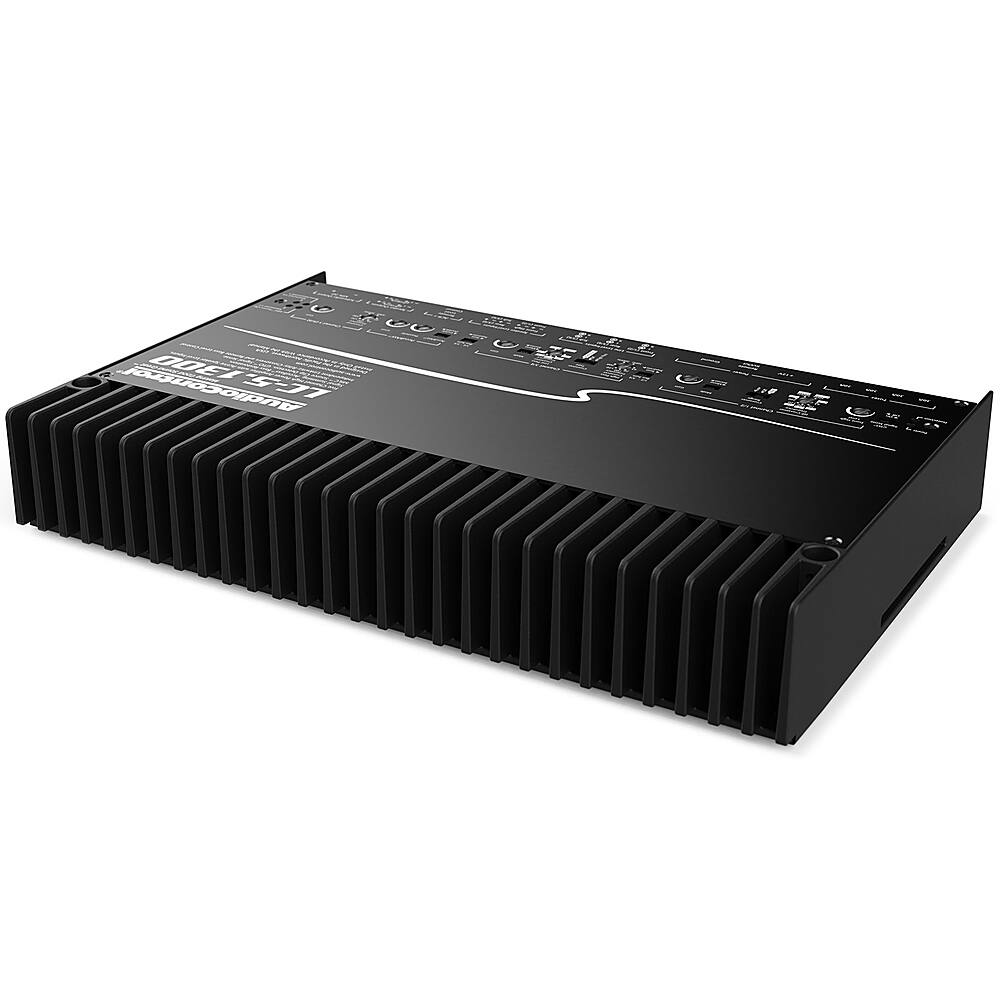

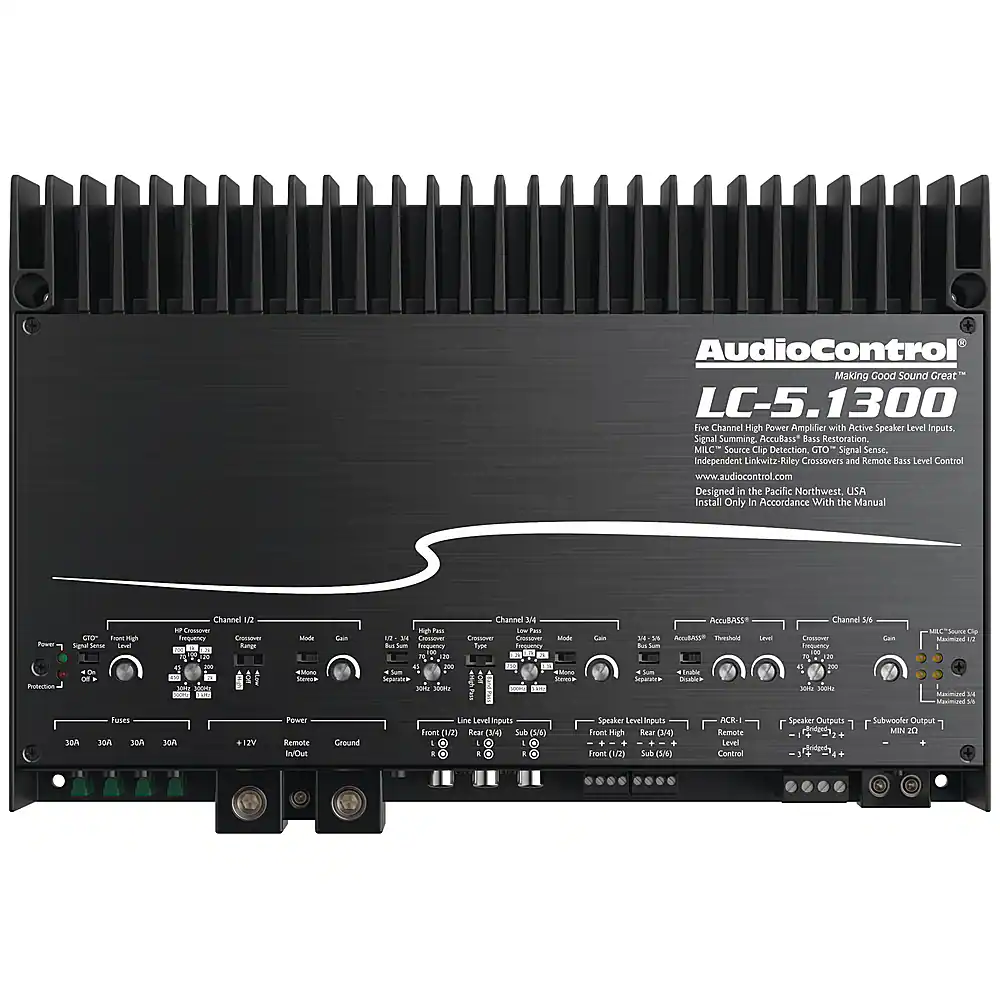

AudioControl - 1300W 5-Channel Class D Amplifier with AccuBASS - Black
Model: LC-5.1300
SKU: 6483399
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 100W RMS x 4 + 300W x 1 @ 4 ohms, 200W RMS x 4 + 500W x 1 @ 2 ohms
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Selectable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: AudioControl
- Model Number: LC-5.1300
- Product Name: 1300W 5-Channel Class D Amplifier with AccuBASS
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 100W RMS x 4 + 300W x 1 @ 4 ohms, 200W RMS x 4 + 500W x 1 @ 2 ohms
- Total Power Handling RMS: 1300 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 22 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 102 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Selectable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: true
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: false
- Dimensions
- Product Height: 8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 851523007805
Experience powerful sound from your car’s audio system with this 1300W 5-Channel Class D Amplifier with AccuBASS by AudioControl. The LC-5.1300 features a high-current design and comes equipped with intuitive setup controls that allow for a wide variety of installation possibilities. This 5-channel amplifier also features AccuBASS technology so you can turn up the volume without losing bass.
- 5-channel full range Class D amplifier: Configurable for 5-channel and 3-channel audio systems.
- Handles up to 100W RMS (continuous) x 4 + 300W x 1 @ 4 ohms or 200W RMS x 4 + 500W x 1 @ 2 ohms: To deliver powerful audio. Up to 400W RMS @ 4 ohms bridged.
- 4 ohms and 2 ohms impedance: Conducts power evenly to keep speakers working at optimal levels.
- AccuBASS processing: Recovers bass frequencies lost at higher volumes.
- Selectable input modes: Accepts both high-level (speaker level) and low-level (RCA line level) signals for integration with your existing audio system.
- Maximum Input Level Control (MILC) with clipping indicator: Prevents damaging distortions and indicates input clipping on the MILC Source Clip LED.
- Automatic and selectable signal summing: Combines the active speaker-level inputs (8 channels) for a full range signal.
- Low-pass, band-pass, and high-pass crossovers: Ensure flexible operation.
- <0.1% THD (Total Harmonic Distortion): For clean sound.
- >102dBa signal-to-noise ratio: Ensures crisp audio.
- Adjustable gain with clipping indicator: Allows you to adjust the output signal and indicates signal clipping when gain is set to high.
- Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
- Heavy gauge quick connects: Provide added installation ease and serviceability.
- Optional dash remote: Allows you to add a subwoofer with independent level control (ACR-1 sold separately).
- 5-year warranty: To protect against defects in materials and workmanship.
Whats Included
- AudioControl 1300W 5-Channel Class D Amplifier with AccuBASS
- Speaker connectors
- 30A fuses (4)
- Quick start guide
Product Manuals
Q: Is the amplifier fan cooled?
A: This amplifier is fan cooled.
Q: How many channels does the amplifier have?
A: This amplifier has 5 channels.
Q: Can the amplifier be bridged?
A: This amplifier can be bridged.
Q: What is the total power handling of the amplifier?
A: The total power handling of the amplifier is 1300 watts RMS.
Q: What is the frequency response of the amplifier?
A: The minimum frequency response is 20 hertz and the maximum frequency response is 22 kilohertz.
