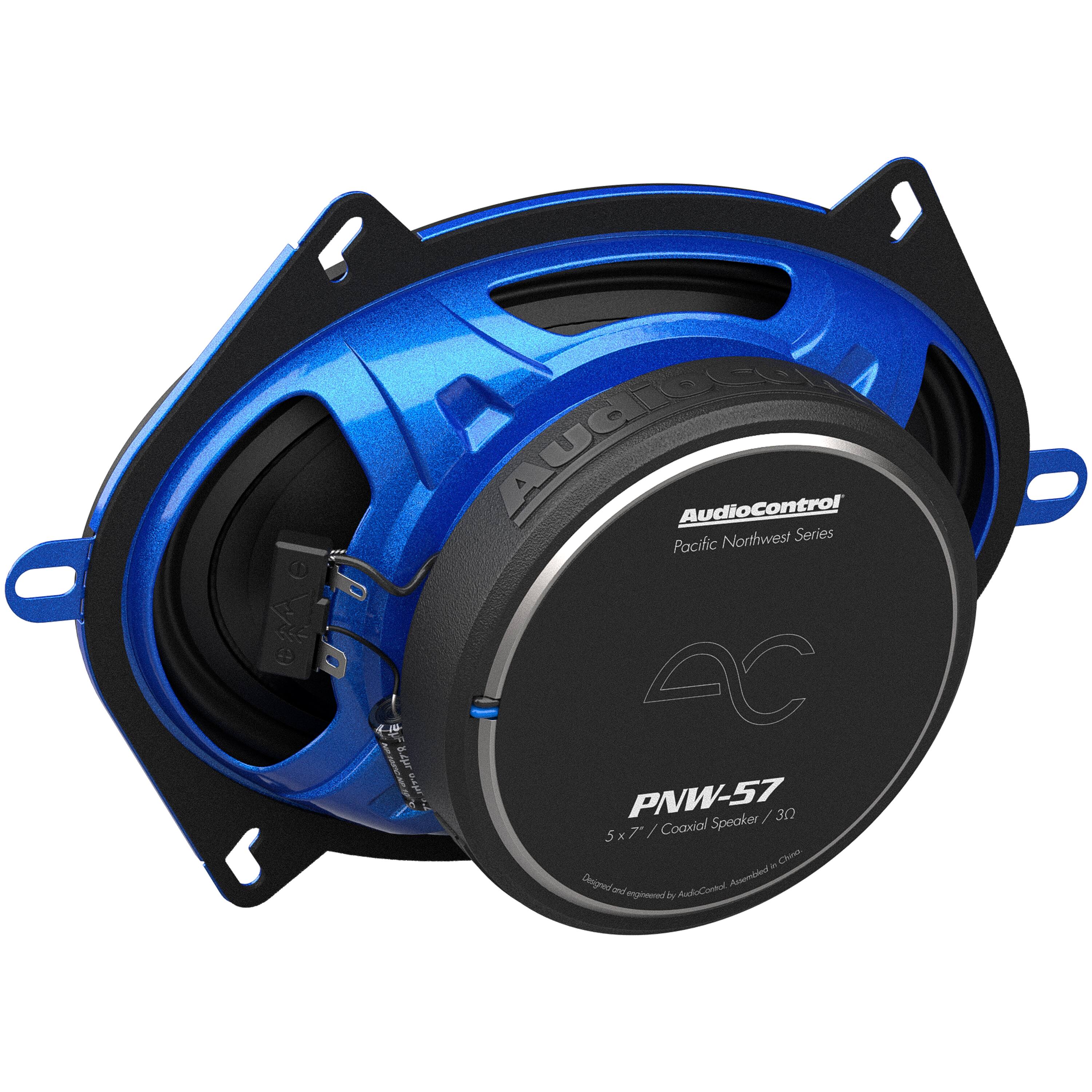

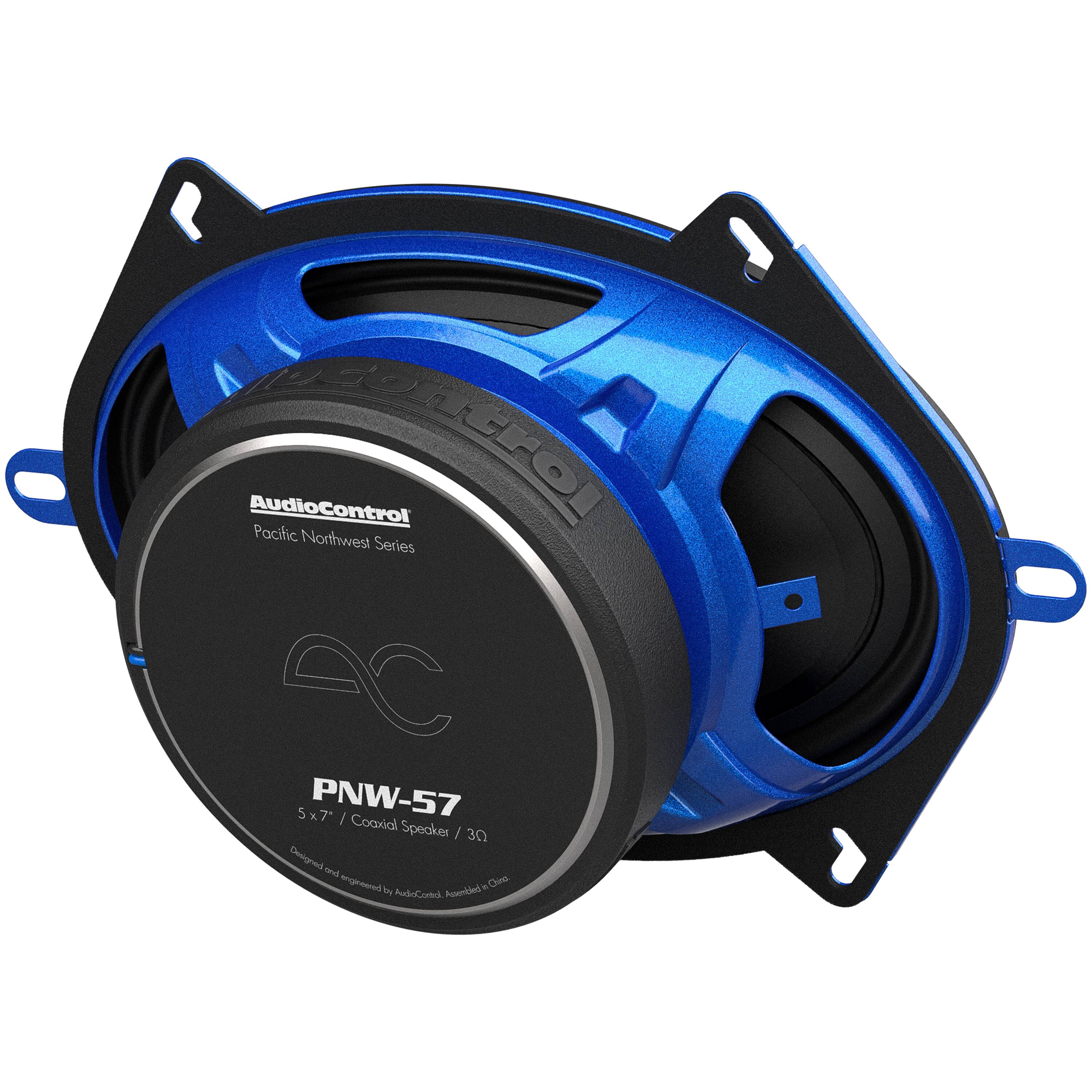

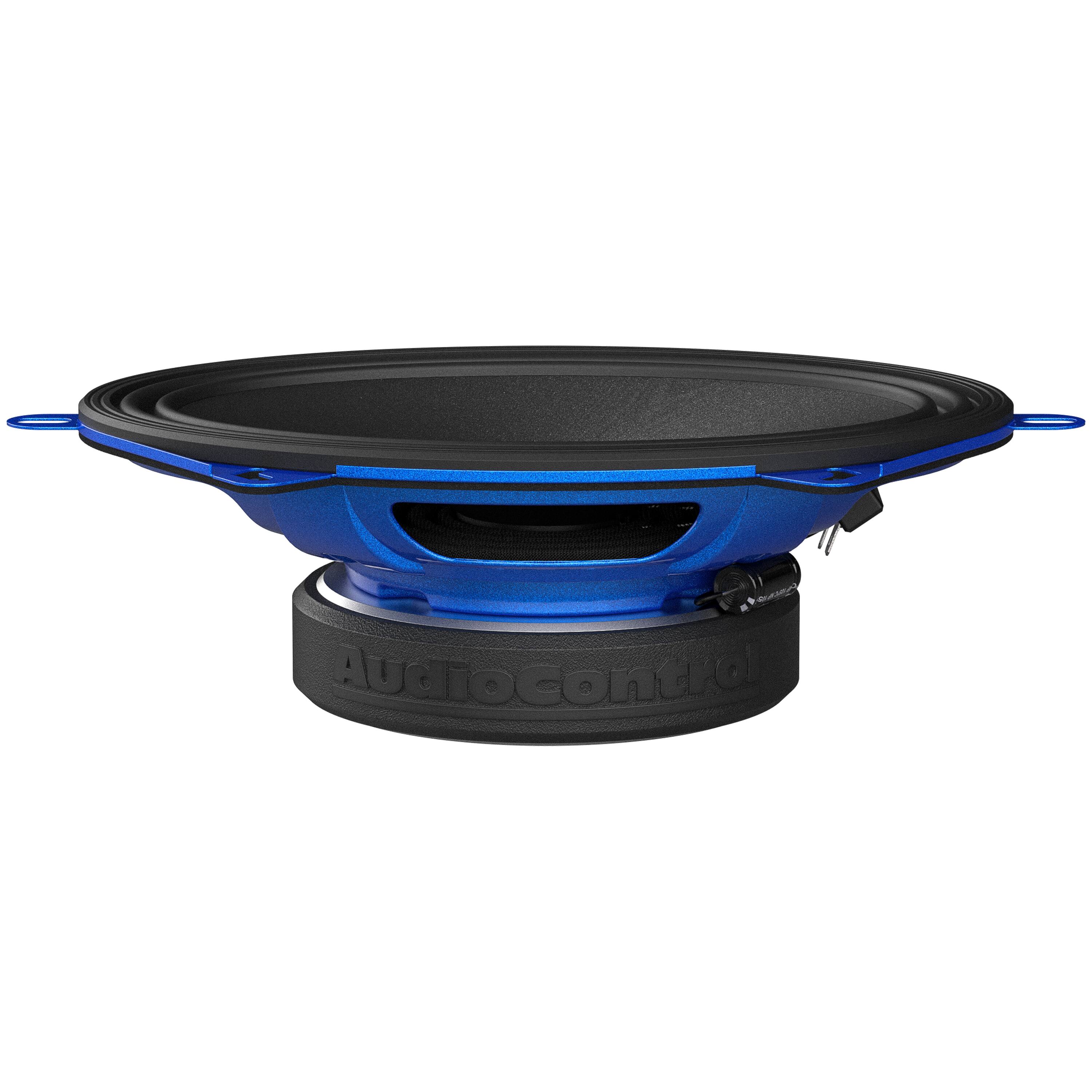

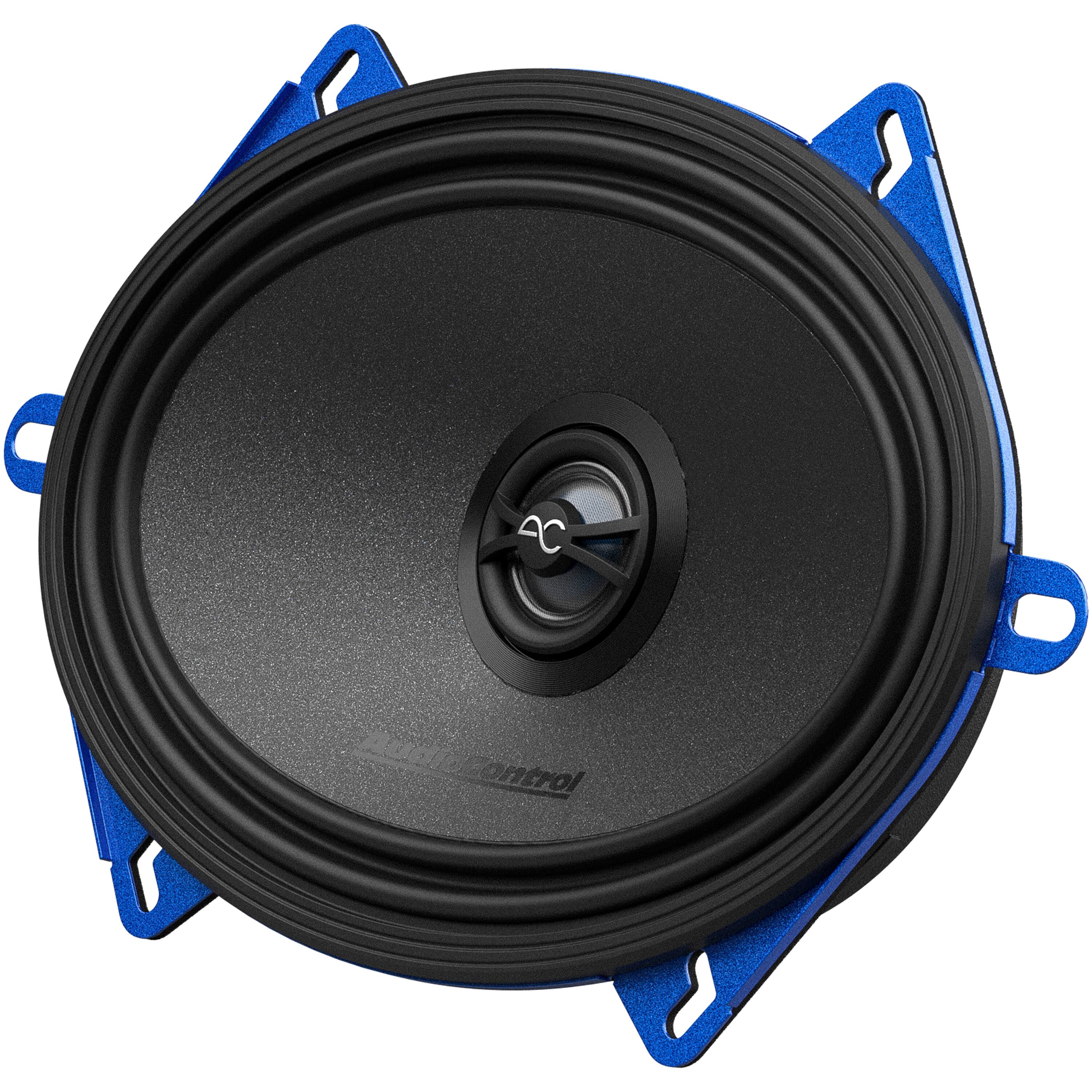

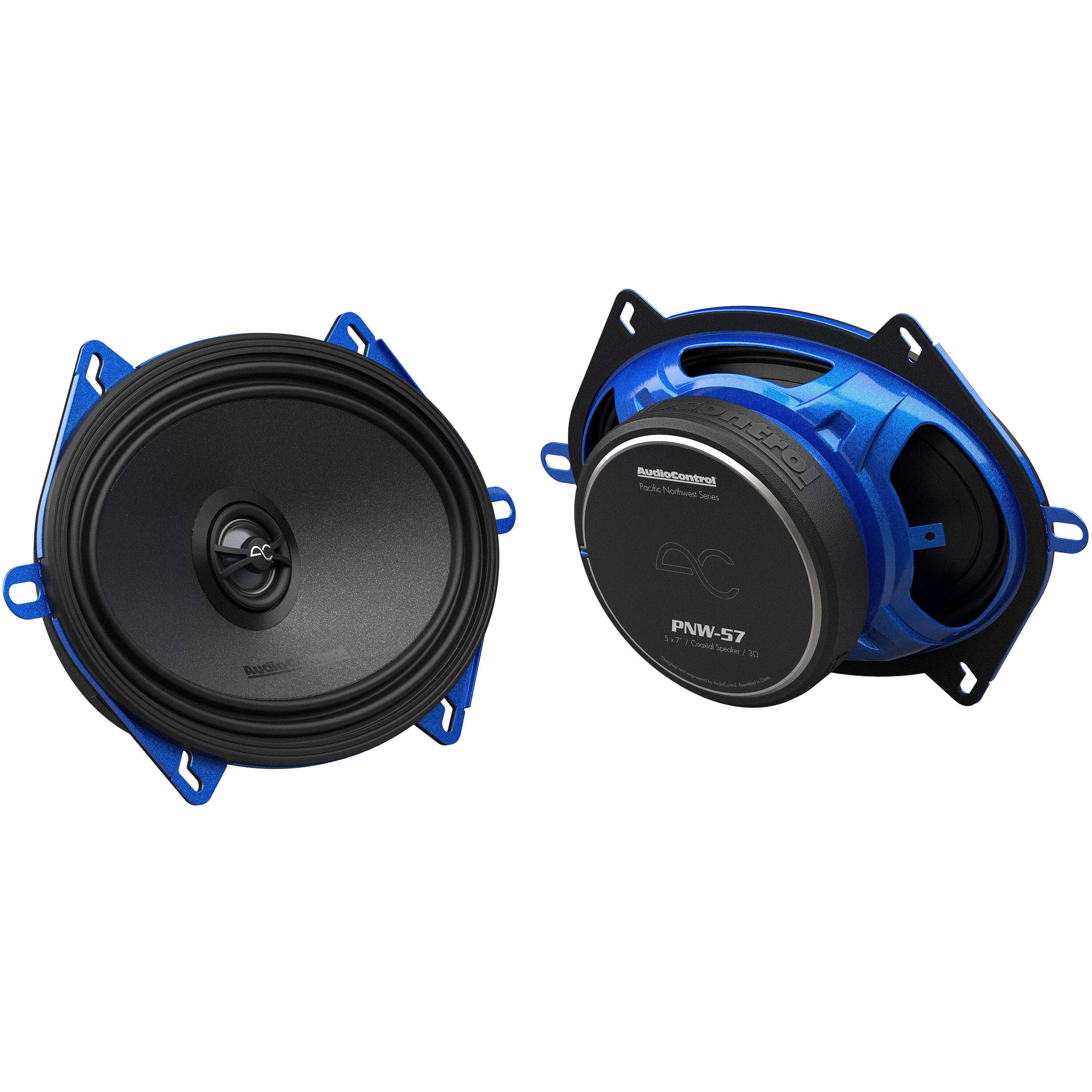

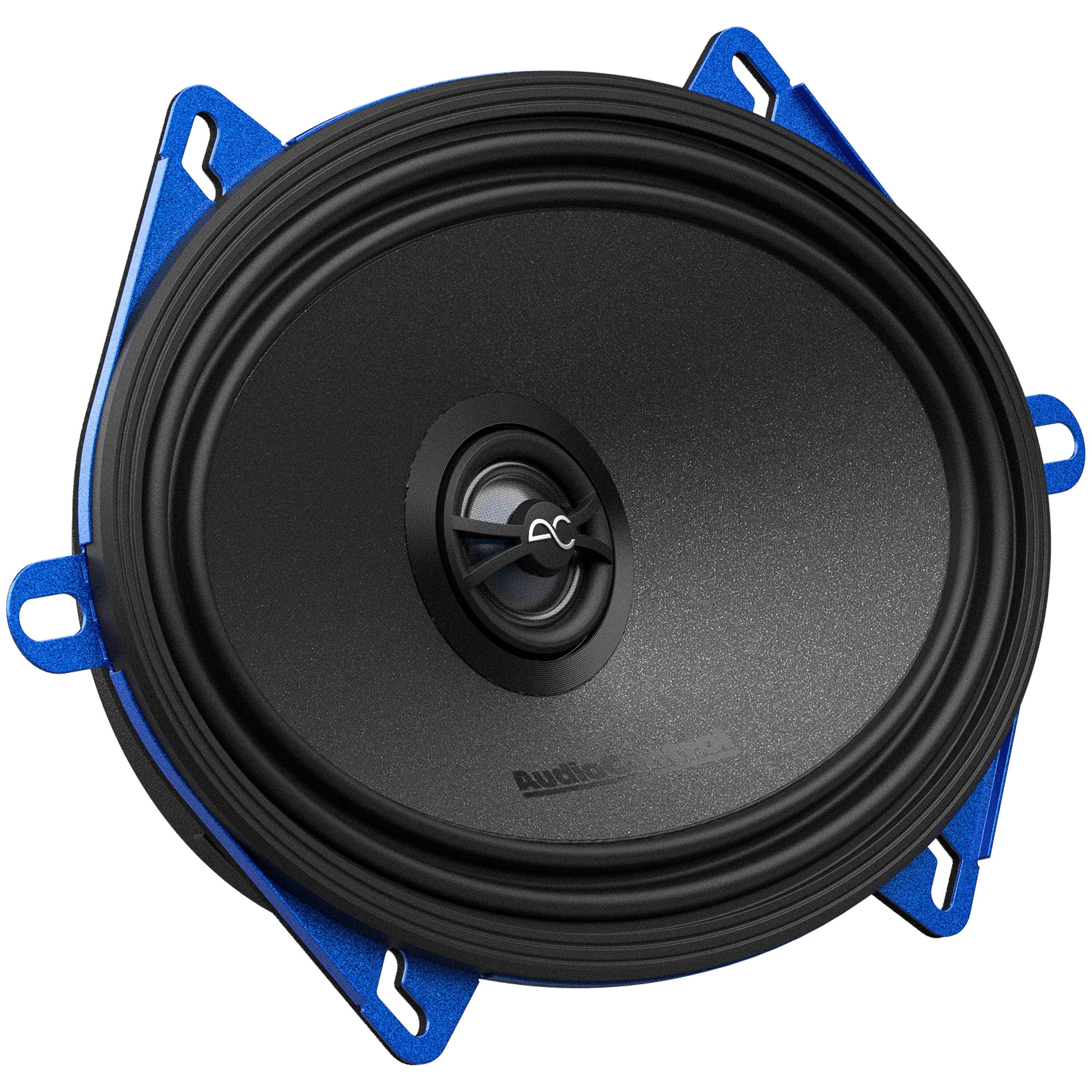

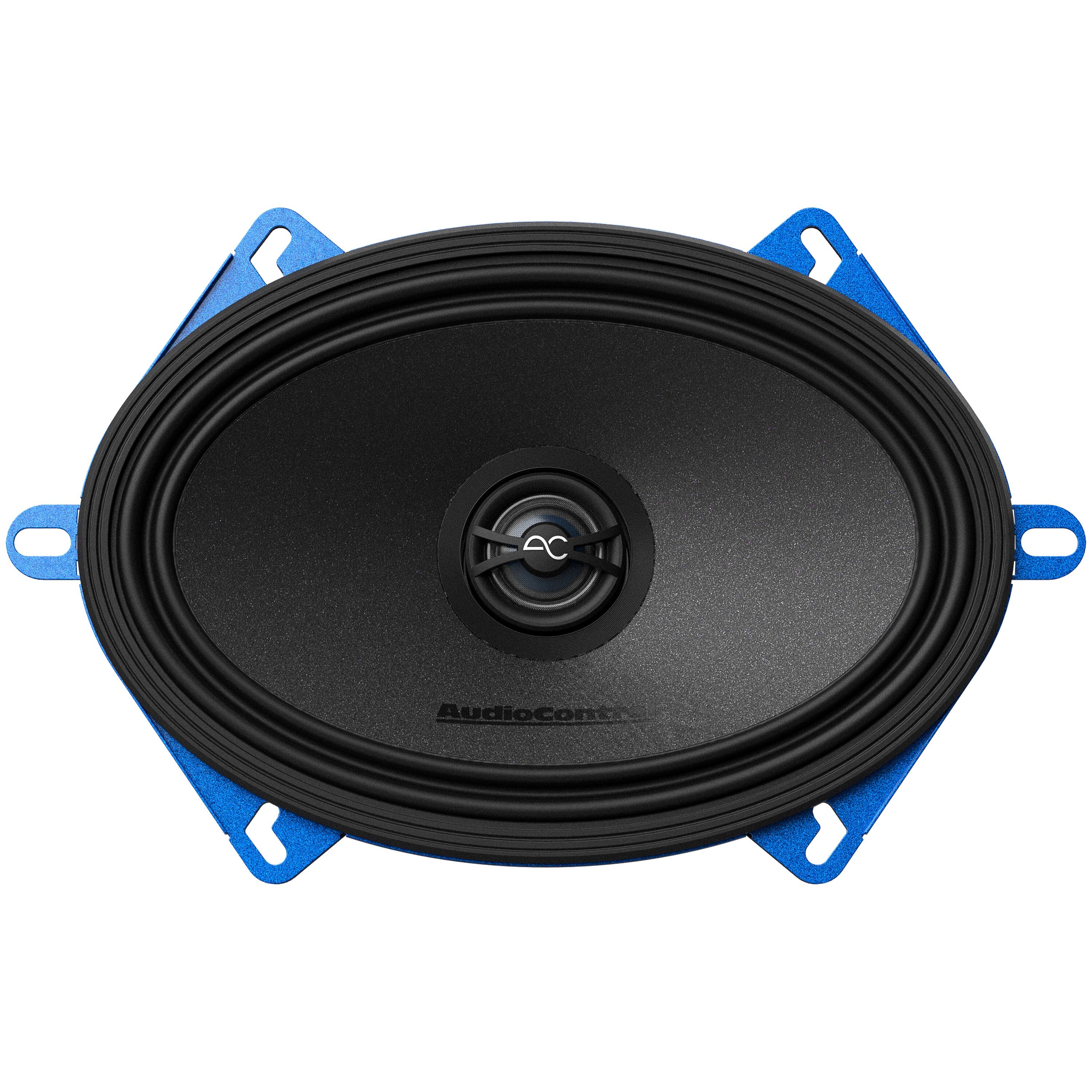

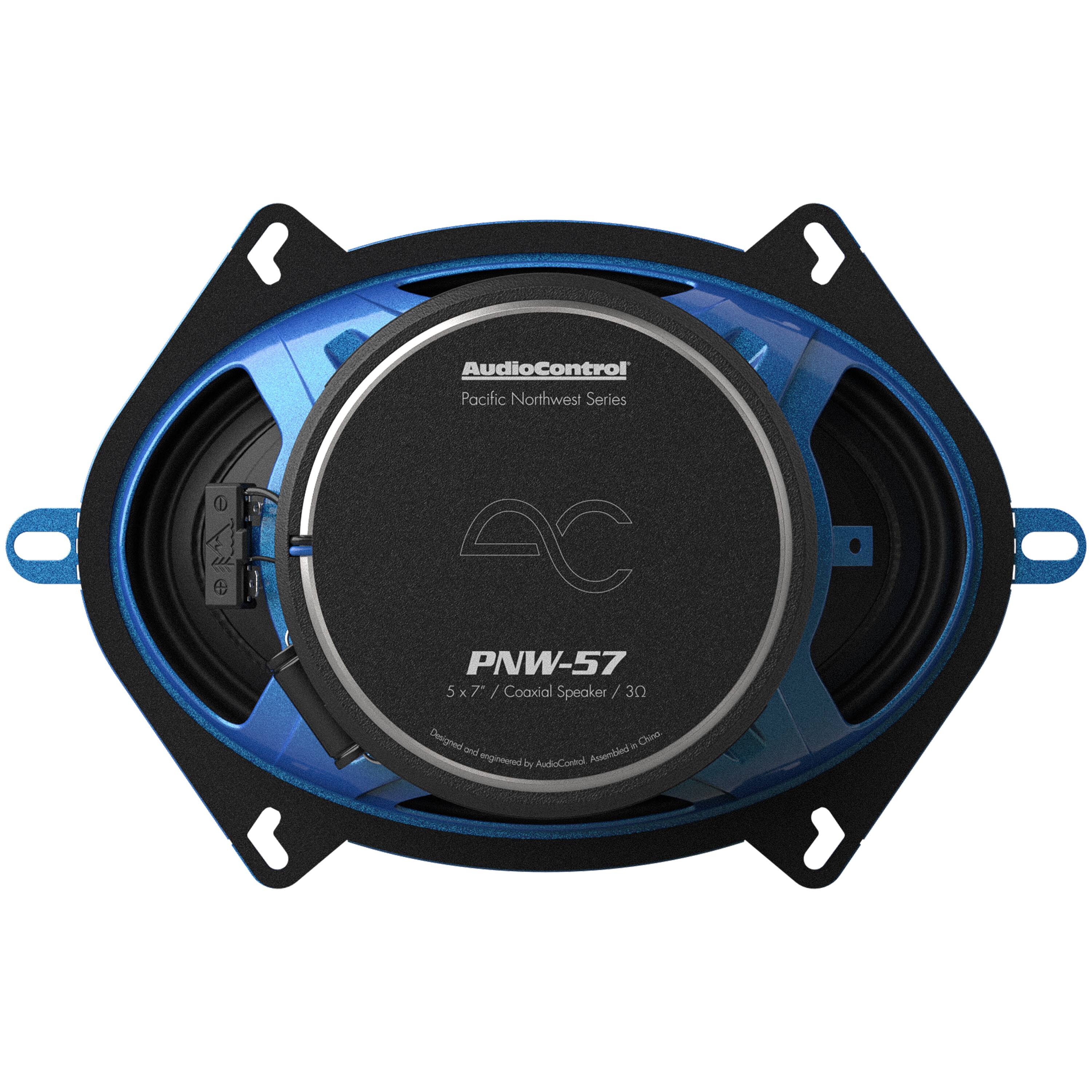

AudioControl - PNW Series 5" x 7” High-Fidelity Coaxial Speakers (Pair) - Black/Blue
Reviews coming soon
Related Item
Specifications
- RMS Power75 wattsPeak Power Handling100 wattsMinimum Frequency Response60 hertzMaximum Frequency Response20 kilohertzSensitivity88.62 decibelsSpeaker Size5" x 7"
- Key Specs
- RMS Power: 75 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 100 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 60 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 88.62 decibels
- Speaker Size: 5" x 7"
- Speaker Type: Coaxial
- Tweeter Composition: Rear dampened hybrid silk dome
- Woofer Composition: Poly mica-coated cone
- Woofer Surround Material: Linear double-roll surround
- General
- Brand: AudioControl
- Model Number: PNW-57
- Product Name: PNW Series 5" x 7” High-Fidelity Coaxial Speakers (Pair)
- Color: Black/Blue
- Number Of Speakers: 2
- Audio
- RMS Power: 75 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 100 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 60 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Impedance: 3 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Sensitivity: 88.62 decibels
- Features
- Integrated Crossover: true
- Marine: false
- Grille Included: true
- Design
- Speaker Size: 5" x 7"
- Speaker Type: Coaxial
- Tweeter Composition: Rear dampened hybrid silk dome
- Woofer Composition: Poly mica-coated cone
- Woofer Surround Material: Linear double-roll surround
- Dimensions
- Cutout Diameter: 6.96 inches
- Mount Depth: 2.24 inches
- Product Height: 5.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.73 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.46 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.85 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: None
- Other
- UPC: 850038647476
Experience the vibrant landscapes of the Pacific Northwest on every drive with a pair of PNW Series speakers from AudioControl. These 5" x 7" coaxial speakers combine ultimate structural strength with top-quality engineered audio components to demand detail, clarity, and volume from your car audio. The PNW-57 is built to fit most modern OEM speaker locations and includes high-quality mounting hardware for easy installation.
- 5” x 7" coaxial speaker pair: Upgrade your vehicle’s factory audio system with high-fidelity speakers.
- Handles up to 100W peak power (75W RMS): Provides robust sound.
- 3 ohms impedance: Conducts power evenly to keep the speakers working at an appropriate level.
- Rigid poly mica-coated cone with linear double-roll surround: Improves sound reproduction while reducing distortion.
- 1st order series Butterworth crossover: Ensures relatively constant impedance and tweeter protection.
- 60 Hz – 20 kHz frequency response: Accurately produces a wide range of sound.
- Rear dampened hybrid silk dome tweeter: Delivers extended frequency response.
- Edge-enhanced steel frame: Provides added structural strength.
- Black anodized voice coil former: Allows for superior heat dissipation.
- Complex FEA designed high-efficiency motor: Enables reliable high power output.
- 2.24” mounting depth; 4.64” x 6.96” cutout dimensions: The shallow basket depth makes installation easier.
Whats Included
- AudioControl PNW Series 5” x 7" High-Fidelity Coaxial Speakers (Pair)
- Mounting hardware
- User manual
Q: Does the speaker include a grille?
A: The PNW Series 5" x 7” High-Fidelity Coaxial Speakers include a grille.
Q: What is the minimum frequency response of the speakers?
A: The minimum frequency response of these speakers is 60 hertz.
Q: Can the speakers be easily installed in most modern OEM speaker locations?
A: Yes, the PNW-57 speakers are designed to fit most modern OEM speaker locations and include high-quality mounting hardware.
Q: What is the mounting depth?
A: The mount depth is 2.24 inches.
Q: What is the peak power handling of the speakers?
A: The peak power handling of the speakers is 100 watts.
