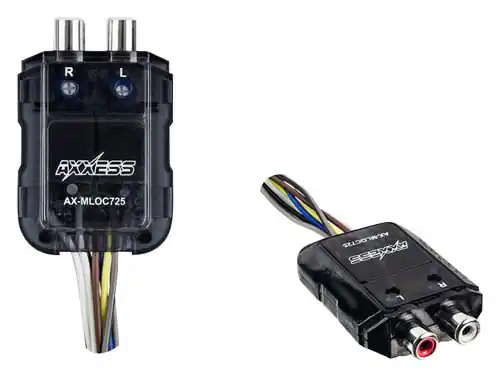

AXXESS - 2-Channel Line Output Converter - Black
- General
- Brand: AXXESS
- Model Number: AX-MLOC725
- Product Name: 2-Channel Line Output Converter
- Color: Black
- Compatibility
- Product Compatibility: Amplifier
- Product Type: Line output converter
- Dimensions
- Product Height: 1.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 7.75 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 086429286027
This AXXESS AX-MLOC725 2-channel line output converter features adjustable gain for each channel for custom control. The 150W power handling capability ensures wide compatibility.
- Compatible with most amplifiers with RCA connections: For use with your existing equipment.
- 2-channel input: With adjustable gain for each channel for custom audio.
- 150W per channel power handling: Provides wide compatibility.
- Compatible with most amplifiers with RCA connections: For use with your existing equipment.
- 2-channel input: With adjustable gain for each channel for custom audio.
- 150W per channel power handling: Provides wide compatibility.
Q: Can I adjust the gain on this converter?
A: Yes, this converter features adjustable gain for each channel.
Q: What is the maximum power handling capacity of this line output converter?
A: This line output converter has a maximum power handling capability of 150 watts per channel.
Q: Is this line output converter compatible with most amplifiers?
A: Yes, it is compatible with most amplifiers with RCA connections.
A: This unit has an audio-sense remote output. Meaning when the radio is turned on, it senses an audio signal and sends a 12 volt signal through the remote output wire from the line output converter. That remote output wire needs to go to your external amplifier (2-channel or mono sub-amp) to signal it to turn on. The wiring is as follows: Yellow = battery +12v input Black = ground input Blue = remote +12v output to amplifier White = left front (+) input White/Black = left front (-) input Gray = right front (+) input Gray/Black = right front (-) input Black/White = reference ground (-) (reference ground optional if noise is present) Alternatively, the speaker inputs can be wired to the rear speakers depending on your application. I used the rear speakers on mine to add a subwoofer amplifier. That way I could use the fader of my factory radio to give me some limited gain control to the subwoofer. By fading to the front speakers, it will decrease the output from the subwoofer. Here is a link to the install manual: https://metra-static.s3.amazonaws.com/documents/INSTAX-MLOC725_web.pdf
Q: why does it make a humming nosie when i press tge gas
A: undefined
Q: Is it normal for the light to stay on when you install it?
A: undefined
Q: Will this converter work to install my Bluetooth transmitter
A: undefined
