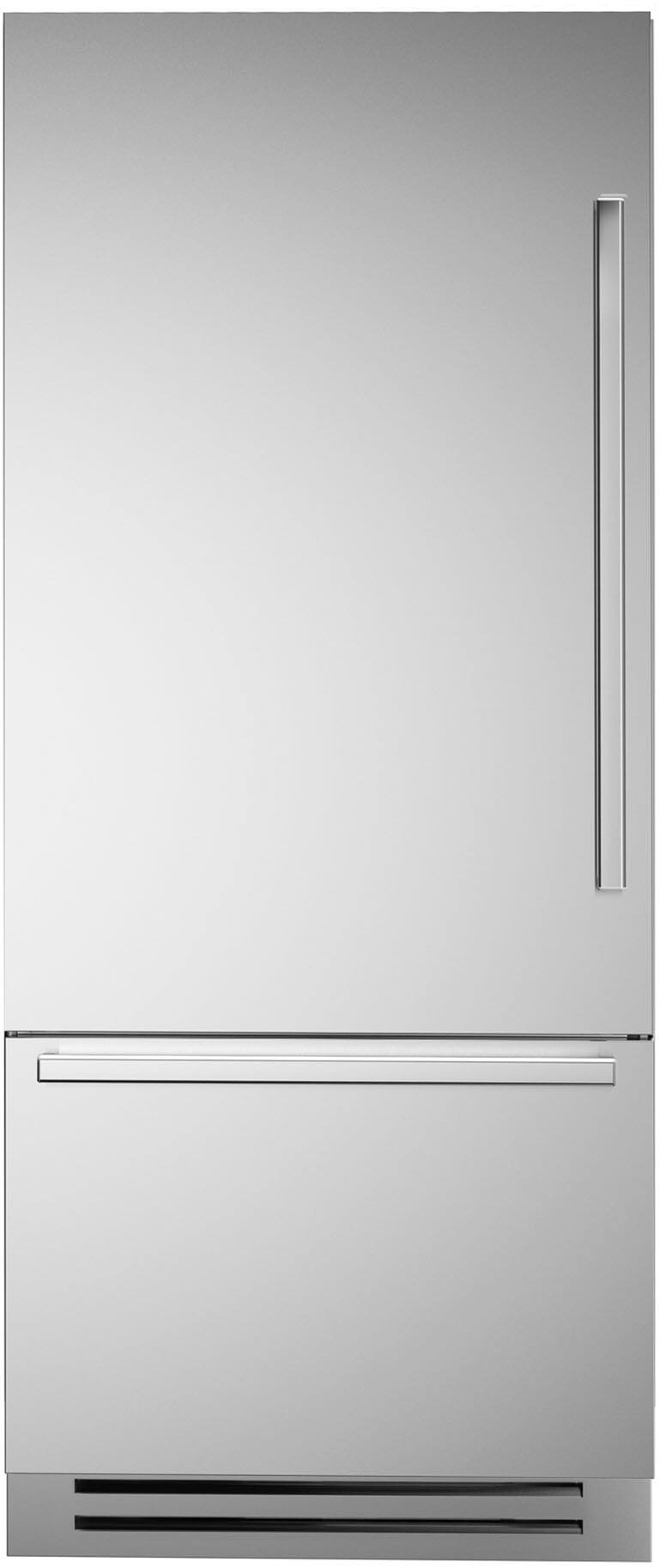

Bertazzoni - 36 in. Wide 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker - Custom Panel Ready
Reviews coming soon
Specifications
- Product Height83 1/2 inchesProduct Width36 inchesHeight To Top Of Door Hinge83 1/2 inchesTotal Capacity19.6 cubic feetRefrigerator StyleBottom FreezerIce MakerYes
- Key Specs
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 1/2 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 19.6 cubic feet
- Refrigerator Style: Bottom Freezer
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bertazzoni
- Model Number: REF36BMBIXLT
- Product Name: 36 in. Wide 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker
- Color: Custom Panel Ready
- Dimensions
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 1/2 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Product Weight: 438 pounds (The out of box weight of the item.)
- Capacity
- Total Capacity: 19.6 cubic feet
- Refrigerator Capacity: 15 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: Bottom Freezer
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed left
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Ice only
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Adjustable, Fixed
- Refrigerator Shelf Material: Glass
- Filter Info
- Water Filtration: true
- Water Filter Model Number: Z330001 (The water filter model(s) recommended for use with the product.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 8057971100941
Bertazzoni built-in refrigerators are designed, engineered and made in Italy with the highest grade materials and components. The proprietary ‘lift & swing’ door hinge system makes them the ideal choice for true flush installation as a single unit or side-by-side. Using one of the available handle kits in Professional, Master and Heritage Series style, these refrigerators integrate seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen.
- Energy Star Rated: Refrigerator and freezer with 19.6 cu ft of total storage capacity.
- Installation: It has true flush installation with proprietary "lift & swing" hinges.
- Durability: It has an all metal construction liner for longer durability and optimized insulation.
- Temperature control: It has lateral airflow system, powered by dual variable-speed compressors and dual evaporators that reduces cold loss.
- FlexMode control: It can set the temperature in the lower drawer compartment a freezer, fresco or fridge.
Product Manuals
Q: How many external doors and drawers does this refrigerator have?
A: This Bertazzoni refrigerator has 1 external door and 1 external drawer.
A: The lateral airflow system in the Bertazzoni 19.6 cu. ft. Built-In Bottom Mount Refrigerator with Ice Maker reduces cold loss by utilizing dual variable-speed compressors and dual evaporators. This system maintains a consistent temperature throughout the refrigerator, ensuring optimal food preservation and preventing freezer burn.
A: Yes, this refrigerator has a water filter. The compatible water filter model number is Z330001.
A: The dual variable-speed compressors and dual evaporators in the temperature control system of the Bertazzoni 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker play a crucial role in maintaining precise and consistent temperatures within the fridge and freezer compartments.
A: Counter-depth refrigerators are designed to fit flush with the surrounding cabinetry, while standard-depth refrigerators protrude beyond the cabinetry. This model is a counter-depth refrigerator, with a depth of 24.19 inches.
Q: What is the height to the top of the door hinge, and why is this measurement important?
A: The height to the top of the door hinge is 83.5 inches. This measurement is important because it determines the maximum height at which the refrigerator can be installed. If the refrigerator is installed too high, the door may not open properly.
Q: How does the 'lift & swing' door hinge system contribute to the installation process?
A: The 'lift & swing' door hinge system allows for true flush installation of the refrigerator, making it easier to integrate seamlessly with other Bertazzoni appliances. This proprietary hinge system enables the refrigerator to be installed as a single unit or side-by-side, providing more flexibility during the installation process.
Q: What is the difference between a freezer, fresco, and fridge setting in the FlexMode control?
A: The freezer setting in the FlexMode control allows you to set the temperature between +5°F to -8°F, the fresco setting allows you to set the temperature between 28°F to 36°F, and the fridge setting allows you to set the temperature between 36°F to 46°F.
