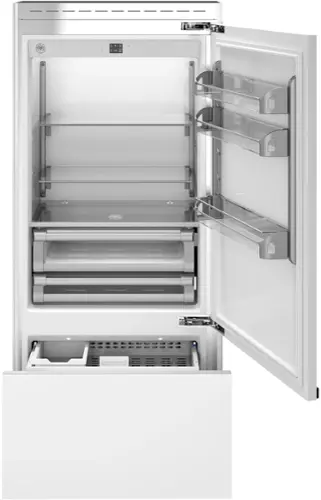

Bertazzoni - 36 in. Wide 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker - Custom Panel Ready
Specifications
- Product Height83 1/2 inchesProduct Width36 inchesHeight To Top Of Door Hinge83 1/2 inchesTotal Capacity19.6 cubic feetRefrigerator StyleBottom FreezerIce MakerYes
- Key Specs
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 1/2 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 19.6 cubic feet
- Refrigerator Style: Bottom Freezer
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bertazzoni
- Model Number: REF36BMBIPRT
- Product Name: 36 in. Wide 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker
- Color: Custom Panel Ready
- Dimensions
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 1/2 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Product Weight: 438 pounds (The out of box weight of the item.)
- Capacity
- Total Capacity: 19.6 cubic feet
- Refrigerator Capacity: 15 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed left
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Ice only
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Adjustable, Fixed
- Refrigerator Shelf Material: Glass
- Filter Info
- Water Filtration: true
- Water Filter Model Number: Z330001 (The water filter model(s) recommended for use with the product.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 8057971100910
Bertazzoni built-in refrigerators are designed, engineered and made in Italy with the highest grade materials and components. The proprietary ‘lift & swing’ door hinge system makes them the ideal choice for true flush installation as a single unit or side-by-side. These refrigerators integrate seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen.
- Energy Star Rated: Refrigerator and freezer with 19.6 cu ft of total storage capacity.
- Installation: It has true flush installation with proprietary "lift & swing" hinges.
- Durability: It has an all metal construction liner for longer durability and optimized insulation.
- Temperature control: It has lateral airflow system, powered by dual variable-speed compressors and dual evaporators that reduces cold loss.
- FlexMode control: It can set the temperature in the lower drawer compartment a freezer, fresco or fridge.
Product Manuals
Disclaimers
- Panel-ready products are designed to be fitted with custom cabinetry panels and handles, allowing them to blend seamlessly into your kitchen's design. If you do not install a panel on a panel-ready product, the unit will still function properly, but it will appear unfinished and aesthetically unappealing. Panels/Handles are sold separately.
Q: What are the different temperature settings for the lower drawer compartment?
A: The temperature settings for the lower drawer compartment, also known as the FlexMode drawer, can be adjusted between 28°F to 36°F in Fresco mode and +5°F to -8°F in Freezer mode.
Q: Where is the ice maker located in this refrigerator?
A: The ice maker in the Bertazzoni 19.6 cu. ft. Built-In Bottom Mount Refrigerator with Ice Maker is located in the freezer compartment.
Q: How many external doors and drawers does this refrigerator have?
A: This Bertazzoni refrigerator has 1 external door and 1 external drawer. The external door is the main door of the refrigerator, while the external drawer is the freezer drawer located at the bottom of the refrigerator.
Q: How does the lateral airflow system help in temperature control?
A: The lateral airflow system in the Bertazzoni 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker helps in temperature control by reducing cold loss. It utilizes dual variable-speed compressors and dual evaporators to maintain a consistent temperature throughout the refrigerator, ensuring optimal food preservation.
Q: What type of defrost system does this refrigerator have?
A: This refrigerator has an automatic defrost system. The context mentions "Defrost Type: Automatic".
Q: What is the model number of the water filter?
A: The water filter model number for the Bertazzoni 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker is Z330001.
Q: What is the height of the refrigerator?
A: The height of the refrigerator is 83.5 inches or approximately 6 feet 11 inches.
Q: What material are the refrigerator shelves made of?
A: The refrigerator shelves of the Bertazzoni 19.6 cu. Ft. Built-In Bottom Mount Refrigerator with Ice Maker are made of glass. This information is found in the section titled "Refrigerator Shelf Material" in the provided context.
