Blackmagic Design - Studio Camera 6K Pro (EF Mount) Live Production Camera
Blackmagic Design - Studio Camera 6K Pro (EF Mount) Live Production Camera
FREE shipping to
Specifications
- Effective Pixels21.2 megapixelsStandardized Video Resolution4K (2160p)
- Key Specs
- Effective Pixels: 21.2 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: Blackmagic Design
- Model Number: BMD-CINSTUDMFT-G26PDK
- Product Name: Studio Camera 6K Pro (EF Mount) Live Production Camera
- Digital Camera Type: Mirrorless Camera Body Only
- Imaging
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Digital Zoom: None (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- Focus
- Autofocus: false (Allows the camera to automatically focus through the lens, rather than by adjusting the lens manually.)
- Exposure Control
- Shutter Speeds: 1/5000 to 1/24 Second (The length of time the shutter remains open when the shutter release is activated, expressed in fractions of seconds. The longer the shutter is open, the more light that is able to be captured by the camera sensor.)
- Effective Pixels: 21.2 megapixels (The actual number of pixels which make up the viewable image.)
- Lens
- Lens Mount Compatibility: Canon EF
- Flash
- Integrated Flash: false
- Video
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Video Resolution(s) and Frame Rate(s): Capture up to 6K 6144 x 3456p50 (Refers to the number of pixels, both horizontally and vertically, and the frame rate used to capture the video. The higher the resolution the finer the video detail that can be seen. The faster the frame rate the smoother the playback for higher motion activities like sports.)
- Compatibility
- Memory Card Compatibility: None (The type of memory card(s) recommended for use with the product.)
- Features
- Integrated GPS: No
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Power
- Rechargeable Battery: false
- Included
- Number of Lenses Included: 0

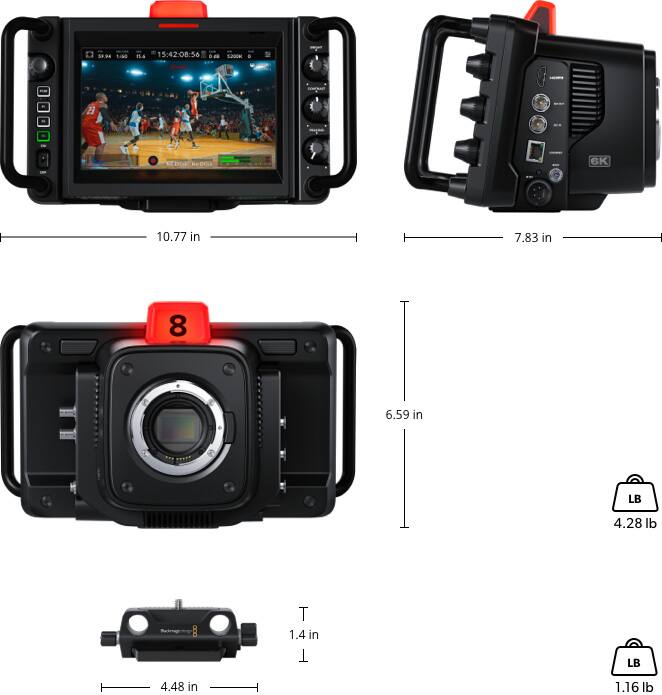

- Dimensions
- Product Height: 7.83 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.77 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.59 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 Year Manufacturer's Warranty
- Warranty - Labor: 1 Year Manufacturer's Warranty
- Other
- UPC: 9338716008036
Designed for professional SDI switchers, you get the features of the Studio Camera Plus model, as well as 12G-SDI, XLR audio, bright HDR LCD, talkback, 10G Ethernet IP link and HD live streaming. That's perfect when the camera is located a long distance from a switcher. There's a 12G-SDI output and a 12G-SDI program return input that includes camera control, talkback and tally. You also get the same powerful HDMI output with control features. Plus the 10G Ethernet connection allows all connections on a single cable for a SMPTE style workflow that's much lower cost. Blackmagic Design Studio Camera 6K Pro (EF Mount) also includes built-in live streaming! This means you can place a camera in a remote location and it can generate a H.264 HD live stream that is sent over the internet back to the studio. Simply connect the camera to the internet using the built in Ethernet connection, or you can connect a 4G or 5G phone to the USB-C port to stream via remote data! The live stream is received in the studio by an ATEM Streaming Bridge where it's converted back to video for connection to a switcher. The ATEM Streaming Bridge can even send tally, talkback and camera control back to the camera!

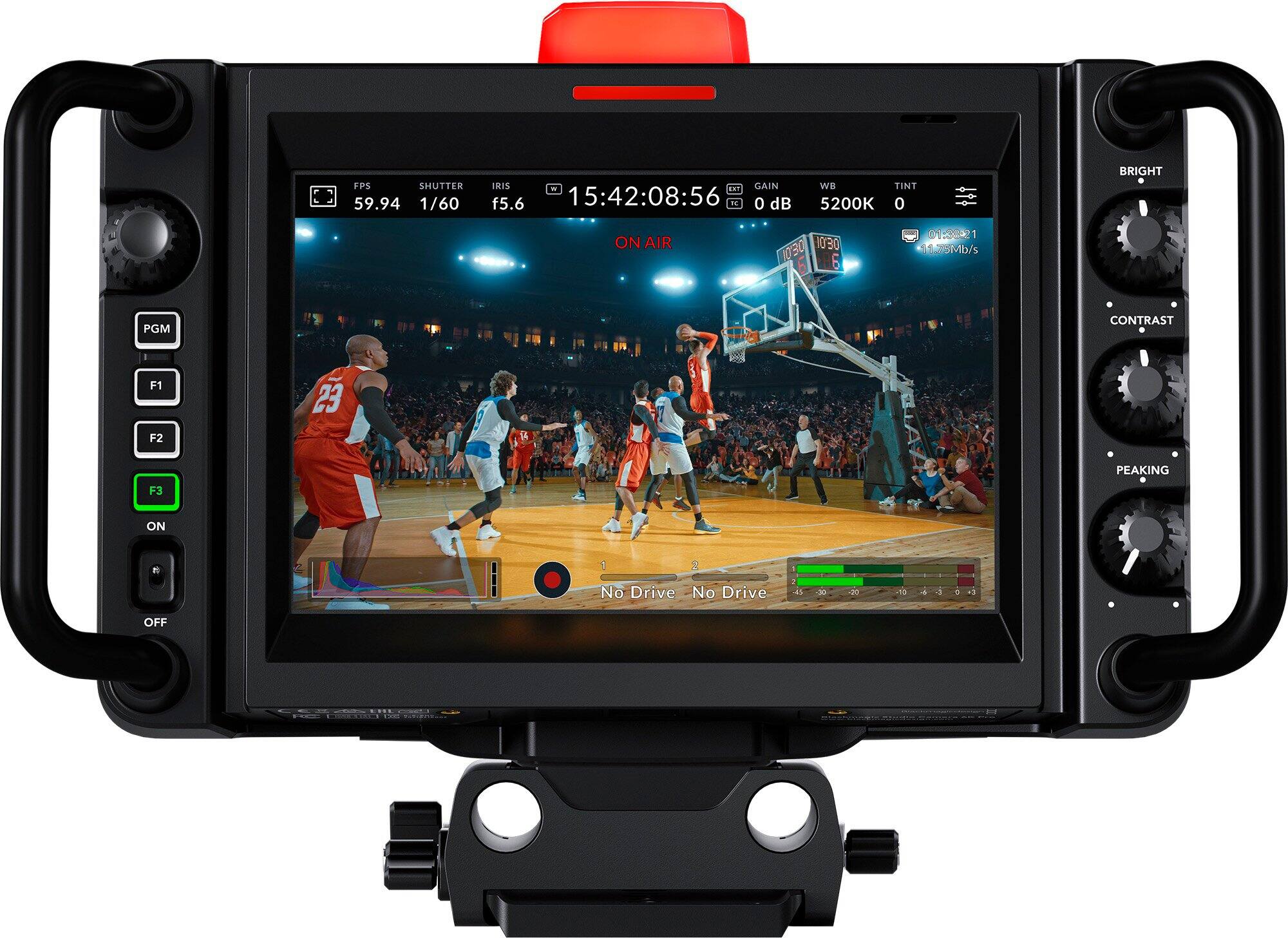

- PERFECT FOR BROADCAST: Designed as the perfect studio camera for ATEM Mini switchers, this model has a 6K sensor up to 25,600 ISO, EF lens mount, HDMI out, SDI connections, 7" HDR LCD with sunshade, built-in color correction, built-in microphones, built-in hardware live streaming, and recording to USB disks.
- ADVANCED FEATURES: Light, miniaturized carbon composite body; Dual native ISO of 400 and 3200; 13 stops of dynamic range; Built-in 2, 4, and 6-stop neutral density (ND) filters; Blackmagic RAW recording; Talkback; Tally; Remote camera control; LWS tripod mount (included) and more!
- DESIGNED FOR LIVE PRODUCTION: The 6K Pro Studio Camera is perfect for chat shows, television production, broadcast news, sports, education, conference presentations, concerts, and even weddings!

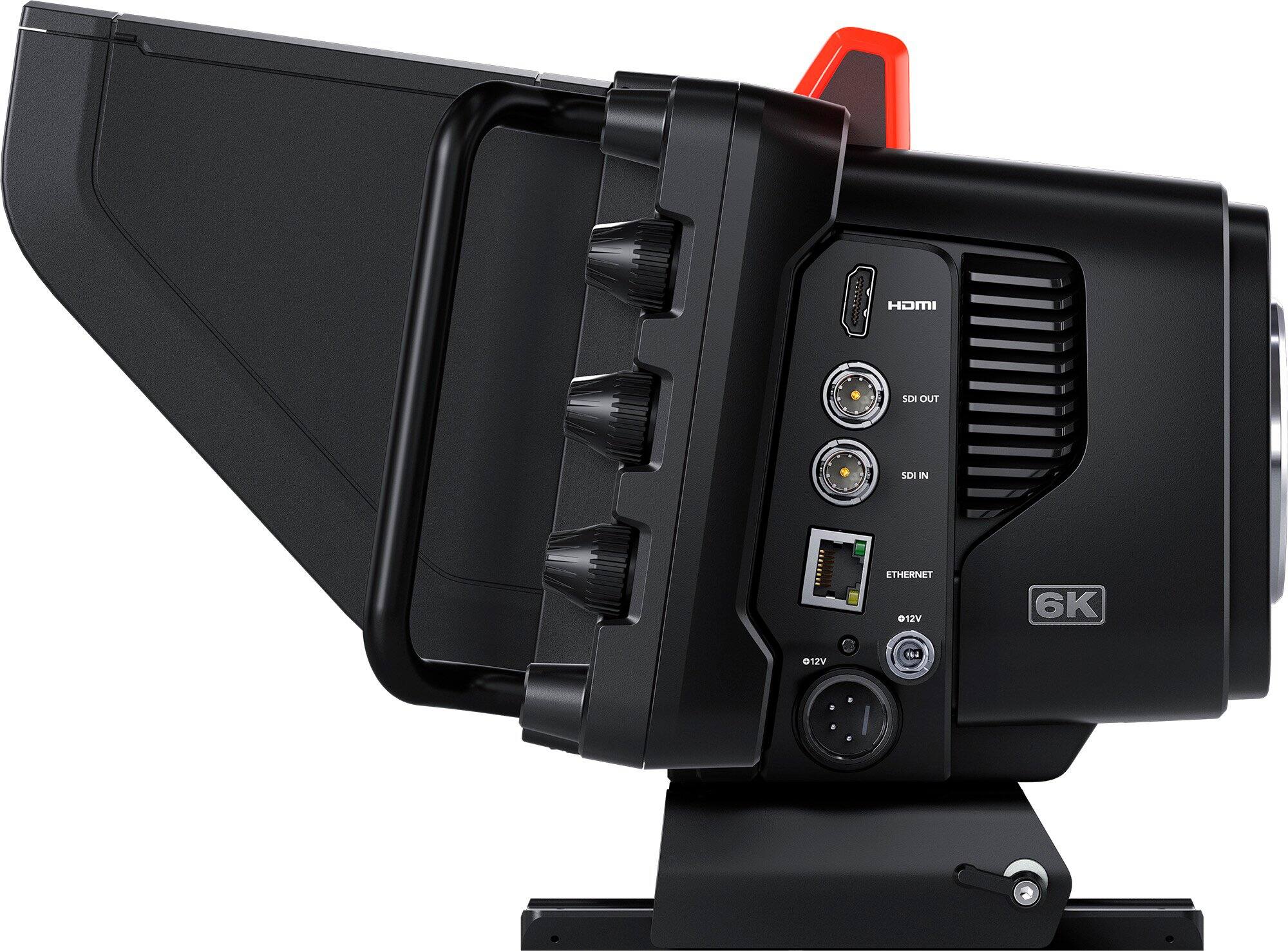

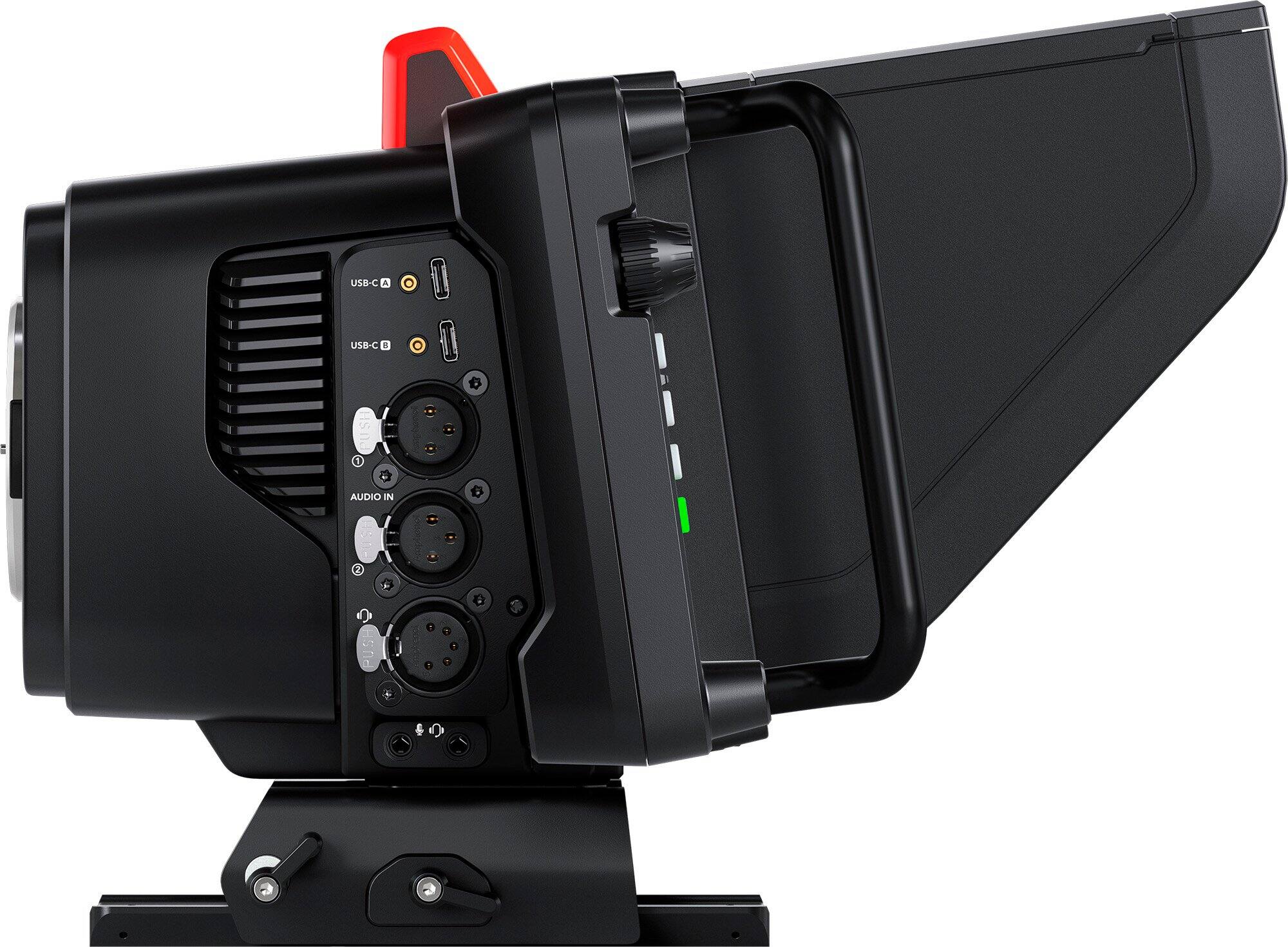

- POWERFUL BROADCAST CONNECTIONS: 1 x HDMI 2.0 Output; 1 x 12G-SDI Input; 1 x 12G-SDI Output; 2 x XLR Audio Inputs; 1 x XLR Audio Output; 10G Ethernet; 1 x 3.5mm Audio Input; 1 x 3.5mm Audio Output; 2 x USB 3.1 ports for recording or Blackmagic accessories (Zoom Demand and/or Focus Demand – not included).
- INCLUDES: Studio Camera 6K Pro (EF Mount) Body, Sun Shade, 15mm LWS Tripod Mount, Tripod Mount Plate, Turret Dust Cap, Power Supply w/international adapters
Whats Included
- Studio Camera 6K Pro (Body), Sun Shade, Tripod Mount & Plate, Dust Cap, Power Supply
