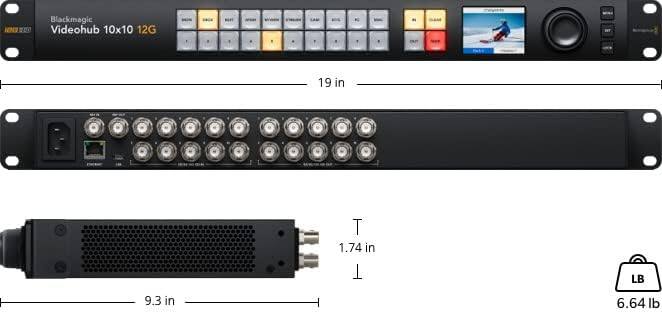

Blackmagic Videohub 10x10 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 10 12G-SDI inputs and 10 12G-SDI outputs plus reference connections in a one rack unit size. The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.Blackmagic Videohub 12G eliminates cable mess because you can plug all your SDI equipment into the router, then do connections electronically! You don't need complex system diagrams for your studio because you can connect any video input to any video output, or even a single video input to multiple video outputs. This means monitors can view any source in the studio! You get total flexibility to handle constant change or even emergencies. It lets you use multiple HyperDeck recorders for redundant mastering. Or you can route video to multiple streaming processors for all broadcast platforms. Blackmagic Videohub 12G is also great for adding extra inputs to an ATEM switcher!

• 12G-SDI Connections: This Videohub 12G model features 10 12-G SDI inputs and outputs for routing up to 10 different video standards at the same time. It supports up to DCI 4K60 resolution with 4:2:2 8 or 10 bit color routing or 4:4:4 12-bit up to DCI 4K30.
• Full SDI Re-Clocking: Every 12G-SDI input features built-in re-clocking which regenerates the video signal for maximum quality allowing for longer cables and reducing or eliminating signal loss and jitter.

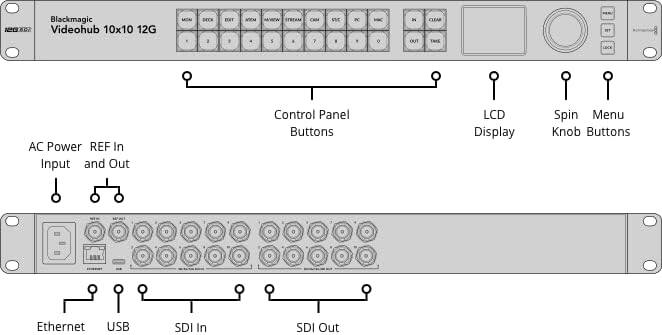

• Front Panel: The built-in front control panel lets you route video without extra hardware. It features a spin knob for browsing, direct entry buttons for speed, and an LCD for labels and live video monitoring. The LCD also includes menus for changing router settings, making it a compact, all-in-one solution for live production racks.
• Videohub Setup Utility: Included software lets you customize the router input and output labels. ou can even enable the take button to be used when changing sources, plus the take button can be enabled for each specific video output. The Videohub Setup also lets you program the buttons on the front panel, update the router software, or configure external hardware panels. The software supports Mac and Windows and can be connected via Ethernet or USB.
• Includes: Blackmagic Design Videohub 10x10 12G (VHUBSMAS12G1010). Power Supply is not included.
