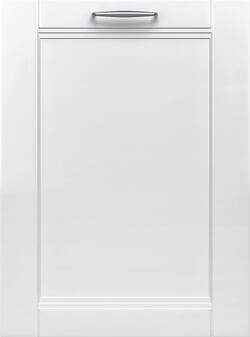

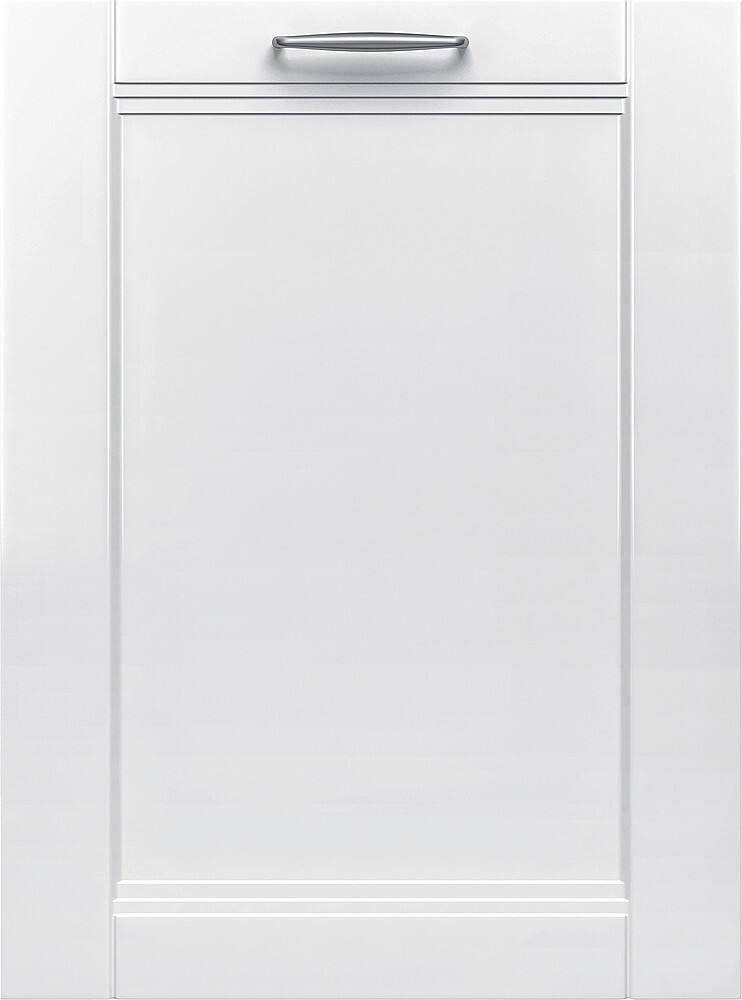

Bosch - 100 Series Top Control Built-In Hybrid Stainless Steel Tub Dishwasher 49 dBA - Custom Panel Ready
Model: SHVM4AYB3N
SKU: 6522464
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Custom
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 13/20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 49 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: SHVM4AYB3N
- Product Name: 100 Series Top Control Built-In Hybrid Stainless Steel Tub Dishwasher 49 dBA
- Color: Custom Panel Ready
- Color Finish: Custom
- Vendor Collection: Bosch 100 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 13/20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 21 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Door Open: 47 1/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 79 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 49 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 4 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 4
- Options and Programs: none
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.2 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 2
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Panel(s) Included: false
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Display Type: LCD
- Handle Type: Bar handle - not included
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: true (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1-year
- Warranty - Labor: 1 year
- Other
- UPC: 825225955856
Make quick work of dishwashing with this 24-inch Bosch built-in dishwasher. With a sound level no higher than 50 dBA, it won't disturb you while you're in the kitchen, and the extra utility rack provides a place for all your odd-sized items. This Bosch built-in dishwasher has a stainless steel tall tub for longevity.
Whats Included
- 100 Series Top Control Built-In Hybrid Stainless Steel Tub Dishwasher
- 100 Series Top Control Built-In Hybrid Stainless Steel Tub Dishwasher
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Hi LG, thanks for your question and interest in model SHVM4AYB3N. This dishwasher has a hybrid tub, meaning the bottom of the tub is polypropylene and the rest is stainless steel.
A: Hi Michelle, thanks for your question. There is no difference in function specifically between black and stainless steel colors. The difference comes in the features between series. You can view a complete overview of all of our series and even compare different models directly on the Bosch website. If you have any additional questions, please contact our customer service team at 1-800-944-2904 for real-time assistance.
Q: What is the lead time for this unit as of today. May on be on a waiting list?
A: we waited about three weeks
Q: Does this item come with the custom panel door installed? And what color is it!
A: it comes with no custom panel and no directions to attach one!
Q: Does installation include installing the panel front?
A: Hi Dee, thanks for your question and for your interest in model SHVM4AYB3N. We recommend contacting your local Best Buy store for all installation-related inquiries. They will be able to advise if attaching the custom door panel is included with their installation. Thank you for considering Bosch!
Q: What are the dimensions of the panel required for this dishwasher?
A: height 27 3/4-30 1/2 width 23 3/8. I can't believe they replied with the page to find the info but not the info. What a customer service. Don't buy from Best Buy
