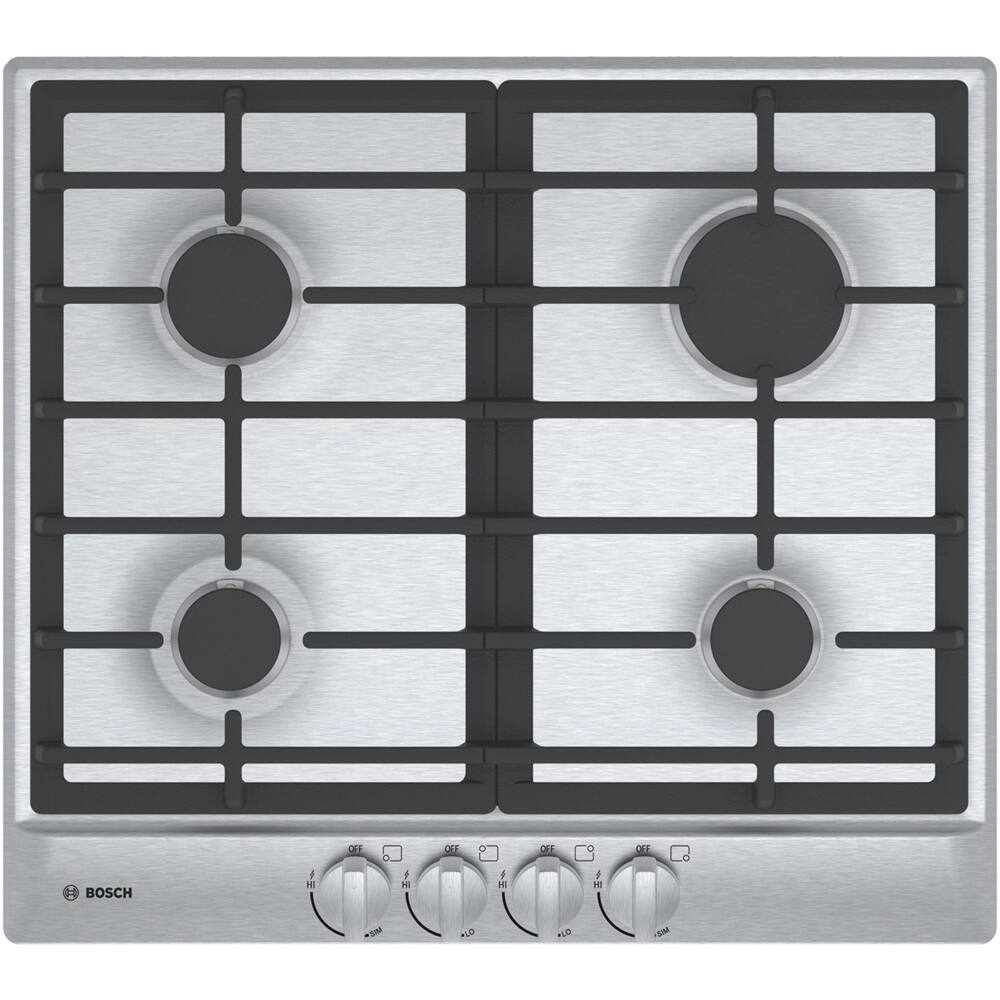

Bosch - 500 Series 24" Built-In Gas Cooktop with 4 burners - Stainless steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 2 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 4
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NGM5456UC
- Product Name: 500 Series 24" Built-In Gas Cooktop with 4 burners
- Color: Stainless steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 2 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 32 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 2 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 20 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 4
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: false (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 4999 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 4999 british thermal units
- Burner 3 Rating: 9301 british thermal units
- Burner 4 Rating: 11499 british thermal units
- Total Maximum BTU Rating: 30800 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Propane Kit Model Compatibility: 18037027
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: Not available
- Warranty - Labor: Not available
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225937982
Install this 24-inch Bosch gas cooktop to a kitchen island. It has an 11,500 BTU burner for producing rapid boils, and the electronic re-ignition on all four burners automatically lights the flame if it's extinguished. This stainless steel Bosch gas cooktop has continuous grates for safe movement of heavy pots.
- Safely and easily move pans from burner to burner: Continuous grates create a flat and sturdy cooking surface.
- Stainless steel cooktop: Provides a smooth surface that makes cleaning fast and simple.
- 4 burners: Deliver 1465-3370 watts of power for versatile heating options.
- Automatic electronic ignition: Ensures simple startup of your cooktop.
- Mechanical controls: Let you easily select the heat setting.
- Safely and easily move pans from burner to burner: Continuous grates create a flat and sturdy cooking surface.
- Stainless steel cooktop: Provides a smooth surface that makes cleaning fast and simple.
- 4 burners: Deliver 1465-3370 watts of power for versatile heating options.
- Automatic electronic ignition: Ensures simple startup of your cooktop.
- Mechanical controls: Let you easily select the heat setting.
Whats Included
- Bosch 500 Series 24" Gas Cooktop
- LPG conversion kit
- Bosch 500 Series 24" Gas Cooktop
- LPG conversion kit
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: Are the grates dishwasher safe?
A: The context mentions that "Do not clean removable cooktop parts in any self cleaning oven or dishwasher." Therefore, the answer is: NO.
Q: What is the maximum BTU rating of this cooktop?
A: The maximum BTU rating of the Bosch 500 Series 24" Built-In Gas Cooktop with 4 burners is 11,500 BTU. This information can be found in the product description, which states that "It has an 11,500 BTU burner for producing rapid boils."
Q: What is the material of the cooktop surface?
A: The cooktop surface of the Bosch 500 Series 24" Built-In Gas Cooktop with 4 burners is made of stainless steel, providing a smooth and easy-to-clean surface.
Q: What is the height of the cooktop?
A: The height of the cooktop is 2 3/4 inches. The cut-out height is also 2 3/4 inches.
Q: What is the weight of the cooktop?
A: The weight of the Bosch 500 Series 24" Built-In Gas Cooktop with 4 burners is 32 pounds.
Q: How many burners does this Bosch gas cooktop have?
A: This Bosch gas cooktop has four burners. The product name itself indicates this: "500 Series 24\\" Built-In Gas Cooktop with 4 burners". Additionally, the product features section confirms this: "4 burners: Deliver 1465-3370 watts of power for versatile heating options."
Q: What is the warranty on this cooktop?
A: The Bosch 500 Series 24" Built-In Gas Cooktop with 4 burners comes with a limited warranty. The warranty covers defects in materials and workmanship for a period of three hundred sixty-five (365) days from the date of purchase. Cosmetic defects are covered for thirty (30) days from the date of purchase or closing date for new construction.
Q: Does this cooktop have a child lock feature?
A: The product specifications section mentions "Child Lock: false", indicating that this cooktop does not have a child lock feature. However, the product manual mentions "Child Safety" and provides safety instructions for children, but it does not specifically mention a child lock feature. Therefore, the answer is: NO.
