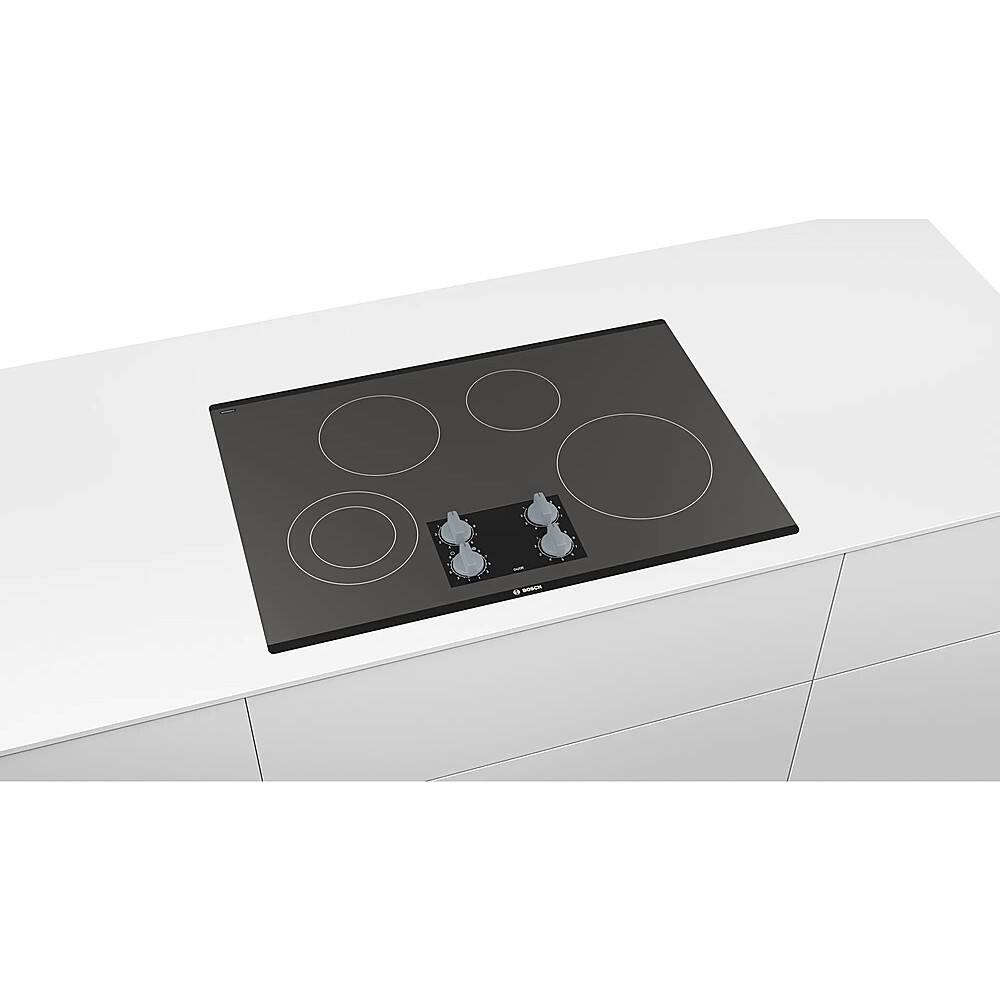

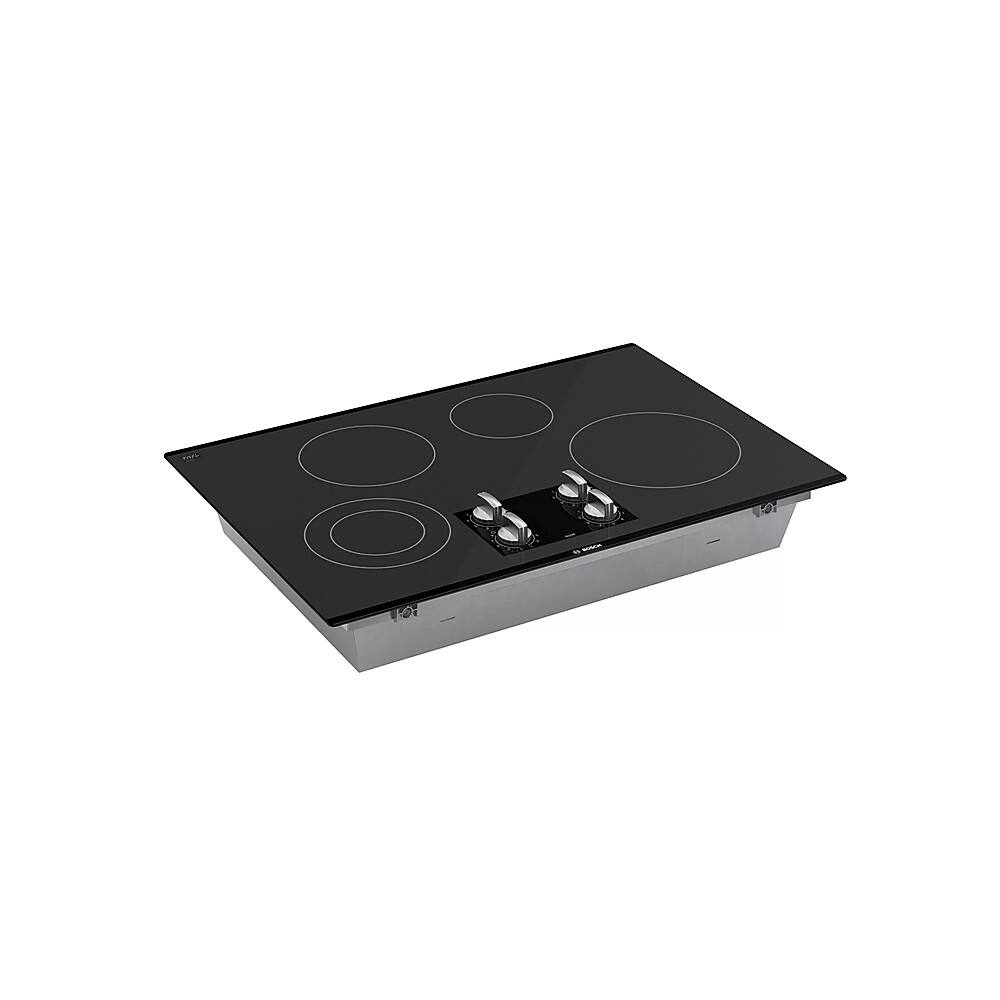

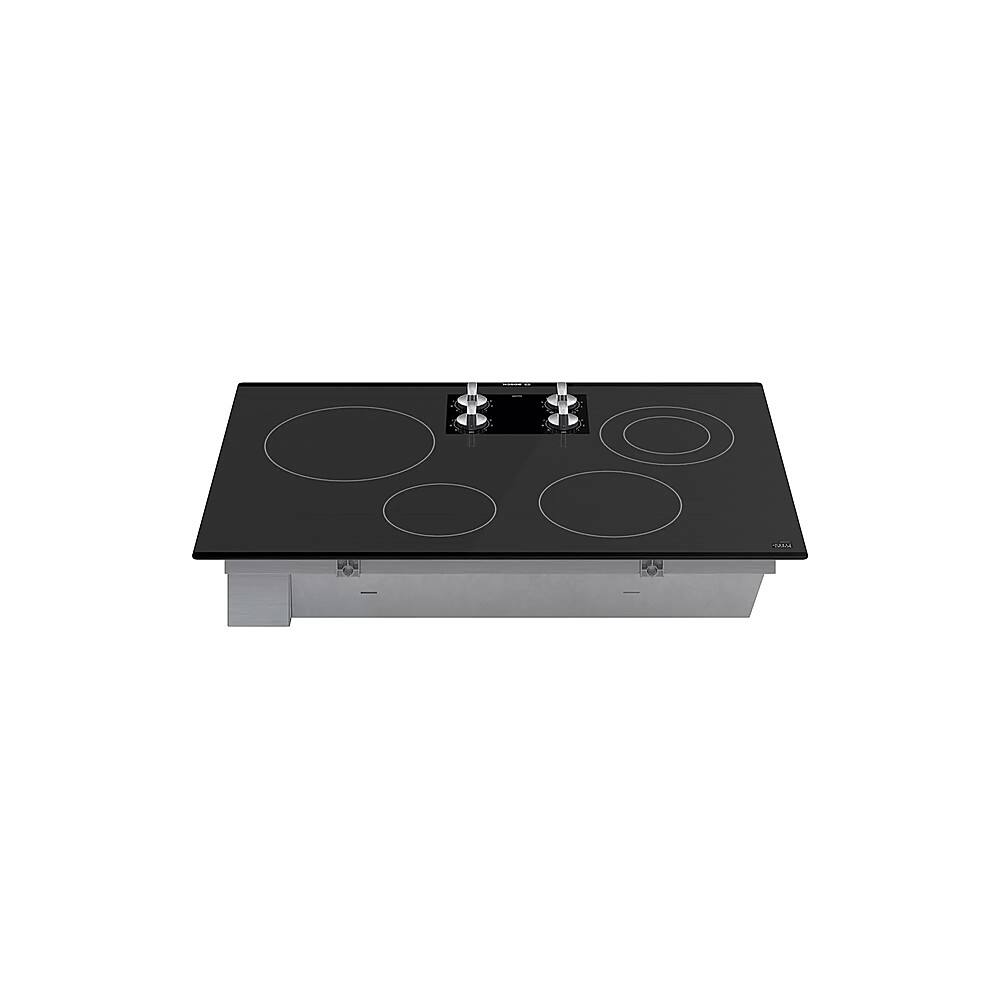

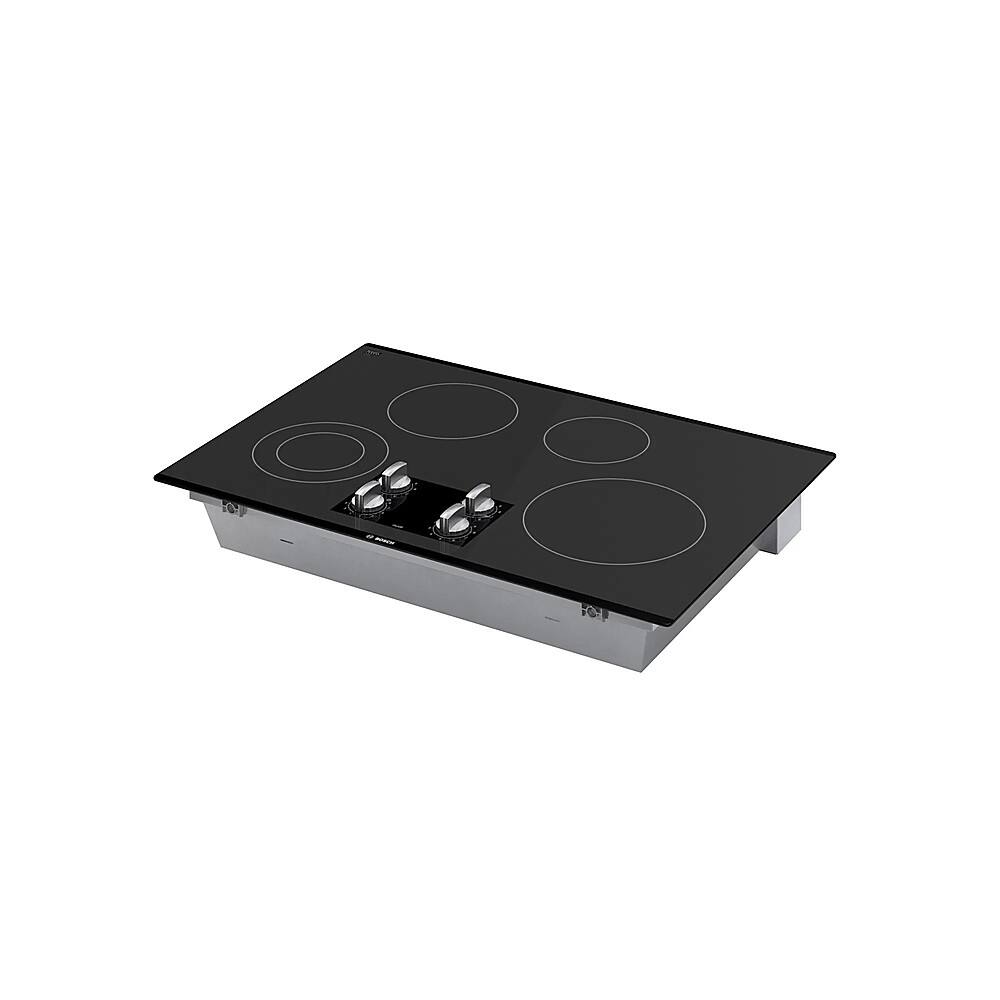

Bosch - 500 Series 30" Built-In Electric Cooktop with 4 elements - Black
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishBlackProduct Height4 1/4 inchesProduct Width31 inchesProduct Depth21 1/4 inchesCooktop Surface TypeSmoothtopNumber of Elements4
- Key Specs
- Color Finish: Black
- Product Height: 4 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NEM5066UC
- Product Name: 500 Series 30" Built-In Electric Cooktop with 4 elements
- Color: Black
- Color Finish: Black
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 26 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: false
- Power-On Indicator Light(s): true
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 4
- Number of Elements: 4
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): none
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Element Wattage
- Element 1 Wattage: 1700 watts
- Element 2 Wattage: 1800 watts
- Element 3 Wattage: 1200 watts
- Element 4 Wattage: 2500 watts
- Electrical Specification
- Wattage: 7200 watts (Measurement of electrical power.)
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225907480
This Bosch 500 Series NEM5066UC electric cooktop features extensive temperature controls for precise operation and a seamless glass smoothtop design for easy cleanup. Four elements, including a dual element, deliver between 700W and 2500W of power.

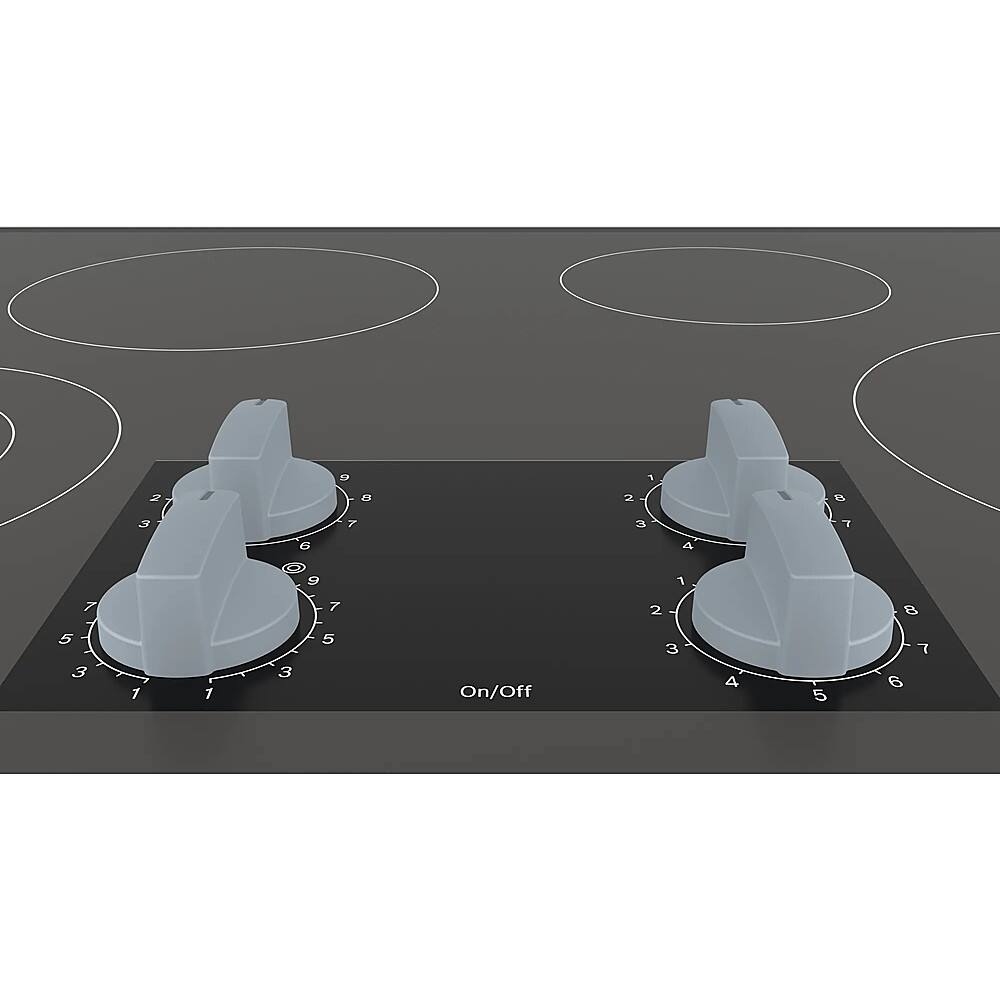

- Extensive temperature controls: Allow you to achieve precise results.
- Dual element: Accommodates multiple pan sizes for flexible cooking.
- 4 elements: Include one 6", 1200W back-right element, one 7", 1800W back-left element, one 9", 2500W front-right element and one dual 5"/7", 700W/1700W front-left element for versatility.
- 2-level heat indicator: Shows you when the cooktop is warm or hot. An element-on indicator light lets you know when an element is turned on for safety.

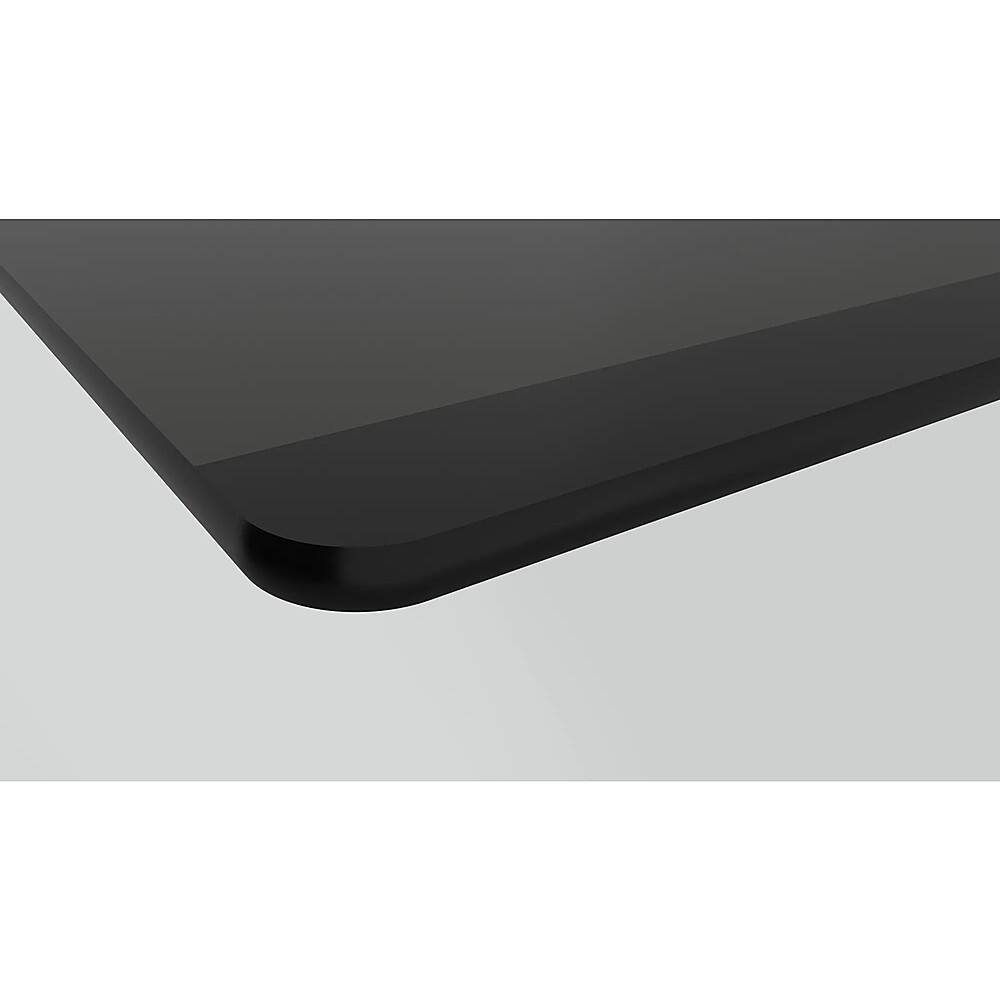

- Seamless glass smoothtop design: Helps simplify cleanup.
- Extensive temperature controls: Allow you to achieve precise results.
- Dual element: Accommodates multiple pan sizes for flexible cooking.
- 4 elements: Include one 6", 1200W back-right element, one 7", 1800W back-left element, one 9", 2500W front-right element and one dual 5"/7", 700W/1700W front-left element for versatility.
- 2-level heat indicator: Shows you when the cooktop is warm or hot. An element-on indicator light lets you know when an element is turned on for safety.
- Seamless glass smoothtop design: Helps simplify cleanup.
Whats Included
- Bosch 500 Series 30" Built-In Electric Cooktop
- Owner's manual
- Bosch 500 Series 30" Built-In Electric Cooktop
- Owner's manual
Q: How many elements does this cooktop have?
A: This cooktop has 4 elements.
Q: Does this cooktop come with a power cord?
A: No, a power cord is not included with this cooktop.
Q: Is this cooktop compatible with an app?
A: No, this cooktop is not compatible with an app.
Q: What is the wattage of the cooktop?
A: The total wattage of the cooktop is 7200 watts.
Q: Does this cooktop have a digital display?
A: No, this cooktop does not have a digital display.
Q: What type of power source does this cooktop use?
A: This cooktop uses an electric power source.
Q: Does this cooktop have a timer that shuts off ?
A: Hi, thanks for your question. Model NEM5066UC does not have a time that shut off. .
Q: what is the cut out of this cook top?
A: undefined
Compare similar products
This Bosch 500 Series NEM5066UC electric cooktop features extensive temperature controls for precise operation and a seamless glass smoothtop design for easy cleanup. Four elements, including a dual element, deliver between 700W and 2500W of power.
The Bosch 30" 800 Series framed electric cooktop is sleek in design, and features SpeedBoost which adds even more power to speed up the cooking process.
Take your kitchen to the next level with our specially engineered induction technology that delivers even cooking with speed, responsiveness, and greater energy efficiency than electric or gas cooktops. Our built-in cooktop features a 4.3kW UltraHeat element that provides exceptional performance for quick boiling and simmering. The SmoothTouch glass controls provide sleek style and easy operation with just a touch of your finger. Thanks to induction technology, the cooktop surface remains cooler than electric and gas alternatives, offering greater safety and easier cleanup.
The Bosch 30" 800 Series frameless electric cooktop is sleek in design, and features SpeedBoost which adds even more power to speed up the cooking process.
| Pros for Bosch - 500 Series 30" Built-In Electric Cooktop with 4 elements - Black | |||
|---|---|---|---|
| Ease of Cleaning | There were no pros for this product— | Overall Performance, Ease of use, Heating Speed, Design | There were no pros for this product— |
Specs
- Whirlpool - 30-inch Electric Range with No Preheat Mode - Stainless SteelWinter Sale Deal$629.99
- Whirlpool - 5.0 Slide-In Gas Range with Air Cooking Technology - Stainless SteelWinter Sale Deal$1,099.99
Reviews
Customers are saying
Customers are impressed with the 500 Series 30" Built-In Electric Cooktop's ease of cleaning. Positive feedback highlights its simple design and straightforward cleanup process, making it convenient for users. Installation is also reported to be easy. No significant drawbacks were mentioned in customer reviews.

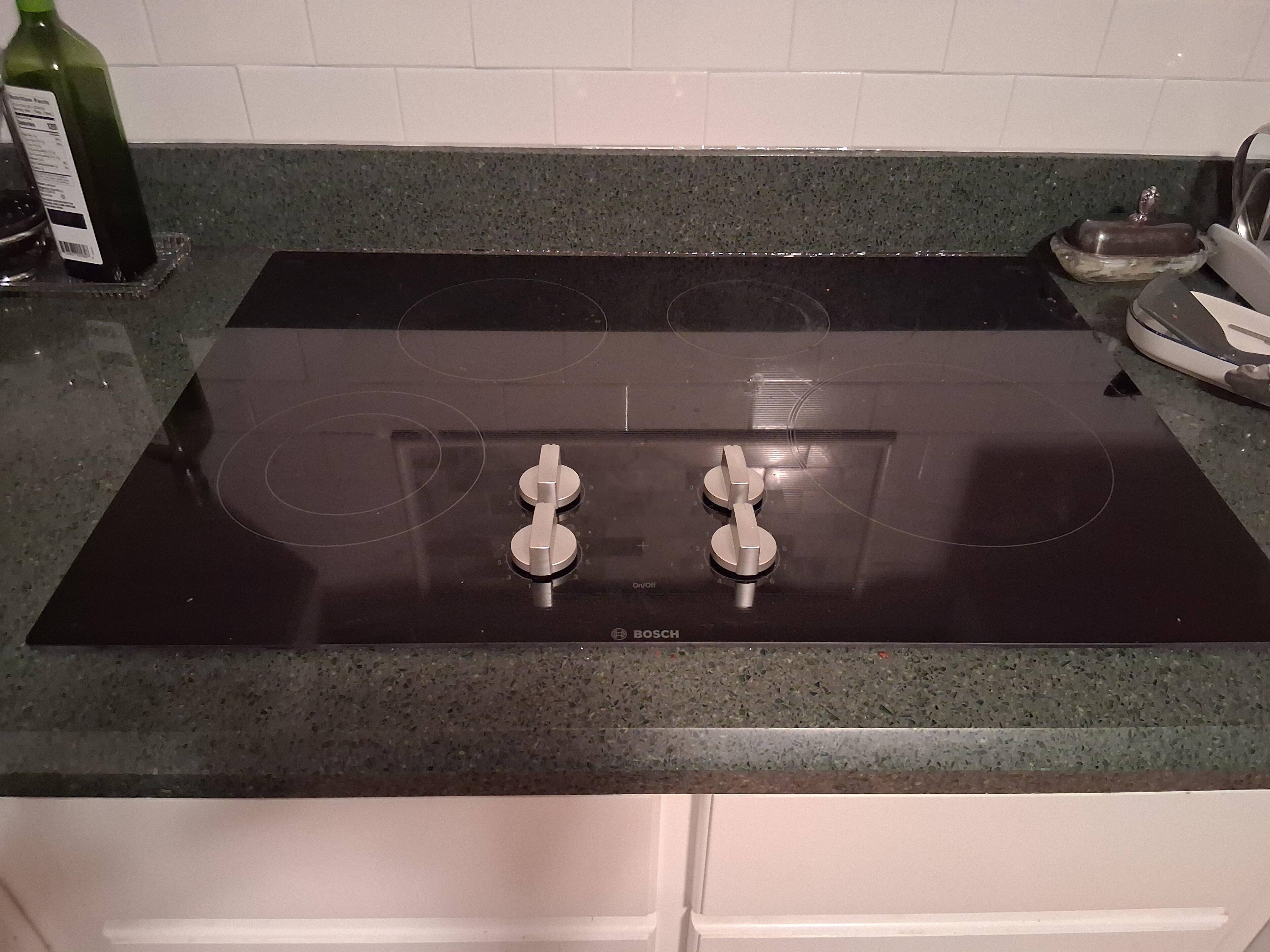

Customer Images
