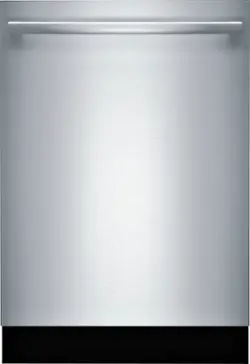

Bosch - 800 Series 24" Top Control Built-In Tub Dishwasher with 3rd Rack and CrystalDry, 40 dBa - Stainless steel
Model: SHXM88Z75N
SKU: 6360647
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 40 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: SHXM88Z75N
- Product Name: 800 Series 24" Top Control Built-In Stainless Steel Tub Dishwasher with 3rd Rack and CrystalDry, 40 dBa
- Color: Stainless steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 23 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 48 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 92 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 40 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: false (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 6
- Options and Programs: Half load, delicate wash, normal, auto, rinse, eco wash, heavy wash, sanitary, 1 hour, CrystalDry option
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Rack handle, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Rack handle, Adjustable tines, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Rack handle, Adjustable tines (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Display Type: LED
- Handle Type: Bar handle
- Fingerprint Resistant: false
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 825225957614
Fit all your dishes into one load with this Bosch 800 Series top-control dishwasher. The customizable MyWayRack provides space for deep bowls and oversized dishes so you can put more in the bottom. With a bright LED InfoLight that shines on the floor while it's running, this Bosch 800 Series top-control dishwasher lets you know at a glance when it's time to unload.
- The ultimate clean. The ultimate dry, even on plastics: Patented CrystalDry technology transforms moisture into heat to get dishes 60% drier, including plastics.
- Simple setting navigation: Electronic controls and LED display allow ease of use.
- Bar-style handle: For easy grasping.
- Enjoy a quiet kitchen: EcoSilence drive helps reduce disruptive sounds.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 16 place settings: Generous interior space means more clean dishes, less loads.
- Half load, delicate wash, normal, auto, and more: 6 cycle options offer a variety of cleaning choices.
- The ultimate clean. The ultimate dry, even on plastics: Patented CrystalDry technology transforms moisture into heat to get dishes 60% drier, including plastics.
- Simple setting navigation: Electronic controls and LED display allow ease of use.
- Bar-style handle: For easy grasping.
- Enjoy a quiet kitchen: EcoSilence drive helps reduce disruptive sounds.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 16 place settings: Generous interior space means more clean dishes, less loads.
- Half load, delicate wash, normal, auto, and more: 6 cycle options offer a variety of cleaning choices.
Whats Included
- Bosch 800 Series 24" Top Control Built-In Dishwasher with Stainless Steel Tub, 3rd Rack, 40 dBa
- Cutlery basket
- Drain hose
- Power cord
- Bosch 800 Series 24" Top Control Built-In Dishwasher with Stainless Steel Tub, 3rd Rack, 40 dBa
- Cutlery basket
- Drain hose
- Power cord
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: My dishwashing cycle is stuck on auto. How do I fix this?
A: Some of these are close but... Hold the reset button down until the timer goes to 001. Then turn it off, and turn it on again. It will still say Auto, so you would think nothing has changed, BUT - you can now pick another mode and it will change this time.
Q: Does the door open automatically when the cycle ends?
A: Hi Cre. Thank you for your question. The 800 Series Dishwasher, Model:SHXM88Z75N features the Crystal Dry Option, which will dry your dishes 60% better. The 500 Series Dishwasher, Model #SHXM65Z55N has the AutoAir Option, which when chosen will open the door when the interior of the dishwasher cools to 118 degrees F.
Q: Does the light come on the floor when the cycle is finished and is the light blue?
A: I have not experienced this with my model.
Q: What coating is used on the racks?
A: Hi there. Thank you for your question. The racks for Model:SHXM88Z75N are galvanized steel with two layers of nylon.
Q: Is the stainless steel door fingerprint resistant?
A: Stainless steel door not fingerprint resistant. Smudges and handprints will show but wipe away quickly with a soapy cloth. Surface is slightly more textured than other stainless steel appliances we have and cleans up better than the smoother stainless material.
A: The smaller slotted rack on the top right is best for protecting the blades of sharp knives where each knife has its own slot and doesn't touch anything else. The rest of the top rack is open without slots. Best for large prep and cooking utensils, measuring cups and shallow bowls. Loose table flatware could be spread out and would not fall through this open area, but I would not recommend this space for flatware which belongs on end in the basket in the bottom rack. On the top rack, spoons not carefully placed upside down would have water pooled in the bowls and none of the flatware would shed water as easily as on end in the lower basket.
Q: Does this model have a hard food disposer?
A: No. none of the Bosch models have a disposer. that is one of the reasons why they are so reliable. There is a filter and screen at the bottom that is easily removed for cleaning.
A: The 800 series doesn't have this option. it uses crystal dry technology
