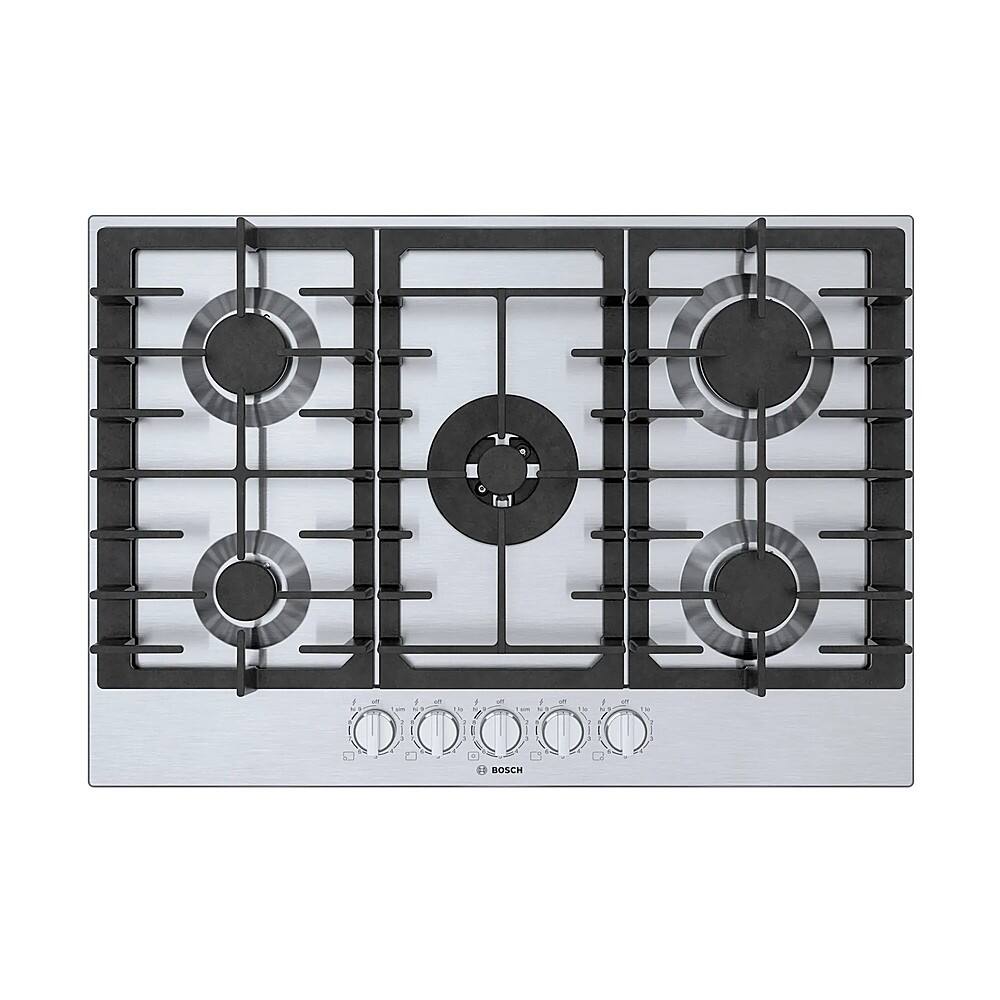

Bosch - 800 Series 30" Built-In Gas Cooktop with 5 burners - Silver
- Key Specs
- Color Finish: Silver
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NGM8057UC
- Product Name: 800 Series 30" Built-In Gas Cooktop with 5 burners
- Color: Silver
- Color Finish: Silver
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 38 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 1 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 15/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 5
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): OptiSim burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 3400 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 6000 british thermal units
- Burner 3 Rating: 17000 british thermal units
- Burner 4 Rating: 9000 british thermal units
- Burner 5 Rating: 6000 british thermal units
- Total Maximum BTU Rating: 41400 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Propane Kit Model Compatibility: 12028831
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225958437
Bosch 800 Series 30" Built-In Gas Cooktop: Upgrade your cooking with this Bosch 30-inch gas cooktop. Five burners with different BTU outputs let you prepare multiple dishes, while an electric ignition system simplifies startups. This Bosch 30-inch gas cooktop features heavy-duty grate construction to withstand rugged use and a compact design for easy placement in limited spaces.
- FlameSelect technology: Allows a precise adjustment of the fame size with nine defined power levels.
- Dual-flame power burner with two heat options: Lets you quickly boil water or maintain a precise simmer.
- OptiSim burner: Enables you to simmer delicate sauces and melt chocolate without scorching.
- Sealed cooktop burners: Eliminate the space between the burners and the cooktop to avoid spills and boiling for easy cleaning.
- Heavy-duty grates: Continuous grates are dishwasher safe that makes cleaning fast and simple.
- Five burners: Deliver 3,400 to 17,000 BTUs of power for versatile boiling options that meet a range of cooking requirements.
Whats Included
- Bosch 800 Series 30" Built-In Gas Cooktop
- LP conversion kit
- OptiSim cap
- Owner's manual
- Simmer cap
Q: Do the knobs have glowing light, to indicate whether the burners are on/off?
A: Hi there, thank you for your question. The knobs on Model:NGM8057UC do not have a glowing light. Here is the link to the User Guide: https://media3.bosch-home.com/Documents/9001415539_B.pdf
A: Hi there, thank you for your question and interest in Model:NGM8057UC. Please contact our Customer Support Team for help with this. They can be reached at 800-944-2904.
Q: The photo indicates a rear downdraft vent. Which one is being used or it included?
A: Hi Sam, thank you for your question and interest in Model:NGM8057UC. The Downdraft Vent is not included with the Gas Cooktop. The Downdraft Vent shown is Model: HDD80051UC.
Q: Are the knobs on the NGM8056UC model metal or plastic? Same question for the model NGM8057UC?
A: Hi Phredd, thank you for your question and interest in Model:NGM8057UC. Yes, the knobs on both cooktops are metal.
Q: Does this come with a downdraft fan or can one be installed with it? If so, which one?
A: Mary - unless major changes have been made over the years, I would not recommend a downdraft with a gas cooktop. Although my experience was with another highly rated cooktop & vent (not this manufacturer), the vent was not strong enough for the front burners. Even worse ... the flame on the rear & center burners was actually pulled towards the downdraft. This resulted in very uneven cooking ... high flame in the back, low to no flame in the front of the pans. I would ask for a demonstration before pairing a downdraft with a gas cooktop.
A: Hi EigerGirl. Thank you for your question. One way to determine the CFM needed is to take the kitchen square footage, multiply by 15 (assuming 1 exhaust), then divide that result by 60.
Q: What is the difference between “built-in” and regular gas cooktops?
A: Hi Theresa, thank you for your question. All cooktops are basically built-in as they have to be installed within the cabinet.
