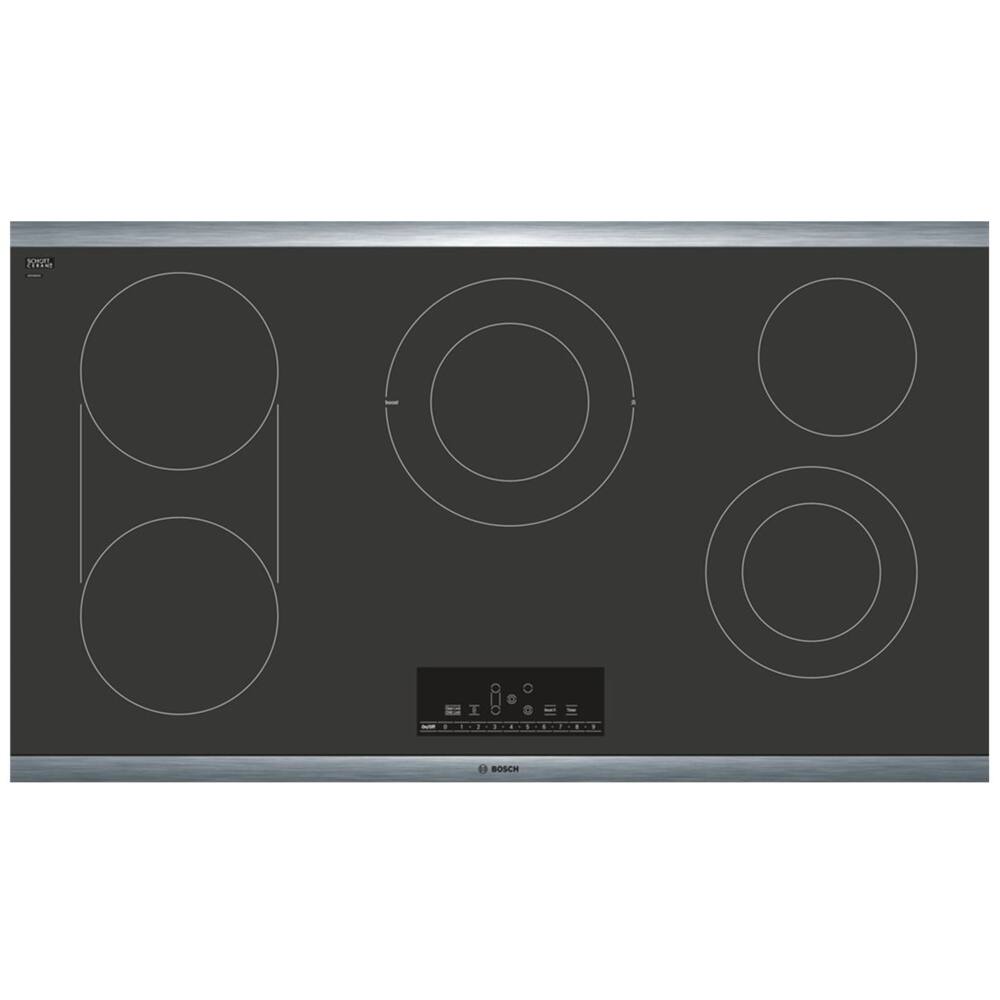

Bosch - 800 Series 36" Built-In Electric Cooktop with 5 elements and Stainless Steel Frame - Black/Silver
- Key Specs
- Color Finish: Stainless steel
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 5
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NET8668SUC
- Product Name: 800 Series 36" Built-In Electric Cooktop with 5 elements and Stainless Steel Frame
- Color: Black/Silver
- Color Finish: Stainless steel
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 37 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 30.8647 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 34 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Digital
- Control Location: Top
- Digital Display: true
- Power-On Indicator Light(s): true
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 5
- Number of Elements: 5
- Bridge Element: true (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): none
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Electrical Specification
- Wattage: 10200 watts (Measurement of electrical power.)
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225920168
Expand your cooking surface and enjoy outstanding flexibility with this Bosch 36-inch electric cooktop. Five rings enable you to use a wide variety of pots and pans as you recreate your favorite dishes, and ultra-precise cooking settings ensure you can control the heat. SpeedBoost technology heats the cooking surface on this Bosch 36-inch electric cooktop to get you started rapidly.
- Keeps side dishes warm until dinner is ready to be served: 9" warming zone.
- Choose between a 6" or 9" element: Dual-size ribbon element provides a flexible cooking area to accommodate pans of different sizes.
- Accommodates large and oddly shaped pots and pans: Ceramic bridge combines 2 heating elements in 1.
- 5 heating elements: Deliver 800-3600 watts of power for versatile heating options.
- Ceramic cooktop: Provides a smooth surface that makes cleaning fast and simple.
- Kitchen timer: Expertly coordinate large family dinners.
- Keeps side dishes warm until dinner is ready to be served: 9" warming zone.
- Choose between a 6" or 9" element: Dual-size ribbon element provides a flexible cooking area to accommodate pans of different sizes.
- Accommodates large and oddly shaped pots and pans: Ceramic bridge combines 2 heating elements in 1.
- 5 heating elements: Deliver 800-3600 watts of power for versatile heating options.
- Ceramic cooktop: Provides a smooth surface that makes cleaning fast and simple.
- Kitchen timer: Expertly coordinate large family dinners.
Whats Included
- Bosch 800 Series 36" Electric Cooktop
- Owners manual
- Bosch 800 Series 36" Electric Cooktop
- Owners manual
Q: what is the amp of this bosch 36" electric cooktop?
A: Hi Today99. Thank you for your question. Model NET8668UC requires 50A.
Q: What is the cut out out measurements? Need to cut counter top, need to see if it will fit
A: the cut out is 19 7/8 by 34 3/4
A: Hi, both of these are available under the "manuals" tab for this appliance on the Bosch website. We hope this helps!
Q: Where is this product made/assembled?
A: Hi 305FL954, thanks for your question. Our parent company, BSH Home Appliances, has a global network of manufacturing facilities from which Bosch products are engineered and built. With few exceptions, the majority of Bosch products for the North American marketplace are manufactured in our facilities in New Bern, North Carolina and La Follette, Tennessee. Products requiring specialized expertise are manufactured within our global network and built to our specifications.
Q: How do heat numbers align with heat. Is number 6 medium heat?
A: Hi Ace, thanks for your question. When selecting the desired heat level of the NET8668UC the elements can be set between heat level 1 (minimum power) to heat level 9 (maximum power), and each heat setting has an intermediate level as well.
Q: Are there any Bosch' 36" electric cooktops (with downdraft) that require only 30 amps?
A: Hi Today99. Thank you for your question. The 500 Series 36” Electric Cooktop is 40A and the 800 Series 36” Electric Cooktop is 50A.
Q: what is the exact cutout measurements? thanks so much.
A: Joey - see page 3 of the spec sheet. Per my contractor (who happens to be here and will be installing this cook-top in about 2 weeks), 37" (width) x 21.26" (depth) is what's on the spec sheet. We'll be installing granite counter tops so "your measurements may vary" medium depending. good luck!
