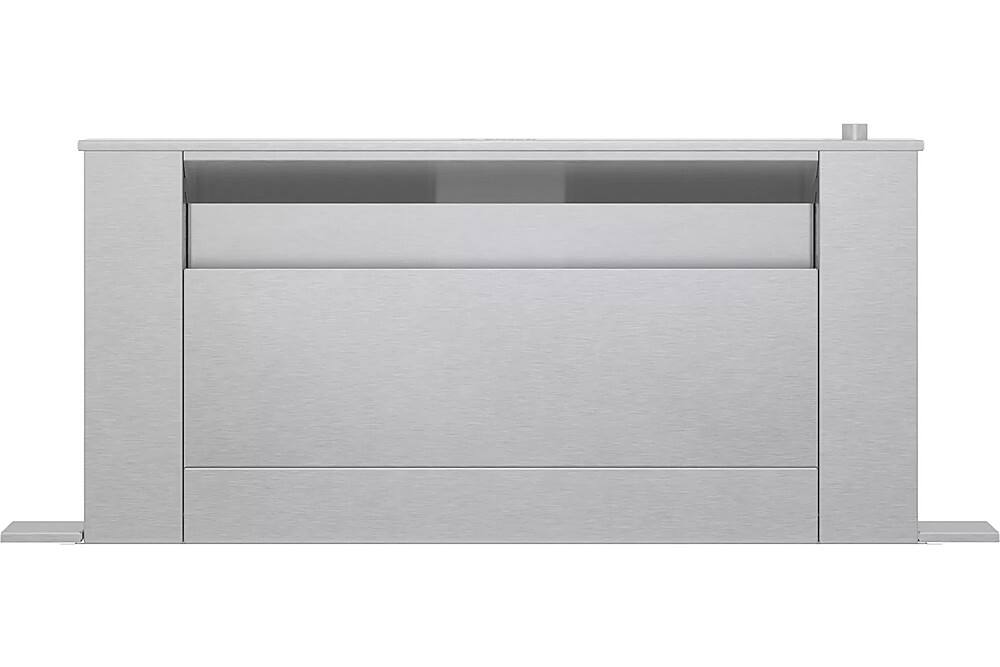

Bosch 800 Series - 37 inches - Convertible & Recirculating - Telescopic Downdraft Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 29 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Bosch
- Model Number: HDD80051UC
- Product Name: 800 Series 30" Telescopic Downdraft System
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 29 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 37 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 37 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 8 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Telescoping: true (Make the most of your space with a range hood that can raise up for operation and then retract when not in use.)
- Range Hood Type: Downdraft
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Dial
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): false
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 145 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 10 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 825225960867
Maintain an odor-free kitchen with this Bosch stainless steel downdraft ventilation. The easy-to-use knob control allows for smooth operation of the three-speed fan, letting you pick the ideal power level. This Bosch stainless steel downdraft ventilation includes mesh filters to maximize grease capture without impeding airflow and is easy to clean.
- Telescopic downdraft hood: Retracts when not in use.
- Integrated knob controls: Provide easy fan speed adjustment.
- Convertible to non-vented operation: Bosch offers flexible installation options.
- Up to 600 cfm exhaust capacity: This downdraft system quickly pulls smoke and cooking odors out of the air.*
- Removable dishwasher-safe mesh filters: Make cleanup quick and simple.
- Stainless steel finish: Creates a sleek, stylish look.
- Three fan speeds: Can be easily adjusted to accommodate the current exhaust needs.*
- Telescopic downdraft hood: Retracts when not in use.
- Integrated knob controls: Provide easy fan speed adjustment.
- Convertible to non-vented operation: Bosch offers flexible installation options.
- Up to 600 cfm exhaust capacity: This downdraft system quickly pulls smoke and cooking odors out of the air.*
- Removable dishwasher-safe mesh filters: Make cleanup quick and simple.
- Stainless steel finish: Creates a sleek, stylish look.
- Three fan speeds: Can be easily adjusted to accommodate the current exhaust needs.*
Whats Included
- Bosch 800 Series 30" Telescopic Downdraft System
- Owner's manual
- Bosch 800 Series 30" Telescopic Downdraft System
- Owner's manual
Q: What is the maximum exhaust capacity of this downdraft system?
A: This downdraft system can reach an exhaust capacity of up to 600 cfm.
Q: What type of filters does this Bosch stainless steel downdraft ventilation use?
A: This unit uses removable, dishwasher-safe mesh filters.
Q: Does this downdraft system retract when not in use?
A: Yes, this is a telescopic downdraft hood that retracts when not in use.
Q: How many fan speeds does this Bosch downdraft ventilation have?
A: This Bosch downdraft ventilation has three fan speeds.
Q: Is it difficult to adjust the fan speed on this Bosch downdraft ventilation?
A: The integrated knob controls make it easy to adjust the fan speed.
A: Hello! Thank you for your question and interest in model #HDD80051UC. As there are six exhaust connections available for the downdraft system, its noise level can vary depending on which connection is used. In working speed, the Sones range from 1.4 to 2.5, while at high speed it ranges from 10.0 to 12.0 Sones. On Bosch's website, you can find the Product Specification Sheet for this model, which provides more detailed information. We hope this information is helpful and thank you for considering Bosch!
A: Hi Patty, thanks for your question and interest in model # HDD80051UC. According to the specifications sheet, this model comes with a power cord. It is a 120V-3 prong plug.
A: Hi MVPMIA, thanks for your question. Owner Manuals can be accessed with your appliance’s Model Number (E-Nr). Please feel free to reach out to our customer care team at 1-800-944-2904 if we may help answer any other questions.
