Bowers & Wilkins - CI700 Series In Wall 3-way Speaker w/4" midrange, dual 6" bass drivers, includes retrofit back box (each) - White
More Buying Options
Related Item
Specifications
- Speaker TypeIn-Wall
- Key Specs
- Speaker Type: In-Wall
- General
- Brand: Bowers & Wilkins
- Model Number: CWM73S2
- Product Name: CI700 Series In Wall 3-way Speaker w/4" midrange, dual 6" bass drivers, includes retrofit back box (each)
- Color: White
- Audio
- Speaker Type: In-Wall
- Peak Power Handling: 200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 45 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 90 decibels
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Midranges: 1
- Midrange Size: 4 inches
- Number of Drivers: 4
- Number of Woofers: 2
- Woofer Size: 6 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 29 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 27.3 pounds (The out of box weight of the item.)
- Mounting Dimensions: 4 Cut out diameter
- Included
- Cable(s) Included: None
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 714346332151

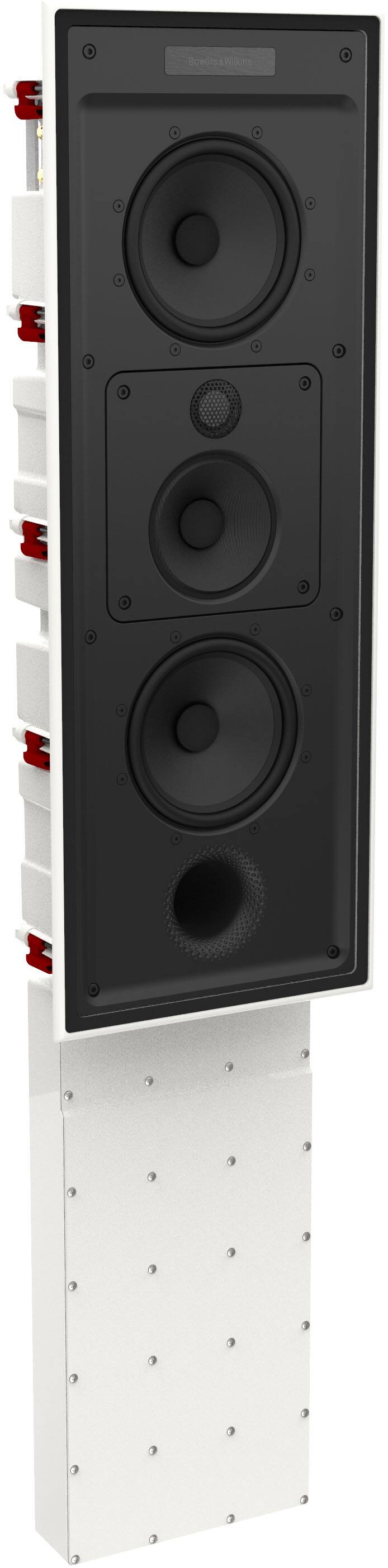

The CWM7.3 S2 features an integrated backbox that optimises its performance, cuts down on sound transference through walls and also makes it easy to retrofit. Its design incorporates twin 6" Aerofoil profile bass drivers, a 4" Continuum cone FSTmid-range driver and a Carbon Dome 1" tweeter, all proven technologies shared with the acclaimed 700 Series range of loudspeakers. These outstanding tranducers, when combined with high-quality, optimised, components on the crossover and a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, produce a truly remarkable in-wall speaker. Bowers & Wilkins CI700 S2 Series of in-ceiling and in-wall speakers improves on the CI600 range by adding next generation technology such as Continuum drivers and Carbon Dome Tweeters. Upgraded materials in the cabinetry further improve performance and bring CI700 S2 closest to our in-room speakers in sound quality.
- 1" carbon tweeter: Pinpoint imaging accuracy and detail resulting from a Carbon Coating on our aluminum Double Dome Tweeter. The closest performance to our Diamond Dome Tweeters.
- 4" Continuum Midrange: Continnum is a woven material that blends control with flexibility. The result is breathtaking clarity right where you need it most- the midrange. Hear voices, guitars and other instruments in a whole new way.
- Dual 6" Aerofoil Profile Bass: Bass drivers need to be light, stiff and not ring like a bell. Aerofoil features incredibly light materials molded into a shape resembling an airplane wing for optimal performance. Instead of hearing one-note bass, you'll hear colors and textures with power and control
- Paintable Magnetic Grill: Paintable to match your décor
- Die-cast Chassis: Cleaner, faster bass.

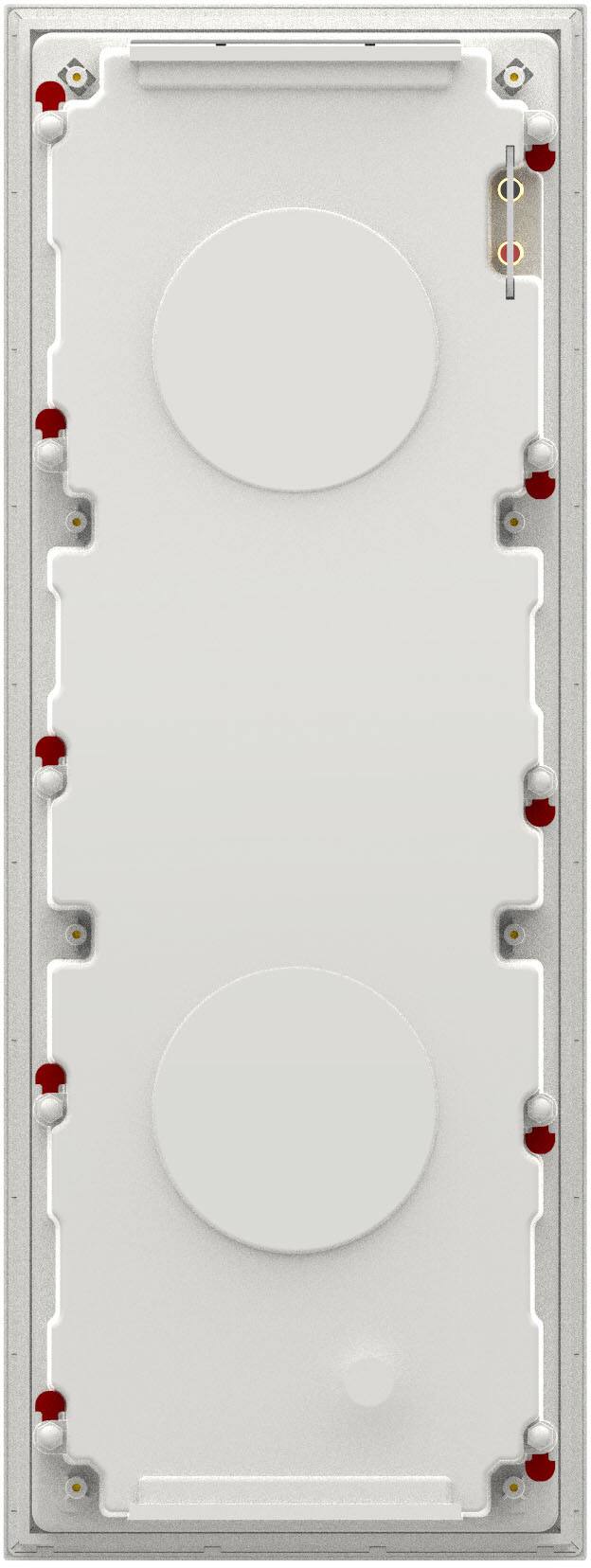

- Resevoir Backbox: The ABS front baffle and backbox dramatically improves rigidity. The hinged retrofitable Resevoir backbox enables the kind of bass performance you get from floor-standing speakers. You'll enjoy clearer vocals with big, dynamic bass without a complicated installation.
- 28" x 9.9" Cutout: 4.02" Depth behind drywall
- 1" carbon tweeter: Pinpoint imaging accuracy and detail resulting from a Carbon Coating on our aluminum Double Dome Tweeter. The closest performance to our Diamond Dome Tweeters.
- 4" Continuum Midrange: Continnum is a woven material that blends control with flexibility. The result is breathtaking clarity right where you need it most- the midrange. Hear voices, guitars and other instruments in a whole new way.
- Dual 6" Aerofoil Profile Bass: Bass drivers need to be light, stiff and not ring like a bell. Aerofoil features incredibly light materials molded into a shape resembling an airplane wing for optimal performance. Instead of hearing one-note bass, you'll hear colors and textures with power and control
- Paintable Magnetic Grill: Paintable to match your décor
- Die-cast Chassis: Cleaner, faster bass.
- Resevoir Backbox: The ABS front baffle and backbox dramatically improves rigidity. The hinged retrofitable Resevoir backbox enables the kind of bass performance you get from floor-standing speakers. You'll enjoy clearer vocals with big, dynamic bass without a complicated installation.
- 28" x 9.9" Cutout: 4.02" Depth behind drywall
Whats Included
- Speaker
- speaker grill
- backbox
- cut-out template
- paint mask.
- resevoir box
- Speaker
- speaker grill
- backbox
- cut-out template
- paint mask.
- resevoir box
Q: What is the size of the cutout required for these speakers?
A: The cutout size required for these speakers is 28 inches by 9.9 inches.
Q: How much power can these speakers handle?
A: These speakers have a peak power handling of 200 watts.
Q: What is the benefit of the Aerofoil bass drivers?
A: The Aerofoil bass drivers are designed to be light and stiff, which allows them to produce clear and detailed bass without unwanted ringing.
Q: What is the diameter of the midrange driver in these speakers?
A: These speakers have a 4-inch Continuum cone FST mid-range driver.
Q: Does this speaker system have wireless multi-room audio capabilities?
A: No, this speaker system does not have wireless multi-room audio capabilities.
Q: What is the tweeter material used in these speakers?
A: The tweeter in this speaker uses a carbon material.
Q: how many watts can this speaker handle?
A: Recommended power is 25W-200W.
Q: can this be used as a center channel speaker?
A: The CWM7.3 S2 can be used vertically or horizontally as a center channel speaker. If used horizontally, the midrange/tweeter module can be rotated 90 degrees to maintain the correct orientation of the tweeter above the midrange drive unit.
