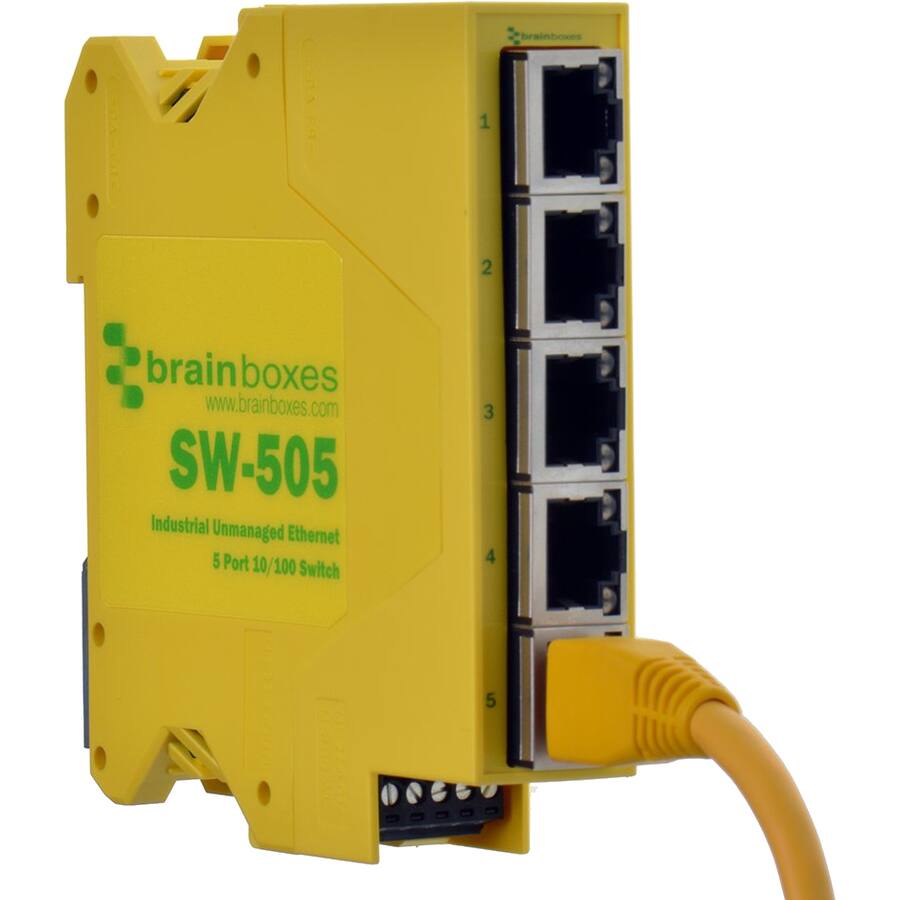

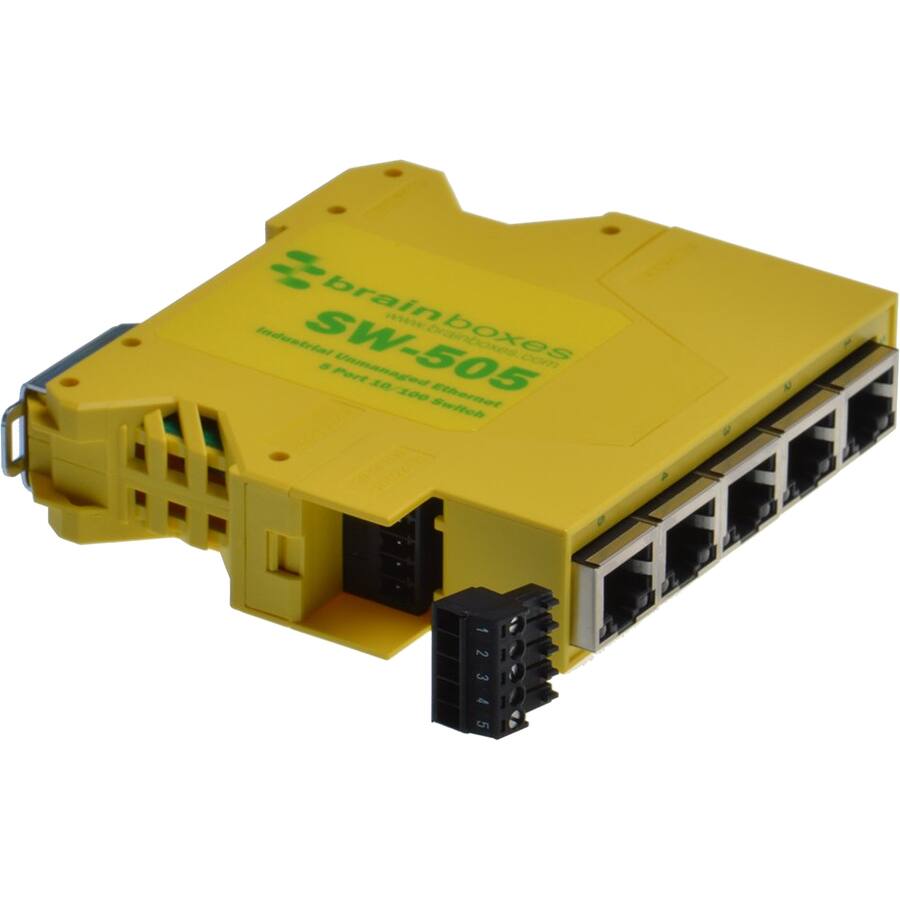

Brainboxes - Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable - 5 Ports - Fast Ethernet - 10/100Base-TX - 2 - Black
Reviews coming soon
About this product
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. More from the Manufacturer
Features
Brainboxes Industrial Compact Ethernet 5 Port Switch DIN
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is
Dual Power Inputs
Supports +5V to +30V DC, allowing flexibility in power sourcing.
Compact Design
Measures 0.9" in height, 3.7" in width, and 3.9" in depth, ideal for space-constrained installations.

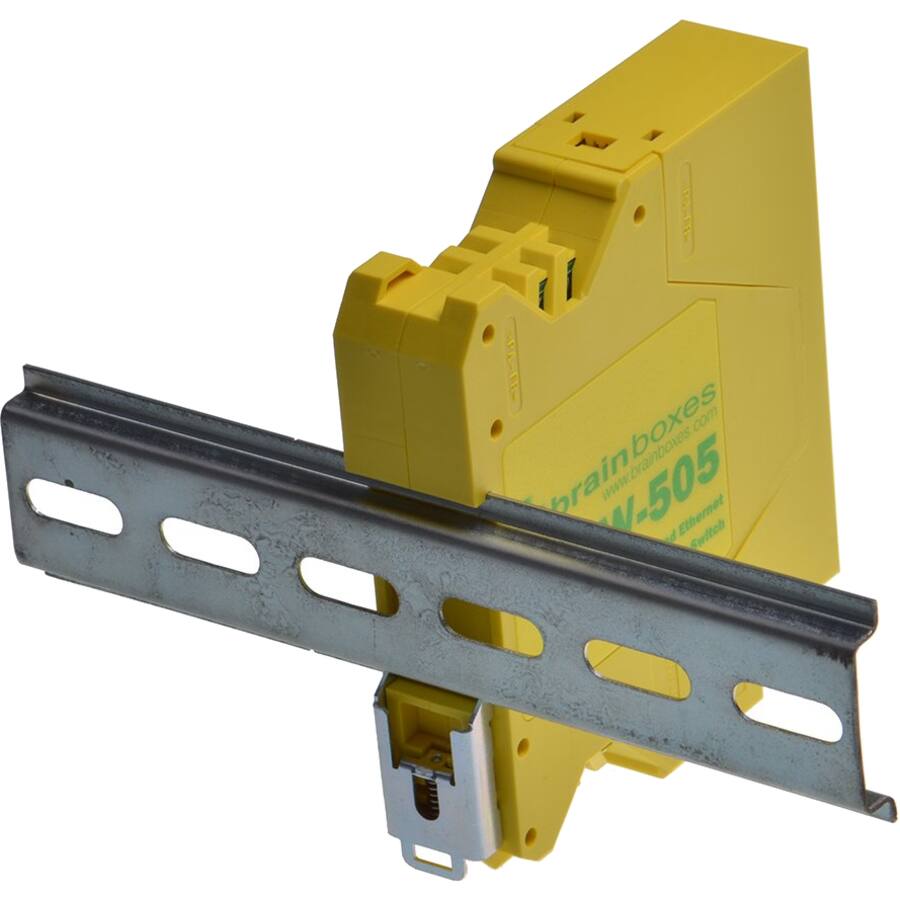

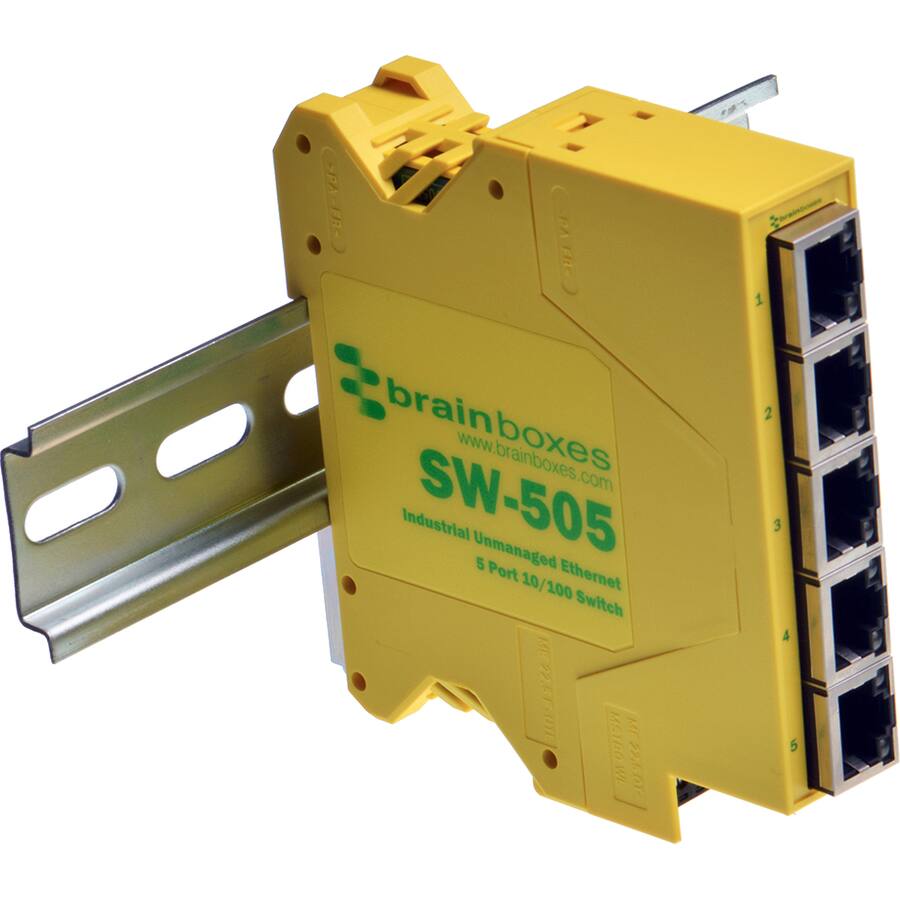

DIN Rail Mountable
Designed for easy mounting on DIN rails, facilitating straightforward installation.
Lifetime Warranty
Comes with a lifetime limited warranty, ensuring long-term reliability.
Specifications
- Number of LAN Ports5
