Cable Leader - 4K High-Speed HDMI Fiber Optic Cable AOC, HDMI 2.0 18Gbps Plenum CMP-Rated UL for Commercial Ceiling Runs - Black
Reviews coming soon
About this product

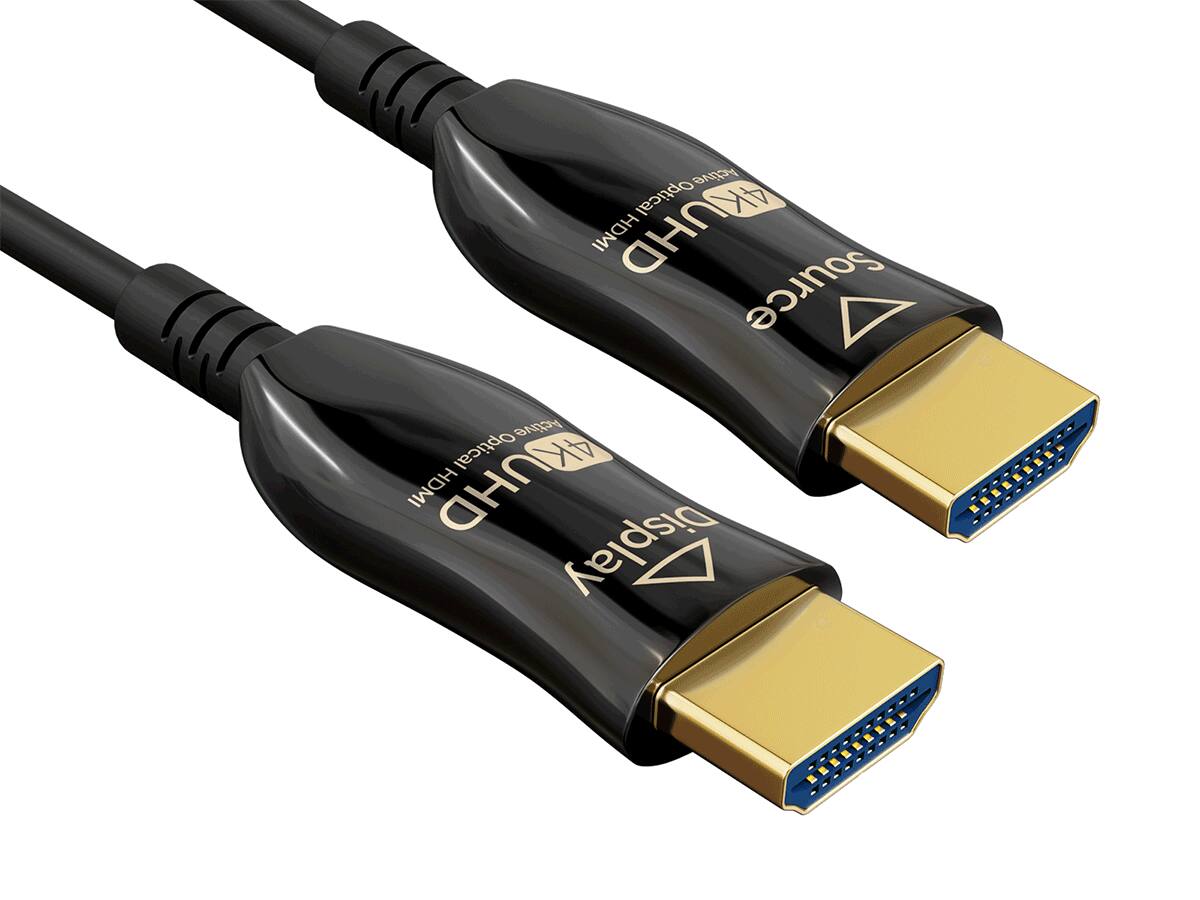

Running HDMI through a commercial drop ceiling that doubles as a return-air plenum, over 50, 100, or 150 feet — and copper cables fail both fire code and 4K signal integrity? NEC requires CMP plenum-rated cabling above suspended ceilings, and copper HDMI can't hold 4K@60Hz past about 50 ft. This Plenum-rated HDMI Fiber Optic AOC solves both: glass fibers carry the 4K HDMI 2.0 signal cleanly over the full run, and the UL Listed CMP jacket meets NEC code for installation in air-handling spaces. Built with multi-fiber optical construction, gold-plated HDMI connectors, and a UL Listed Plenum CMP-rated jacket. Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, conference room displays, ceiling-mounted projectors, classroom TVs, and digital signage installs — directional cable: the SOURCE end must connect to the source device. Supports 4K@60Hz, HDR10, ARC, CEC, and HDMI 2.0 features at up to 18 Gbps. Best for: commercial above-ceiling installs, classroom AV, conference rooms, and digital signage. Not for: 8K, 4K@120Hz, or outdoor exposure. RoHS compliant.
Cable Length
65'Features
Above-Ceiling Plenum Runs — Code-Compliant + 4K@60Hz
Pulling HDMI above a commercial drop ceiling? NEC 800.179 requires CMP-rated cabling for return-air plenum spaces — standard and CL2/CL3 cables fail inspection. Glass-fiber construction also holds 4K@60Hz over 100+ ft where copper drops out. UL Listed CMP jacket meets the code; fiber holds the signal.

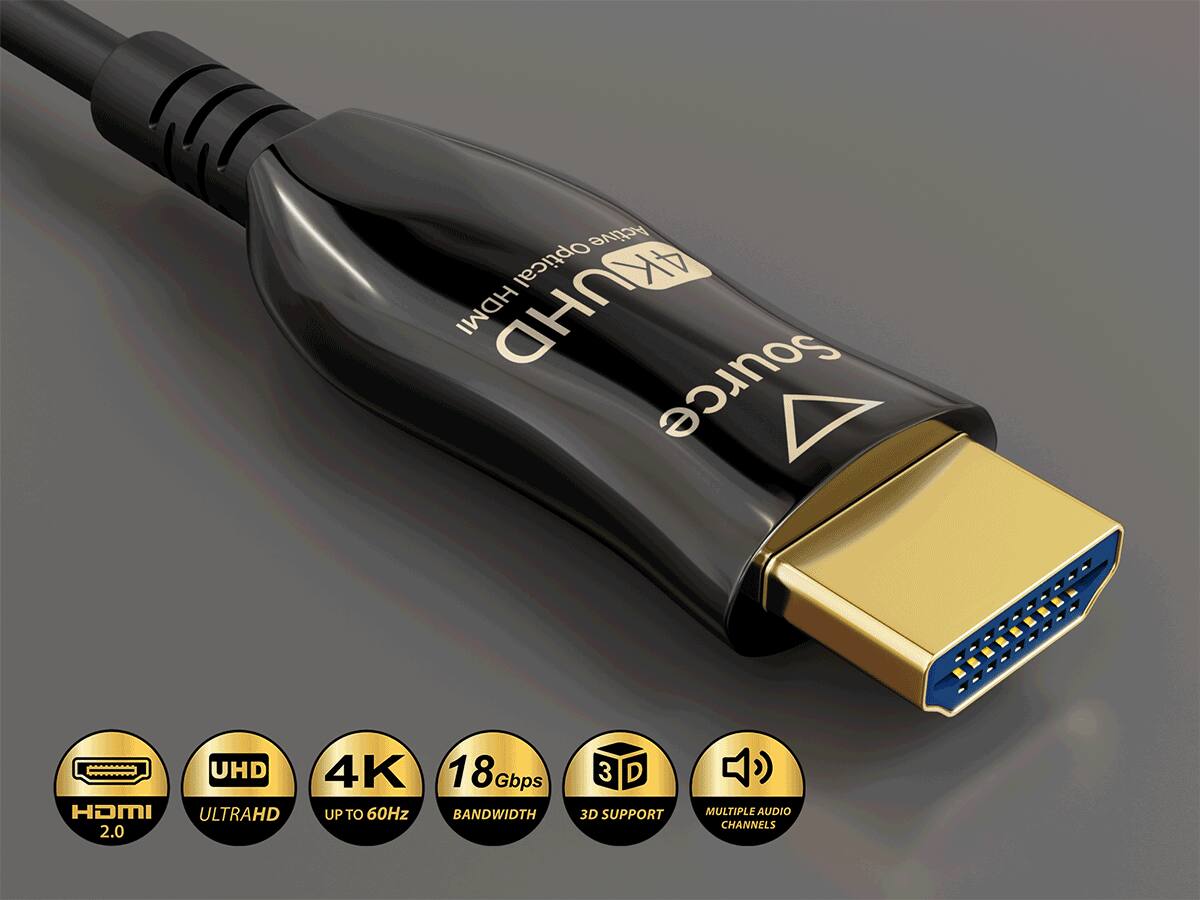

4K Ultra HD at 60Hz with HDR10 — Full HDMI 2.0 18 Gbps
Rated to HDMI 2.0 with 18 Gbps bandwidth. Carries 4K Ultra HD at 60Hz, 4K@30Hz, 1080p at 120Hz, HDR10 dynamic range, Audio Return Channel, CEC remote pass-through, and 4:4:4 chroma sub-sampling for sharp text and PC content over long projector runs.

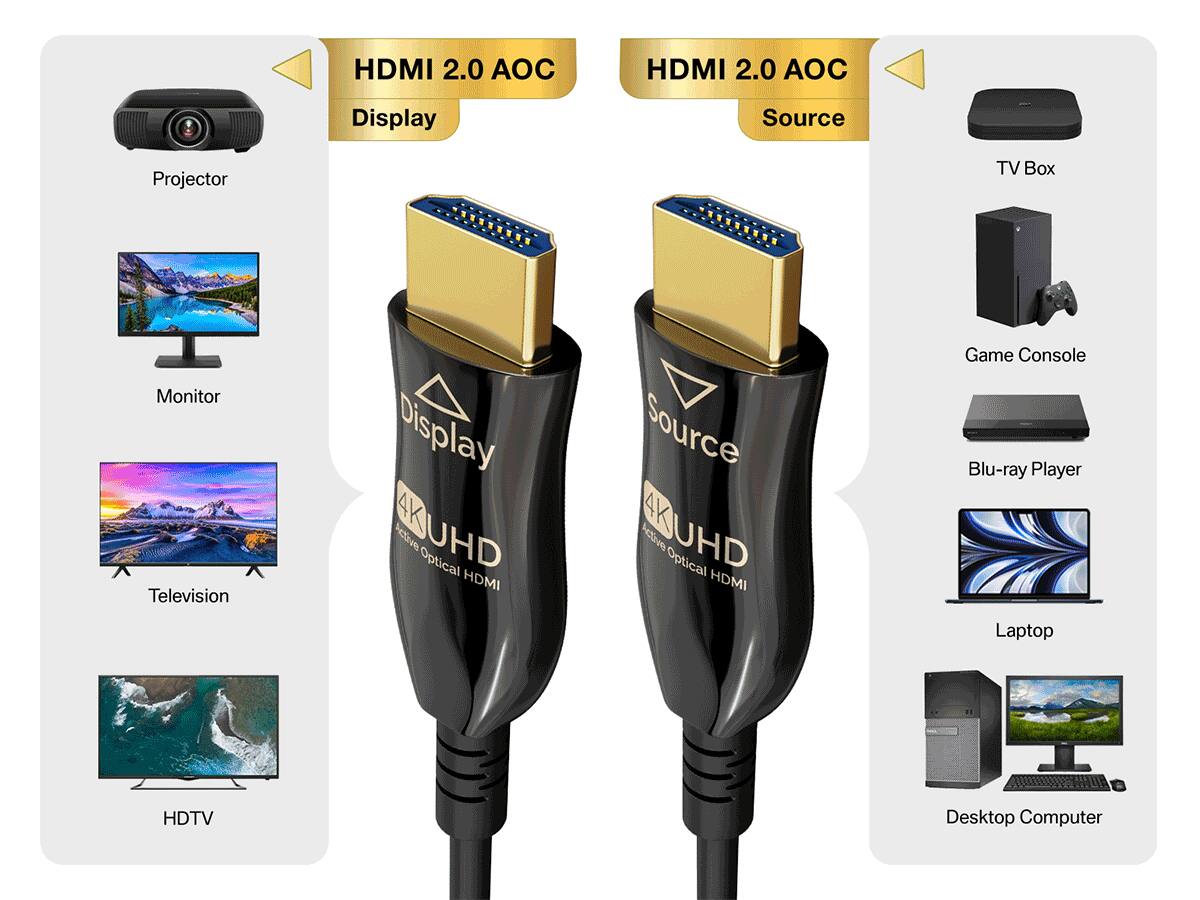

Works with PS5, Xbox, AV Receivers, Conference Displays
Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, ceiling-mounted projectors, conference room displays, classroom TVs, and digital signage media players. Quick check: 150 ft commercial plenum run — Yes; residential in-wall — Yes (or use cheaper CL3 AOC); 4K@120Hz / 8K — No, use HDMI 2.1 AOC; outdoor — No.

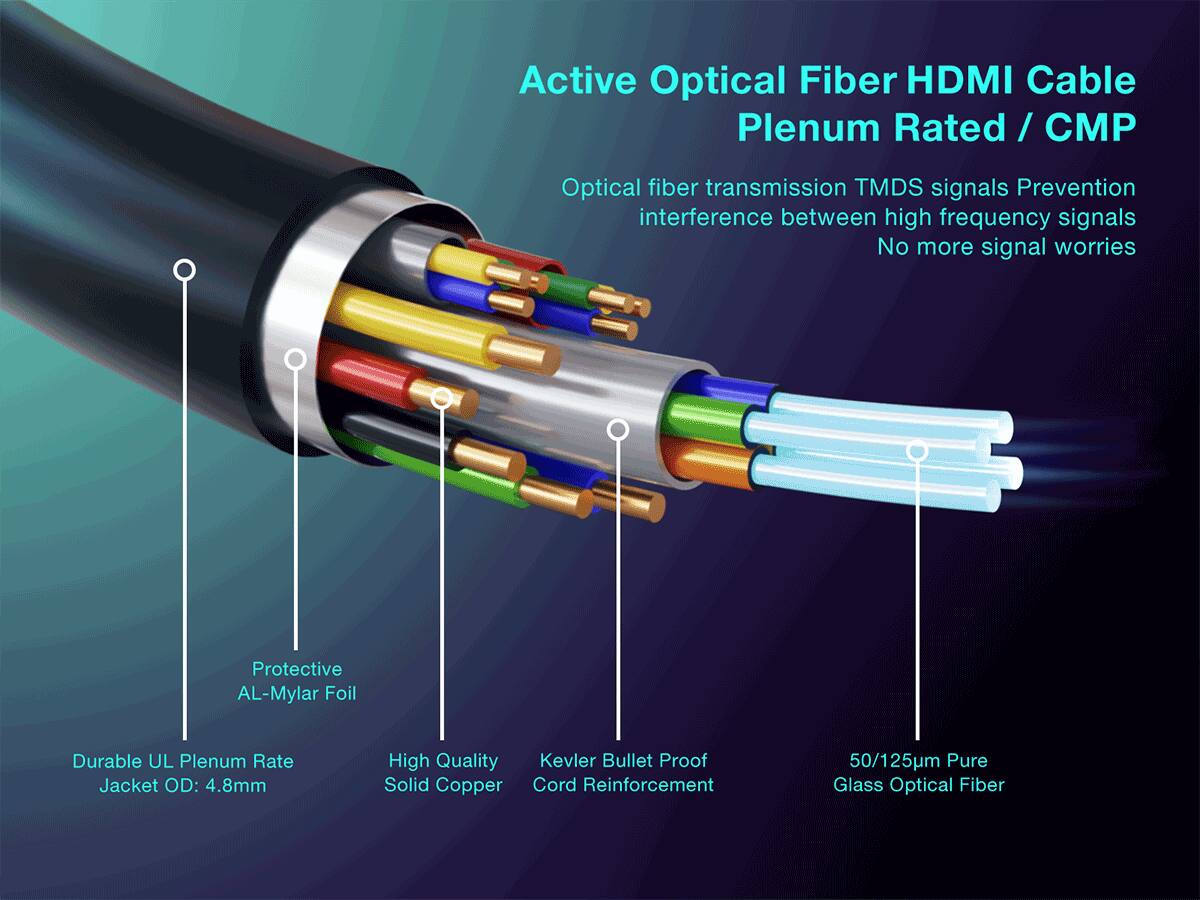

Multi-Fiber Core, UL Plenum CMP Jacket, Gold Connectors
Multi-fiber optical core carries high-bandwidth video over distance copper cannot match. UL Listed Plenum CMP jacket meets fire code for return-air spaces. Gold-plated 19-pin HDMI connectors with reinforced strain relief resist pull-through during long ceiling pulls. Bend radius rated for typical ceiling installs.
Sample-Tested Production — Cable Leader Direct Support
Each cable is sample-tested during production for fiber continuity, signal integrity, and CMP jacket compliance. UL Listed and manufactured to RoHS environmental standards. If a cable arrives defective or stops working in normal use, Cable Leader handles replacement requests directly — no manufacturer redirects.

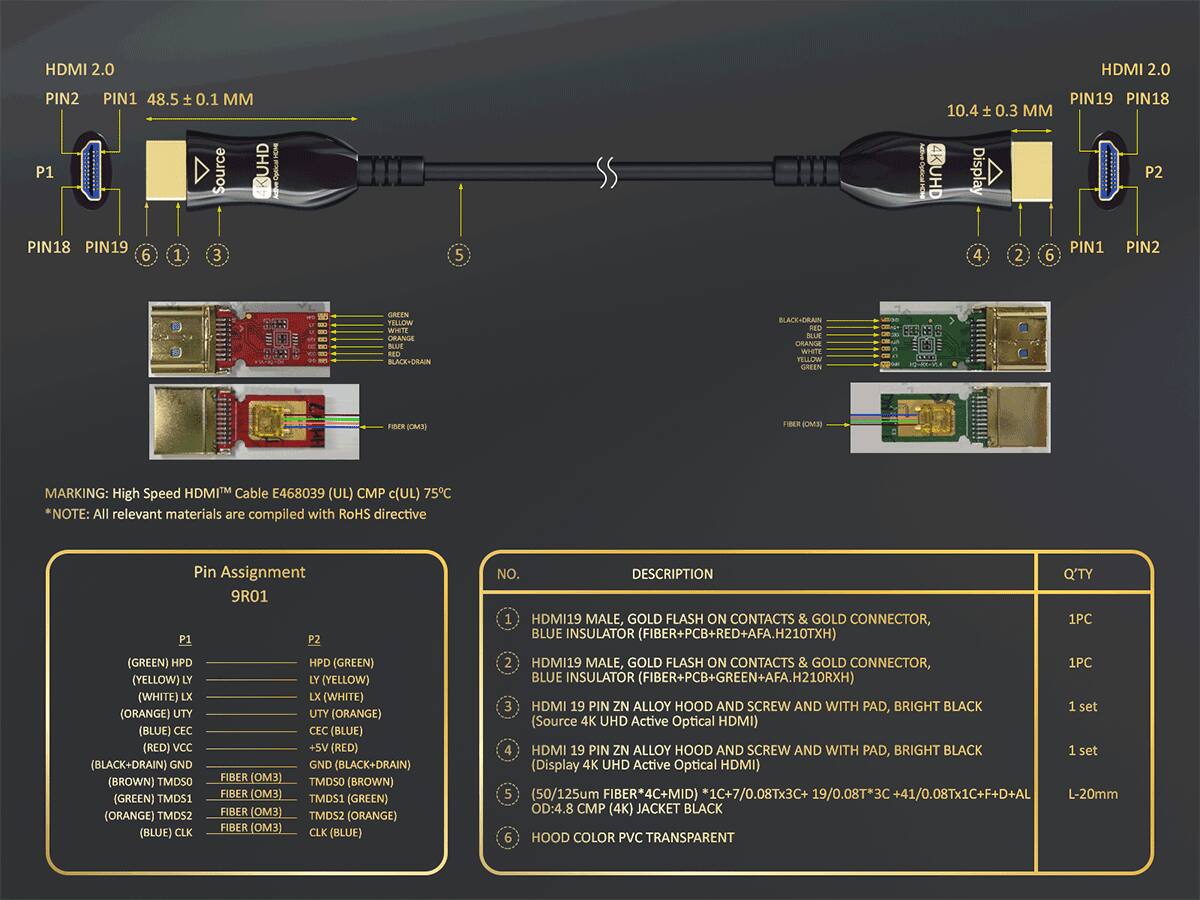

Specifications
- Cable Length65 feetHDMI Cable TypePremium High Speed HDMI Cable with EthernetConnector Type (End 1)HDMI Type AGender (End 1)MaleConnector Type (End 2)HDMI Type AGender (End 2)Male
Reviews
This product doesn't have any reviews yet.
Compare similar products
Running HDMI through a commercial drop ceiling that doubles as a return-air plenum, over 50, 100, or 150 feet — and copper cables fail both fire code and 4K signal integrity? NEC requires CMP plenum-rated cabling above suspended ceilings, and copper HDMI can't hold 4K@60Hz past about 50 ft. This Plenum-rated HDMI Fiber Optic AOC solves both: glass fibers carry the 4K HDMI 2.0 signal cleanly over the full run, and the UL Listed CMP jacket meets NEC code for installation in air-handling spaces. Built with multi-fiber optical construction, gold-plated HDMI connectors, and a UL Listed Plenum CMP-rated jacket. Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, conference room displays, ceiling-mounted projectors, classroom TVs, and digital signage installs — directional cable: the SOURCE end must connect to the source device. Supports 4K@60Hz, HDR10, ARC, CEC, and HDMI 2.0 features at up to 18 Gbps. Best for: commercial above-ceiling installs, classroom AV, conference rooms, and digital signage. Not for: 8K, 4K@120Hz, or outdoor exposure. RoHS compliant.
Wiring an 8K commercial display, conference room 8K wall, or 4K@120Hz simulator above a return-air plenum ceiling — and copper HDMI 2.1 can't carry 48 Gbps past 10 ft, while CL3 fails plenum fire code? NEC requires CMP plenum-rated cabling for return-air spaces, and copper HDMI 2.1 simply doesn't reach the distances commercial AV needs. This Ultra High-Speed 8K HDMI 2.1 Plenum Fiber Optic AOC solves both: glass fibers carry the full 48 Gbps over long runs, and the UL Listed CMP jacket meets NEC code for installation in air-handling spaces. Built with multi-fiber optical construction, gold-plated HDMI connectors, and a UL Listed Plenum CMP-rated jacket. Compatible with PS5, Xbox Series X/S, RTX 30/40 series GPUs, 8K commercial displays, 4K@120Hz simulator setups, eARC AV receivers, and any HDMI 2.1 device — directional cable: the SOURCE end must connect to the source device. Supports 8K@60Hz, 4K@120Hz, dynamic HDR, VRR, ALLM, eARC at up to 48 Gbps. Best for: commercial 8K above-ceiling installs, 4K@120Hz simulator centers, and high-end conference AV. Not for: outdoor exposure. RoHS compliant.
Running an HDMI cable 50, 100, or 150 feet from media rack to a wall-mounted TV — and copper cables can't carry 4K@60Hz that far without failing? Pure copper HDMI loses too much signal past about 50 ft for clean 4K@60Hz. This 4K HDMI Fiber Optic Active Optical Cable (AOC) carries video over glass fibers, holding the full 4K@60Hz HDMI 2.0 signal over runs that copper simply can't handle. UL Listed with a CL3-rated jacket for code-compliant residential in-wall installation. Built with multi-fiber optical construction, gold-plated HDMI connectors, and a CL3-rated PVC jacket. Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, wall-mounted TVs, ceiling-mounted projectors, and home theater installs — directional cable: the SOURCE end must connect to the source device. Supports 4K@60Hz, HDR10, ARC, CEC, and HDMI 2.0 features at up to 18 Gbps. Best for: long in-wall home theater runs to far-wall TVs and ceiling projectors. Not for: plenum spaces (use Plenum AOC), 8K, or 4K@120Hz. RoHS compliant.
Wiring a future-proof home theater for an 8K TV or 4K@120Hz gaming monitor mounted 50 to 150 feet from the media rack — and standard HDMI 2.1 copper cables max out at about 10 ft for the full 48 Gbps? Copper HDMI 2.1 just can't hold 48 Gbps over distance. This Ultra High-Speed 8K HDMI 2.1 Fiber Optic AOC carries the full 48 Gbps bandwidth over glass fibers, holding 8K@60Hz and 4K@120Hz signals over runs copper can't reach. UL Listed with a CL3-rated jacket for code-compliant residential in-wall installation. Built with multi-fiber optical construction, gold-plated HDMI connectors, and a CL3-rated PVC jacket. Compatible with PS5, Xbox Series X/S, RTX 30/40 series GPUs, 8K TVs, 4K@120Hz gaming monitors, AV receivers, and any HDMI 2.1 device — directional cable: the SOURCE end must connect to the source device. Supports 8K@60Hz, 4K@120Hz, dynamic HDR (HDR10+, Dolby Vision), VRR, ALLM, eARC at up to 48 Gbps. Best for: in-wall 8K home theater, long 4K@120Hz gaming monitor runs, and PS5/Xbox Series X room-to-room. Not for: plenum spaces (use Plenum AOC) or outdoor exposure. RoHS compliant.
