Cable Leader - DisplayPort to VGA Cable, 1080p Full HD Latching Male to Male for PC, Laptop to Old Monitor or Projector - Black

Model: DP104
SKU: 12663716

Reviews coming soon

Sold & shipped by

About this product

Got a DisplayPort graphics card and a legacy VGA monitor or conference-room projector that you don't want to replace? This DisplayPort to VGA cable converts the digital DP signal to analog VGA at up to 1920x1200 (1080p Full HD), built into a single cable so there's no separate adapter dangling on the back of your machine. Latching DP connector locks into the port; HD-15 VGA end has captive thumbscrews. Built with 28 AWG tinned copper conductors, integrated active conversion circuitry, and gold-plated DP contacts. Compatible with NVIDIA GeForce, AMD Radeon graphics cards, Dell, HP, Lenovo desktops and laptops, and any HD-15 VGA monitor, projector, or conference-room display. Best for: DP source to analog VGA monitor or projector at up to 1080p Full HD. Not for: VGA-to-DP reverse direction, digital DVI or HDMI displays, or USB-C sources without DisplayPort Alt Mode. RoHS compliant.

Features
  • DP Source to Analog VGA — No Dongle Needed

    Connects a DisplayPort graphics card or laptop directly to a VGA monitor or conference-room projector in a single cable. Built-in active conversion turns the digital DP signal into analog VGA without a separate adapter, removing one connection point that often causes flicker or signal loss.

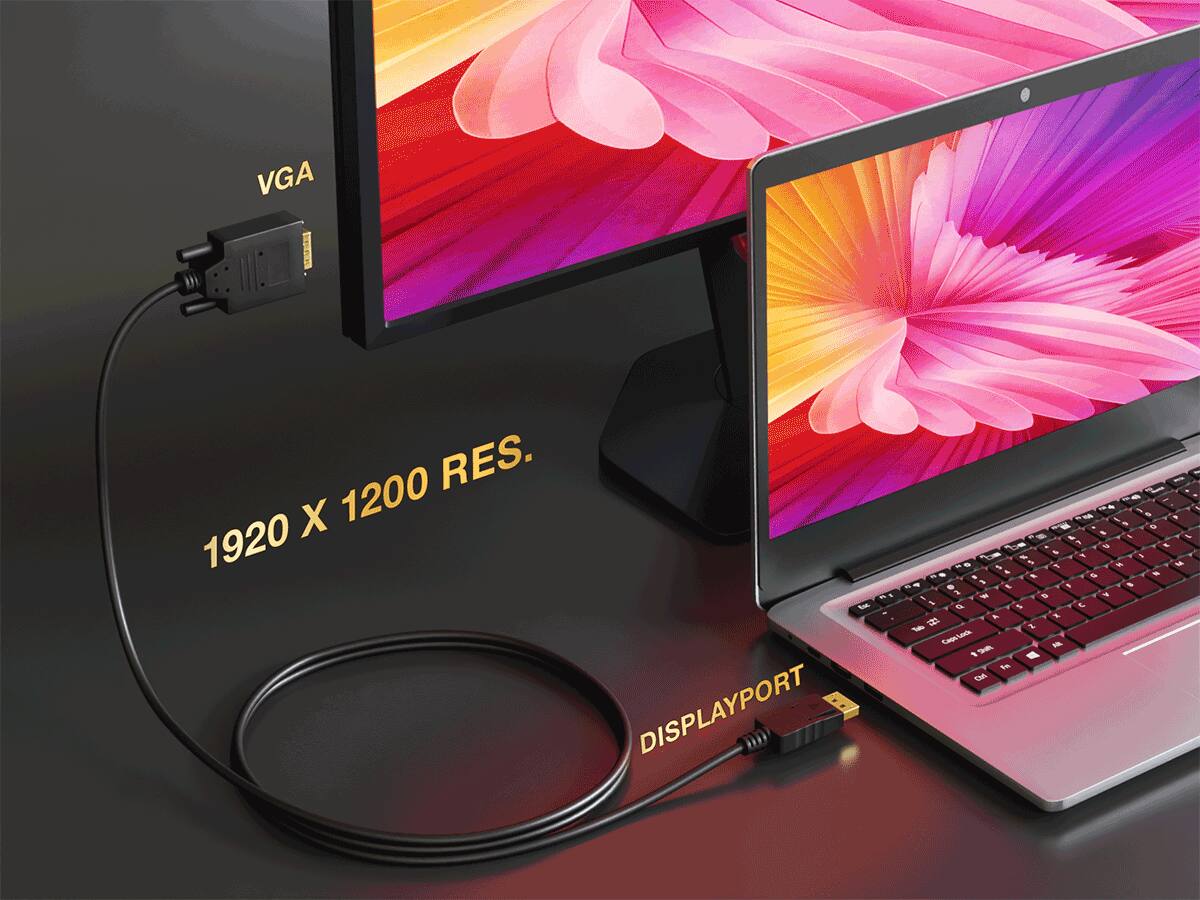

  • 1080p Full HD up to 1920x1200 — Analog VGA

    Carries up to 1920x1200 (1080p Full HD) analog VGA video. Built to VESA DisplayPort and VESA HD-15 VGA specifications. The active circuit draws power from the DP source — no external USB power needed. Note: VGA is analog video only; no audio is carried.

  • Quick Compatibility Check

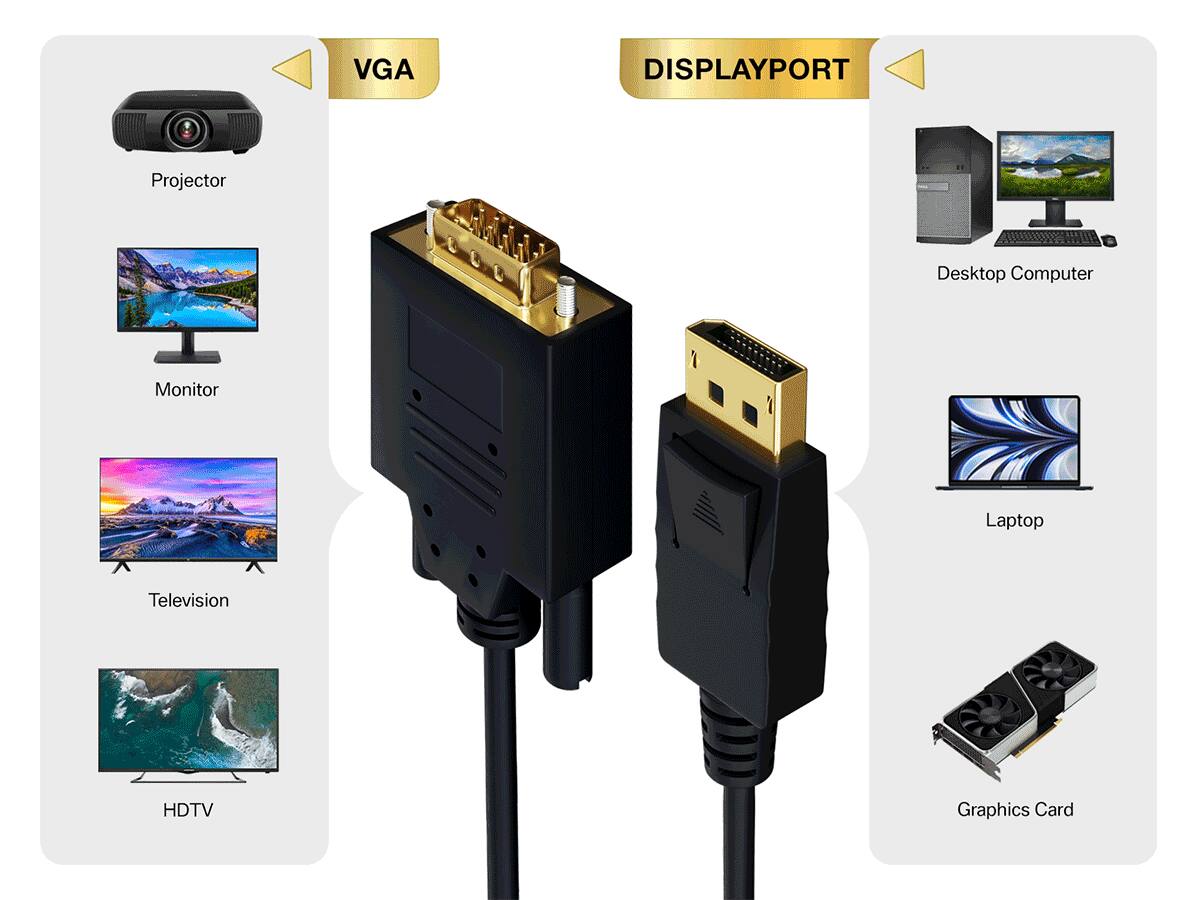

    Works with: NVIDIA GeForce, AMD Radeon, Intel HD/UHD graphics; Dell OptiPlex, HP EliteDesk, Lenovo ThinkCentre desktops; legacy LCD monitors with HD-15 VGA input; conference-room projectors (Epson, BenQ, NEC). Yes — DP++ (DisplayPort++) sources. No — VGA-to-DP reverse. No — USB-C without DP Alt Mode.

  • Latching DP, Captive VGA Thumbscrews

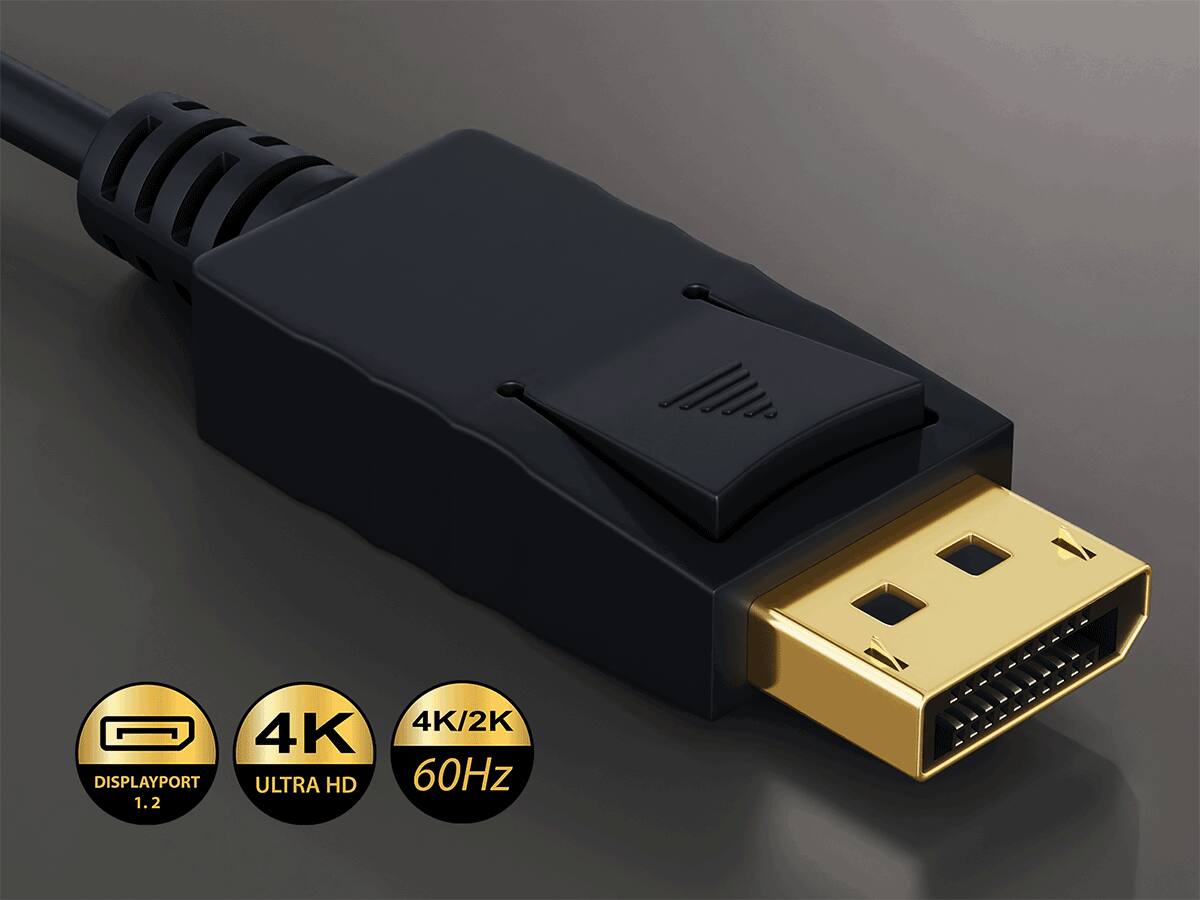

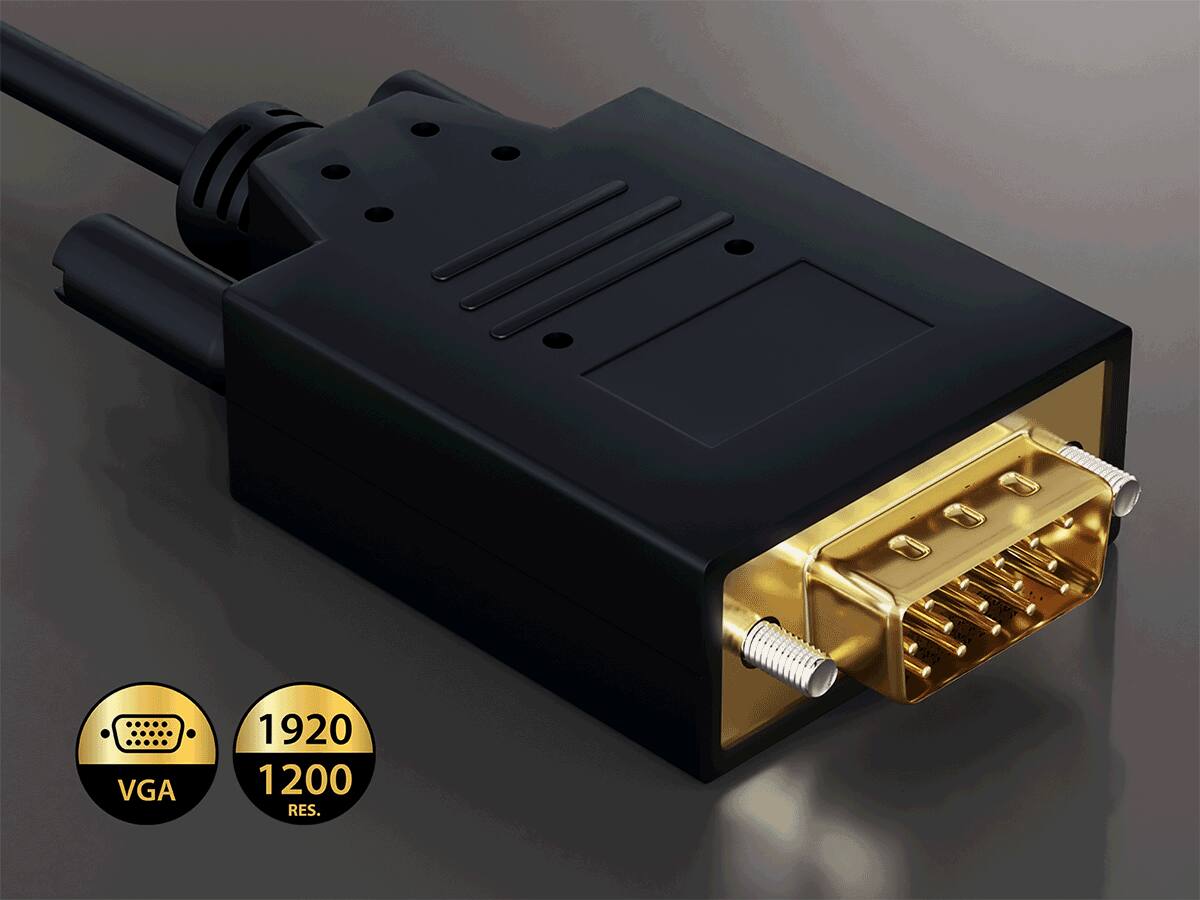

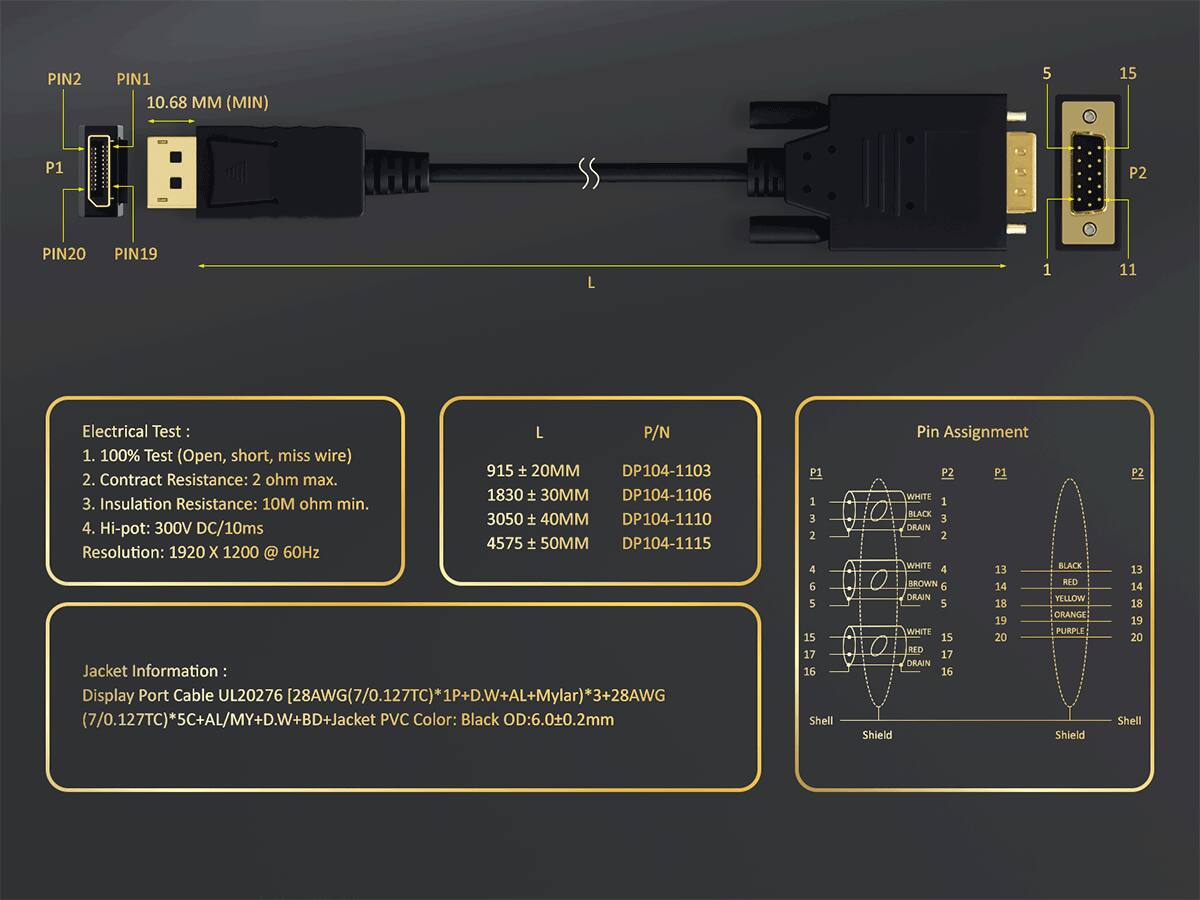

    DisplayPort 20-pin male connector with mechanical latch on one end; HD-15 VGA male connector with captive thumbscrews on the other for a secure projector or wall-plate connection. Gold-plated DP contacts. 28 AWG tinned copper conductors with foil-and-braid shielding to suppress EMI.

  • Sample-Tested Production — Cable Leader Direct Support

    Each cable is sample-tested during production for continuity, conversion stability, and connector retention. Manufactured to RoHS environmental standards (lead, mercury, and cadmium-free). If your cable arrives defective or stops working in normal use, Cable Leader handles replacement requests directly — no manufacturer redirects.

See all features
Specifications
  • Cable Length
    3 feet
    Connector Type (End 1)
    DisplayPort
    Gender (End 1)
    Male
    Connector Type (End 2)
    VGA (HD-15)
    Gender (End 2)
    Male
    In-Wall Rated
    No
